Артикул: 7TAG009910R0072
· Производитель: ABB
· EAN: 5414363057949
7TAG009910R0072
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
310.05 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
432.36 ₽
срок ≈4 мес. (122 дн.)

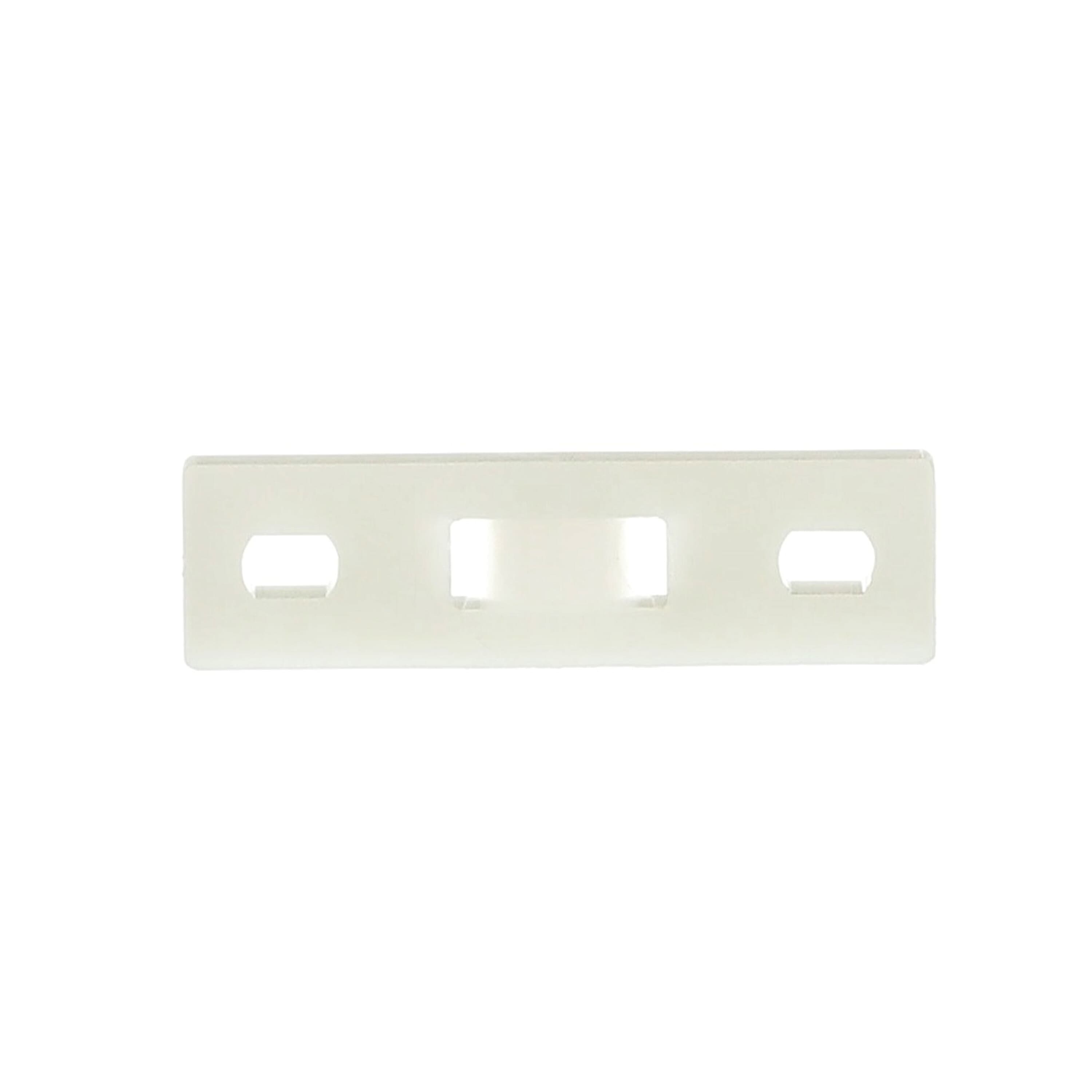

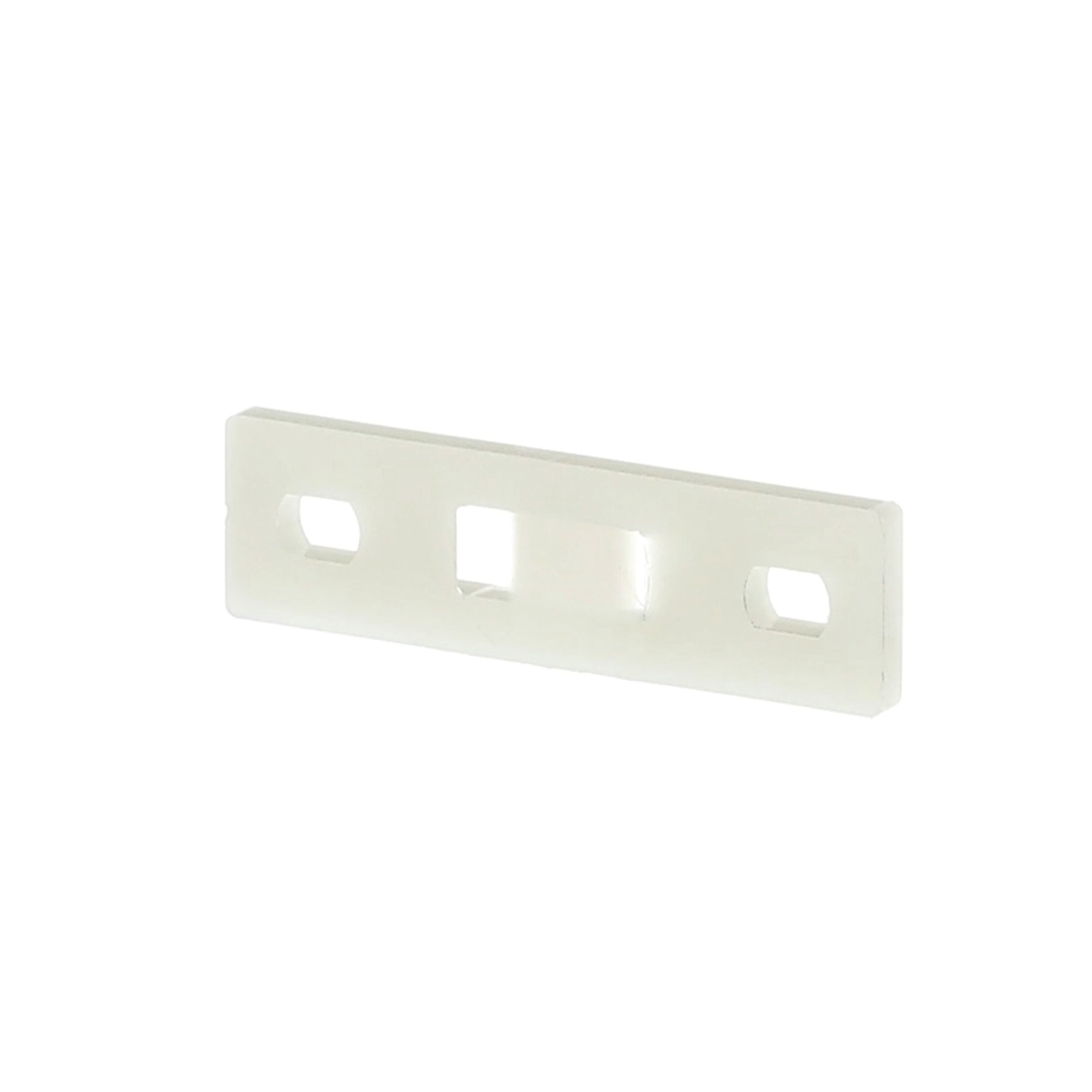

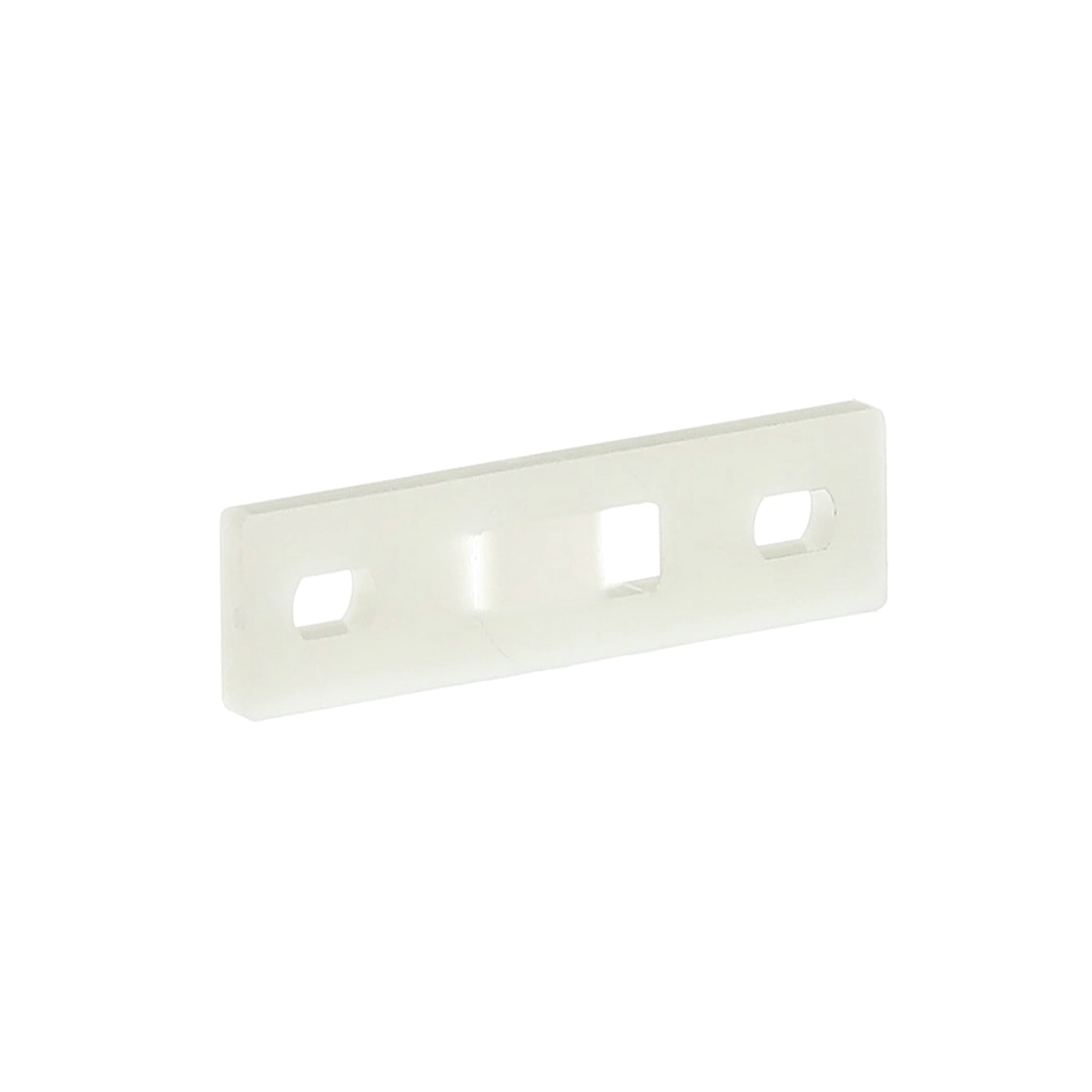

Multiple Bundle Mounting Strip, Natural Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Length of 44mm (1.7 Inches), Width of 12.7mm (0.50 Inch), Thickness of 3.17mm (0.125 Inch), Two-Screw Mounting Method, #6 Screw, Maximum Tie Width 4.82mm (0.19 Inch)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 310.05 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Европе | 432.36 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 477.28 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 477.47 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 522.30 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 527.08 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 576.57 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 681.55 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 709.76 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 752.36 ₽ | ≈1 мес. (59 дн.) | под заказ | от 100 шт. | Заказать |
Характеристики
| countryOfOrigin | United Kingdom |
| countryOfAssembly | United Kingdom |
| countryOfLastProcessing | United Kingdom |
| UPC | 786210826400 |
| Country of Origin | United Kingdom, United States |
| Selling Unit of Measure | each |
| Package Level 1 Units | 100 piece |
| Package Level 2 Units | 500 piece |
| Package Level 2 Width | 4.69 in, 119 mm |
| Package Level 2 Height | 6.2 in, 157 mm |
| Package Level 2 Depth / Length | 6.1 in, 155 mm |
| Brand / Label | Ty-Rap |
| Cable Size | 0.19 in, 4.82 mm |
| Color | Natural |
| Effective Date | 19750903 |
| Material | Nylon/Polyamide 6.6 |
| Mounting Type | Screw |
| Process Temperature Rating | -40 to +185 °F |
| Product Main Type | PERFORMANCE CABLE TIES AND ACCESSORIES |
| Product Name | TY-RAP FASTENING |
| Special Functions | These nylon mounting strips for parallel installation of wire bundles can accommodate up to six closely spaced bundles. |
| Standards | UL E49405 |
| ETIM 7 | EC000449 - Mounting base and -element for cable ties |
| ETIM 8 | EC000449 - Mounting base and -element for cable ties |
| ETIM 9 | EC000449 - Mounting base and -element for cable ties |
| ETIM 10 | EC000449 - Mounting base and -element for cable ties |
| UNSPSC | 39121717 |
| IDEA Granular Category Code (IGCC) | 5065 >> Cable tie mounts |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TC1101 |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
