Артикул: 7TAG009600R0003
· Производитель: ABB
· EAN: 5414363067702
7TAG009600R0003
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
29.49 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
41.14 ₽
срок ≈4 мес. (122 дн.)

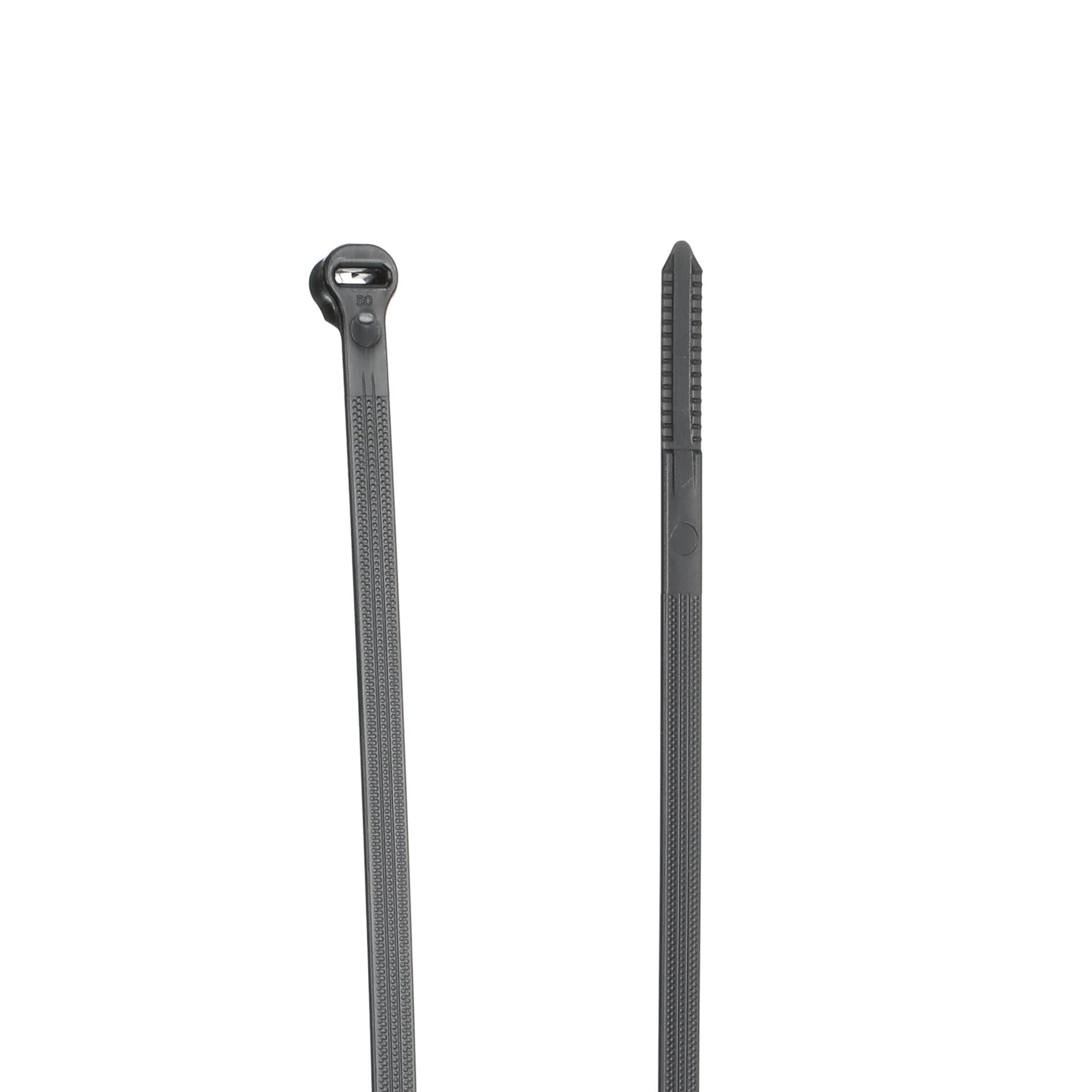

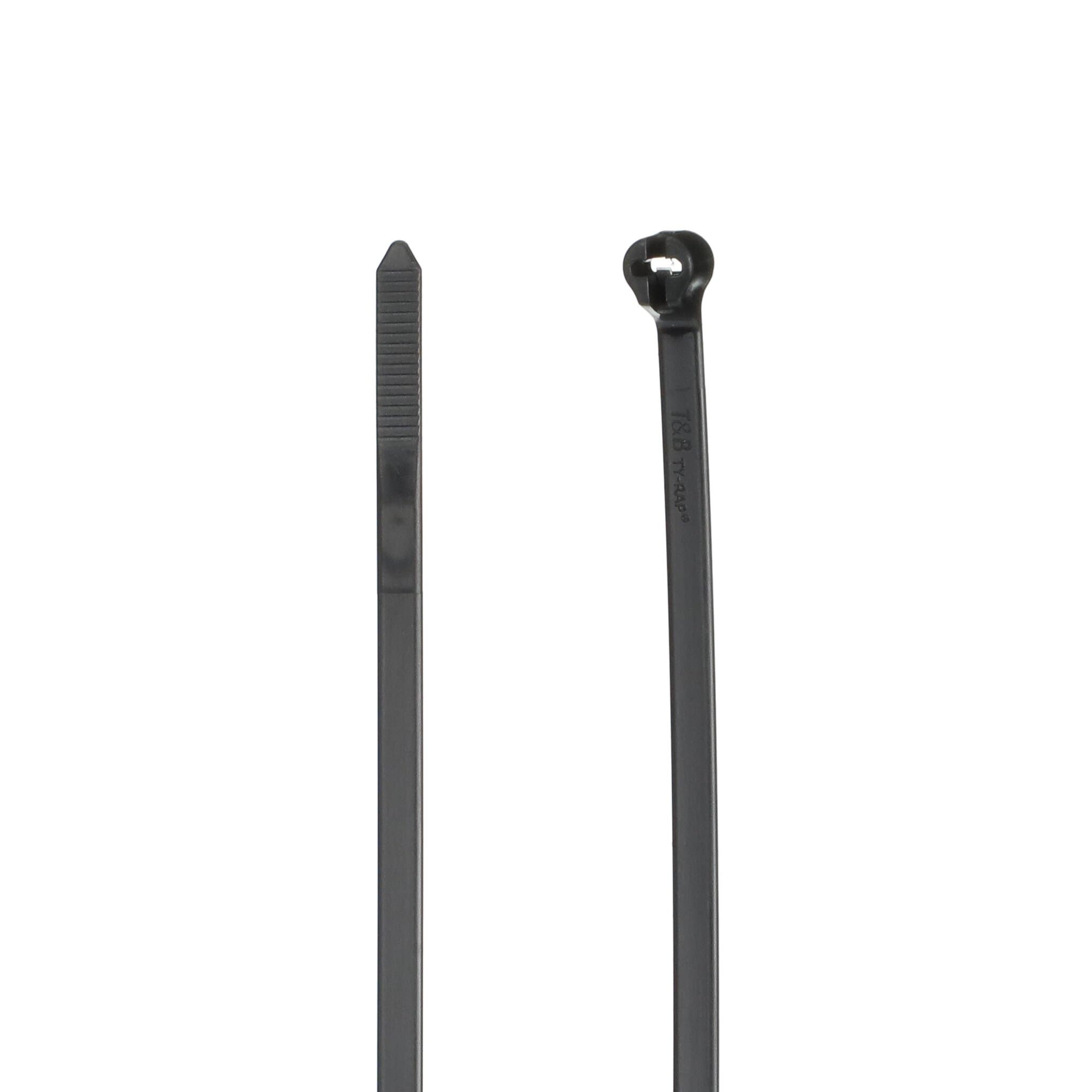

Cable Tie, Black Polypropylene for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 360mm (14.2 Inches), Width of 4.8mm (0.19 Inches), Thickness of 1.3mm (0.05 Inches), Tensile Strength Rating of 180 Newtons (40 Pounds)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 29.49 ₽ | ≈2 мес. (73 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 41.14 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 45.42 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 47.88 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 50.14 ₽ | ≈2 мес. (73 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Китае | 52.85 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 60.58 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 66.87 ₽ | ≈1 мес. (59 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 67.51 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| E-Number (Finland) | 1381502 |
| UPC | 786210825366 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.19 in, 4.8 mm |
| Product Net Depth / Length | 14.2 in, 360 mm |
| Package Level 1 Units | 1000 EA |
| Package Level 1 Width | 355.6 mm, 14 in |
| Package Level 1 Height | 0 mm, 0 in |
| Package Level 1 Depth / Length | 508 mm, 20 in |
| Package Level 2 Units | 5000 EA |
| Package Level 2 Width | 298.45 mm, 11.75 in |
| Package Level 2 Height | 247.65 mm, 9.75 in |
| Package Level 2 Depth / Length | 508 mm, 20 in |
| Package Level 3 Units | 175000 EA |
| Package Level 3 Width | 0.025 mm, 0.001 in |
| Package Level 3 Height | 0.025 mm, 0.001 in |
| Package Level 3 Depth / Length | 0.025 mm, 0.001 in |
| Flammability According to UL94 | HB |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.19 to 4 in, 4.5 to 102 mm |
| Color | Black |
| Effective Date | 19820203 |
| Lock Type | Stainless Steel Barb |
| Material | Polypropylene |
| Product Name | Other |
| Product Type | High Performance |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Tensile Strength | 40 lb, 180 N |
| Thickness | 0.05 in, 1.3 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TYP28MX |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
