Артикул: 7TAG009570R0000
· Производитель: ABB
· EAN: 5414363061526
7TAG009570R0000
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
31.72 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
44.23 ₽
срок ≈4 мес. (122 дн.)

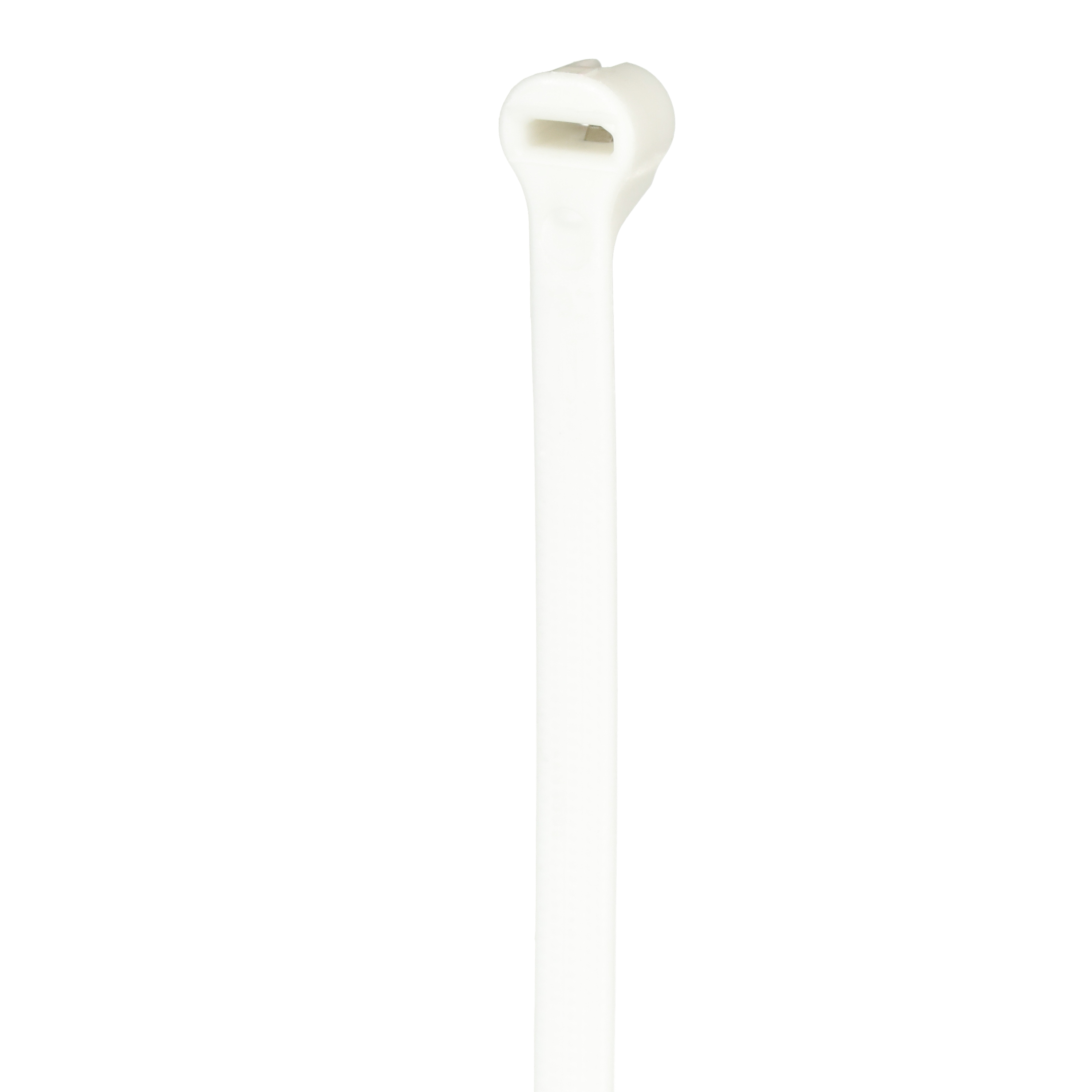

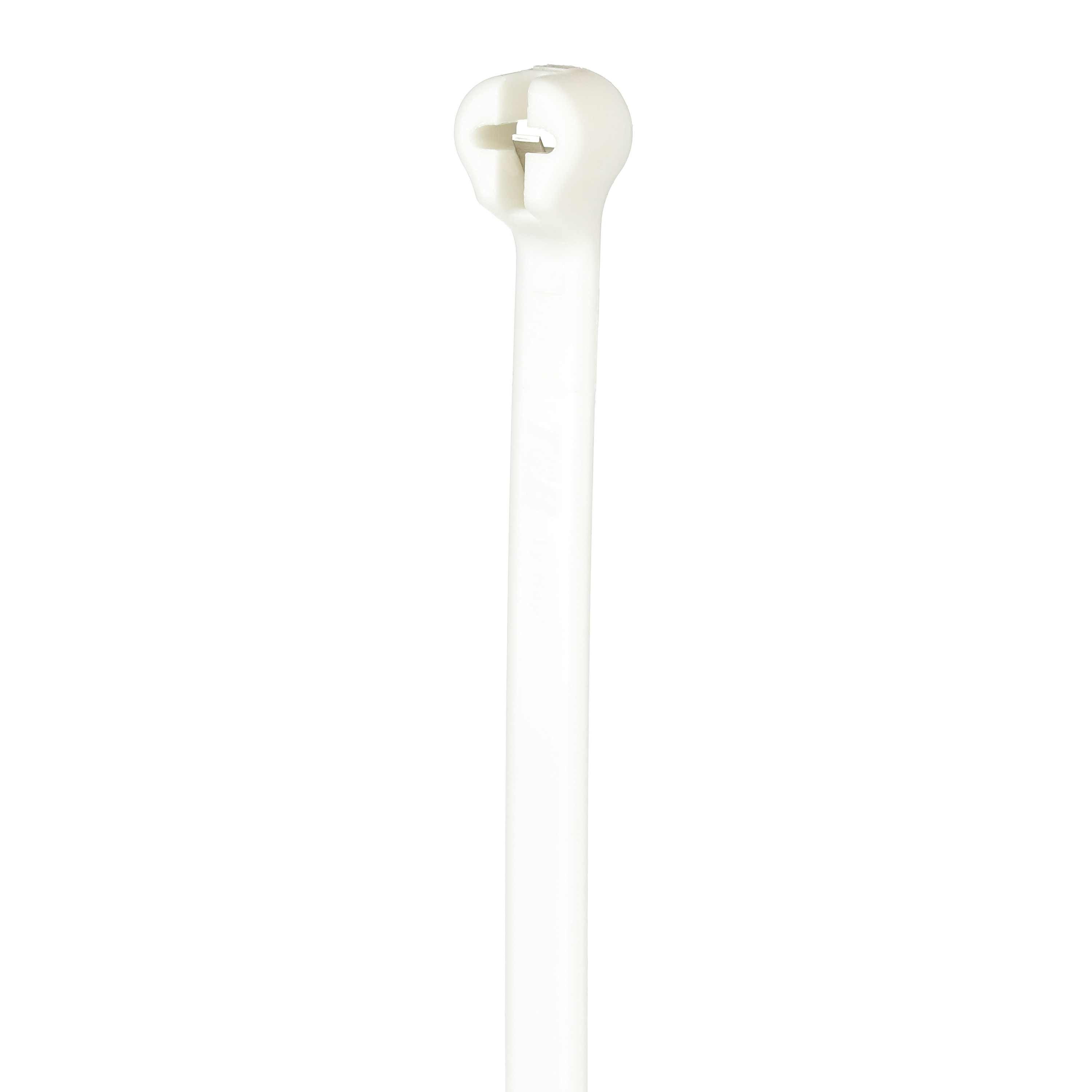

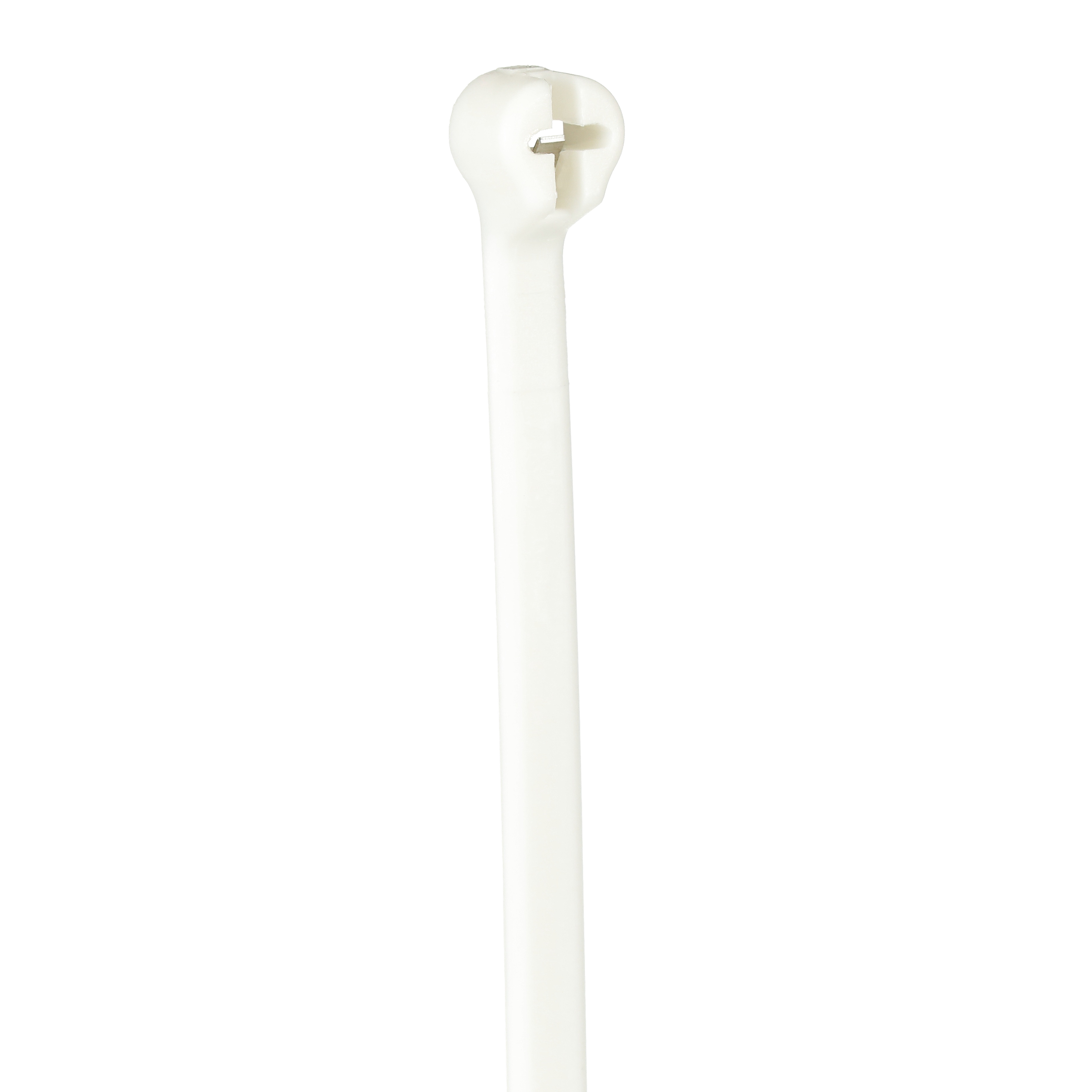

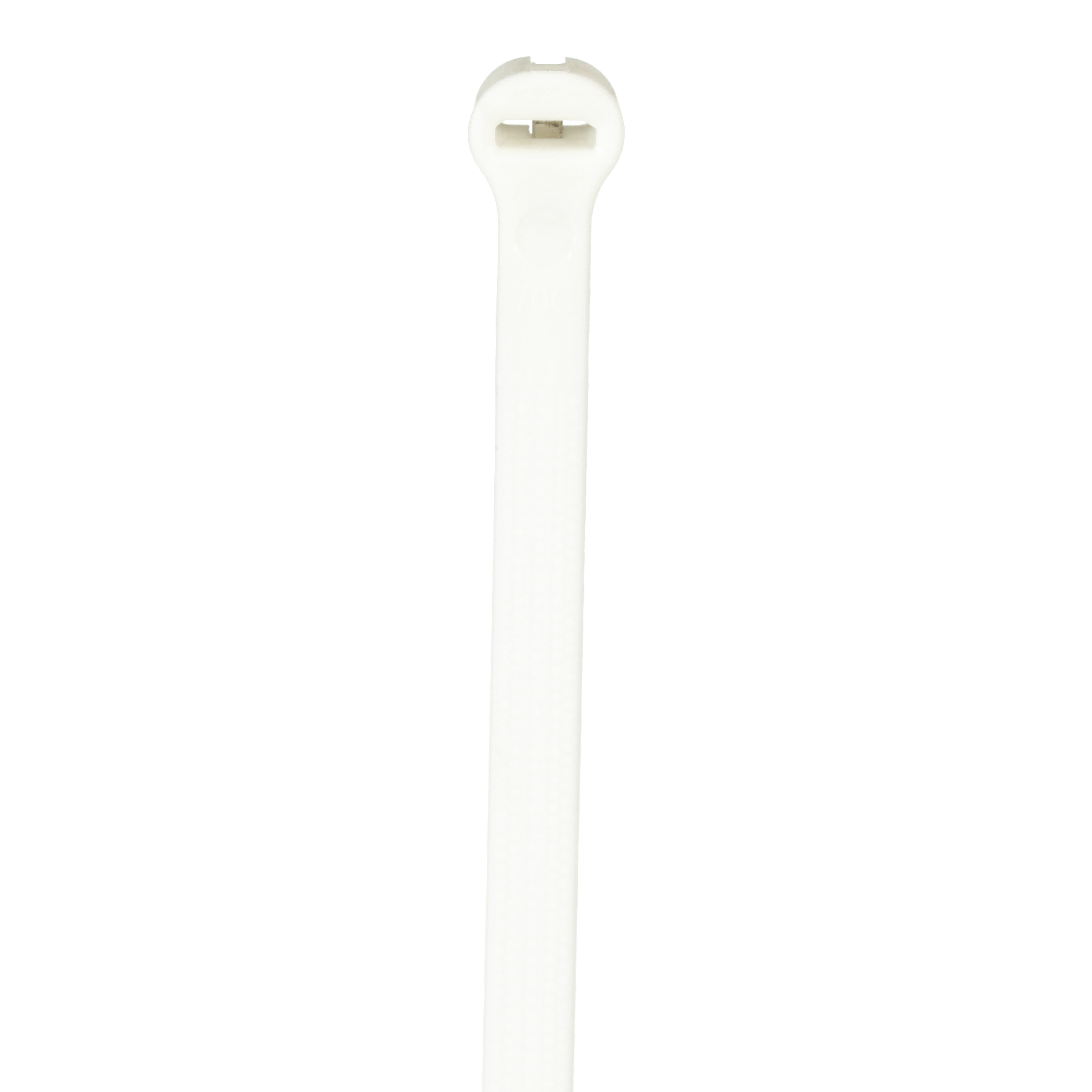

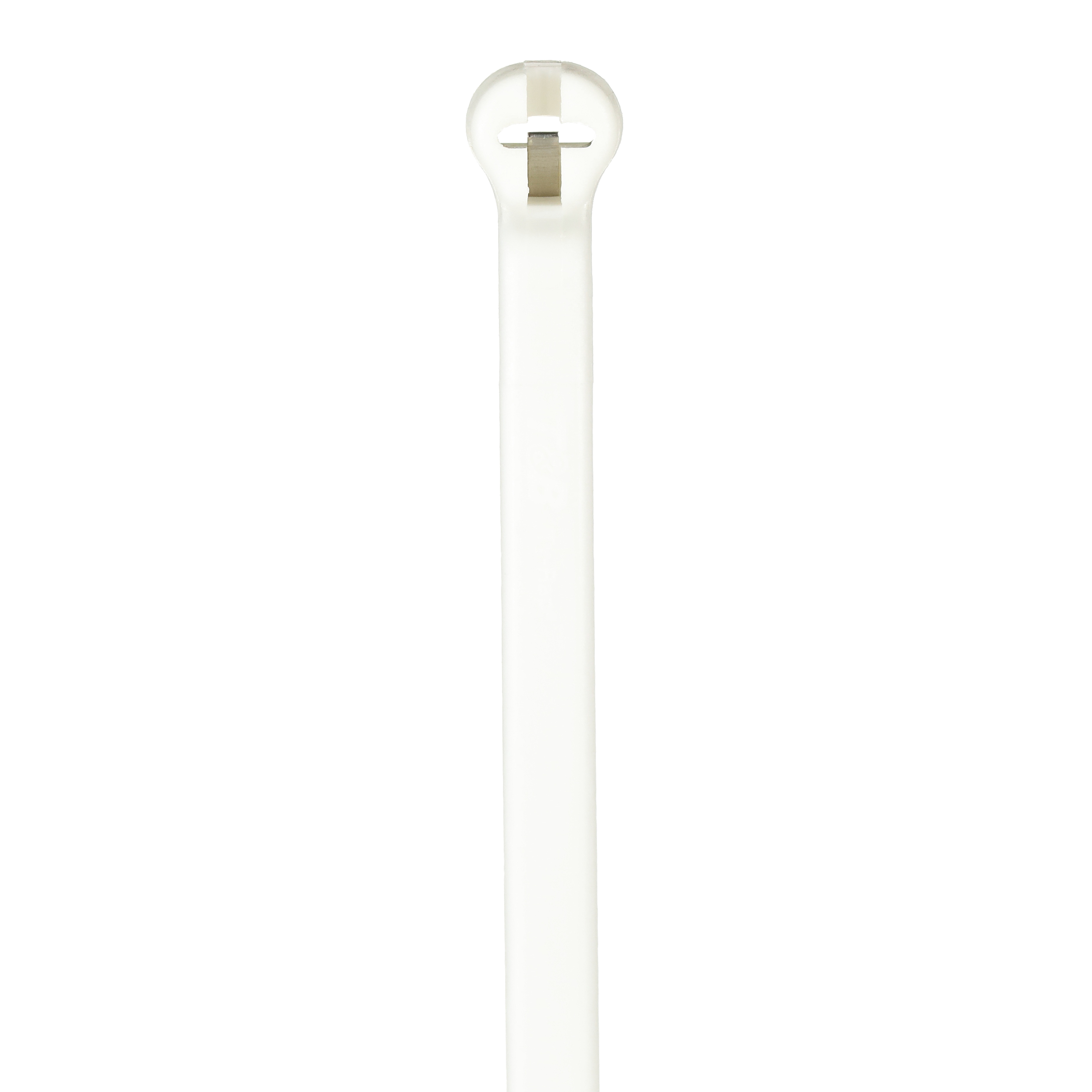

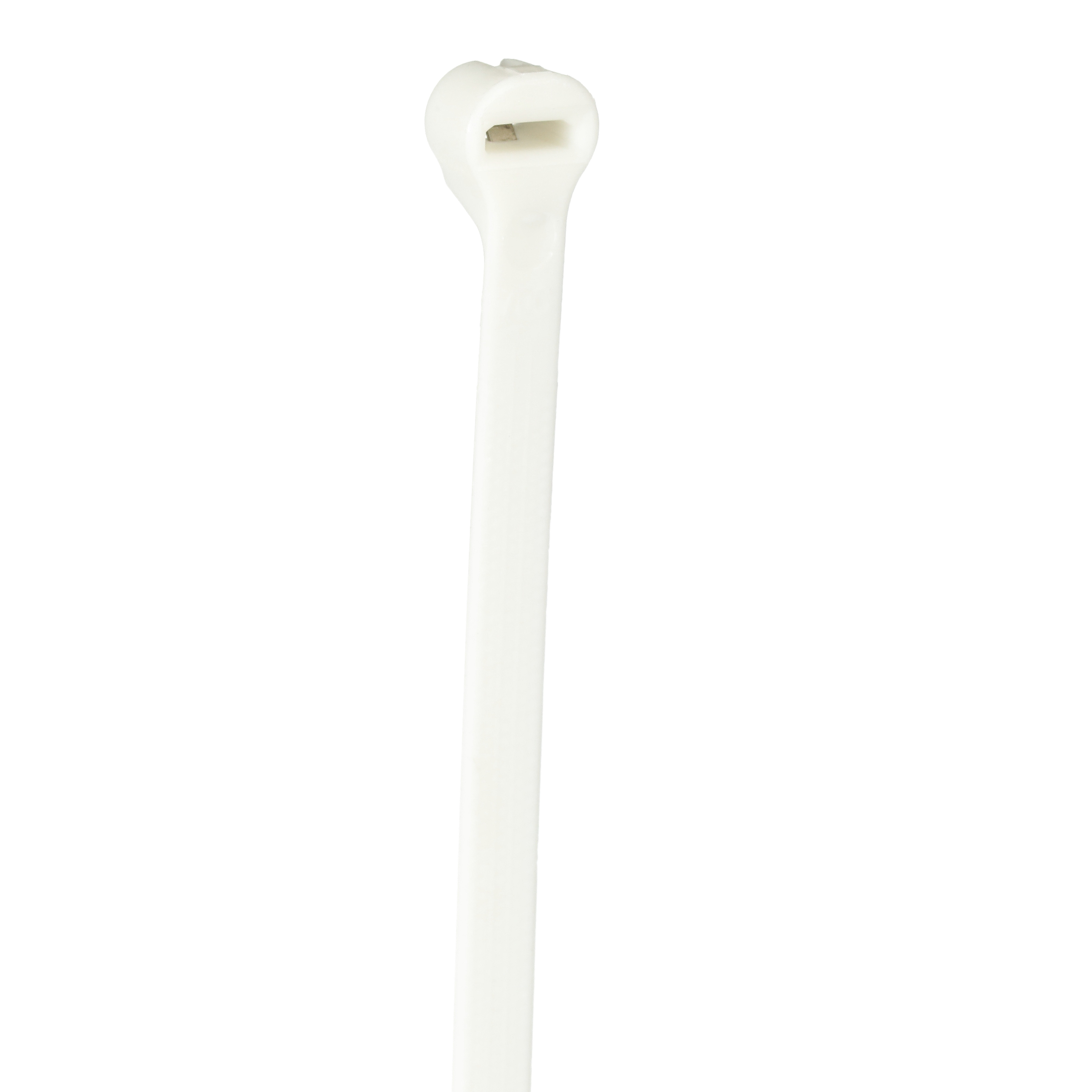

Cable Tie, Flame Retardant White Nylon 6.6, Temperature Range of -20 to 65 Degrees Celsius (-4 to 149 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 203mm (8.0 Inches), Width of 2.3mm (0.09 Inch), Thickness of 1mm (0.04 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 31.72 ₽ | ≈2 мес. (73 дн.) | под заказ | от 10000 шт. | Заказать |
| Склад в Китае | 41.26 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10000 шт. | Заказать |
| Склад в Европе | 44.23 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 48.82 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 48.84 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 53.92 ₽ | ≈2 мес. (73 дн.) | под заказ | от 10000 шт. | Заказать |
| Склад в Европе | 54.41 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 60.06 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 61.79 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 63.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 68.21 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10000 шт. | Заказать |
| Склад в Китае | 70.15 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10000 шт. | Заказать |
| Склад в Европе | 72.61 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| UPC | 786210832333 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.09 in, 2.3 mm |
| Product Net Depth / Length | 8 in, 203 mm |
| Package Level 1 Units | 1000 EA |
| Package Level 1 Width | 152.4 mm, 6 in |
| Package Level 1 Height | 38.1 mm, 1.5 in |
| Package Level 1 Depth / Length | 279.4 mm, 11 in |
| Package Level 2 Units | 10000 EA |
| Package Level 2 Width | 279.4 mm, 11 in |
| Package Level 2 Height | 228.6 mm, 9 in |
| Package Level 2 Depth / Length | 355.6 mm, 14 in |
| Package Level 3 Units | 500000 EA |
| Package Level 3 Width | 0.025 mm, 0.001 in |
| Package Level 3 Height | 0.025 mm, 0.001 in |
| Package Level 3 Depth / Length | 0.025 mm, 0.001 in |
| Flammability According to UL94 | V-0 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.06 to 2.01 in, 1.5 to 51 mm |
| Color | White |
| Effective Date | 20020426 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | Flame Retardant |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 18 lb, 80 N |
| Thickness | 0.04 in, 1 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TY232MFR |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
