Артикул: 7TAG009520R0062
· Производитель: ABB
· EAN: 5414363066026
7TAG009520R0062
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
31.83 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
44.38 ₽
срок ≈4 мес. (122 дн.)

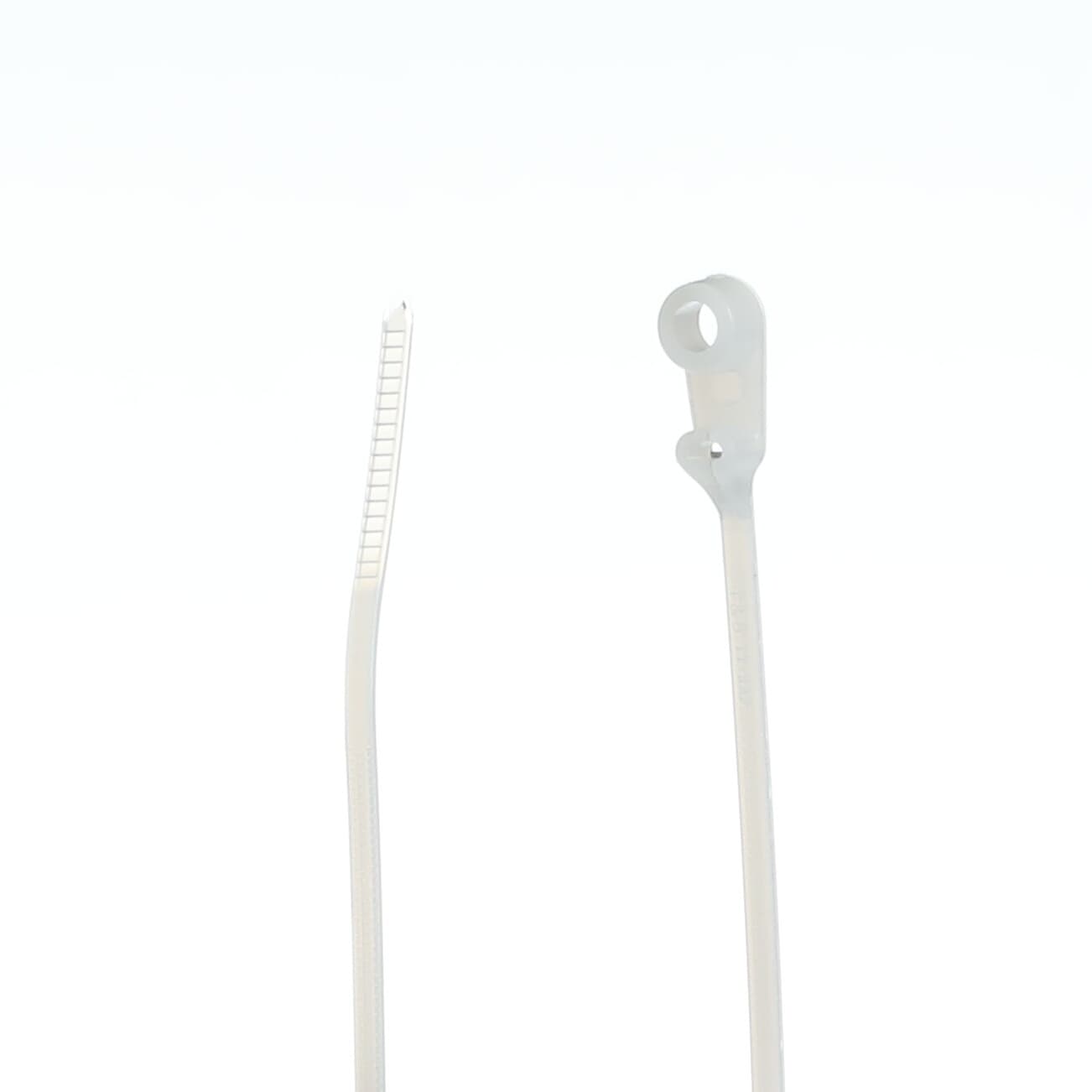

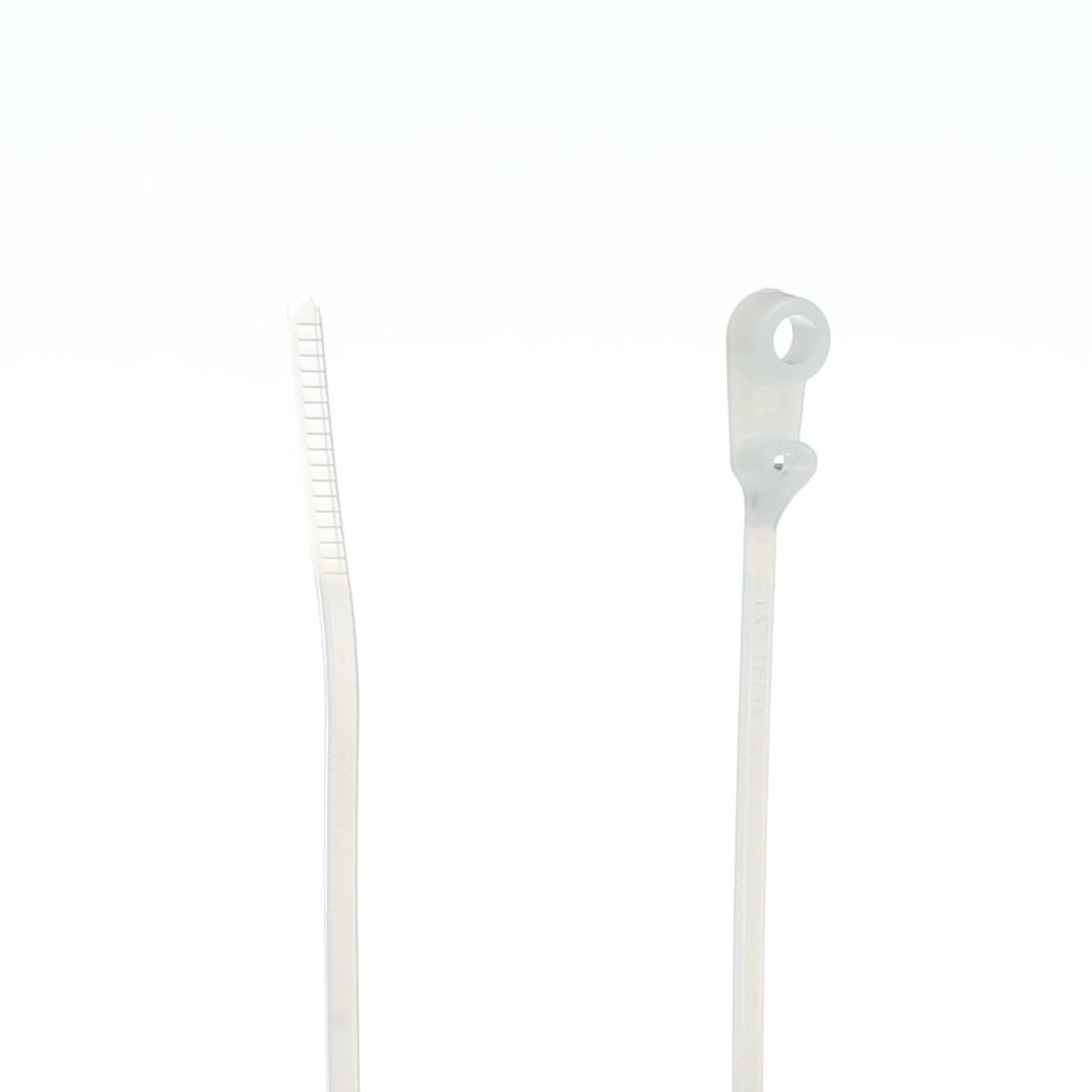

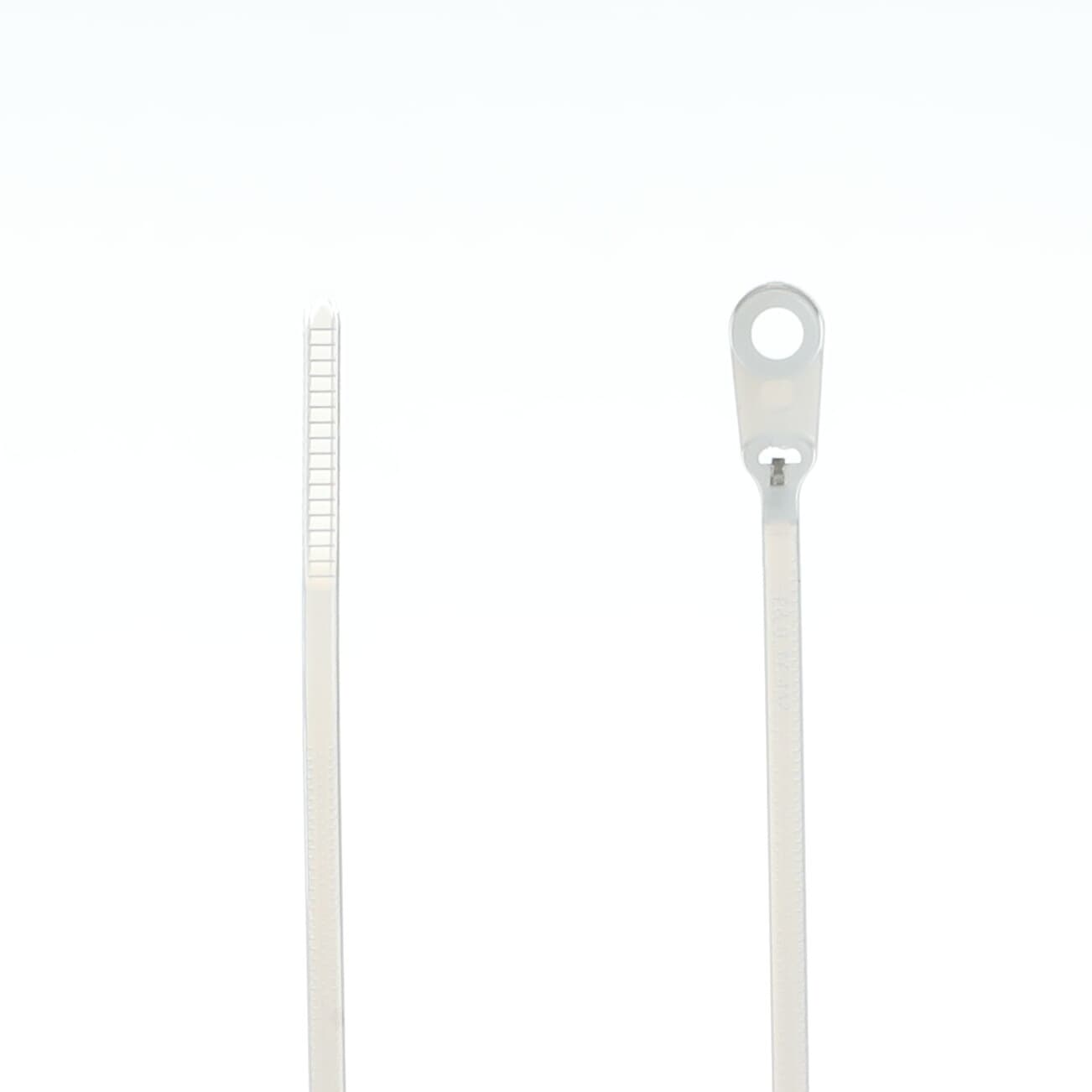

Integrated Mounting Hole Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 91mm (3.6 Inches), Width of 2.5mm (0.1 Inches), Thickness of 1mm (0.04 Inches), Tensile Strength Rating of 80 Newtons (18 pounds), #4 Screw for Mounting
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 31.83 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Европе | 44.38 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 48.99 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49.01 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49.39 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54.11 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Европе | 54.41 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54.52 ₽ | ≈1 мес. (59 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 60.06 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 67.49 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| ABB EcoSolutions | Yes |
| UPC | 786210825502 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.1 in, 2.5 mm |
| Product Net Depth / Length | 3.6 in, 91 mm |
| Package Level 1 Units | 100 EA |
| Package Level 1 Width | 114.3 mm, 4.5 in |
| Package Level 1 Height | 81.28 mm, 3.2 in |
| Package Level 1 Depth / Length | 152.4 mm, 6 in |
| Package Level 2 Units | 500 EA |
| Package Level 2 Width | 368.3 mm, 14.5 in |
| Package Level 2 Height | 345.44 mm, 13.6 in |
| Package Level 2 Depth / Length | 482.6 mm, 19 in |
| Package Level 3 Units | 10000 EA |
| Package Level 3 Width | 261.62 mm, 10.3 in |
| Package Level 3 Height | 302.26 mm, 11.9 in |
| Package Level 3 Depth / Length | 510.54 mm, 20.1 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.08 to 0.63 in, 2 to 16 mm |
| Color | Natural |
| Effective Date | 19760106 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | Integrated Mounting Hole |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 18 lb, 80 N |
| Thickness | 0.04 in, 1 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5044 >> Mounted Head Ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TY533M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
