Артикул: 7TAG009520R0045
· Производитель: ABB
· EAN: 5414363060710
7TAG009520R0045
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
46.06 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
41.73 ₽
срок ≈1 мес. (59 дн.)

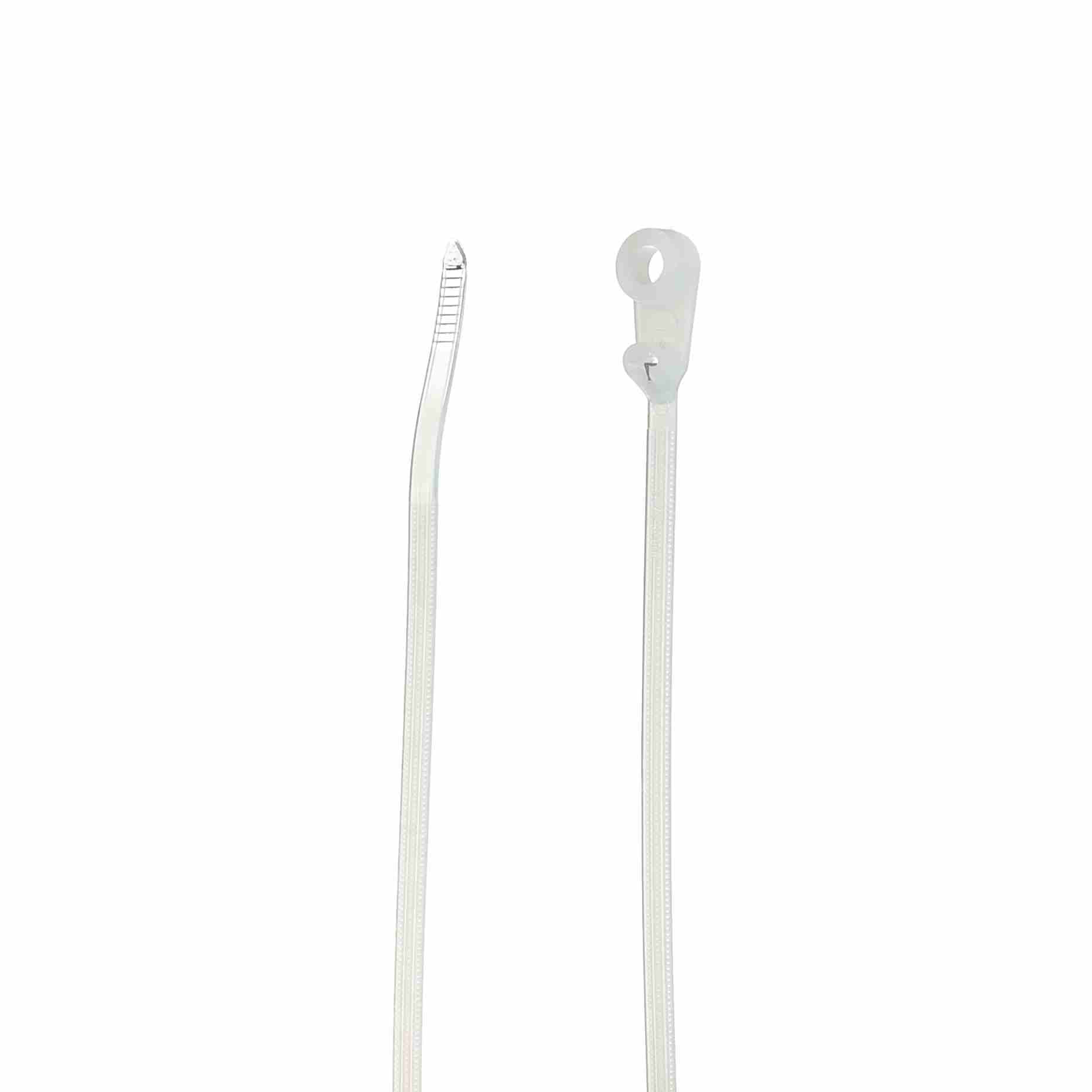

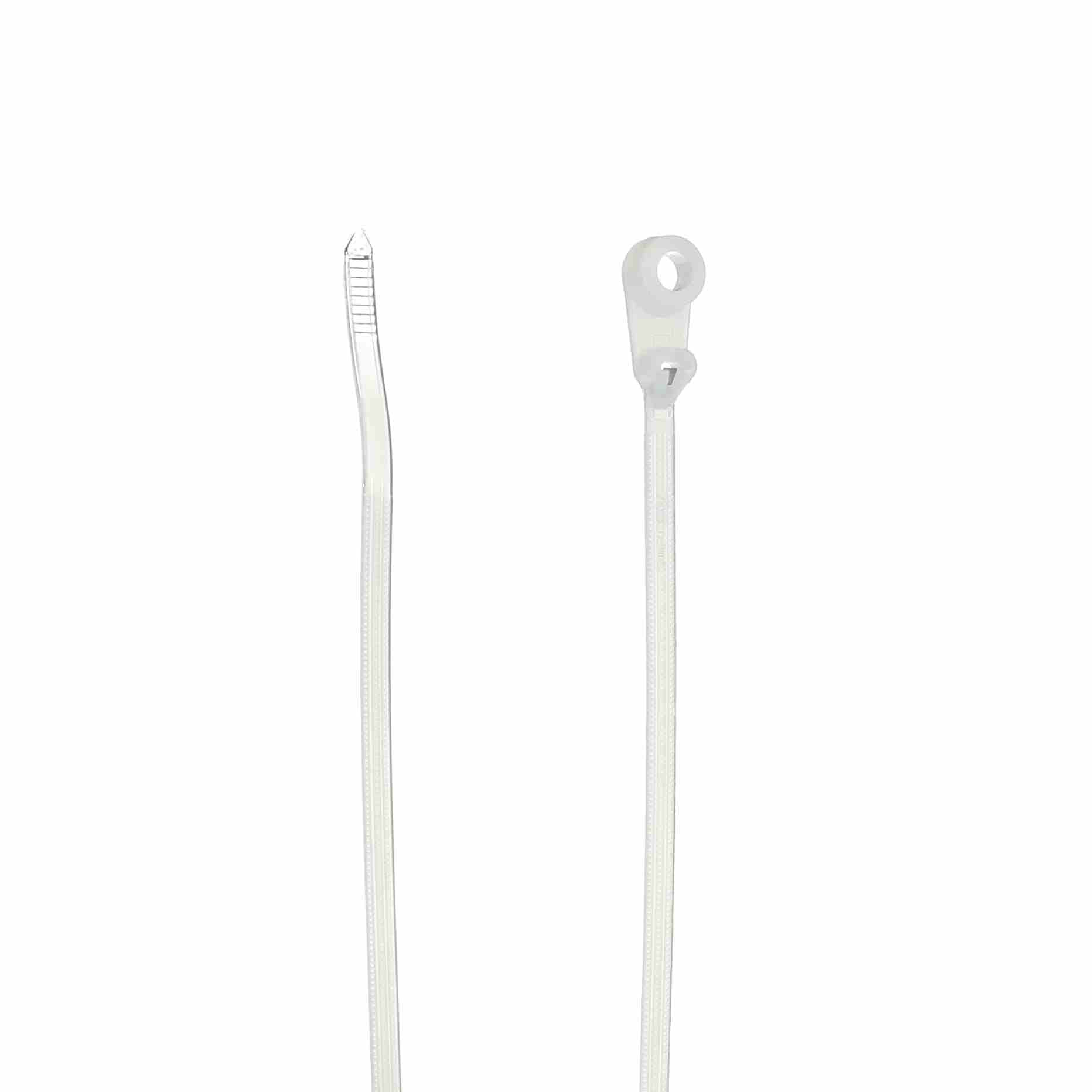

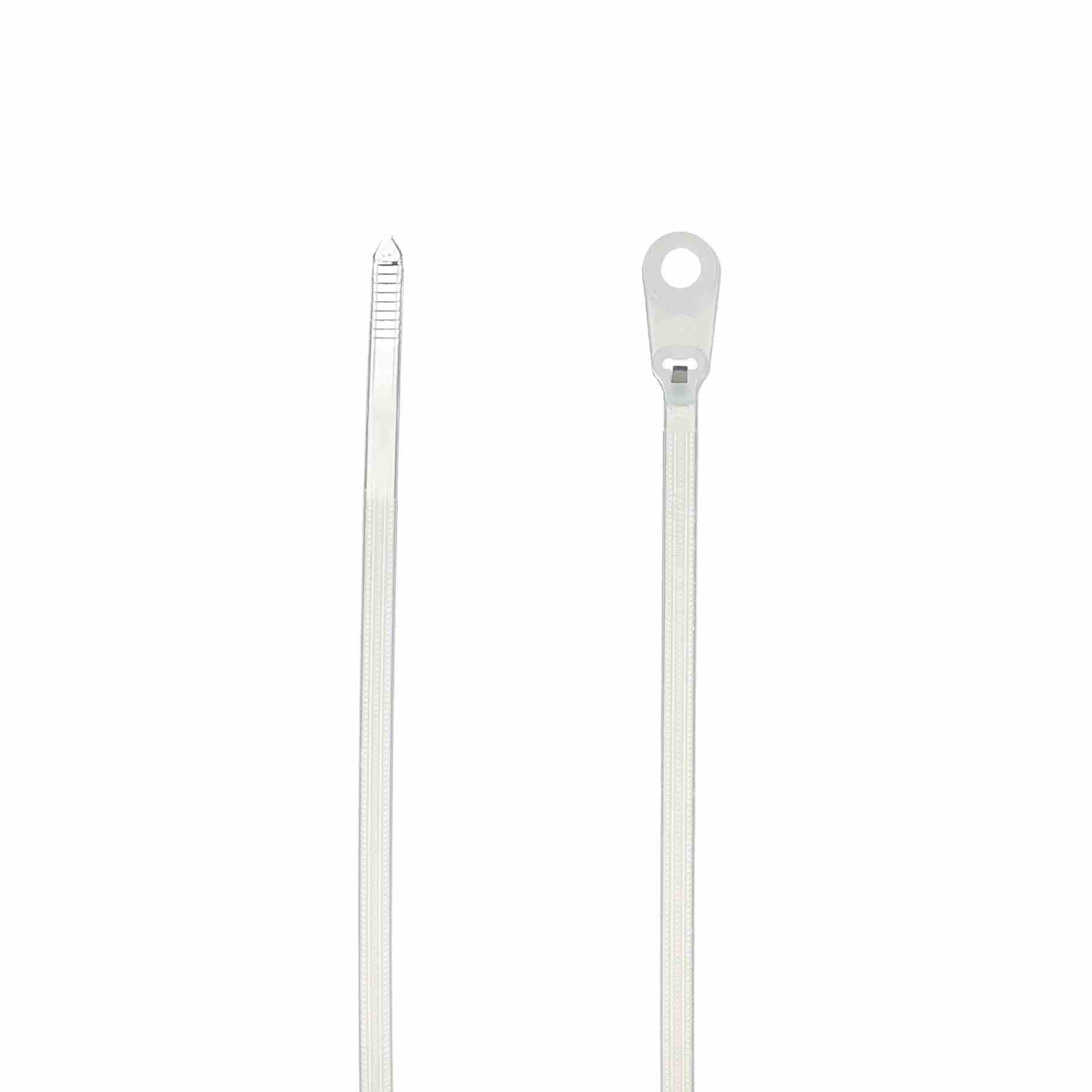

Integrated Mounting Hole Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 198mm (7.8 Inches), Width of Width of 4.6mm (0.18 Inch), Thickness of 1mm (0.04 Inches), Tensile Strength Rating of 220 Newtons (50 Pounds), 1/4 Inch Screw for Mounting
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 41.73 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 46.06 ₽ | ≈1 мес. (59 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 49.16 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54.27 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 57.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 60.94 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 67.27 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| ABB EcoSolutions | Yes |
| UPC | 786210830766 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.18 in, 4.6 mm |
| Product Net Depth / Length | 7.8 in, 198 mm |
| Package Level 1 Units | 1000 EA |
| Package Level 1 Width | 355.6 mm, 14 in |
| Package Level 1 Height | 0 mm, 0 in |
| Package Level 1 Depth / Length | 381 mm, 15 in |
| Package Level 2 Units | 5000 EA |
| Package Level 2 Width | 237.998 mm, 9.37 in |
| Package Level 2 Height | 501.65 mm, 19.75 in |
| Package Level 2 Depth / Length | 292.1 mm, 11.5 in |
| Package Level 3 Units | 175000 EA |
| Package Level 3 Width | 0.025 mm, 0.001 in |
| Package Level 3 Height | 0.025 mm, 0.001 in |
| Package Level 3 Depth / Length | 0.025 mm, 0.001 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.138 to 1.77 in, 3.5 to 45 mm |
| Color | Natural |
| Effective Date | 19671129 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | Integrated Mounting Hole |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Tensile Strength | 50 lb, 222 N |
| Thickness | 0.04 in, 1 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5044 >> Mounted Head Ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TY1435M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
