Артикул: 7TAG009320R0004
· Производитель: ABB
· EAN: 5414363063407
7TAG009320R0004
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
23.53 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
32.81 ₽
срок ≈4 мес. (122 дн.)

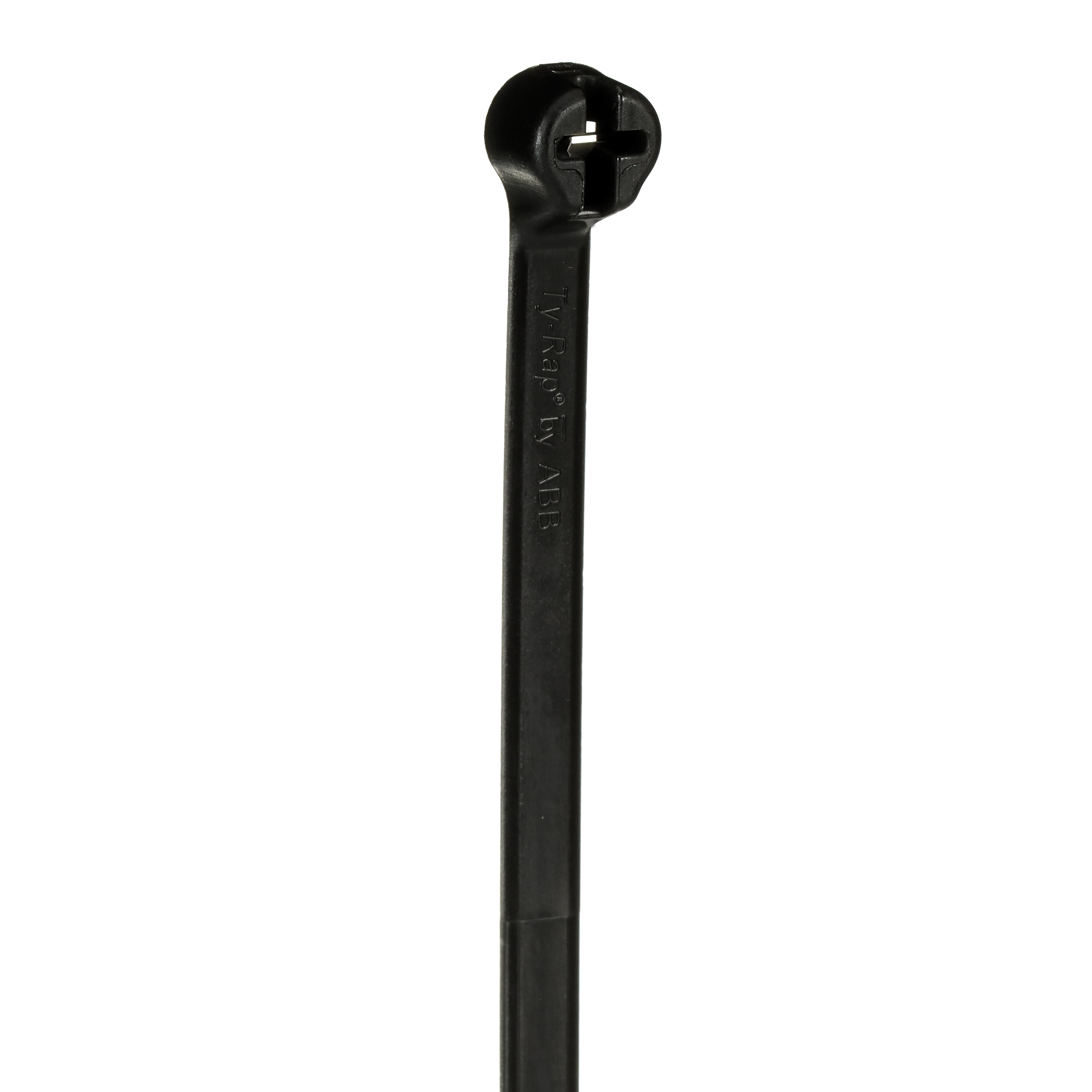

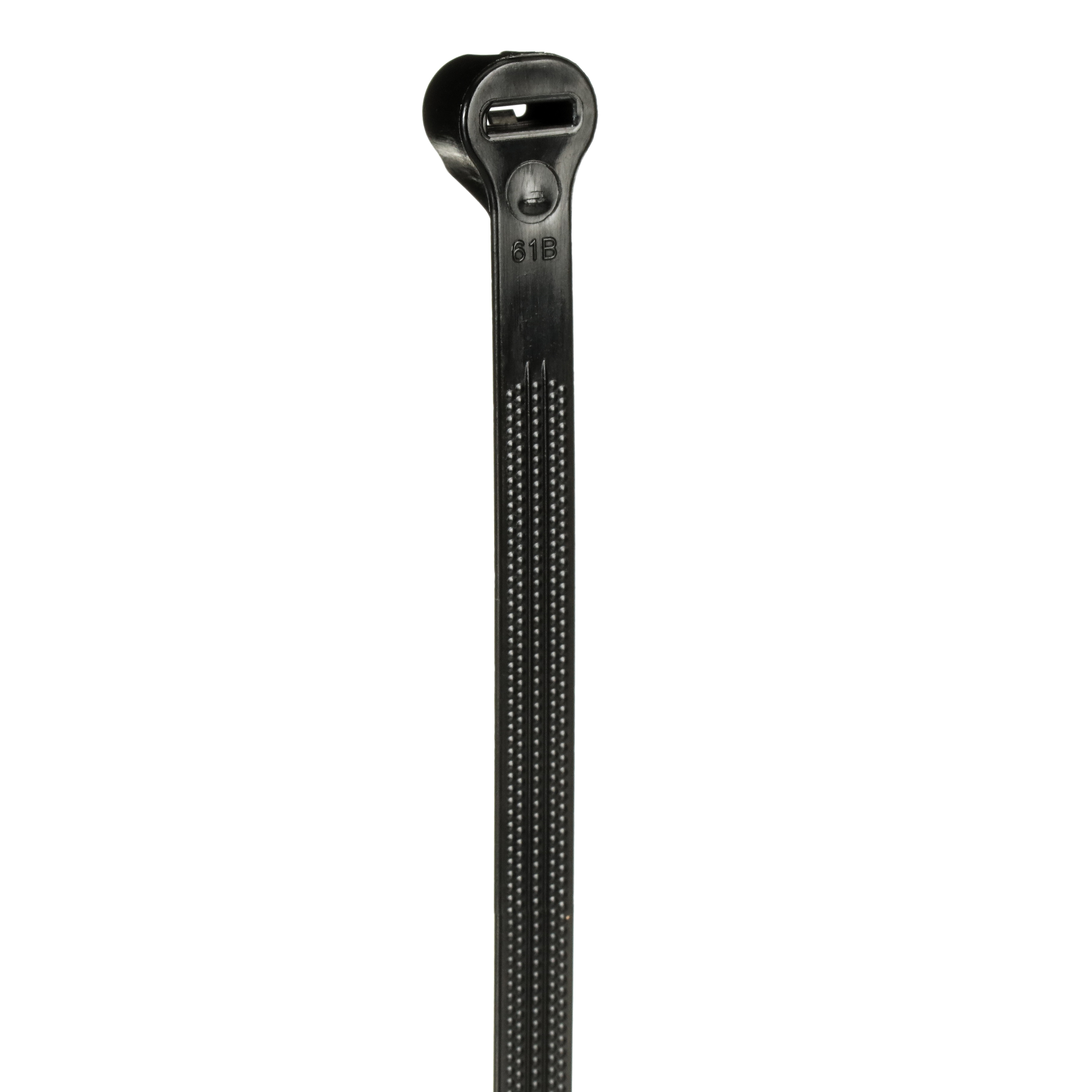

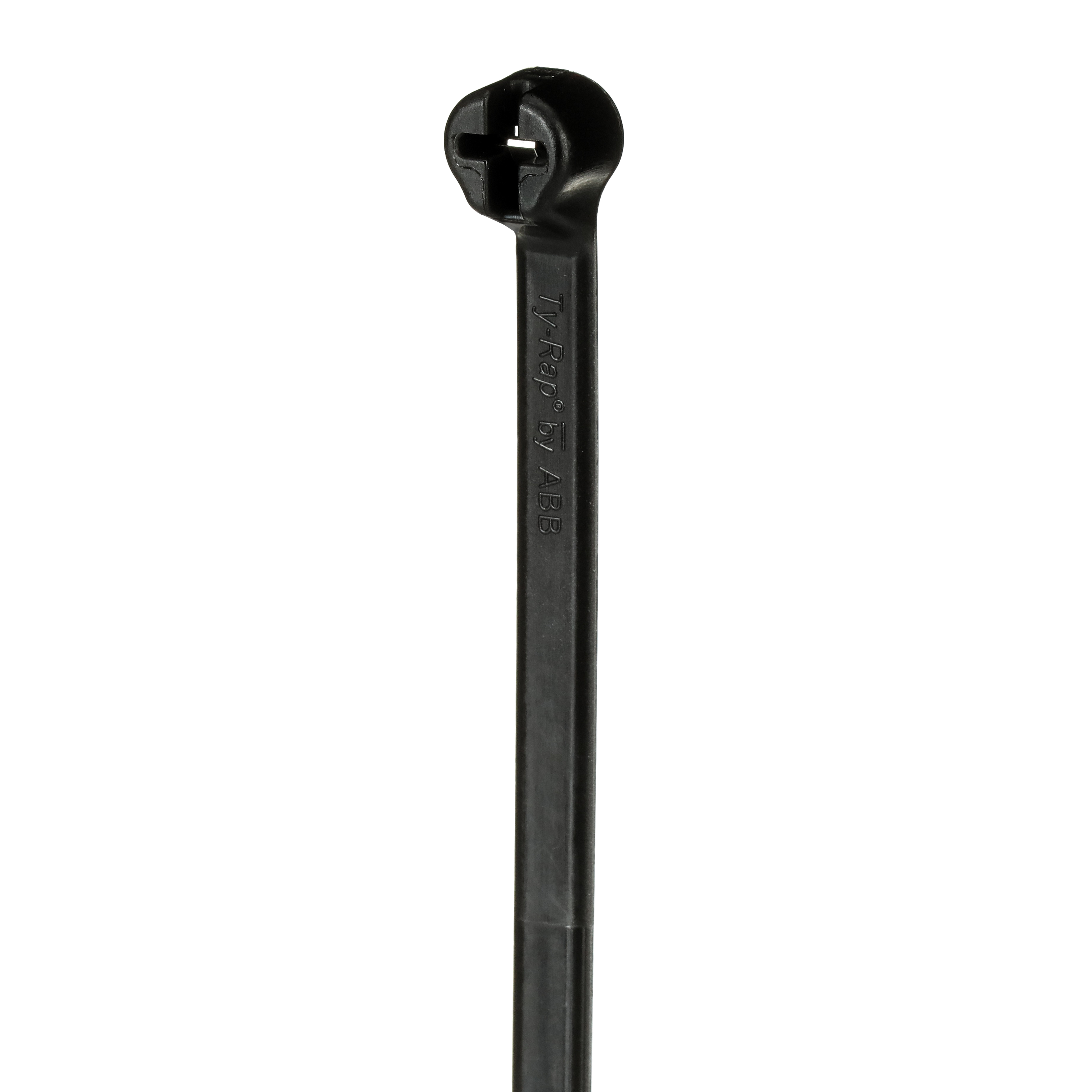

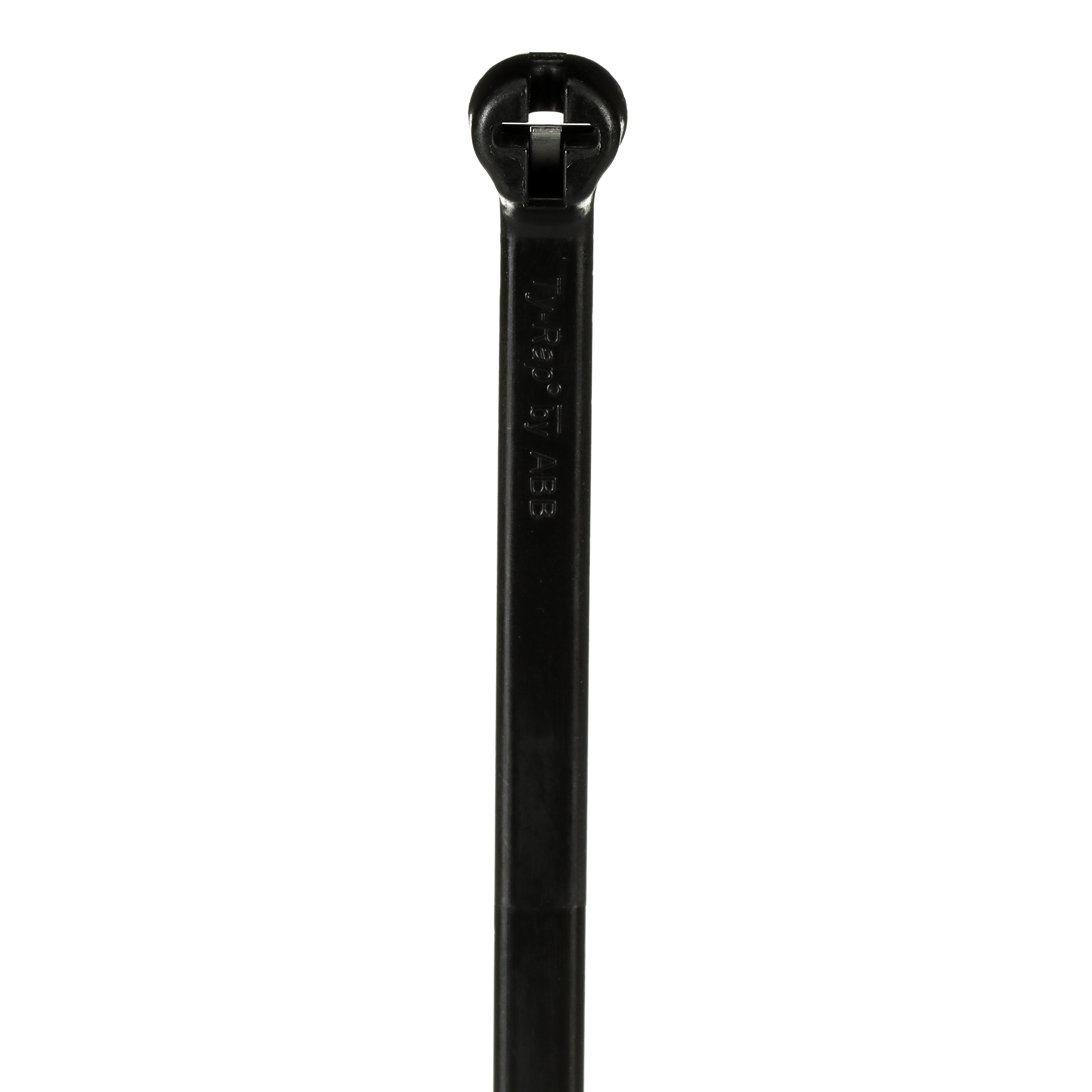

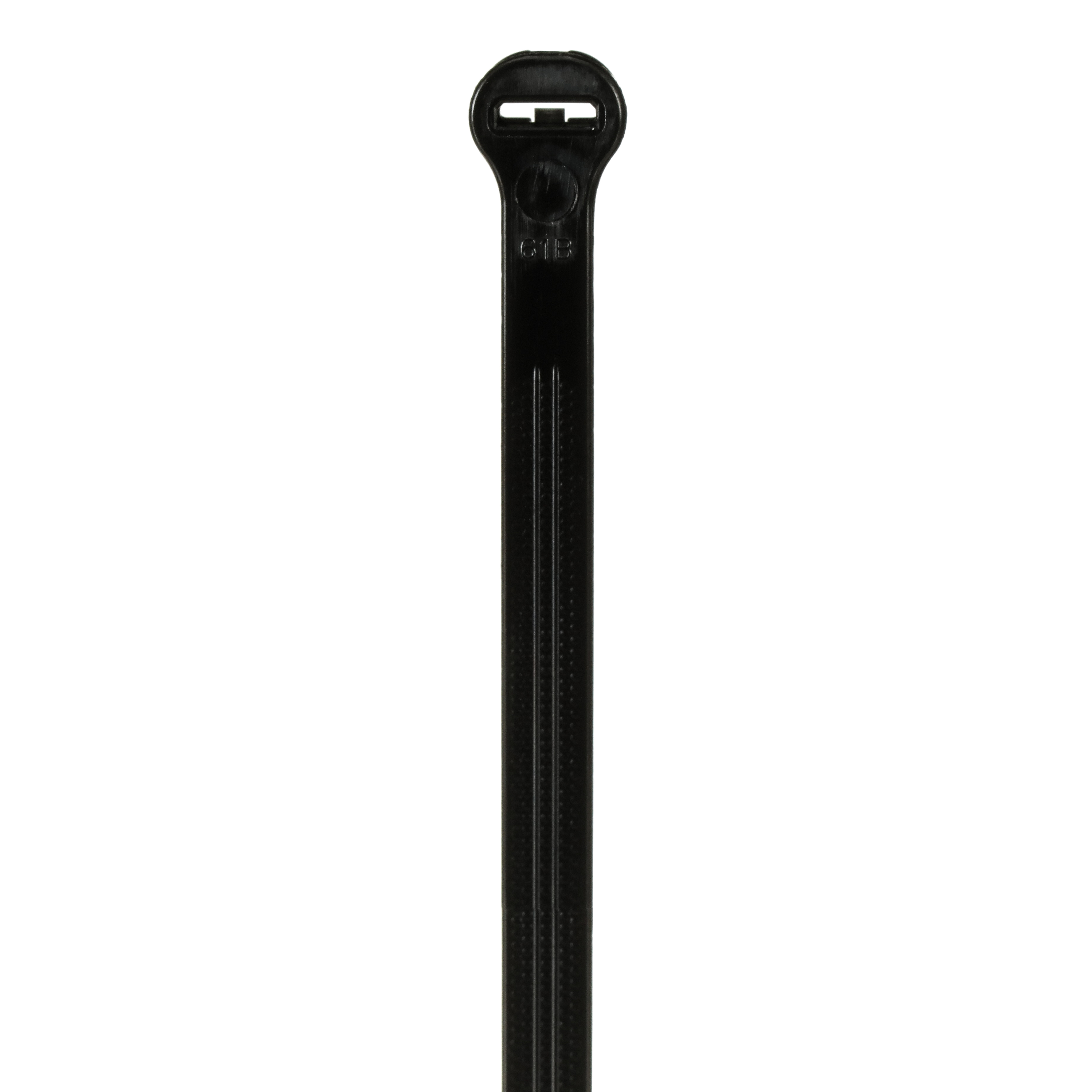

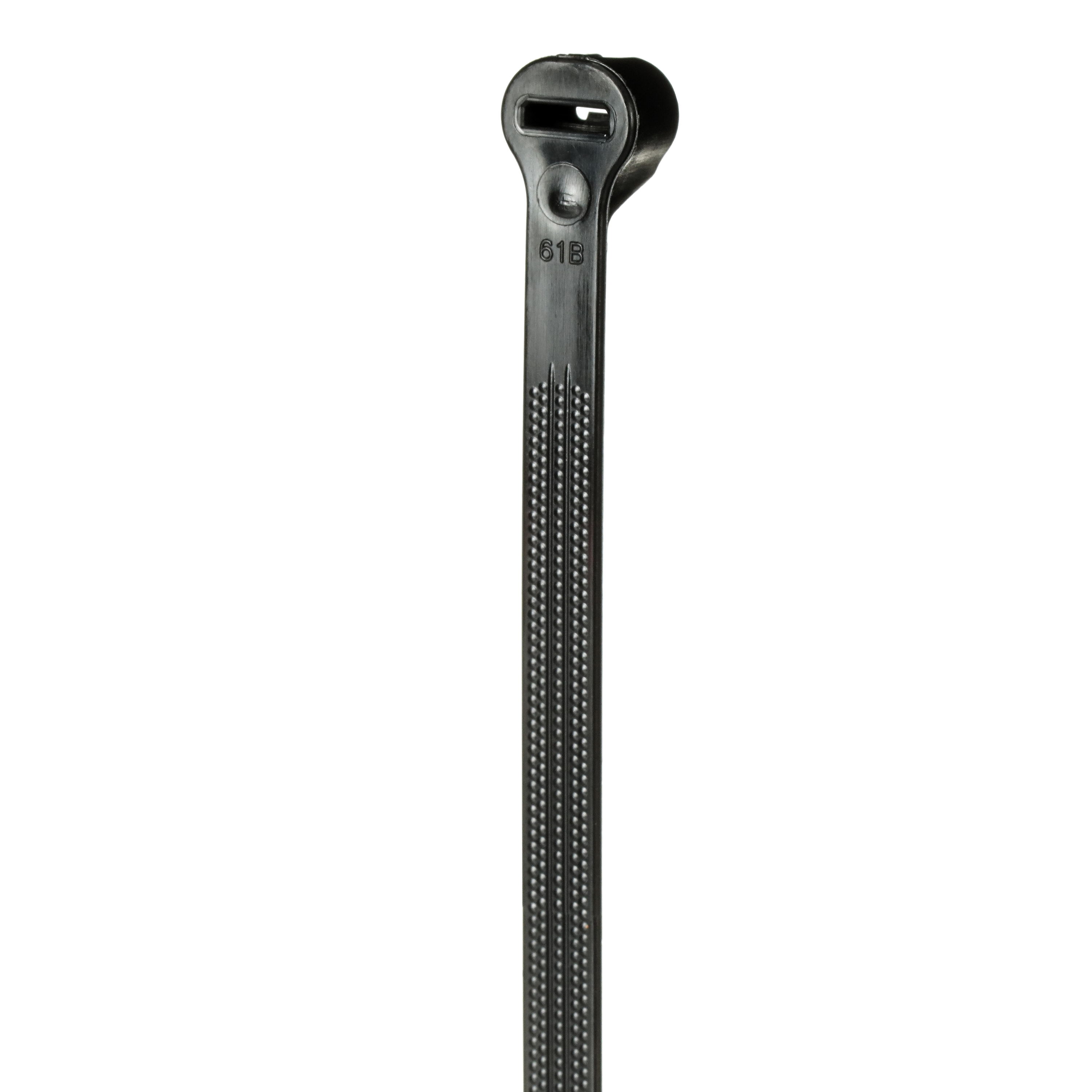

High Performance Cable Tie, Black Color Nylon 6.6, Length of 340mm (13.4 Inches) for Bundle Diameter up to 102mm (4 Inches), Width of 6.86mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -30 Degrees Celsius (-22 F) to 85 Degrees Celsius (185 F), Bulk Pack
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 23.53 ₽ | ≈2 мес. (73 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 32.81 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 36.22 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36.24 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 39.17 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40.00 ₽ | ≈2 мес. (73 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Китае | 43.24 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 48.49 ₽ | ≈1 мес. (45 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 53.86 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 57.93 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 63.94 ₽ | ≈1 мес. (59 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 74.67 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 82.43 ₽ | ≈1 мес. (45 дн.) | под заказ | от 1000 шт. | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| ABB EcoSolutions | Yes |
| E-Number (Finland) | 1370001 |
| UPC | 786210824789 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.27 in, 4.8 mm |
| Product Net Depth / Length | 13.5 in, 342 mm |
| Package Level 1 Units | 500 EA |
| Package Level 1 Width | 355.6 mm, 14 in |
| Package Level 1 Height | 0 mm, 0 in |
| Package Level 1 Depth / Length | 558.8 mm, 22 in |
| Package Level 2 Units | 1000 EA |
| Package Level 2 Width | 127 mm, 5 in |
| Package Level 2 Height | 241.3 mm, 9.5 in |
| Package Level 2 Depth / Length | 387.35 mm, 15.25 in |
| Package Level 3 Units | 104000 EA |
| Package Level 3 Width | 1016 mm, 40 in |
| Package Level 3 Height | 1244.6 mm, 49 in |
| Package Level 3 Depth / Length | 1219.2 mm, 48 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | Max 4.02 in, Max 102 mm |
| Color | Black |
| Effective Date | 19670831 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | High Performance |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 120 lb, 534 N |
| Thickness | 0.06 in, 1.5 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| extended_product_type | TY27MX |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
