Артикул: 7TAG009270R0009
· Производитель: ABB
· EAN: 5414363062356
7TAG009270R0009
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
34.41 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
47.99 ₽
срок ≈4 мес. (122 дн.)

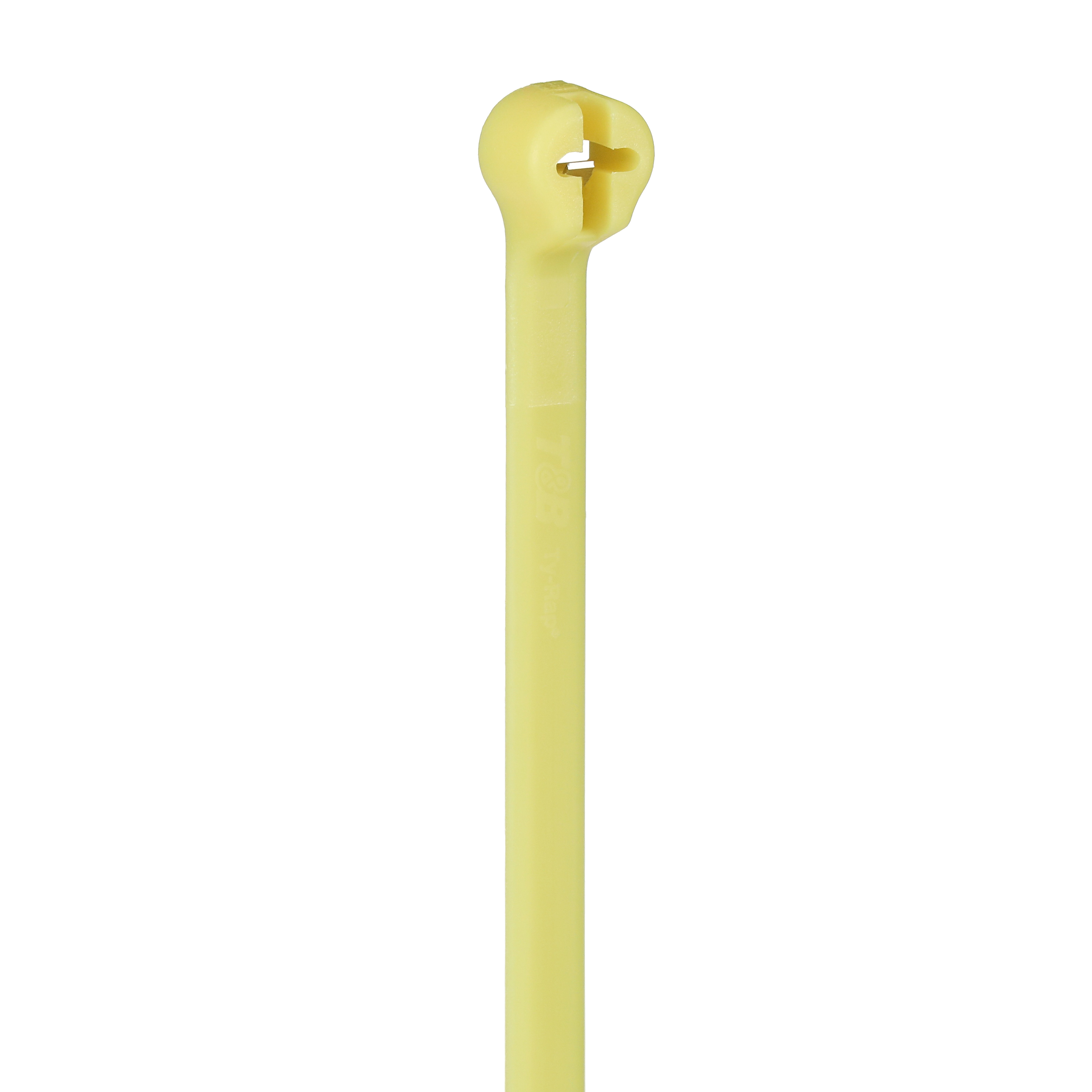

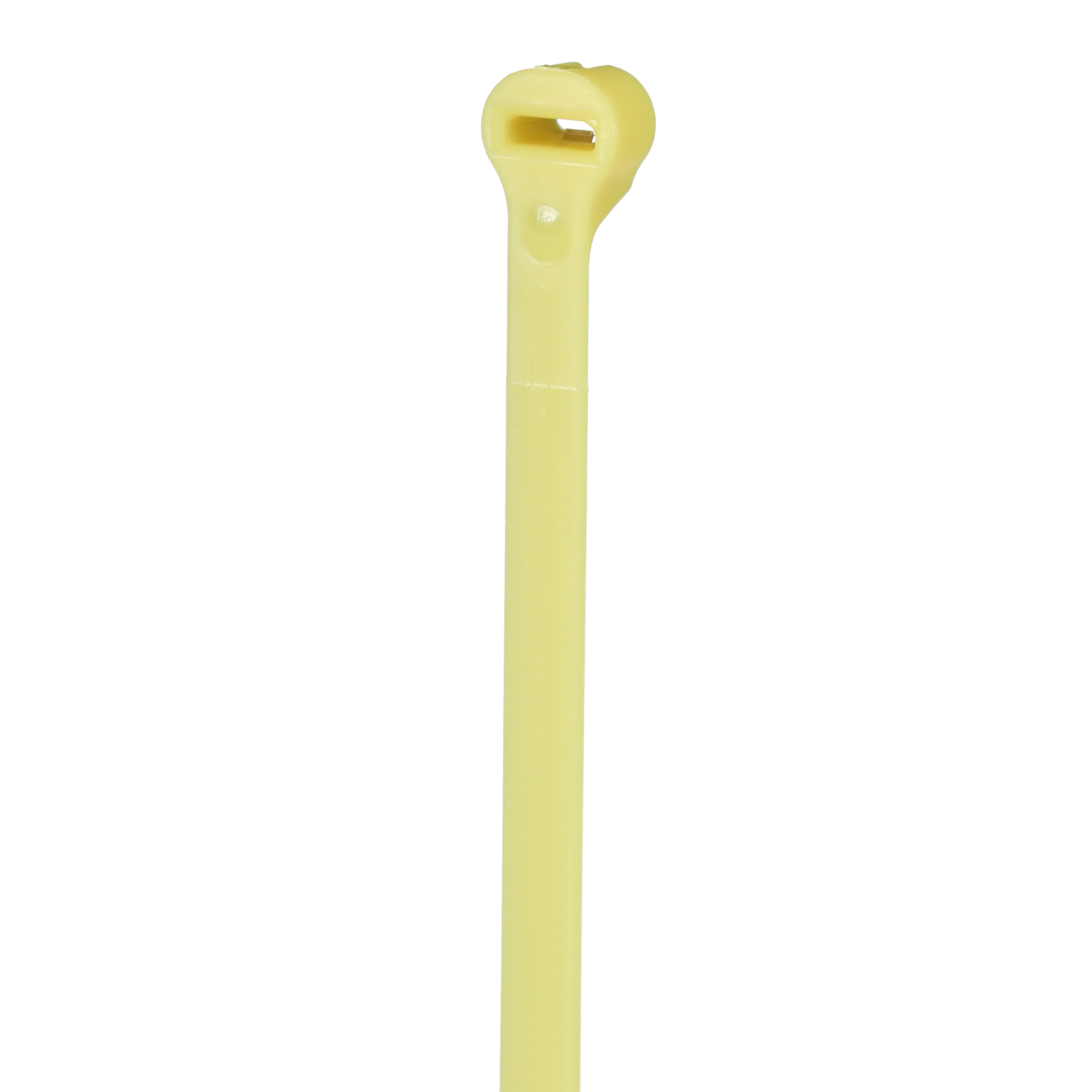

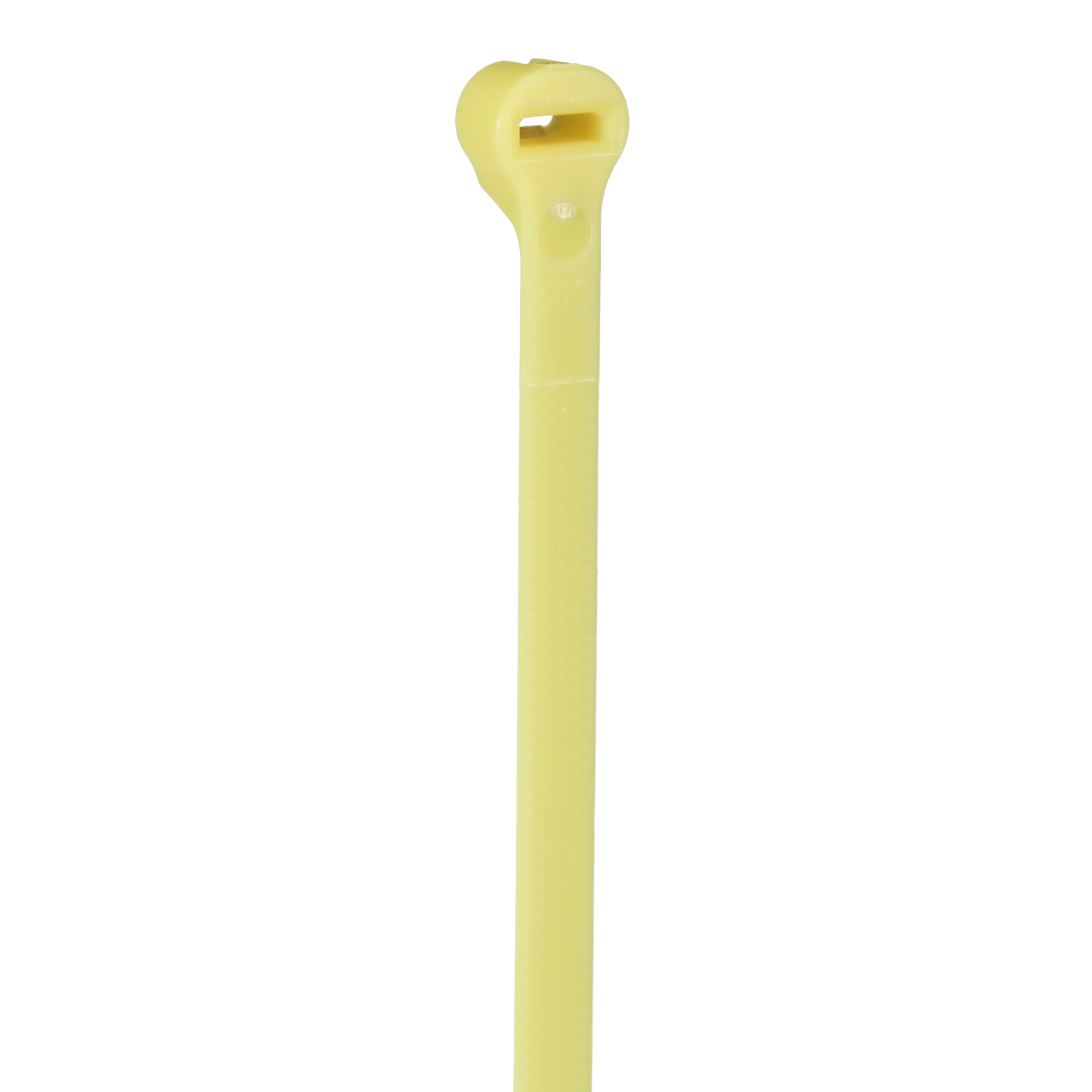

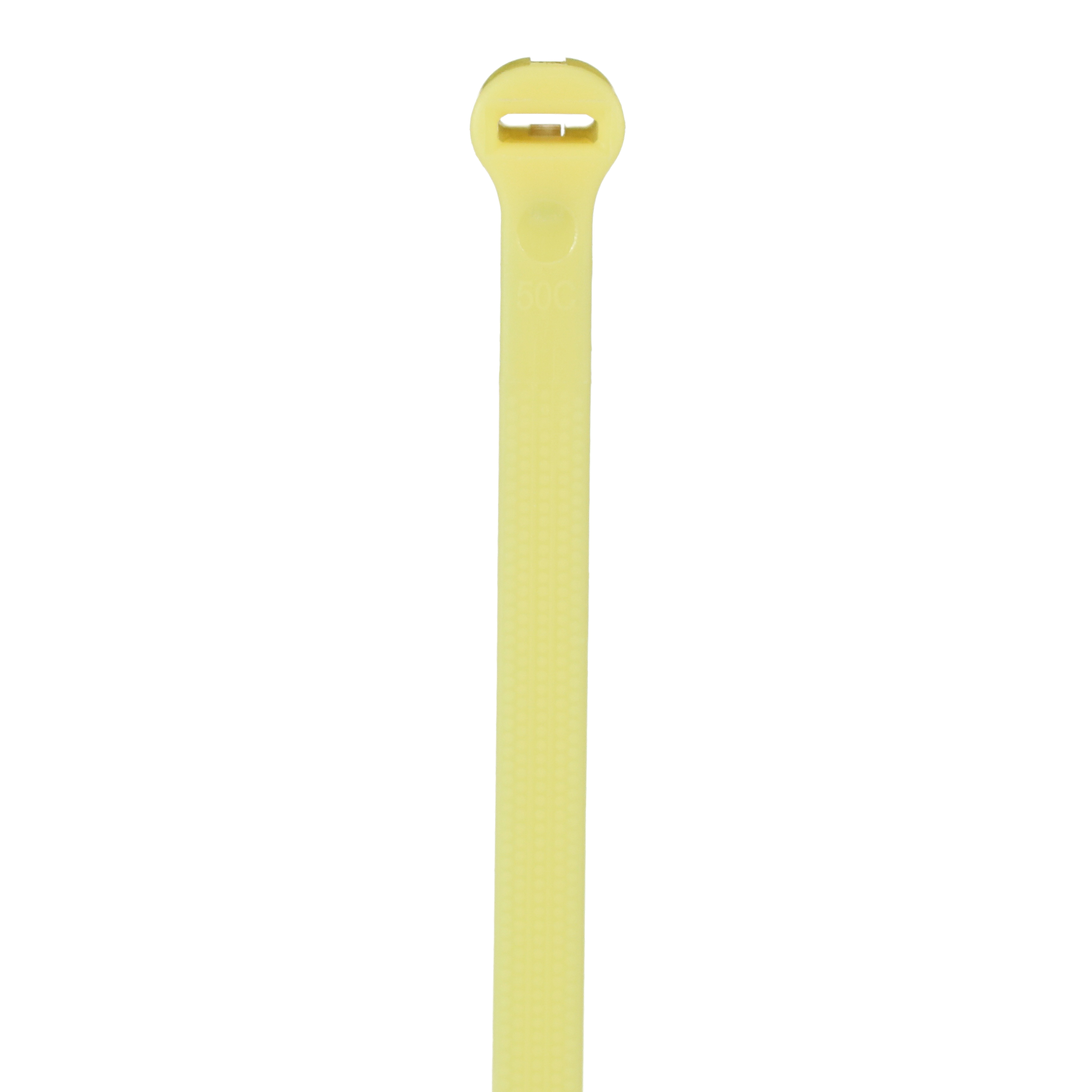

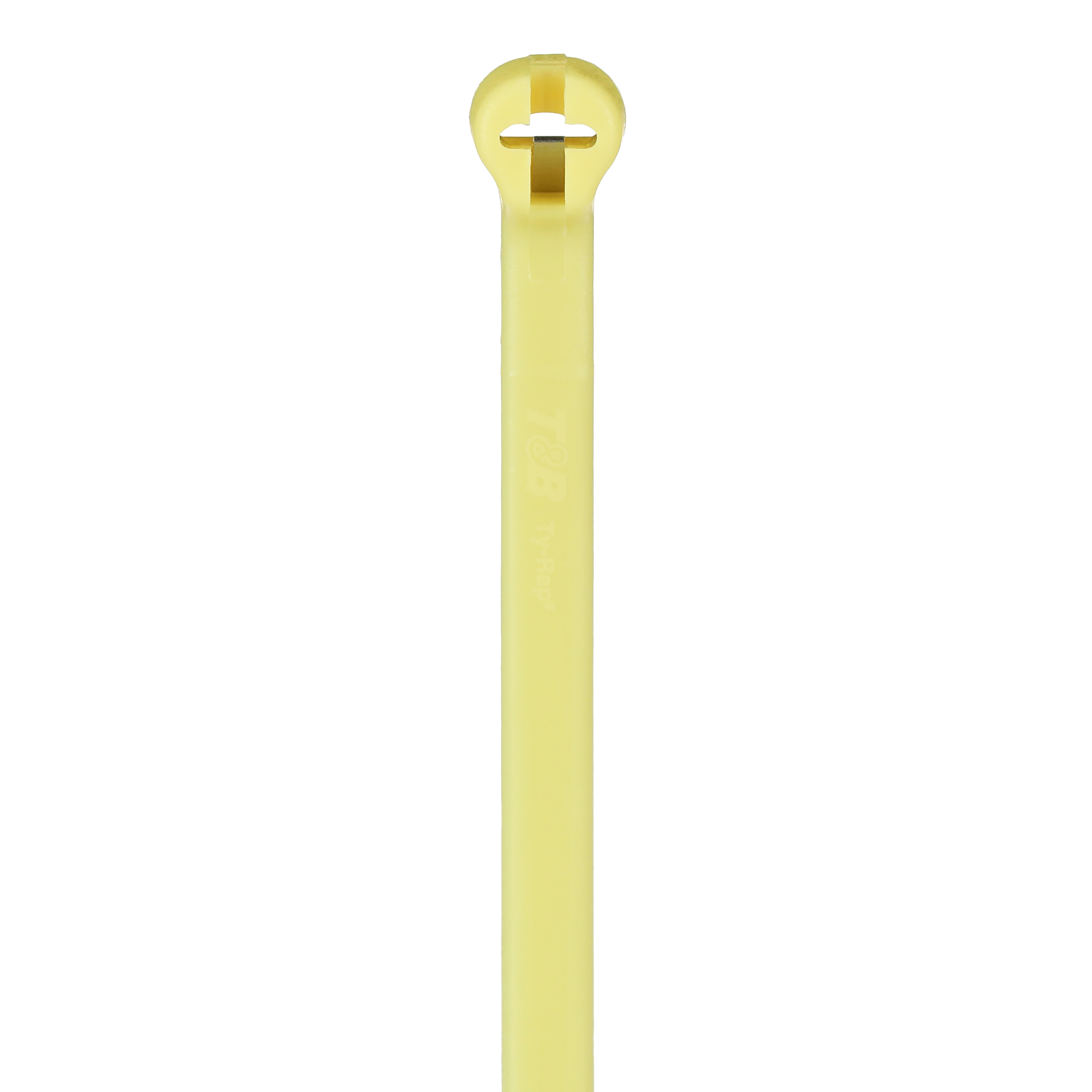

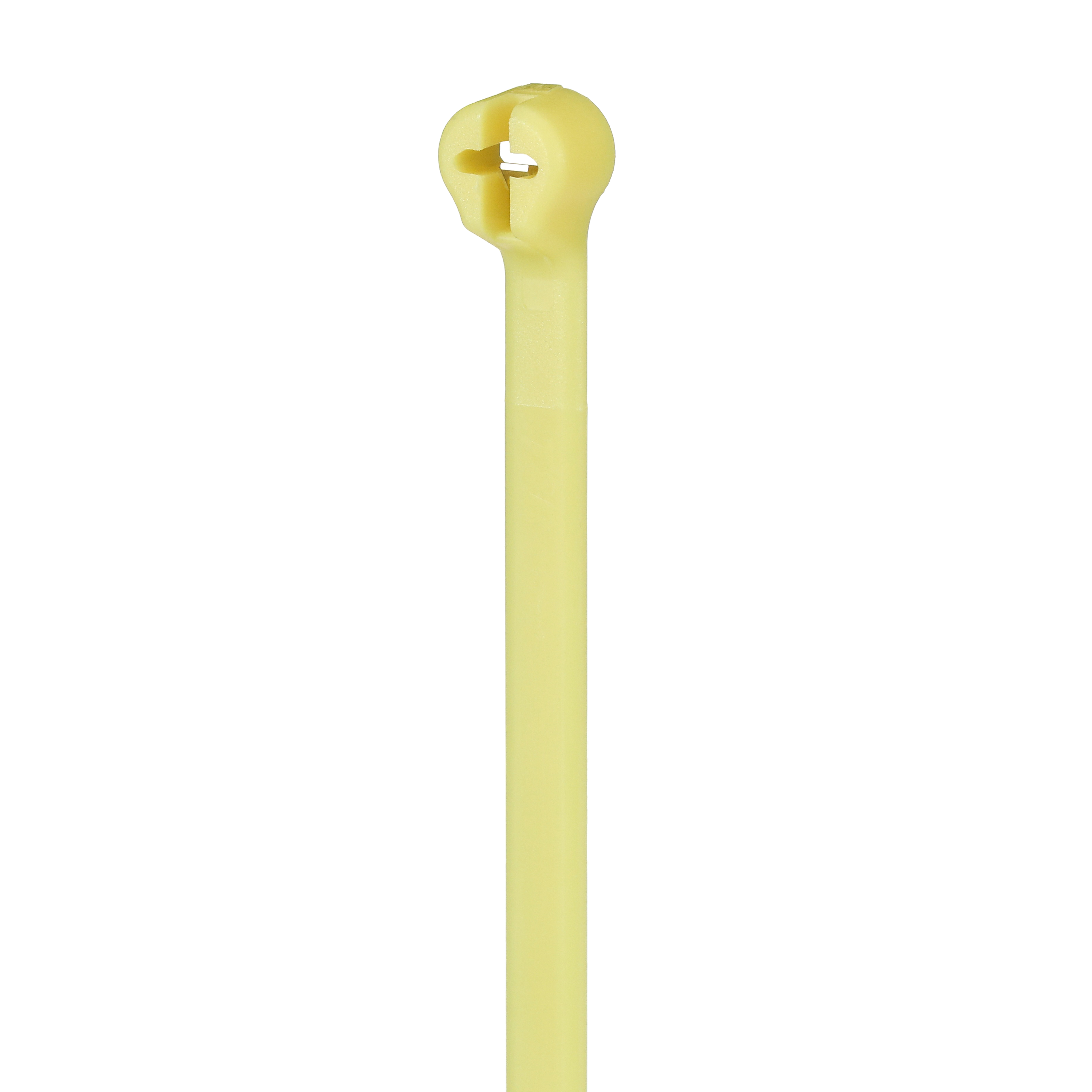

High Performance Cable Tie for Indoor applications, Yellow Color Nylon 6.6, Length of 295mm (11.6 Inches) for Bundle Diameter up to 78mm (3.07 Inches), Width of 4.9mm (0.19 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Military Specified (MIL-SPEC MS3367-7-4), Bulk Pack
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 34.41 ₽ | ≈2 мес. (73 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 47.99 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 52.98 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 52.99 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 58.49 ₽ | ≈2 мес. (73 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 58.76 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 64.86 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 78.78 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 79.06 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 87.28 ₽ | ≈1 мес. (59 дн.) | под заказ | от 1000 шт. | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| UPC | 786210838694 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.19 in, 4.9 mm |
| Product Net Depth / Length | 11.6 in, 295 mm |
| Package Level 1 Units | 1000 EA |
| Package Level 1 Width | 0 mm, 0 in |
| Package Level 1 Height | 355.6 mm, 14 in |
| Package Level 1 Depth / Length | 558.8 mm, 22 in |
| Package Level 2 Units | 5000 EA |
| Package Level 2 Width | 317.5 mm, 12.5 in |
| Package Level 2 Height | 355.6 mm, 14 in |
| Package Level 2 Depth / Length | 330.2 mm, 13 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.12 to 3.07 in, 3 to 78 mm |
| Color | Yellow |
| Effective Date | 19971114 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | High Performance |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 50 lb, 222 N |
| Thickness | 0.05 in, 1.3 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TY253M4 |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
