Артикул: 7TAG009020R0052
· Производитель: ABB
· EAN: 5414363065326
7TAG009020R0052
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
16.70 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
23.30 ₽
срок ≈4 мес. (122 дн.)

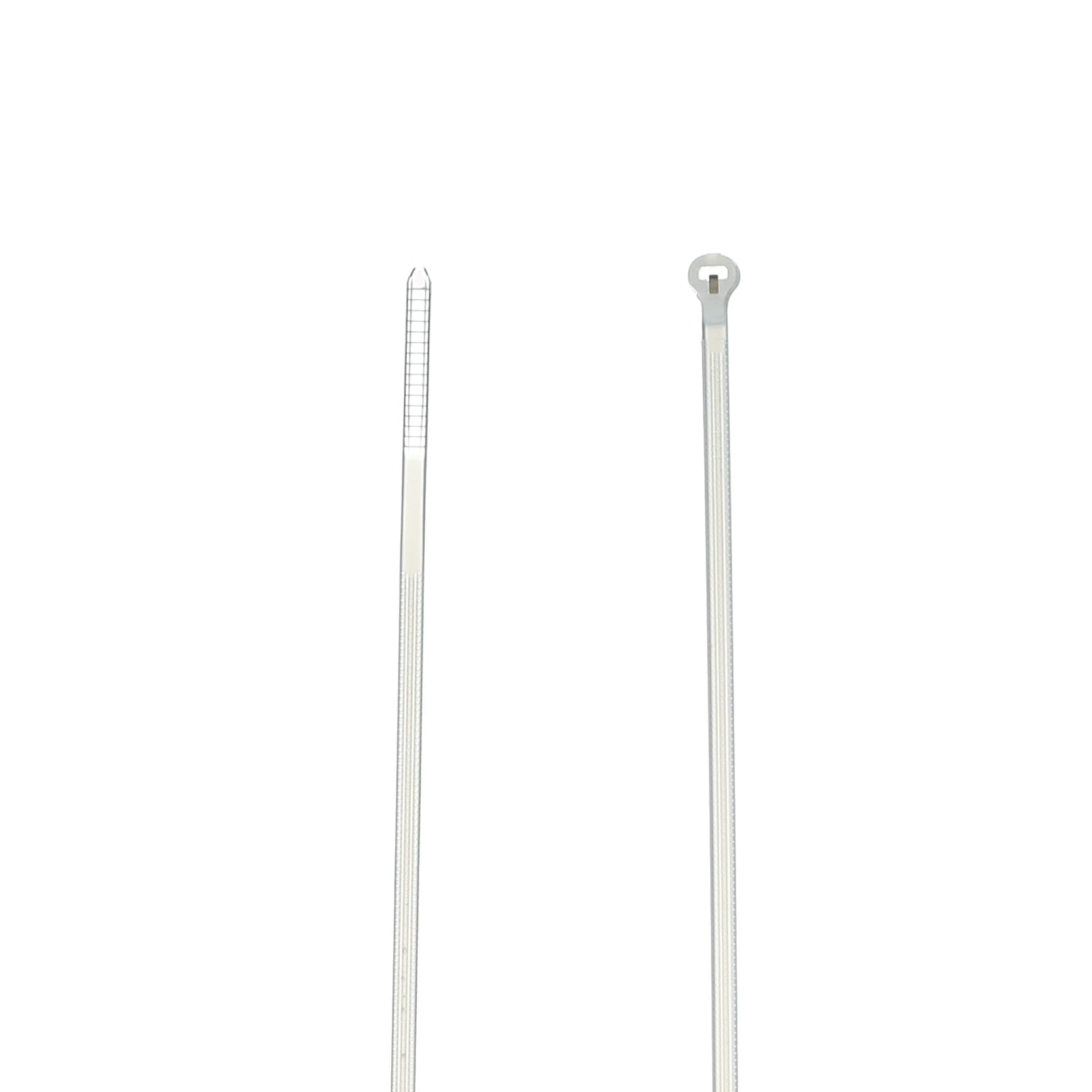

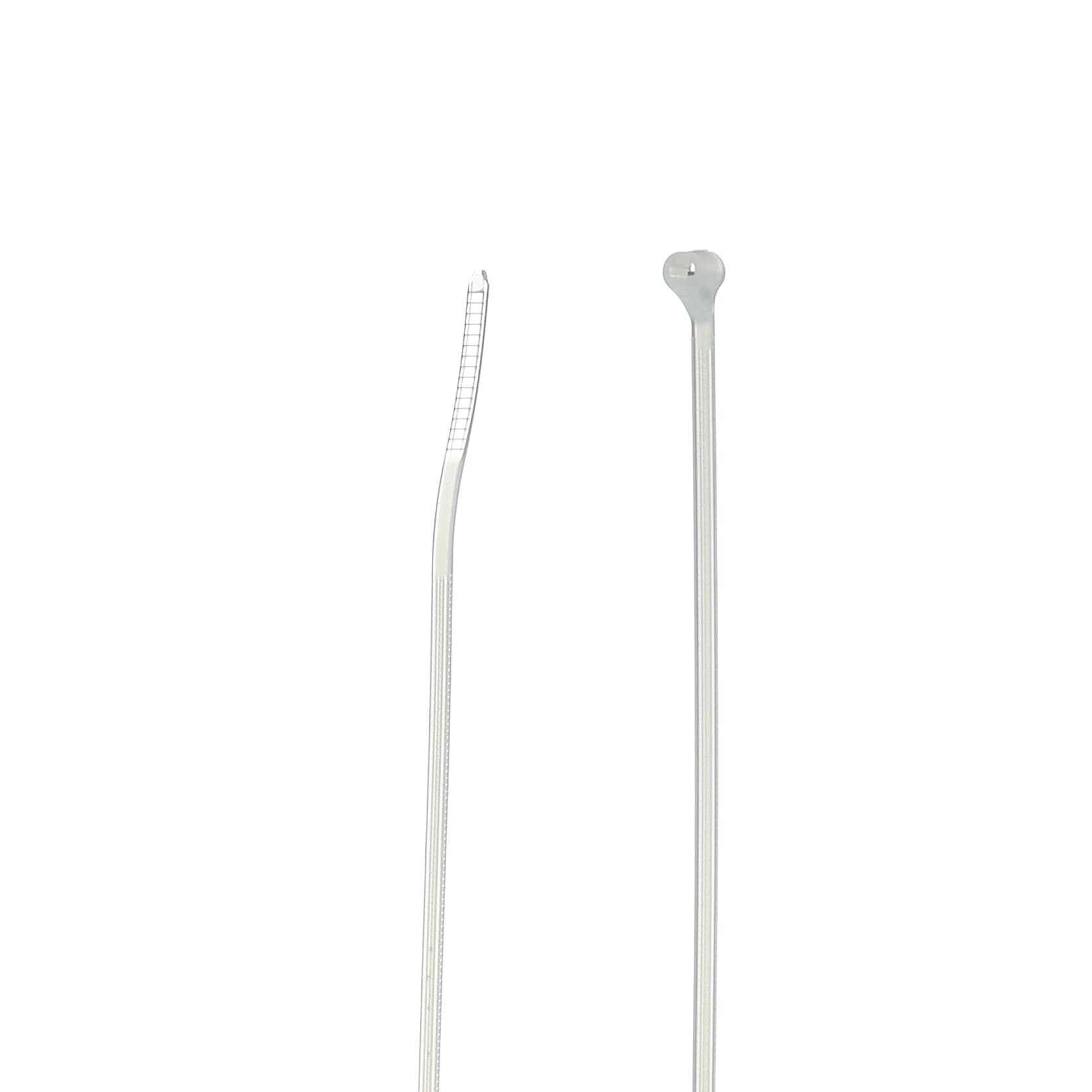

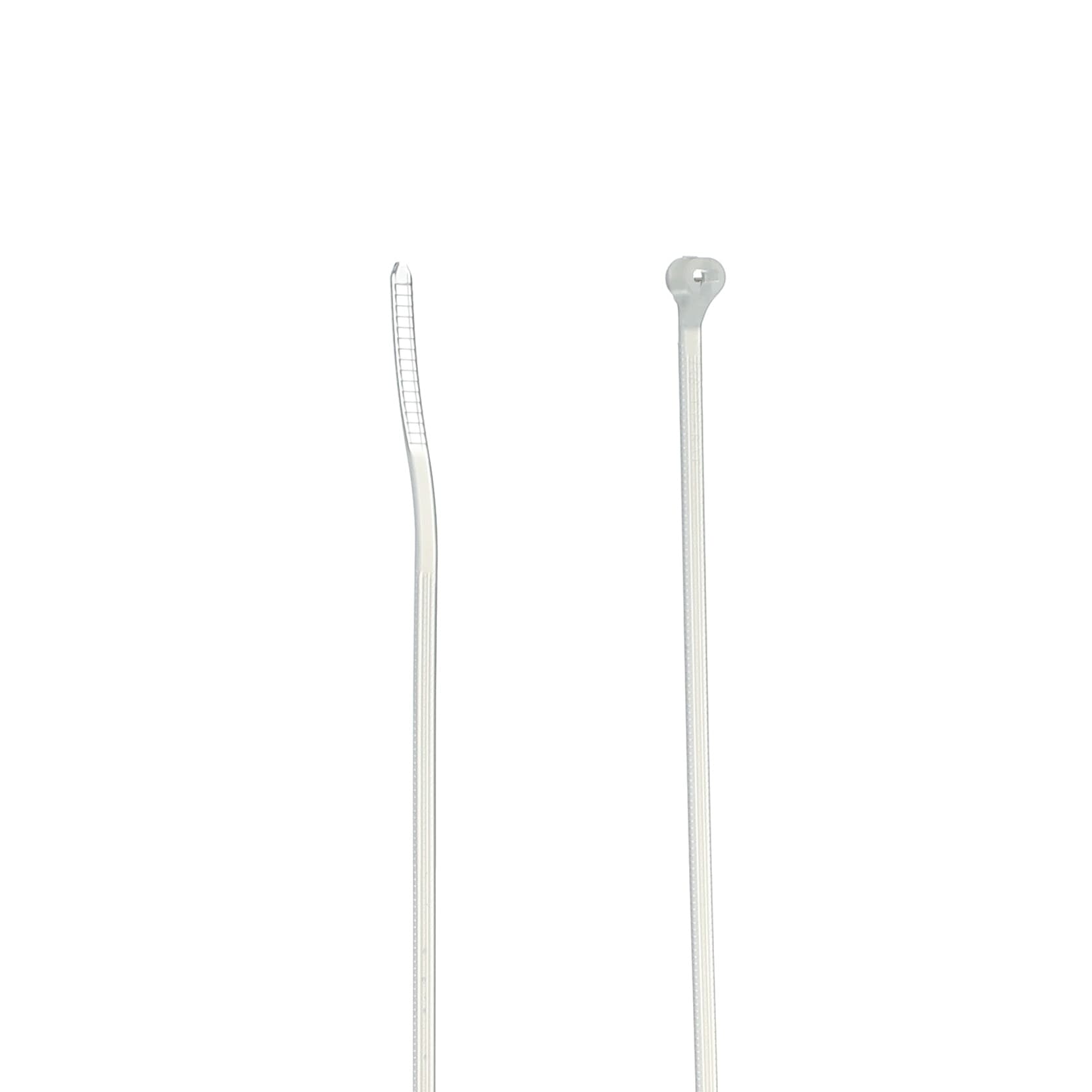

Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 357mm (14 Inches), Width of 2.3mm (0.09 Inches), Thickness of 1.1mm (0.04 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 16.70 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 21.58 ₽ | ≈1 мес. (45 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Европе | 23.30 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 25.72 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 28.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 28.39 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 31.23 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32.32 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 33.23 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35.68 ₽ | ≈1 мес. (59 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 36.68 ₽ | ≈1 мес. (45 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Европе | 38.23 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| ABB EcoSolutions | Yes |
| UPC | 786210830780 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.09 in, 2.3 mm |
| Product Net Depth / Length | 14 in, 357 mm |
| Package Level 1 Units | 100 EA |
| Package Level 1 Width | 85.09 mm, 3.35 in |
| Package Level 1 Height | 60.96 mm, 2.4 in |
| Package Level 1 Depth / Length | 381 mm, 15 in |
| Package Level 2 Units | 500 EA |
| Package Level 2 Width | 139.7 mm, 5.5 in |
| Package Level 2 Height | 134.62 mm, 5.3 in |
| Package Level 2 Depth / Length | 381 mm, 15 in |
| Package Level 3 Units | 96000 EA |
| Package Level 3 Width | 0 mm, 0 in |
| Package Level 3 Height | 0 mm, 0 in |
| Package Level 3 Depth / Length | 0 mm, 0 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.06 to 4.2 in, 1.5 to 102 mm |
| Color | Natural |
| Effective Date | 19710405 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | High Performance |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 18 lb, 80 N |
| Thickness | 0.04 in, 1 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TY5234M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
