Артикул: 7TAG009020R0050
· Производитель: ABB
· EAN: 5414363065265
7TAG009020R0050
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
15.68 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
21.88 ₽
срок ≈4 мес. (122 дн.)

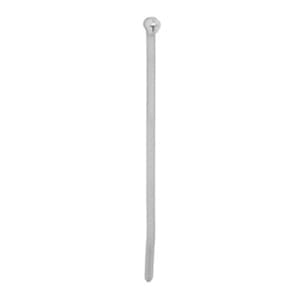

Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 170mm (6.7 Inches), Width of 2.3mm (0.09 Inches), Thickness of 1.1mm (0.04 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 15.68 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 21.09 ₽ | ≈1 мес. (45 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Европе | 21.88 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 24.15 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 26.12 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 26.66 ₽ | ≈2 мес. (73 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 28.83 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32.45 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32.47 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35.83 ₽ | ≈1 мес. (59 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Китае | 35.85 ₽ | ≈1 мес. (45 дн.) | под заказ | от 100 шт. | Заказать |
| Склад в Европе | 35.90 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| ABB EcoSolutions | Yes |
| UPC | 786210875446 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.09 in, 2.3 mm |
| Product Net Depth / Length | 6.7 in, 170 mm |
| Package Level 1 Units | 100 EA |
| Package Level 1 Width | 152.4 mm, 6 in |
| Package Level 1 Height | 0 mm, 0 in |
| Package Level 1 Depth / Length | 304.8 mm, 12 in |
| Package Level 2 Units | 500 EA |
| Package Level 2 Width | 106.426 mm, 4.19 in |
| Package Level 2 Height | 162.56 mm, 6.4 in |
| Package Level 2 Depth / Length | 251.206 mm, 9.89 in |
| Package Level 3 Units | 181500 EA |
| Package Level 3 Width | 0.025 mm, 0.001 in |
| Package Level 3 Height | 0.025 mm, 0.001 in |
| Package Level 3 Depth / Length | 0.025 mm, 0.001 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.06 to 1.26 in, 1.5 to 32 mm |
| Color | Natural |
| Effective Date | 19750630 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | High Performance |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 18 lb, 80 N |
| Thickness | 0.04 in, 1 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TY52315M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
