Артикул: 6AGC128175
· Производитель: ABB
· EAN: 8719874454056
6AGC128175
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
134 273.01 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
109 380.40 ₽
срок ≈2 мес. (73 дн.)

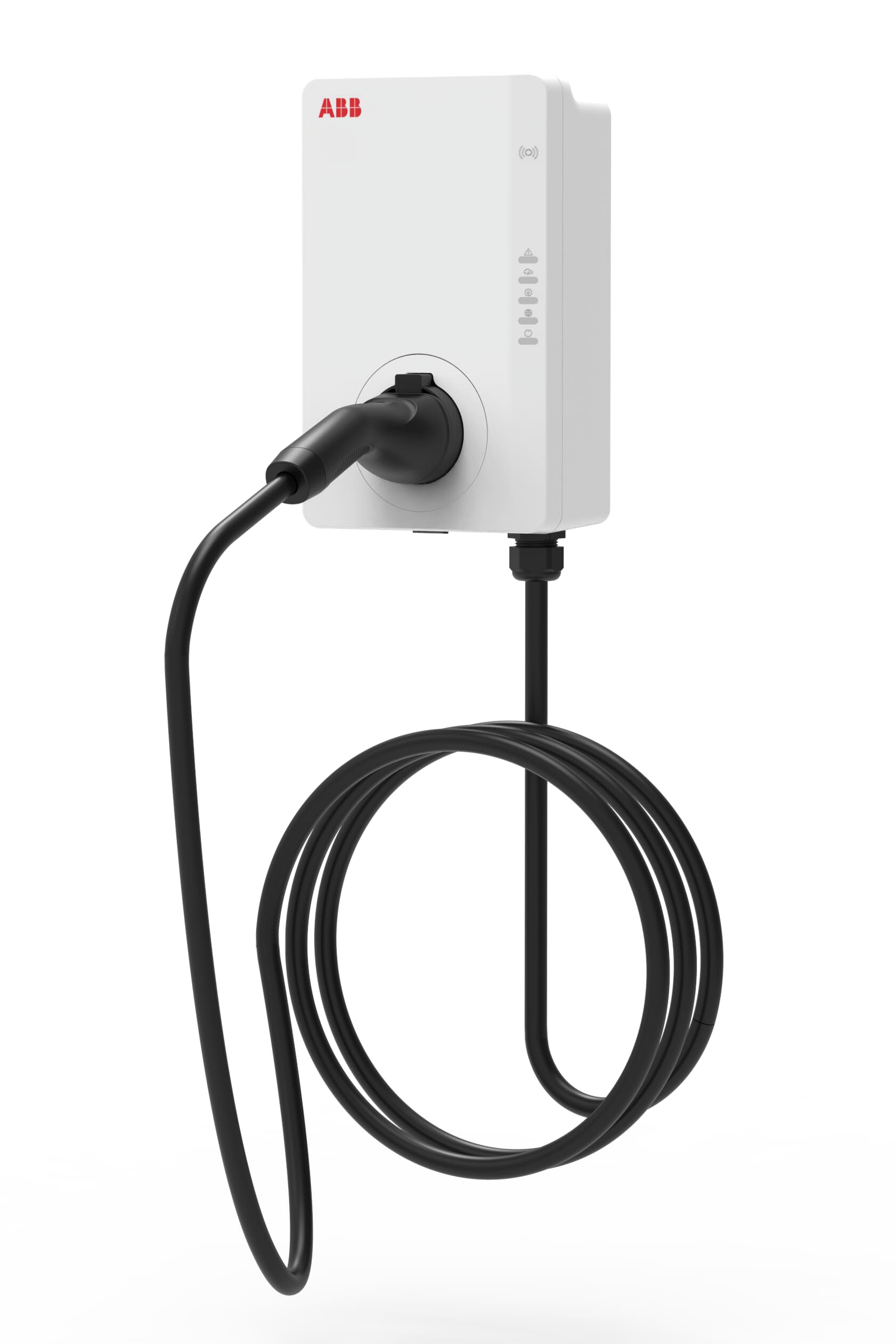

Terra AC wallbox type 2, cable 5 m, 3-phase/16 A, with RFID, Version 2
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 109 380.40 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 121 635.55 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 122 755.85 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 131 157.89 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 134 273.01 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 135 509.70 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 138 292.26 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 144 784.68 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 212 970.08 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 235 096.84 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 280 691.31 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Type of Low Voltage Distribution System | TT, TN |
| Overload Protection | Overcurrent protection at 20 A |
| Communication Interface | Wi-Fi, Ethernet, Bluetooth |
| Number of Phases | 3-phase |
| Number of Miniature Circuit Breakers (MCBs) | Integrated breaker |
| Surge Suppression | Included |
| Enclosure Type | indoor, outdoor |
| Energy Meter Type | AC |
| Technical Information | Features: DC residual current detection |
| Number of Batteries | 1 |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Battery Module Non-Rechargeable |
| Battery Life | No time limit |
| Battery Weight | 0.8 g |
| Battery Lithium Amount | 0.04 g |
| Cable Length | 5 m |
| EV Connectors | (AC Type 2) 1 piece |
| Output Power | 11 kW |
| Connection Power | 11 kW |
| Input Current | 16 A |
| Number of RCDs Electric Vehicle Supply Equipment | Res. Cur. Monitor |
| Cross-Section (Across) | 2.5...6 mm² |
| Communication Protocol | OCPP 1.6 |
| Load Management Method | OCPP - Based |
| Authentication Method | RFID |
| Impact Resistance Rating | IK10 |
| Input Voltage (Uin) | 380 ... 420 V |
| Output Voltage (Uout) | 320 ... 480 V |
| Output Current Maximum (Iout) | 16 A |
| Frequency (f) | 50 ... 60 Hz |
| Overvoltage Category | III |
| Housing Material | Plastic |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260316 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251023 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Battery Type | Button Cell |
| Ambient Air Temperature | Operation -30 ... +50 °C |
| Degree of Protection | IP55 |
| Maximum Operating Altitude Permissible | 2000 m |
| Product Net Width | 0.195 m |
| Product Net Height | 0.110 m |
| Product Net Depth / Length | 0.320 m |
| Product Net Weight | 4.1 kg |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 5.6 kg |
| E-Number (Finland) | 3503473 |
| Alternative Product Reference | YAA.V3Y56.0 |
| Mounting Type | Wall Mounting |
| ETIM 9 | EC002883 - Charging device E-Mobility |
| ETIM 10 | EC002883 - Charging device for electric vehicles |
| UNSPSC | 25175002 |
| Dangerous Goods UN Number | UN3091 |
| IDEA Granular Category Code (IGCC) | 1311 >> Electric vehicle charging station |
| Standards | EN 61851-1 |
| extended_product_type | Terra AC W11-G5-R-V2-0 |
| category_paths | Products > Electric Vehicle Charging > Home Charging Products, AC and DC Wallboxes and Chargers > Global AC Chargers |
