Артикул: 6AGC082157
· Производитель: ABB
· EAN: 8719874450959
6AGC082157
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
173 360.42 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
157 044.14 ₽
срок ≈1 мес. (38 дн.)

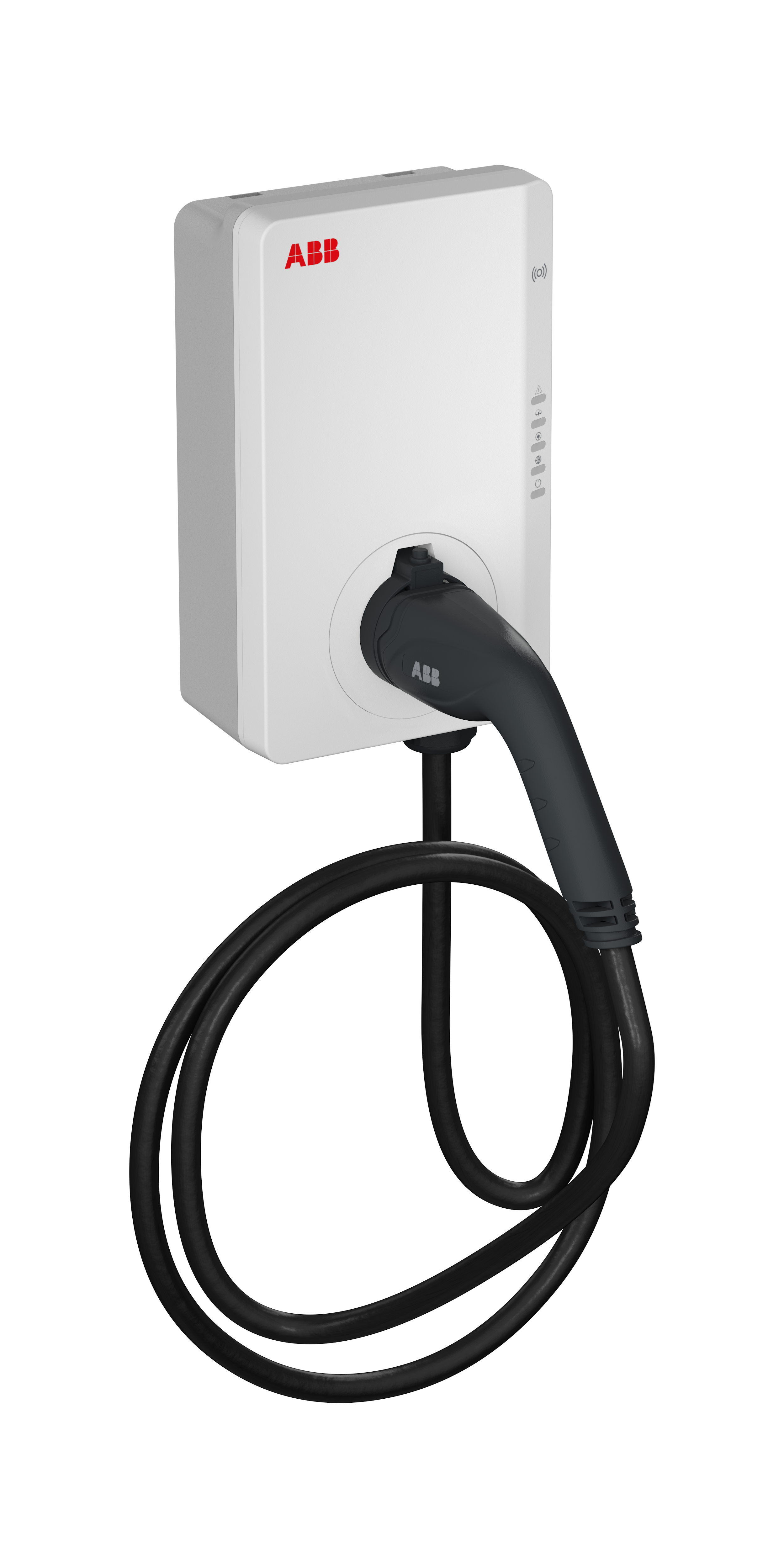

Terra AC wallbox type 2, cable 5m, 3-phase/32 A, with RFID and 4G
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 157 044.14 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 158 491.82 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 170 244.16 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 173 360.42 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 174 918.69 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 174 958.51 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 187 931.87 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 193 490.06 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 269 374.79 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 297 361.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Overload Protection | Overcurrent protection at 40 A |
| Communication Interface | Wi-Fi, Ethernet, Bluetooth, Modbus, 4G |
| Connection Configuration | TT, TN |
| Number of Phases | 3-phase |
| Number of Miniature Circuit Breakers (MCBs) | Integrated brreaker |
| Surge Suppression | Included |
| Enclosure Type | indoor, outdoor |
| Energy Meter Type | AC |
| Technical Information | Features: DC residual current detection, Contactor welding detection, Networkable via LAN, Networkable via Wi-Fi, Long-Term Evolution (LTE), Static load management integrated, Suitable for dynamic load management, With Display, Operation and configuration by app, Export of charging logs, Backend included in delivery |
| Number of Batteries | 1 |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Battery Module Non-Rechargeable |
| Battery Life | No time limit |
| Battery Weight | 0.8 g |
| Battery Lithium Amount | 0.04 g |
| Cable Length | 5 m |
| EV Connectors | (AC Type 2) 1 piece |
| Number of Socket Outlets | Cable only |
| Output Power | Nominal 22 kW |
| Connection Power | Nominal 22 kW |
| Input Current | 3-phase 32 A |
| Number of RCDs Electric Vehicle Supply Equipment | Resid. Curr. Monitor |
| Cross-Section (Across) | 6 … 6 mm² |
| Communication Protocol | OCPP 1.6 |
| Load Management Method | OCPP - Based |
| Authentication Method | RFID, App, Free Vending |
| Impact Resistance Rating | IK10 |
| Input Voltage (Uin) | AC 3-phase 380 ... 420 V |
| Output Voltage (Uout) | AC 3-phase 320 ... 480 V |
| Output Current Maximum (Iout) | AC 3-phase 32 A |
| Frequency (f) | 50 ... 60 Hz |
| Overvoltage Category | III |
| Housing Material | Plastic |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20210928 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Battery Type | Button Cell |
| Ambient Air Temperature | Operation -30 ... +50 °C, Storage -50 ... +80 °C |
| Degree of Protection | acc. to IEC 60529 IP54 |
| Maximum Operating Altitude Permissible | 2000 m |
| Product Net Width | 195 mm |
| Product Net Height | 110 mm |
| Product Net Depth / Length | 320 mm |
| Product Net Weight | 5.3 kg |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 6.8 kg |
| E-Number (Finland) | 3503422 |
| E-Number (Sweden) | 2480099 |
| Alternative Product Reference | 3Q510002000A |
| Mounting Type | Wall mounting |
| ETIM 9 | EC002883 - Charging device E-Mobility |
| ETIM 10 | EC002883 - Charging device for electric vehicles |
| UNSPSC | 25175002 |
| Dangerous Goods UN Number | UN3091 |
| IDEA Granular Category Code (IGCC) | 1311 >> Electric vehicle charging station |
| Standards | EN 61851-1, EN 61851-23, EN 61000-6-2, EN 61000-6-3, EN 301 908-2, IEC 60721-3-2: IE23, RoHS |
| extended_product_type | TAC-W22-G5-R-C-0 |
| category_paths | Products > Electric Vehicle Charging > Home Charging Products, AC and DC Wallboxes and Chargers > Global AC Chargers |
