Артикул: 4TBA831111C0100
· Производитель: ABB
· EAN: 5411815234347
4TBA831111C0100
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
95 801.12 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
93 001.05 ₽
срок уточняется

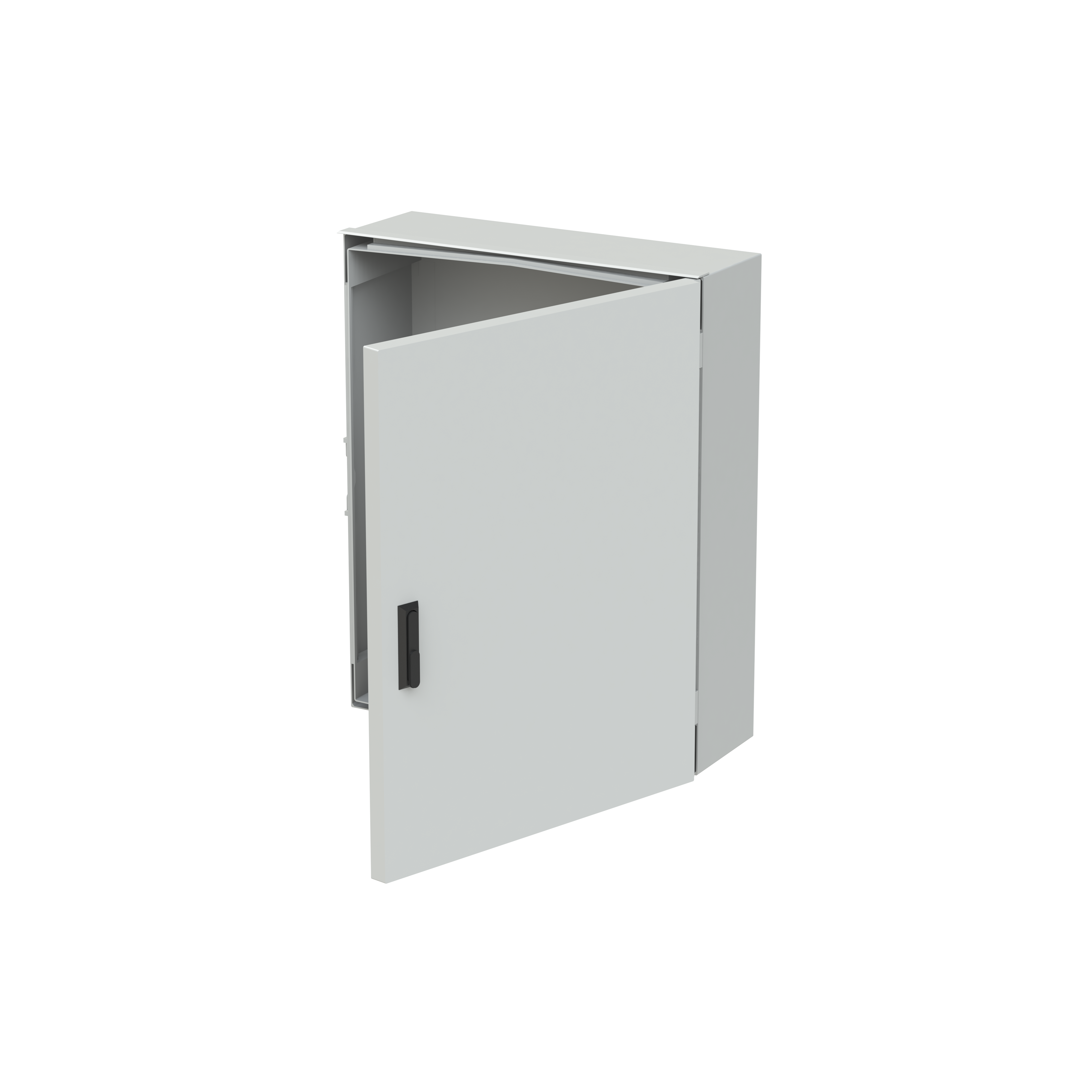

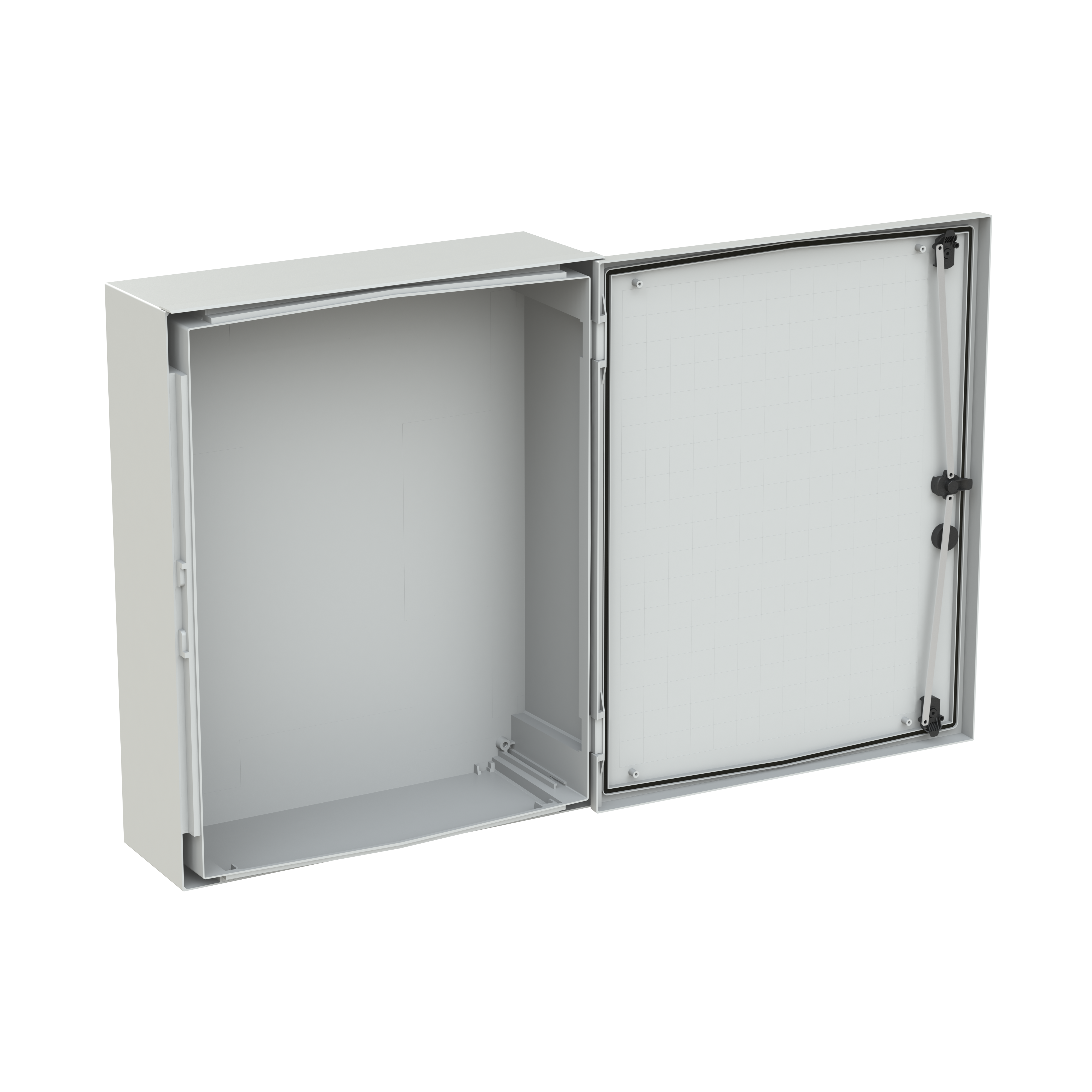

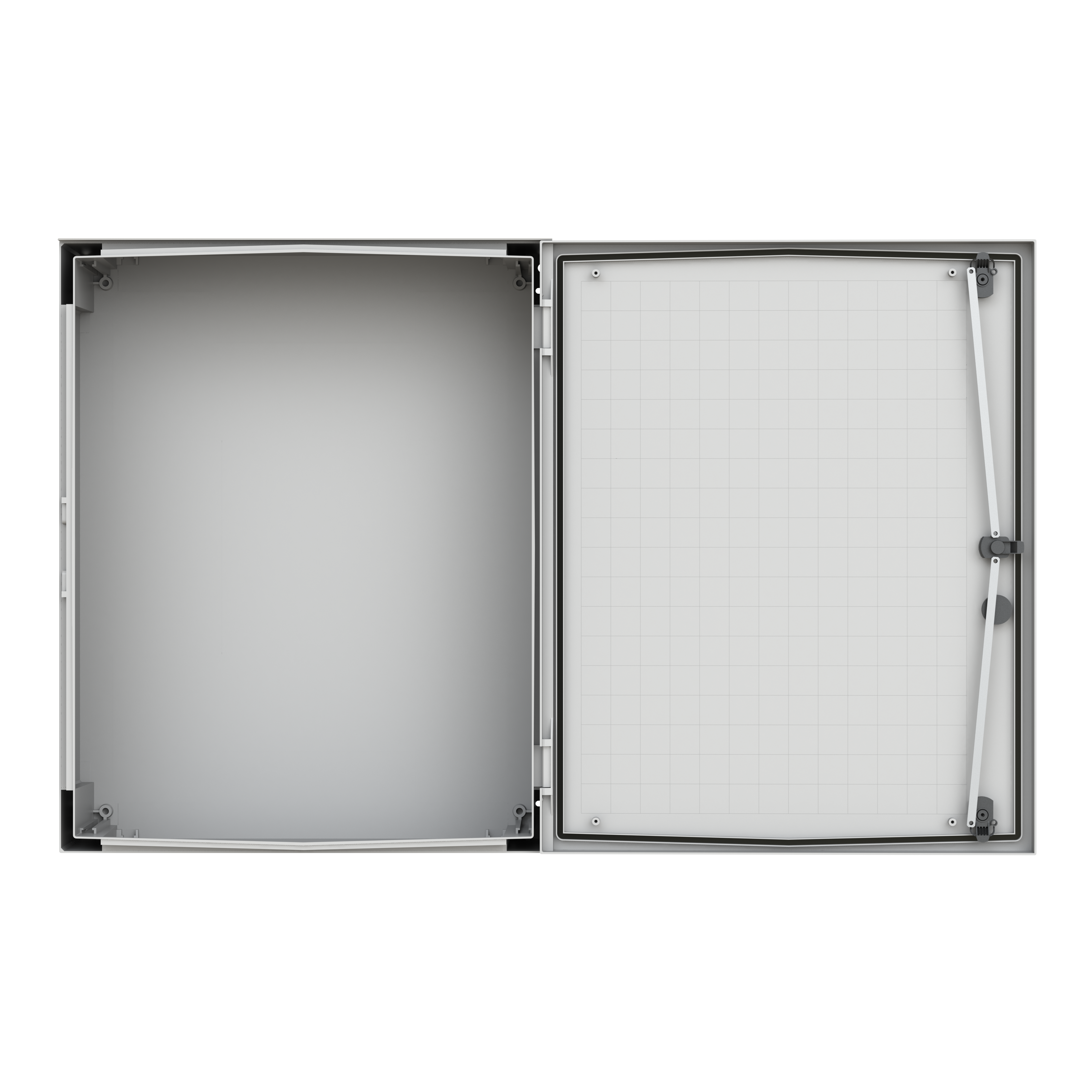

The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA1085 Cabinet 1035x835x300 ARIA, swivelling lever handle, 3-point lock IP66, IK08
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 93 001.05 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 95 801.12 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 104 719.43 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 106 950.57 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 111 818.00 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 115 599.38 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 118 062.32 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 123 435.45 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 147 533.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 162 762.23 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 162 861.90 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | Grey |
| Maximum Load Capacity | Enclosure 1334.16 N, Door(s) 78.48 N, Mounting Plate 1334.16 N |
| Number of Flange Openings | 0 |
| Number of Connection Holes | 0 |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type4X |
| Door Type | Single |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Power Loss | Δt = 20K - Enclosures 130 W, Total 130 W |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220302 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| SCIP | c9b18eba-d321-4906-b760-864cab38d40d Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Degree of Protection | IP66 |
| Protection Class | Isolated (Class II) |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 835 mm |
| Product Net Height | 1035 mm |
| Product Net Depth / Length | 300 mm |
| Product Net Weight | 23 kg |
| Thickness | Cabinet Plate 3 mm, Door Plate 3 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 24.3 kg |
| Replaced Product ID (OLD) | 831111 |
| Mounting Type | Surface mounted |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| UNSPSC | 39121103 |
| eClass | V11.0 : 27142408 |
| extended_product_type | AR108H33 |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > General Purpose Enclosures > GRP cabinets > ARIA |
