Артикул: 4TBA831097C0100
· Производитель: ABB
· EAN: 5411815234262
4TBA831097C0100
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
56 630.03 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
48 669.25 ₽
срок уточняется

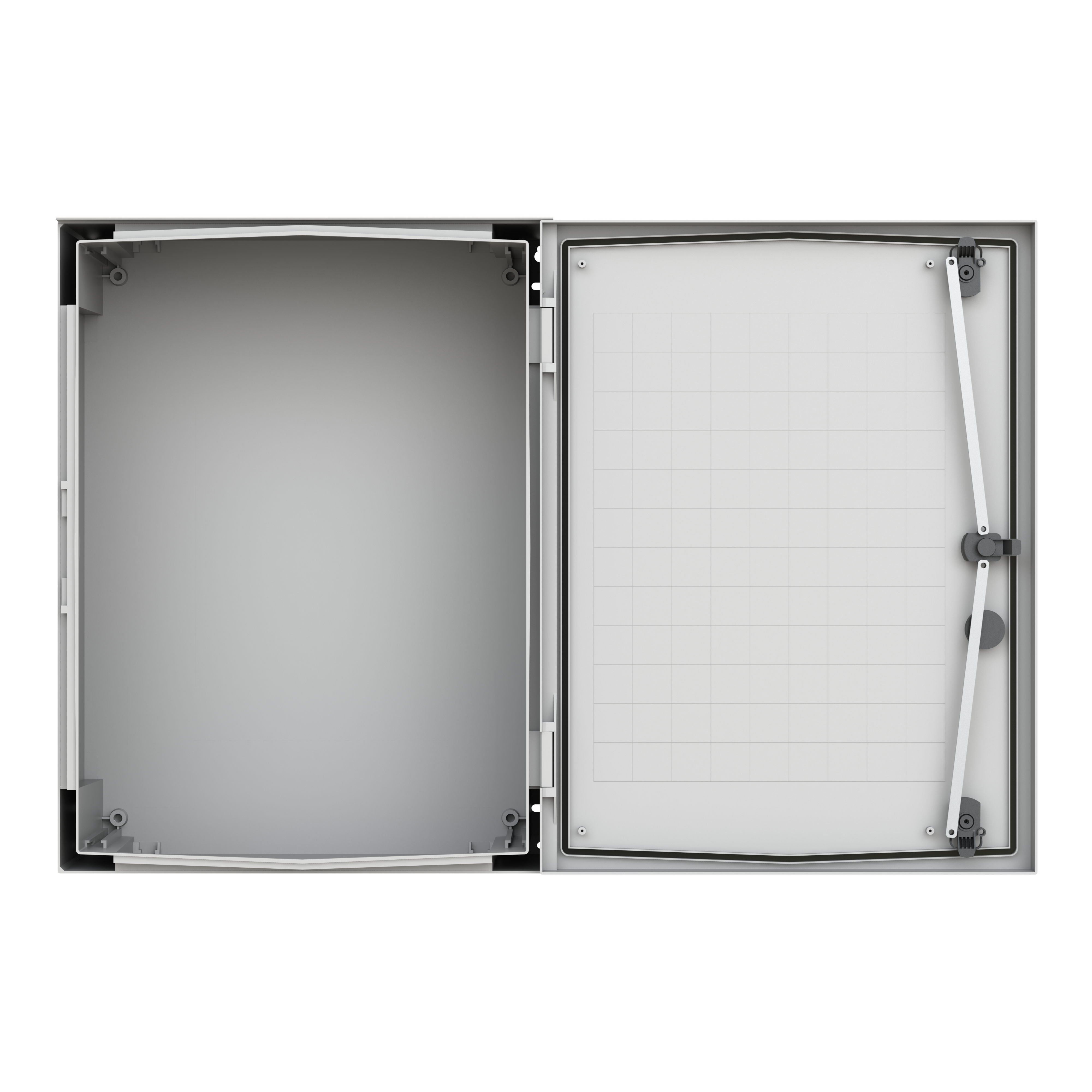

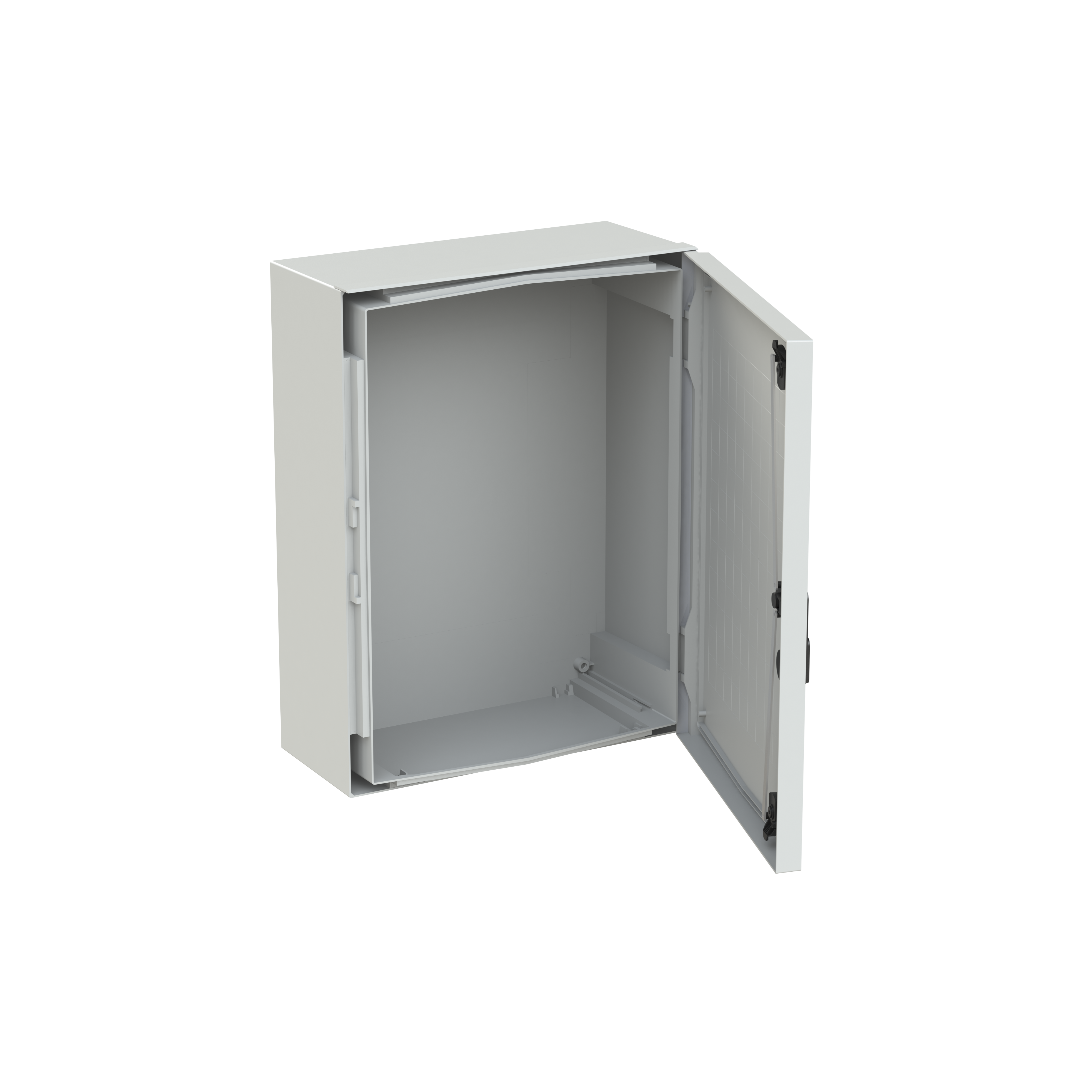

The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA865 Cabinet 835x635x300 ARIA, swivelling lever handle, 3-point lock IP66, IK08
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 48 669.25 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 55 483.11 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 55 969.46 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 56 630.03 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 58 516.43 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 61 247.59 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 61 784.47 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 64 596.06 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 85 231.12 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 87 210.24 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 96 271.05 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | Grey |
| Maximum Load Capacity | Enclosure 1334.16 N, Door(s) 78.48 N, Mounting Plate 1334.16 N |
| Number of Flange Openings | 0 |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type4X |
| Door Type | Single |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Power Loss | Δt = 20K - Enclosures 80 W, Total 80 W |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220302 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| SCIP | c9b18eba-d321-4906-b760-864cab38d40d Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Degree of Protection | IP66 |
| Protection Class | Isolated (Class II) |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 635 mm |
| Product Net Height | 835 mm |
| Product Net Depth / Length | 300 mm |
| Product Net Weight | 15.5 kg |
| Thickness | Cabinet Plate 3 mm, Door Plate 3 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 16.4 kg |
| Replaced Product ID (OLD) | 831097 |
| Mounting Type | Surface mounted |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| UNSPSC | 39121103 |
| eClass | V11.0 : 27142408 |
| extended_product_type | AR086H33 |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > General Purpose Enclosures > GRP cabinets > ARIA |
