Артикул: 2TYZ510205G0601
· Производитель: ABB
· EAN: 6925897543802
2TYZ510205G0601
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
17 272.95 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
15 647.26 ₽
срок ≈1 мес. (38 дн.)

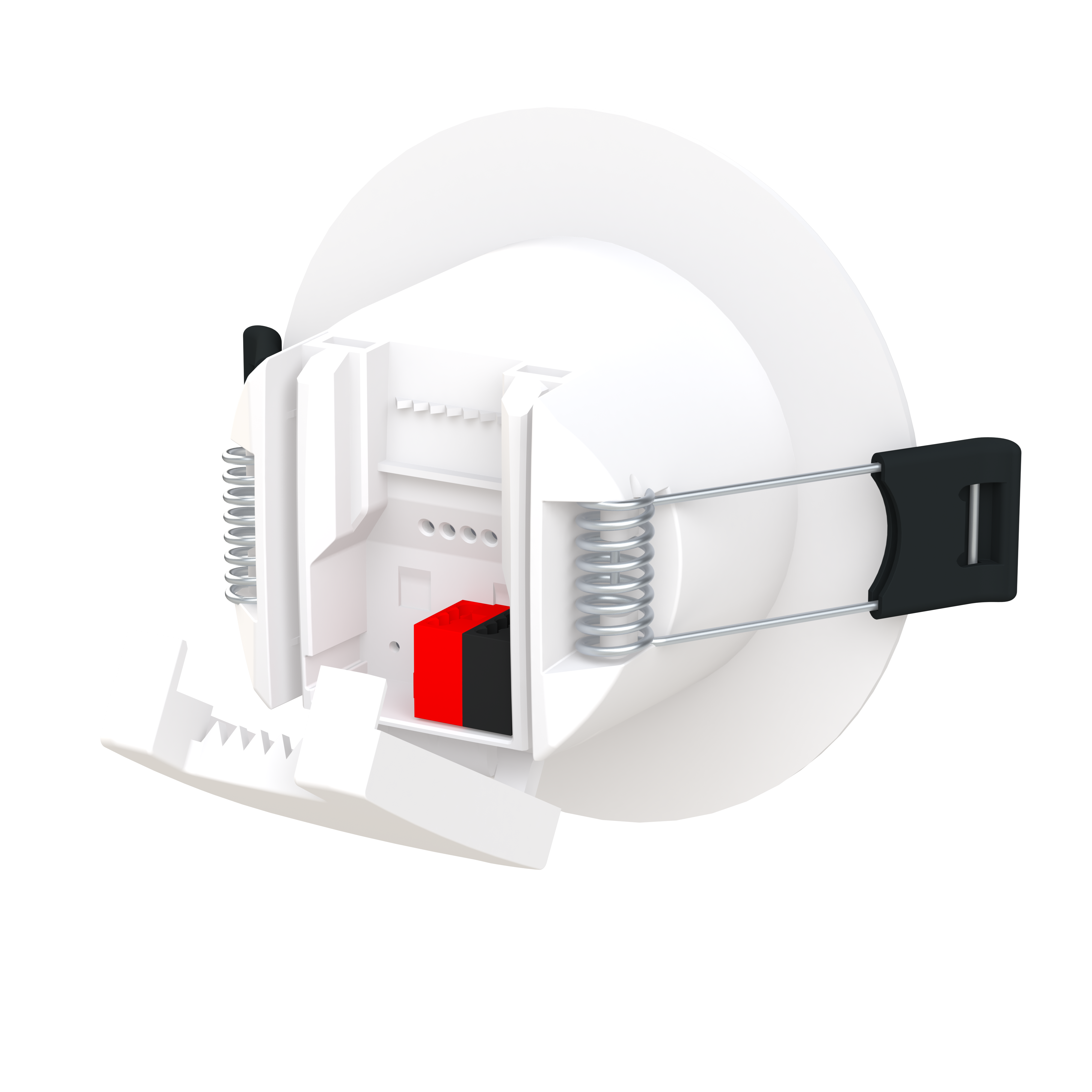

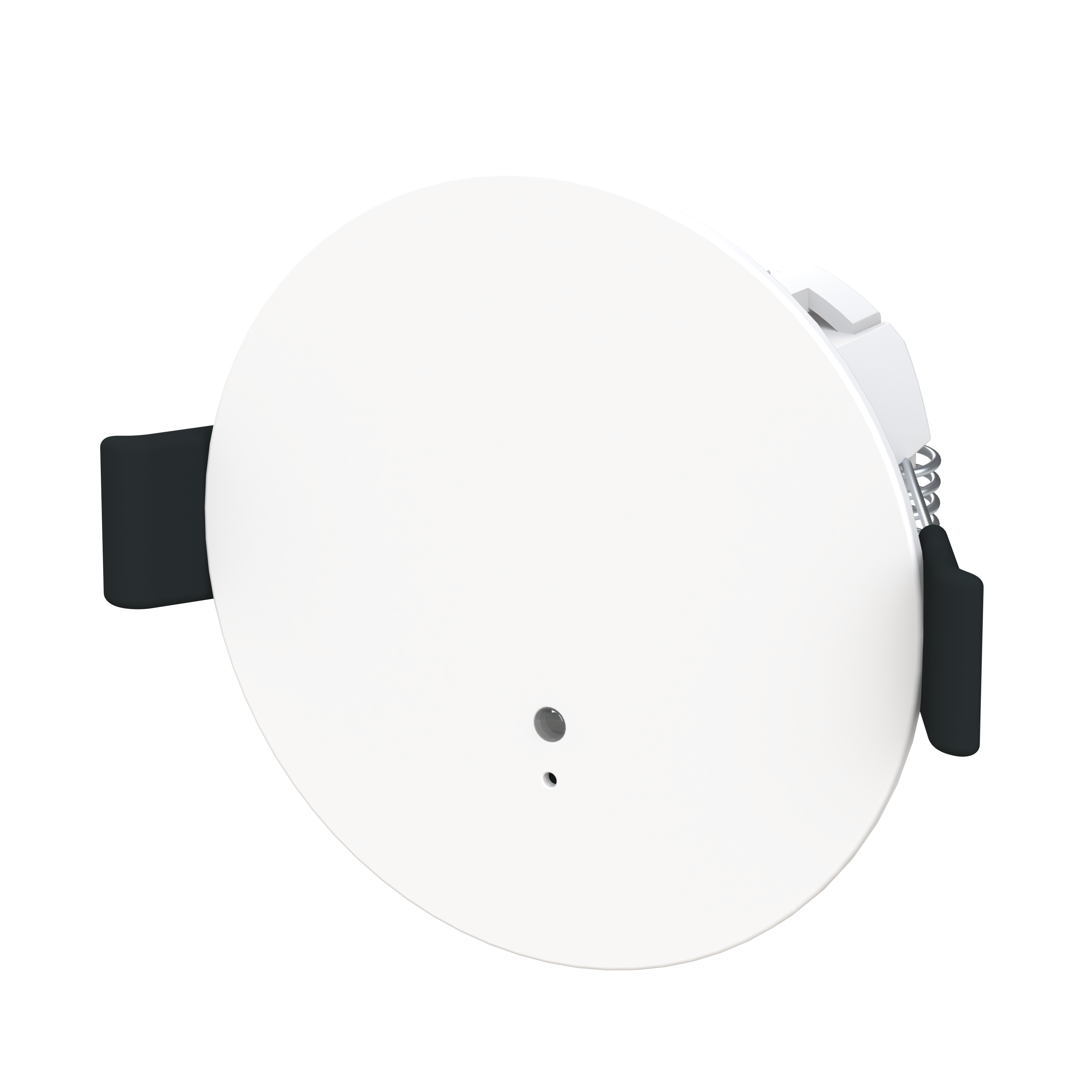

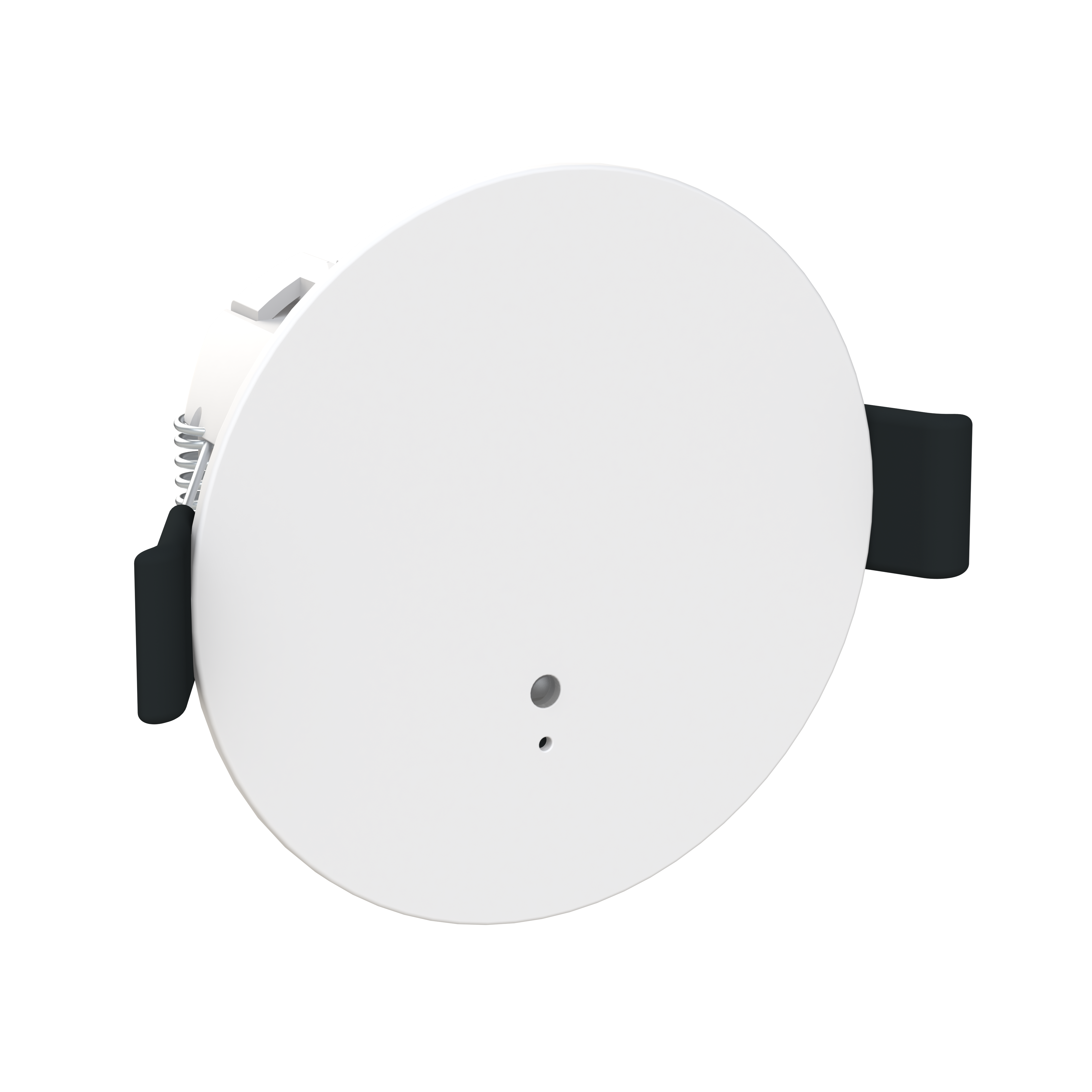

Movement Detector HF KNX, Basic, white
Detection Range (Circular):
- Mounting height 2.5 m: Ø max. 10 m
- Mounting height 3.0 m: Ø max. 12 m
- Mounting height 4.0 m: Ø max. 10 m
Technology:
- 5.8 GHz HF (High Frequency) radar technology
- Penetrates materials such as drywall, wood, and glass
- 2 independent channels
- Integrated KNX bus coupler
Integrated Sensors:
- Brightness sensor
- Temperature sensor
- Humidity sensor
Functions:
- Movement detector with 2 power-off stages
- Integrated monitoring/surveillance function
- Constant light switching with up to 2 independent channels
- Brightness-dependent switching of two light circuits
- KNX Data Secure
Installation Options:
- Recessed ceiling: Hole size Ø 68 mm
- Surface mounting: With PMA/A1.xx-88x housing
- British Standard box: PMA/K1.1-88x
- VDE flush-mounted box: PMA/K2.xx-88x
Please refer to the installation instructions for proper setup and optimal performance.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 15 647.26 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 861.24 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 17 272.95 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 994.40 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 613.05 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 863.95 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 660.03 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 31 816.45 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35 122.06 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 47 164.29 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | white matt |
| Mounting Type | Flush-mounted |
| Mounting Position | Ceiling |
| Mounting Height | Optimum 2.5 ... 4 m |
| Modular Components Included | Complete Device |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Function | Lightning, Logic functions, with strain relief, Activating/deactivating test mode, Adjusting the sensitivity, Brightness sensor, Temperature sensor, Humidity Sensor |
| Number of Channels | 2 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Cover Mounting Type | Snap On |
| Manual Operation | No |
| Number of Batteries | 0 |
| Terminal Type | Bus Connection |
| Sensor Detection Range | 360 °, Frontal 5 m, Lateral 6 m |
| Motion Detector Features | Creep-Under Protection |
| Security Standard | KNX Data Secure |
| Rated Current (In) | 18 mA |
| Surface Finishing | Lacquered, Matt |
| Material | Plastic, Thermoplastic |
| RAL Number | Similar to RAL 9003 |
| Color | white matt |
| Product Net Width | 80 mm |
| Product Net Height | 80 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 57 g |
| Built-In Depth (t2) | 40 mm |
| E-Number (Finland) | 2815955 |
| E-Number (Sweden) | 1741104 |
| E-Number (Switzerland) | 535334602 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250625 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 5 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001582 - Movement sensor for bus system |
| ETIM 10 | EC001582 - Movement sensor for bus system |
| eClass | V11.0 : 27143144 |
| extended_product_type | BMH/U2.1.1-884 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Presence Detection > Motion Detectors |
