Артикул: 2TMA310011B0002
· Производитель: ABB
· EAN: 6955891820012
2TMA310011B0002
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
24 359.91 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
35 414.27 ₽
срок ≈4 мес. (122 дн.)

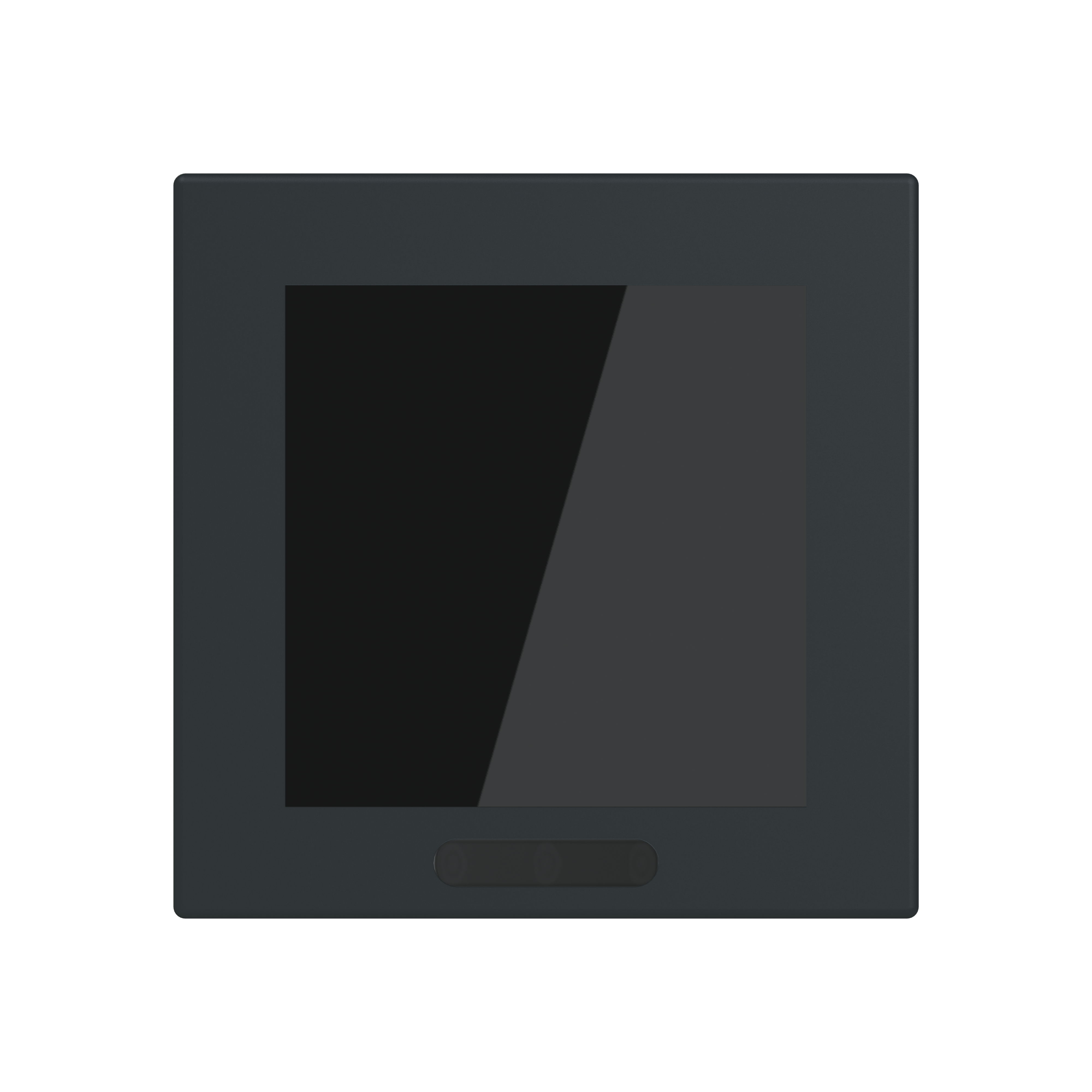

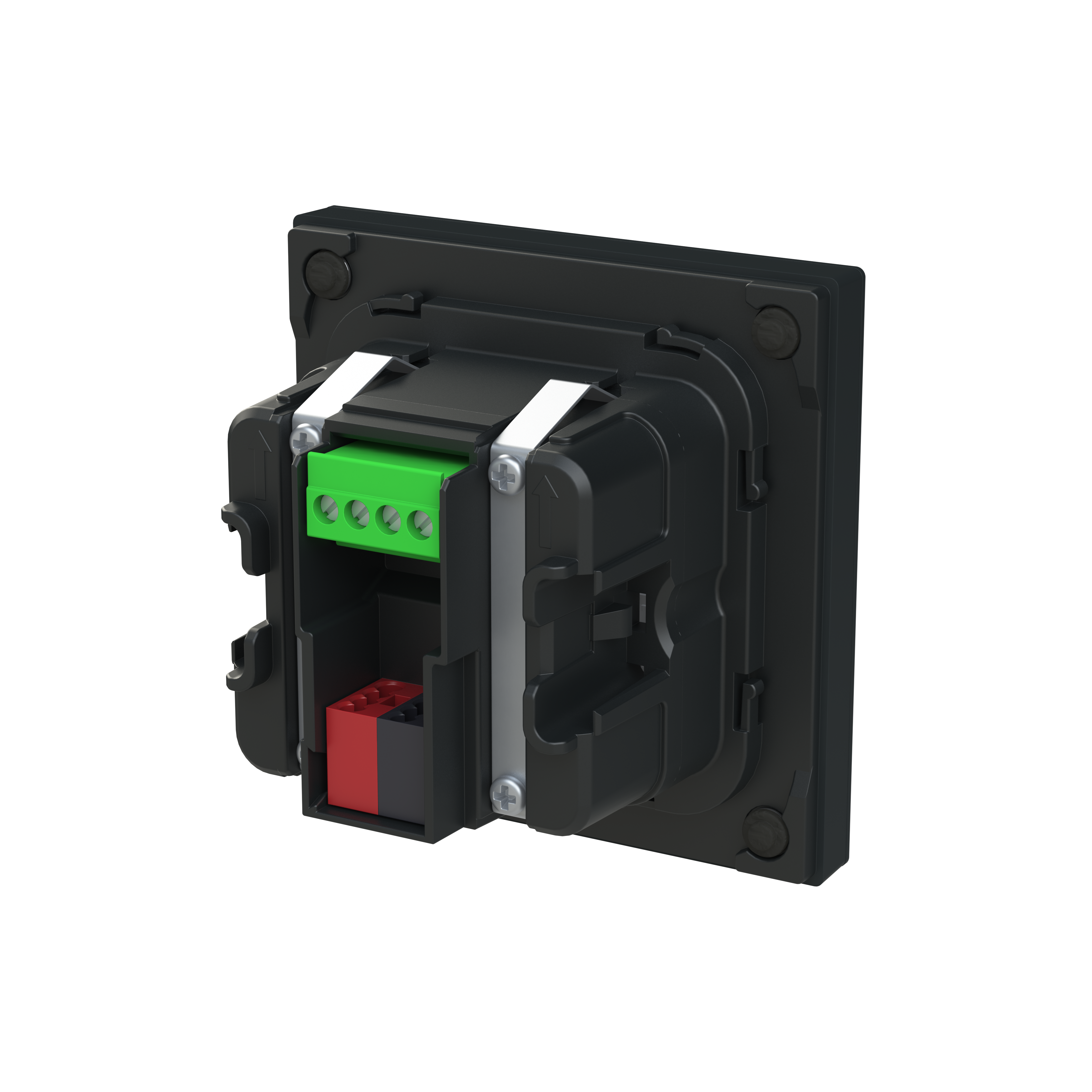

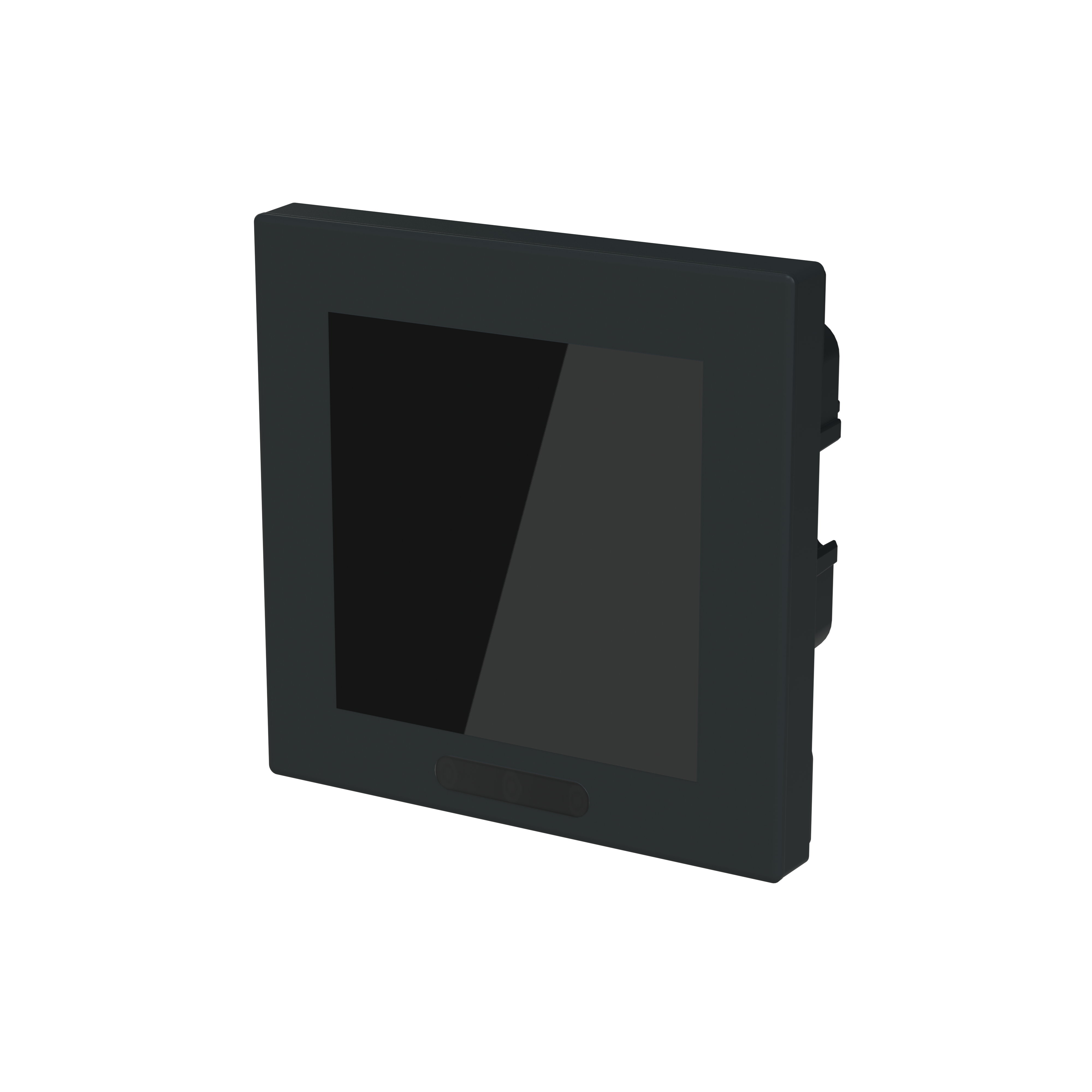

Freely programmable touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs.
The display is suitable for the design ranges:
- future®
- future® linear
- solo®
- Busch-axcent®
- Busch-axcent® pur
- carat®, Busch-dynasty®
- pure stainless steel
- Impressivo
- KNX Data Secure compatible
KNX and free@home functions:
- A total 12 control elements are displayed on a maximum of 12 pages
- 12 fault and alarm messages
- 10 logic functions
- 10 weekly timers
- 10 scene actuators
- 1 integrated temperature controller (RTC)
- Page display with a maximum of 4 touch surfaces on one page
- Primary function 18 fault and alarm messages
- Integrated temperature sensor
- Haptic feedback
- Proximity sensor
- Brightness sensor
- 1 binary input or external temperature sensor input (PT1000 / 6226/T)
External power supply needed: 20-32 VDC (SELV)
Number of bus subscribers: 1
Optional Removal protection: TZE/U.0.xx.CK
Display size: 6,10cm (2.4”)
Display resolution: 240*240
Display screen: IPS display
Dimensions (L x W x D): (63mm x 63mm x 32mm)
Display surface: glass black (-825)
Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 24 359.91 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 35 414.27 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 737.05 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 37 514.26 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 38 690.29 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 39 093.68 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 815.24 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40 553.89 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 41 359.42 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 41 411.85 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 45 656.50 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 59 615.96 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 61 315.47 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 67 685.91 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | glass black |
| Mounting Type | Flush Mounted |
| Mounting Position | Wall |
| Modular Components Included | Cover with Flush Mounted Insert and Mounting Plate |
| Ambient Air Temperature | Operation 0 ... +45 °C |
| Degree of Protection | IP20 |
| Number of Outputs | 1 |
| Compatible Bus Systems | KNX (TP), free@home (TP) |
| Product Range | KNX, free@home |
| Transmission Standard | Twisted Pair Wiring |
| Display Type | IPS |
| Screen Type | Touchscreen |
| Manual Operation | Yes |
| Number of Batteries | 1 |
| Battery Size | ML414H |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Embedded Rechargeable |
| Battery Weight | 0.07 g |
| Battery Lithium Amount | 0.0004 g |
| Terminal Type | Bus Connection |
| Security Standard | KNX Data Secure |
| Rated Voltage (Ur) | 20 ... 32 V |
| Auxiliary Voltage AC/DC | 24 V DC |
| Design Range | Trevion, Platform 63, future linear, solo, Busch-axcent, Busch-Dynasty, carat, Pure Stainless Steel, Impressivo |
| Design Range Variant | future, future linear, future linear - matt, Busch-axcent, Busch-axcent pur |
| Housing Material | Plastic |
| Material | Glass, Thermoplastic |
| Color | glass black |
| Product Net Width | 63 mm |
| Product Net Height | 63 mm |
| Product Net Depth / Length | 42 mm |
| Product Net Weight | 76 g |
| Built-In Depth (t2) | 32 mm |
| Screen Size | 2.4 in |
| Replaced Product ID (OLD) | 2CKA006134A0331,2CKA006134A0333,2CKA006134A0338,2CKA006134A0332,2CKA006134A0335,2CKA006134A0339,2CKA006134A0334 |
| E-Number (Finland) | 2815892 |
| E-Number (Norway) | 4544048 |
| E-Number (Sweden) | 1740314 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 44.5 % |
| Extended Product Lifetime | Product Upgradability, Product Modularity |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC000783 - Signalling and operation panel for bus system |
| ETIM 10 | EC000783 - Signalling and operation panel for bus system |
| eClass | V11.0 : 27143101 |
| Dangerous Goods UN Number | 3091 |
| extended_product_type | SD/U12.63.1-825 |
