Артикул: 2TMA200050B0005
· Производитель: ABB
· EAN: 6955891816190
2TMA200050B0005
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
74 849.12 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
67 804.50 ₽
срок ≈1 мес. (38 дн.)

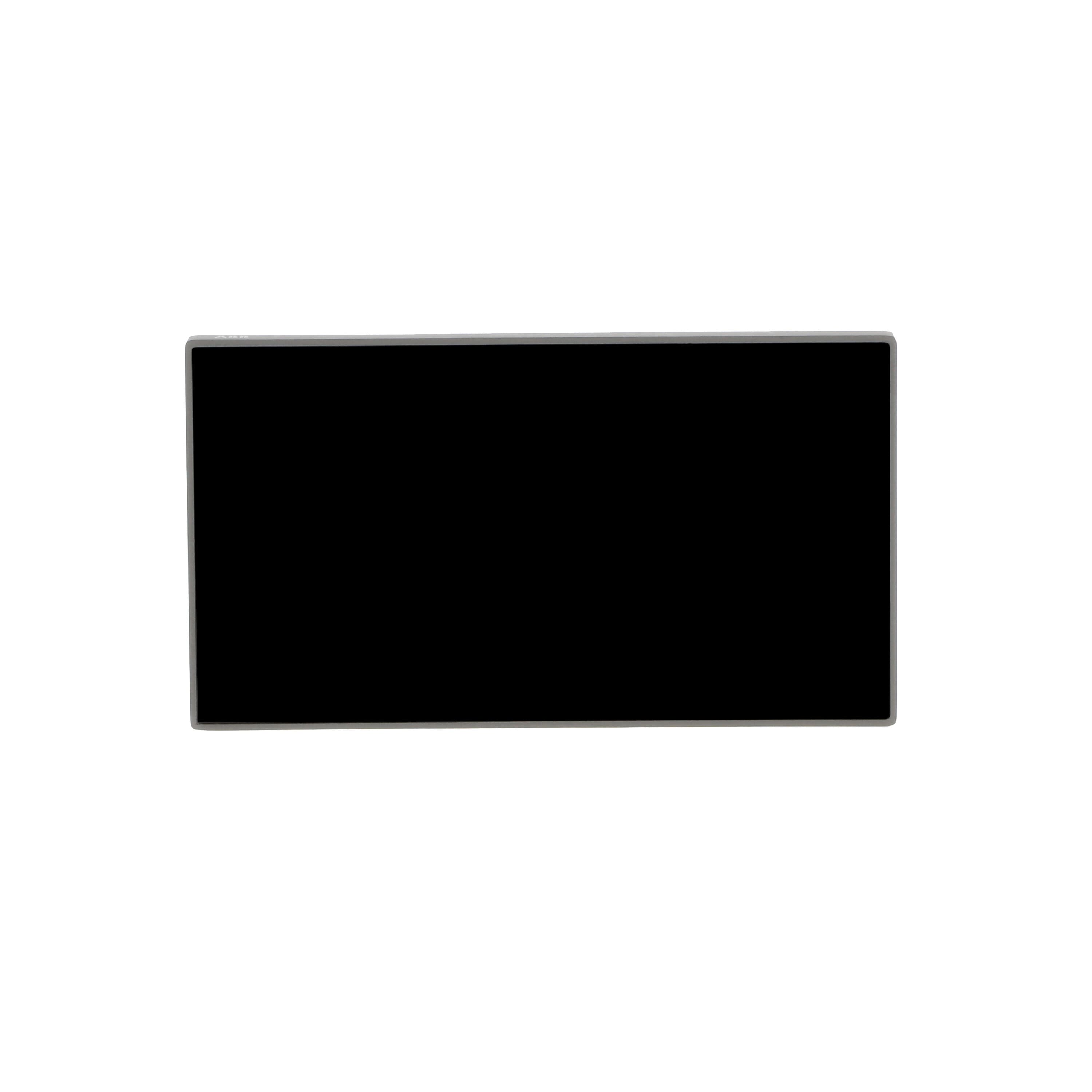

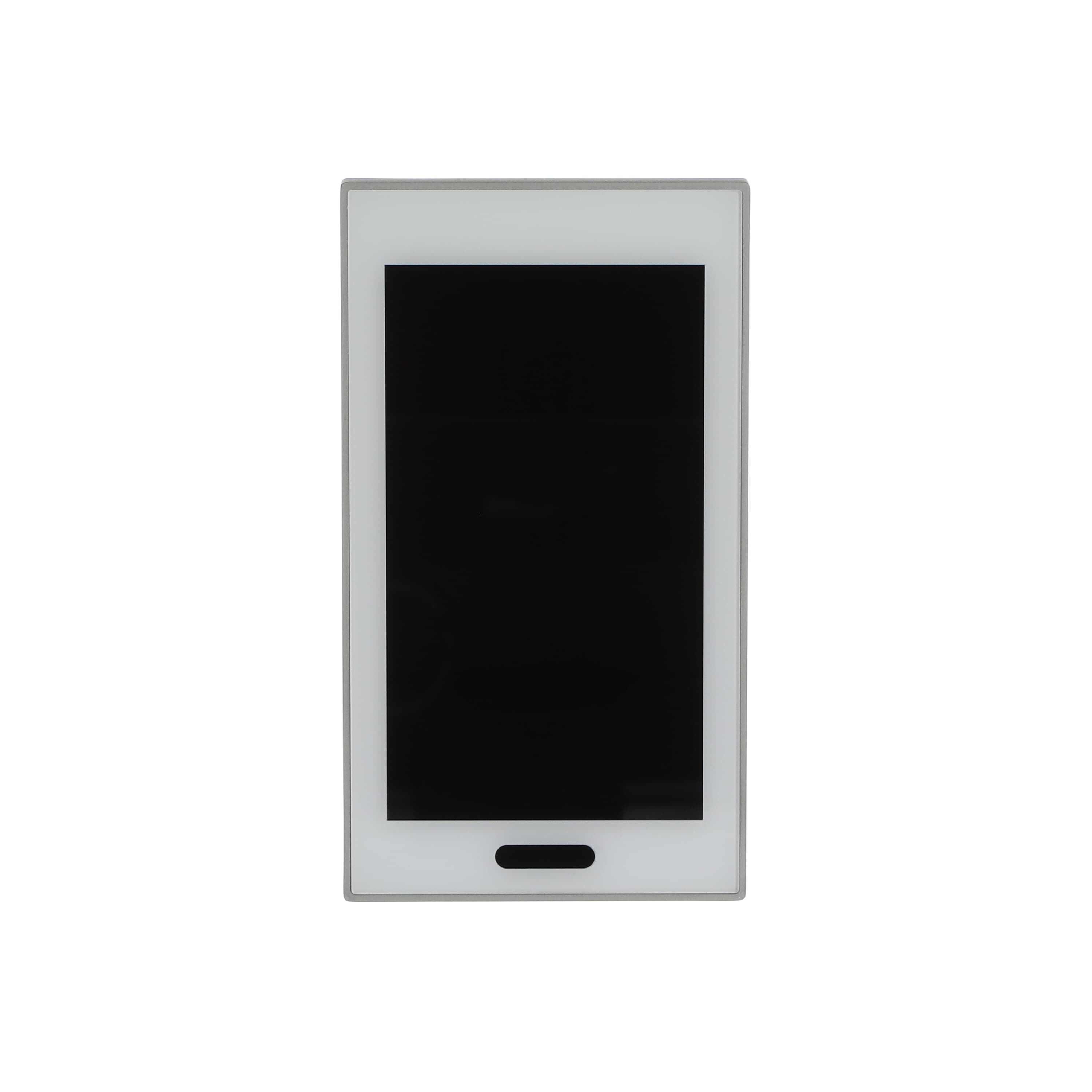

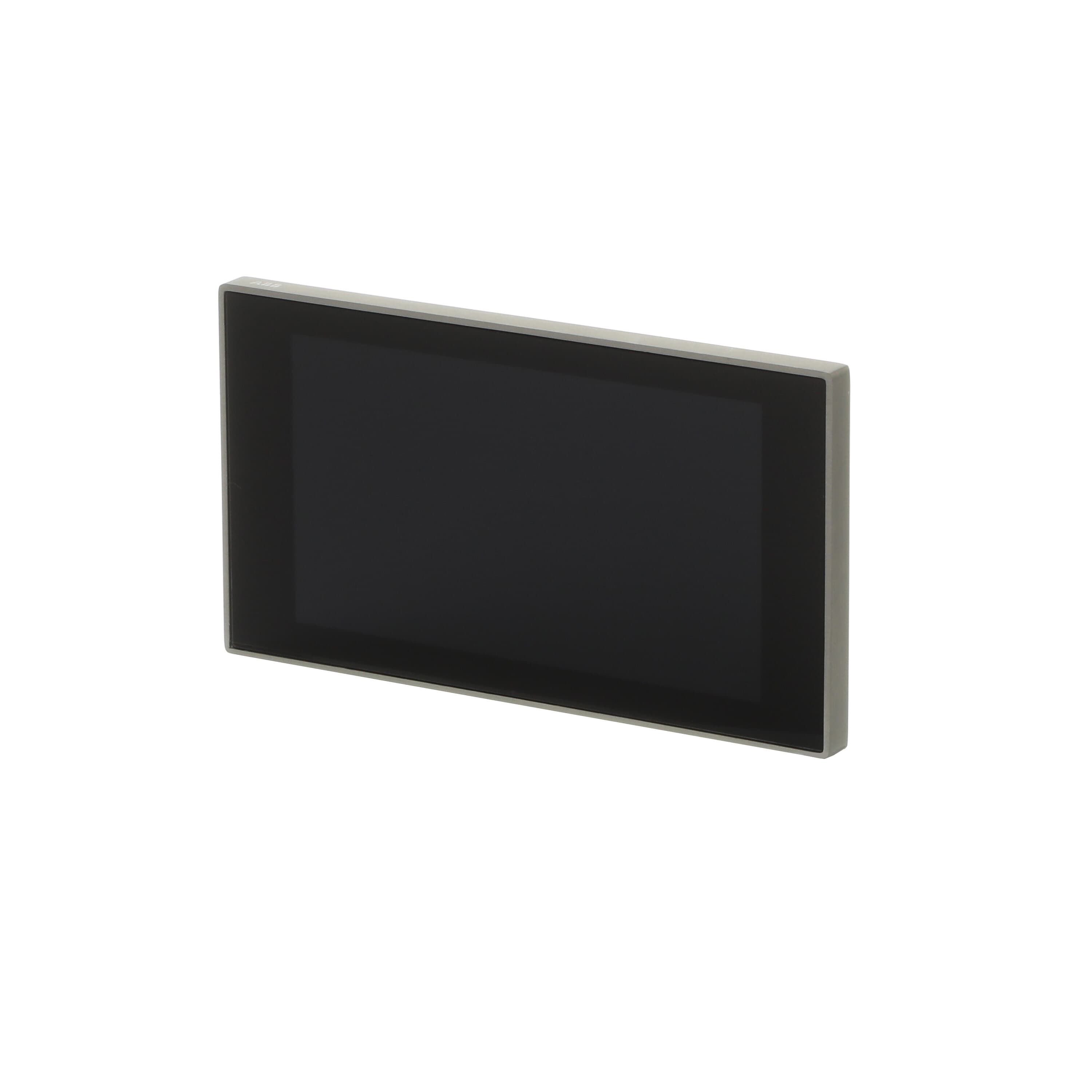

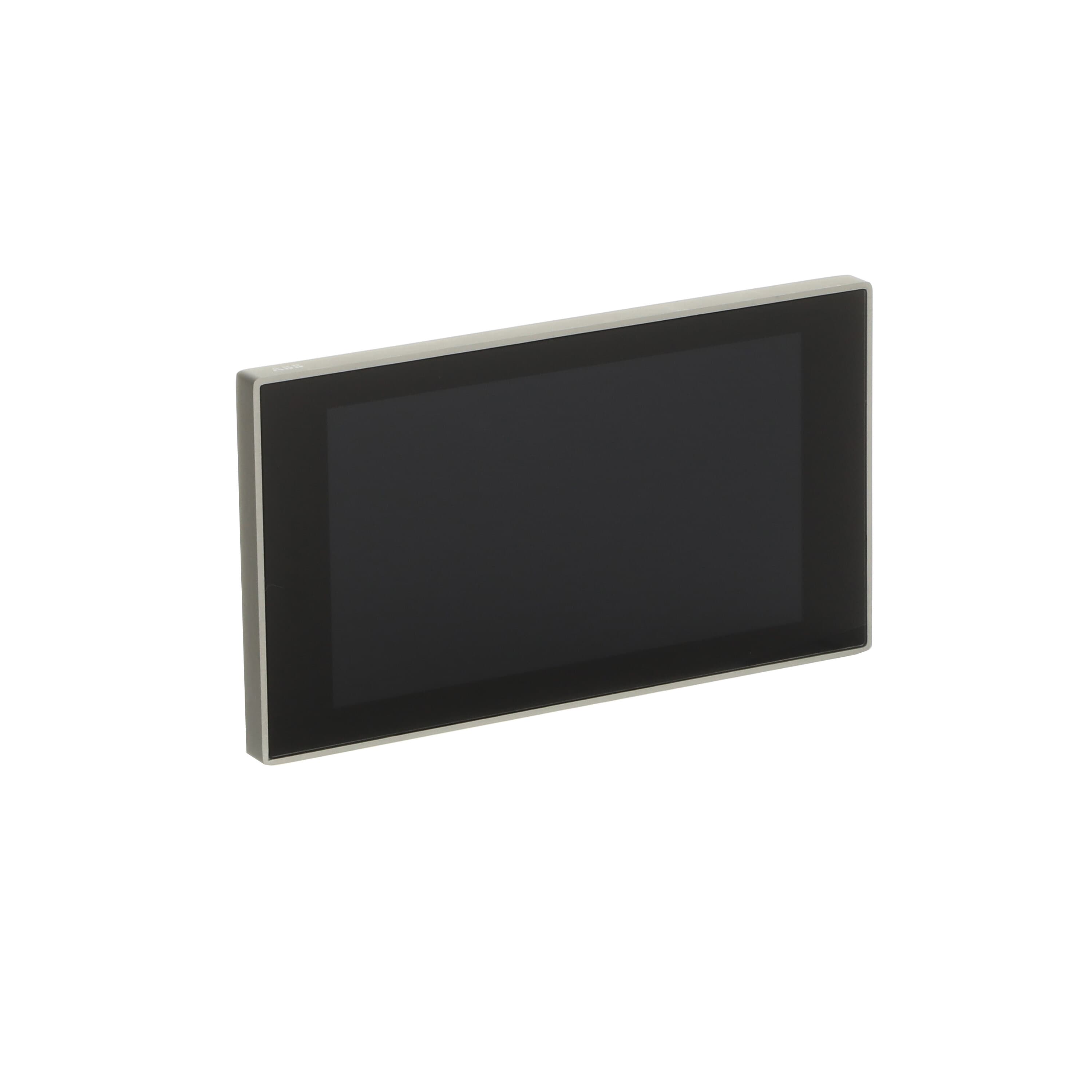

Multifunctional HD IPS KNX touchdisplay as a room control element for visualisation and control of all functions in a KNX system. For the display and intuitive control of the following standard KNX functions: Switching, rocker switch, dimming (4-bit and 8-bit), slider, blind, RGBW control element, room temperature control element, Split Unit control element, step switch, scene switch, display element or audio control element. Additional functions: 20 fault and alarm messages, 10 logic functions, 10 timers each with 6 switching times, 4 scene actuators, 1 room temperature controller and individual pages can be protected with a PIN code. Status display, display of date and time, as well as inside and outside temperature. Installed temperature sensor, proximity sensor and brightness sensor. With a push-button/switch input and external temperature sensor input. Page display with a maximum of 30 touch surfaces on 6 or 10 pages (dependent on the mounting method). Viewing angle display: 160° - 160°. Mounting via a separate flush-mounted box. External power supply: 20-32 VDC (SELV).
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 67 804.50 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 73 065.35 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 73 633.79 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 74 849.12 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 77 976.12 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 79 623.24 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 80 656.56 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 86 077.53 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 122 619.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 135 359.50 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 140 830.54 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | glass black / stainless steel |
| Mounting Type | Flush Mounted |
| Mounting Position | Wall |
| Mounting Height | Optimum 1.5 m |
| Modular Components Included | Complete Device |
| Ambient Air Temperature | Operation 0 ... +45 °C |
| Degree of Protection | IP20 |
| Number of Digital Inputs | 1 |
| Number of Inputs | 1 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Display Type | IPS |
| Screen Type | Touchscreen |
| Manual Operation | Yes |
| Number of Batteries | 1 |
| Battery Size | ML414H |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Embedded Rechargeable |
| Battery Weight | 0.07 g |
| Battery Lithium Amount | 0.0004 g |
| Terminal Type | Bus Connection |
| Auxiliary Voltage AC/DC | 24 V DC |
| Design Range | RoomTouch |
| Housing Material | Plastic |
| Material | Aluminium, Glass, Thermoplastic |
| RAL Number | Similar to RAL 9005 |
| Color | glass black / stainless steel |
| Product Net Width | 79 mm |
| Product Net Height | 143 mm |
| Product Net Depth / Length | 39 mm |
| Product Net Weight | 366 g |
| Built-In Depth (t2) | 28 mm |
| Screen Size | 5 in |
| E-Number (Finland) | 2815630 |
| E-Number (Norway) | 4545320 |
| E-Number (Sweden) | 1739960 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001585 - Multi operating device for bus system |
| ETIM 10 | EC001585 - Multi operating device for bus system |
| eClass | V11.0 : 27143101 |
| UNSPSC | 39121801 |
| Dangerous Goods UN Number | 3091 |
| extended_product_type | RT/U30.0.1-825 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > User Operation > Control Elements > Touch Panels, Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > User Operation > Thermostats, Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Visualisation, Display and Signalling > Touch Panels |
