Артикул: 2TMA130050B0054
· Производитель: ABB
· EAN: 6955891815155
2TMA130050B0054
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
132 106.34 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
117 903.75 ₽
срок уточняется

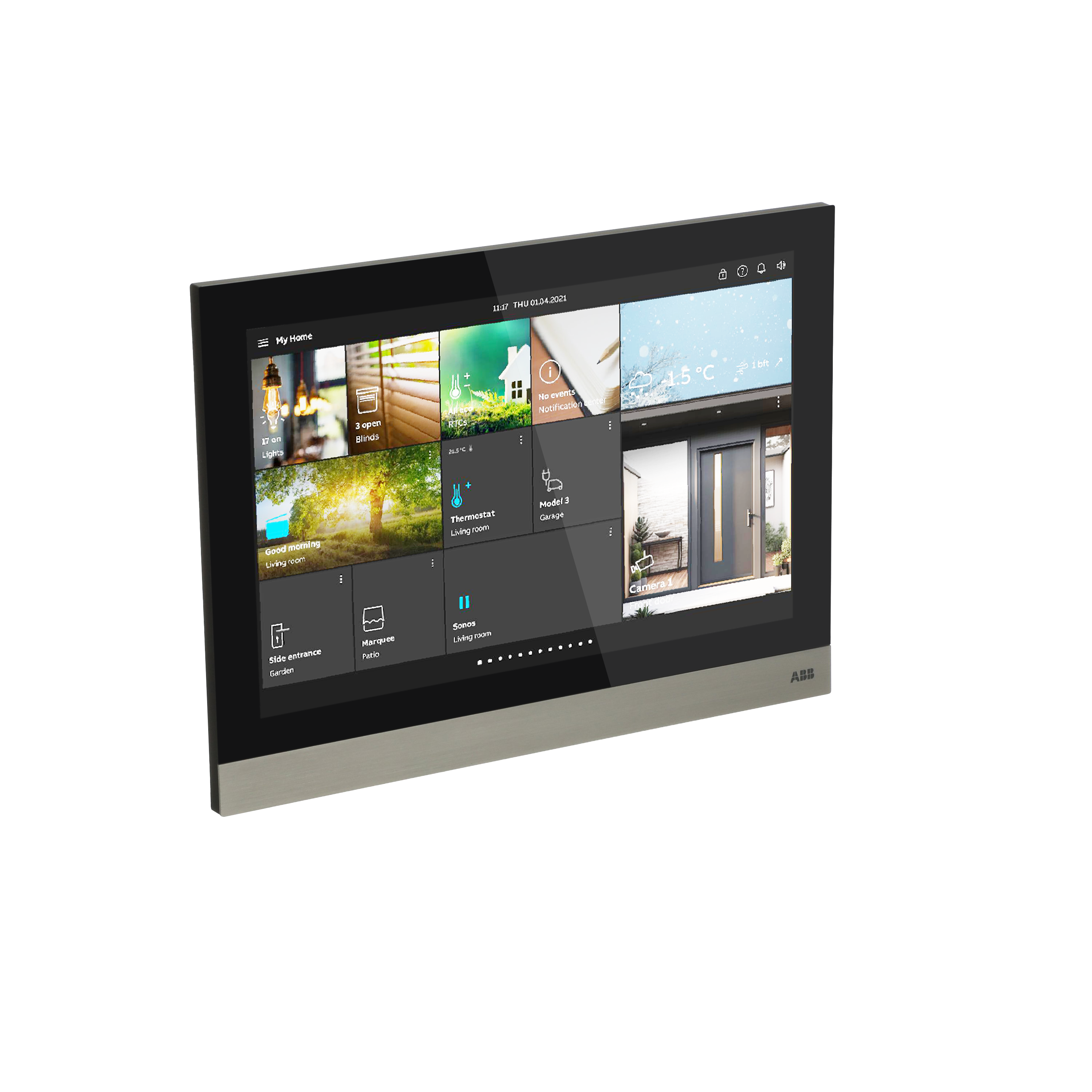

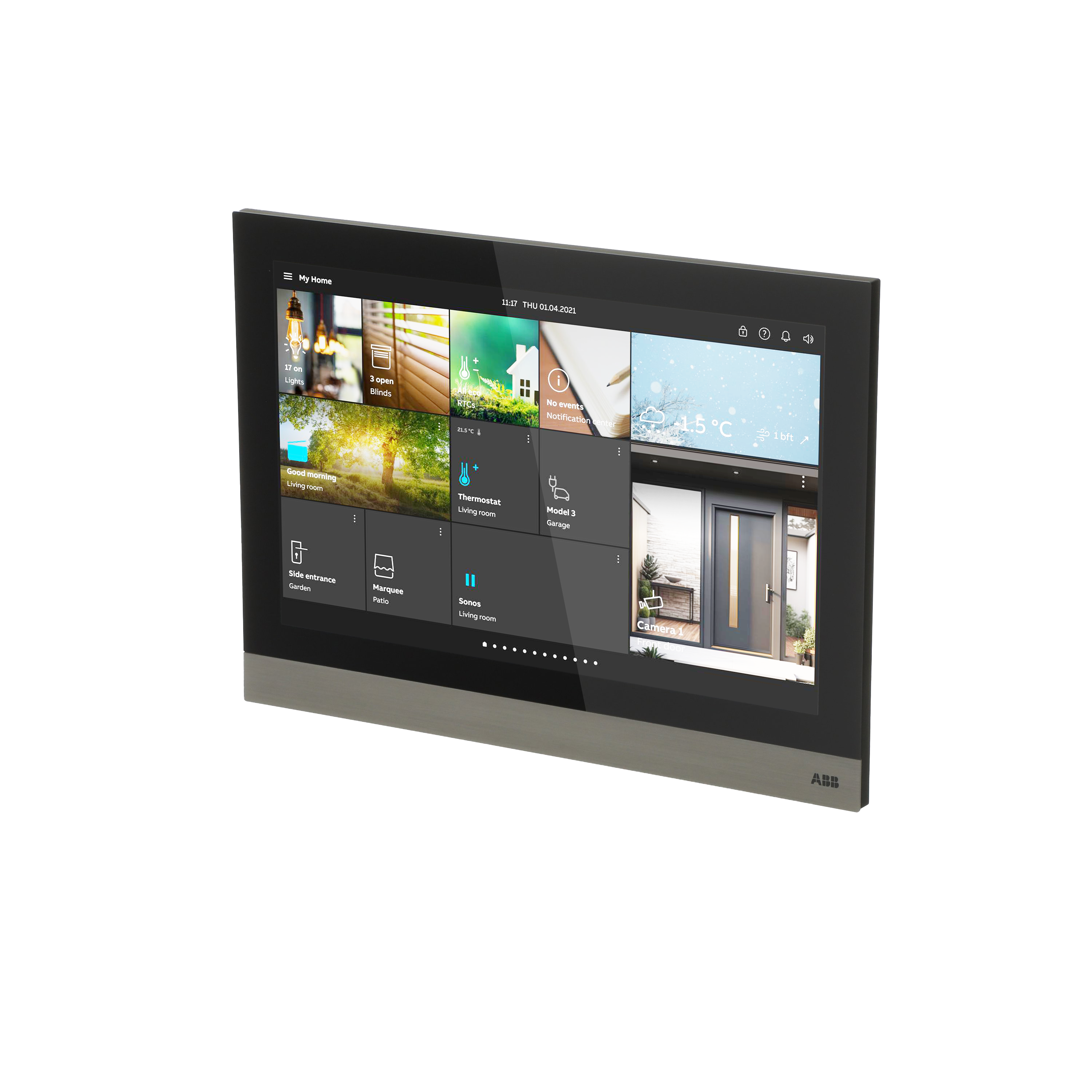

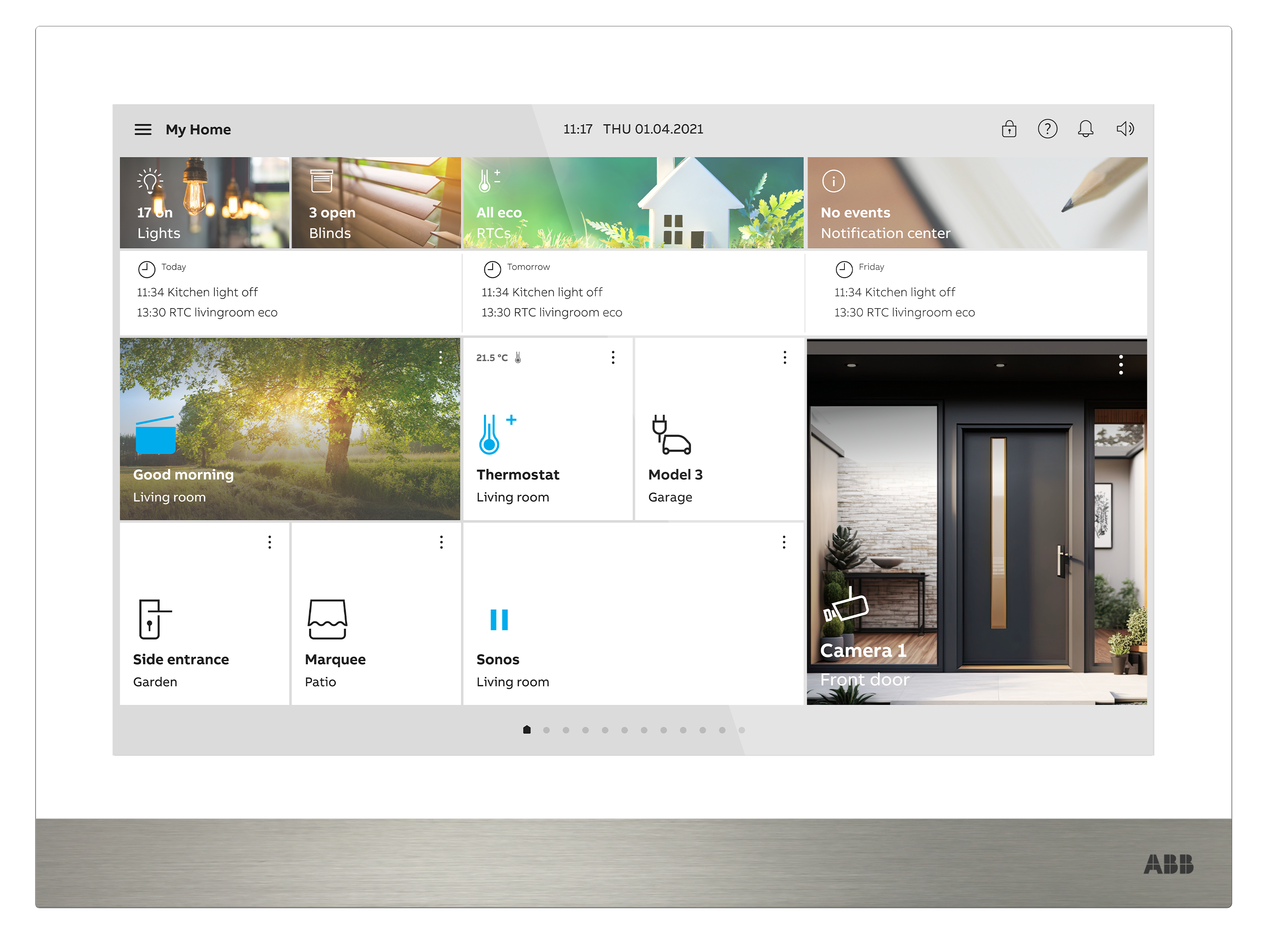

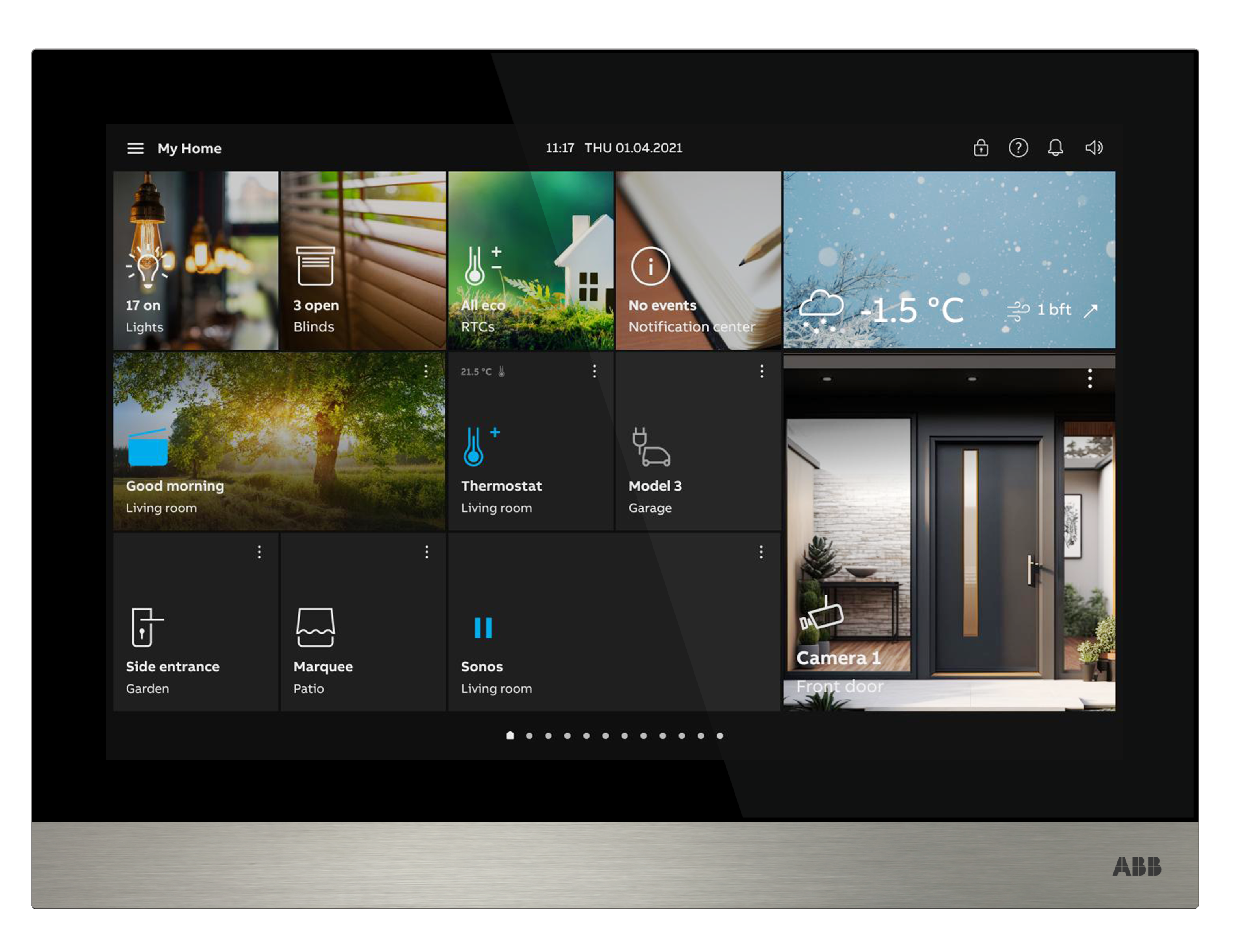

ABB Welcome IP touch 10, with cyber security boot & storage, support DES+KNX+f@h+APP, LAN + WiFi, DC&PoE, with T-loop, end strip, SM&FM, black
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 117 903.75 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 132 106.34 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 134 411.10 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 141 759.27 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 148 375.89 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 151 285.59 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 156 487.51 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 167 003.57 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 203 443.76 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 224 580.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 267 243.37 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | black |
| Ambient Air Temperature | Operation -10 ... +55 °C |
| Degree of Protection | IP30 |
| Communication Interface | LAN + Wi-Fi |
| Compatible Bus Systems | free@home (TP), KNX (IP) |
| Product Range | free@home, KNX, Welcome IP |
| Transmission Standard | Ethernet, Wireless LAN |
| Connection Type | RJ45 |
| Display Type | IPS |
| Screen Type | Touchscreen |
| Terminal Type | Screw Terminals, Pluggable |
| Material | Glass |
| RAL Number | Similar to RAL 9004 |
| Color | black |
| Product Net Width | 251 mm |
| Product Net Height | 185 mm |
| Product Net Depth / Length | 17 mm |
| Product Net Weight | 994 g |
| Screen Size | 10 in |
| E-Number (Finland) | 2815972 |
| E-Number (Norway) | 6307458 |
| E-Number (Sweden) | 5801541 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 40.51 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Modularity |
| Offered with Takeback Services | Take Back for Recycling |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| WEEE Category | 2. Screens, Monitors, and Equipment Containing Screens Having a Surface Greater Than 100 cm² |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | 2025 Applicable - Compliant |
| ETIM 9 | EC000779 - Indoor station door communication |
| ETIM 10 | EC000779 - Indoor station door communication |
| UNSPSC | 43221525 |
| extended_product_type | H8237-4B |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > Door Entry & Access Control Systems > Welcome IP > Indoor Stations, Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Visualisation, Display and Signalling > Touch Panels |
