Артикул: 2CSR254001R1204
· Производитель: ABB
· EAN: 8012542873907
2CSR254001R1204
В наличии на нашем складе
Наличие в РФ
11 054.00 ₽
в наличии на складе · 13 шт.
Склад в Китае
7 791.82 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
10 865.56 ₽
срок ≈4 мес. (122 дн.)

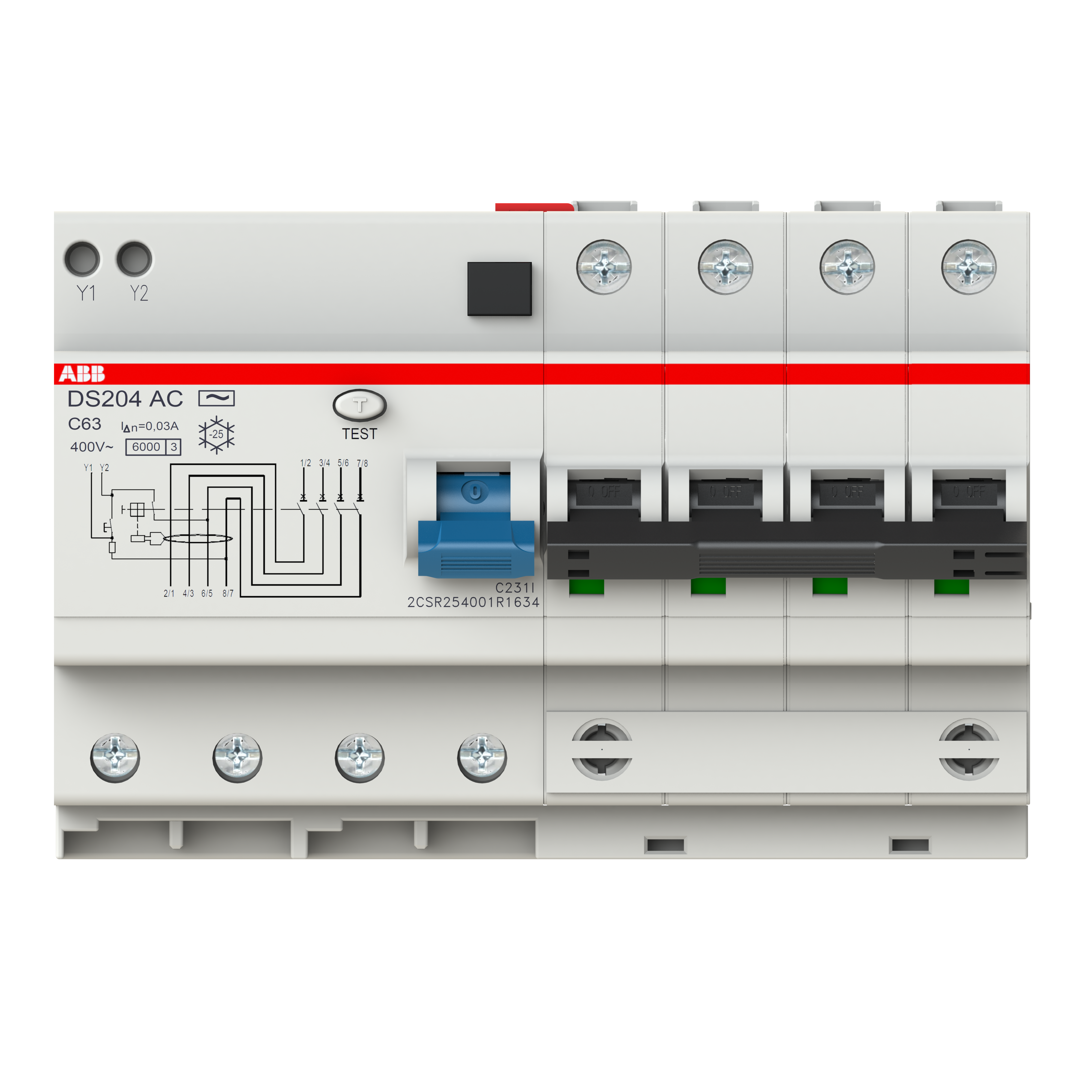

The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 7 791.82 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 865.56 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Наш склад | 11 054.00 ₽ | В наличии | 13 шт. | — | Заказать |
| Склад в Европе | 11 906.26 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 994.45 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 118.91 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 13 138.14 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 246.10 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 14 503.14 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в России | 14 835.51 ₽ | 5 дн. | 14 шт. | — | Заказать |
| Склад в Европе | 17 733.75 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 18 663.12 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 602.14 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Type of Residual Current | Type AC |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 10 kA |
| Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle |
| Number of Protected Poles | 4 |
| Number of Poles | 4P |
| Number of Earth Leakage Circuit Breakers (ELCBs) | 1 |
| Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right, Left |
| Release Type | C |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm², Rigid 16 ... 25 mm², Flexible 16 ... 25 mm² |
| Short-Circuit Current Rating (SCCR) | 30 mA |
| Tripping Characteristic | C |
| Rated Voltage (Ur) | 400 V AC |
| Rated Operational Voltage | 400 V AC |
| Rated Current (In) | 20 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | (400 V AC) 6 kA |
| Maximum Breaking Capacity | 6 kA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 9.3 W |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211115 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| SCIP | 0883ca58-f477-455e-85c4-28116a3dd2e6 Italy |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Product Net Width | 105 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 775 g |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.83 kg |
| ETIM 9 | EC002281 - Distributor assembly with combination RCCB/MCB |
| ETIM 10 | EC002281 - Distributor assembly with combination RCCB/MCB |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27400618 |
| Object Classification Code | F |
| Standards | IEC/EN 60947-2, IEC/EN 61009-1 |
| extended_product_type | DS204 AC-C20/0.03 |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Residual Current Devices RCDs > Residual Current Circuit Breakers with Overcurrent Protection RCBO |
