Артикул: 2CSM222501R1000
· Производитель: ABB
· EAN: 8012542225010
2CSM222501R1000
Под заказ
Наличие в РФ
28 123.57 ₽
в наличии на складе · 4 шт.
Склад в Китае
14 926.94 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
20 815.39 ₽
срок ≈4 мес. (122 дн.)

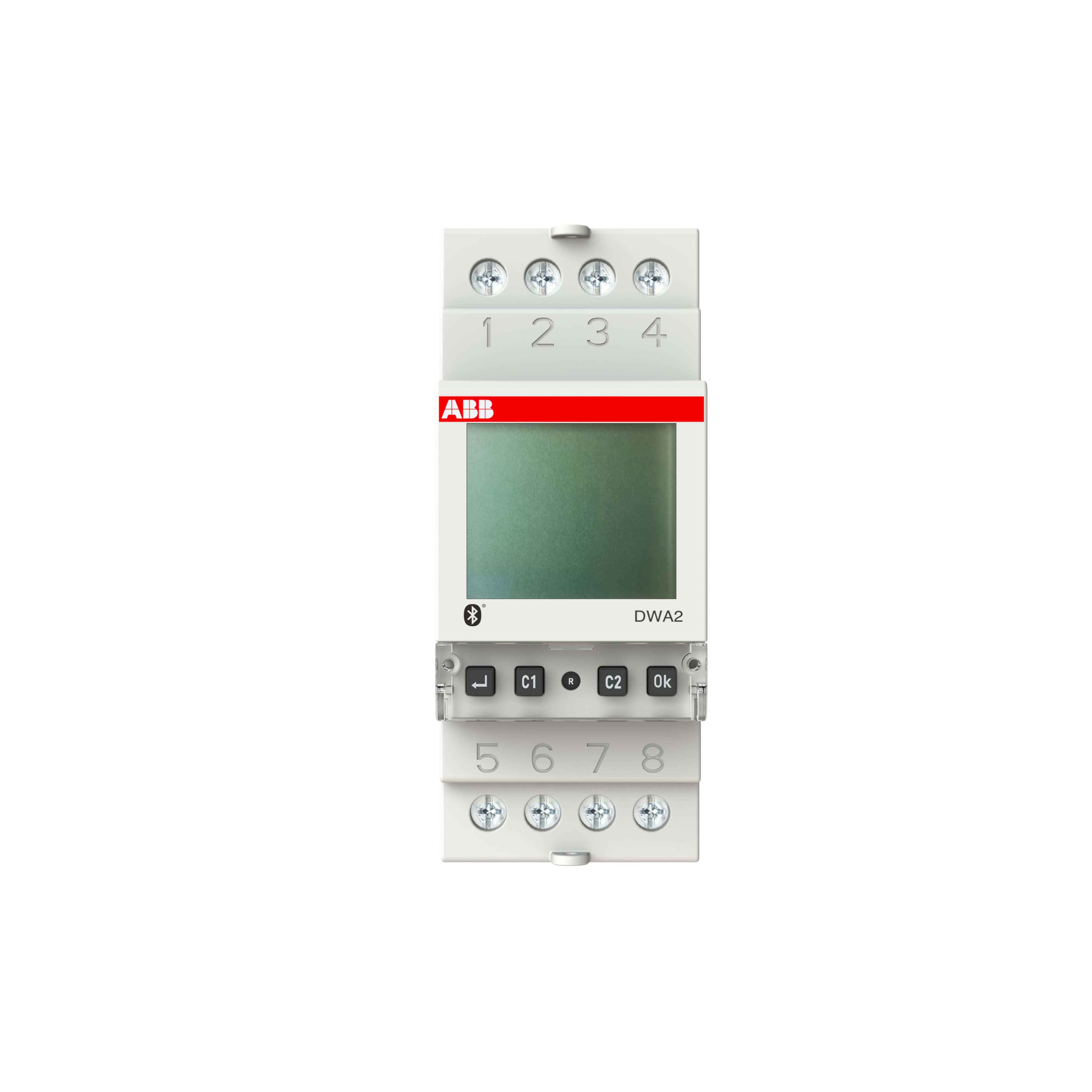

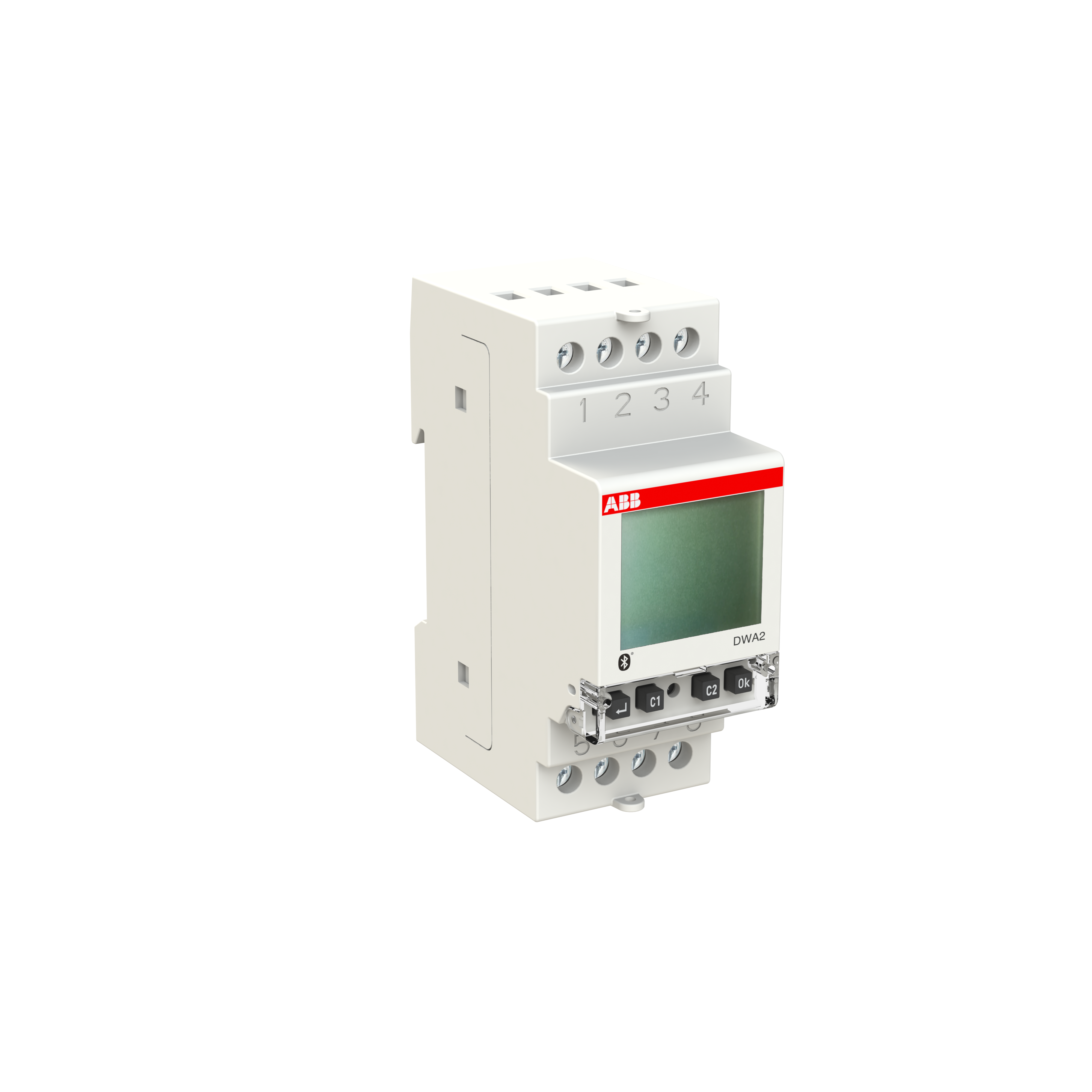

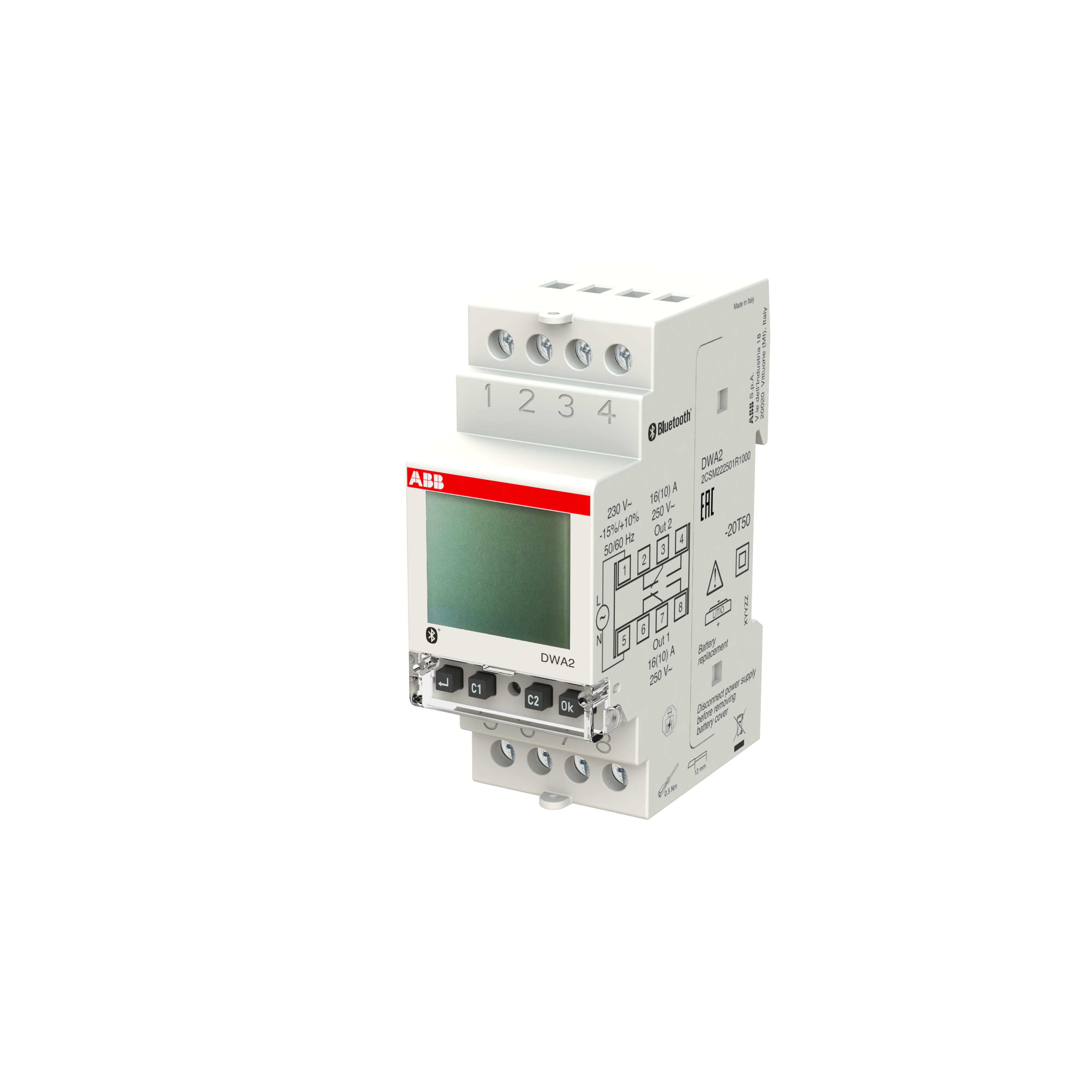

Digital time switch, weekly and asto programming, two channels
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 14 926.94 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 20 815.39 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 20 878.41 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 22 978.03 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 047.60 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 24 475.66 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 25 375.79 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 25 687.36 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 016.51 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в России | 28 123.57 ₽ | 5 дн. | 4 шт. | — | Заказать |
| Склад в Китае | 28 356.18 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 166.57 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 41 605.43 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 45 928.07 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Function | Weekly astro |
| Maximum Load Capacity | 16 A, 10 A |
| Power Supply | 230 V AC |
| Accuracy | ± 0.5sec/24h |
| Number of Channels | 2 |
| Maximum Number of Programs | 120 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 1 min |
| Contact Type | Change-Over (CO) |
| Meter Type | Digital |
| Options Provided | With running reserve |
| Number of Batteries | 1 |
| Battery Size | CR2032 |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Replaceable Non-Rechargeable |
| Battery Life | 5 year |
| Battery Weight | 0.003 kg |
| Battery Lithium Amount | 0.07 g |
| Connecting Capacity | Solid 2.5 mm² |
| Communication Protocol | Bluetooth |
| Operational Voltage | 195.5 … 253 V AC |
| Supply Voltage | 230 V AC |
| Rated Impulse Withstand Voltage (Uimp) | Maximum 4 kV |
| Maximum Switching Current | 16 A |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 4000 W |
| Power Consumption (@Pcons) | 2 W |
| Power Loss | Total 2 W |
| Rated Switching Capacity | 2000 W, FluorescentLamps 600 V·A, 2000 W, 600 V·A, 500 W |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Ambient Air Temperature | Operation -20 ... +50 °C, Storage -25 ... +70 °C |
| Degree of Protection | Housing IP20 |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 87 mm |
| Product Net Weight | 152 g |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.233 kg |
| E-Number (Finland) | 2619409 |
| E-Number (Norway) | 1478097 |
| E-Number (Sweden) | 1330653 |
| Mounting Type | DIN-Rail |
| ETIM 9 | EC002305 - Digital time switch for distribution board |
| ETIM 10 | EC002305 - Digital time switch for distribution board |
| UNSPSC | 39122208 |
| Dangerous Goods UN Number | UN 3090 |
| eClass | V11.0 : 27200110 |
| IDEA Granular Category Code (IGCC) | 5188 >> Digital time switch for distribution board |
| Object Classification Code | K |
| Standards | EN 60730-2-7, EN-301 489-17, EN-300 328, EN-62479, EN 50581 |
| extended_product_type | DWA2 |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Control and Automation Devices > Analogue and Digital Time Switches |
