Артикул: 2CSM221201R1000
· Производитель: ABB
· EAN: 8012542212010
2CSM221201R1000
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
31 897.78 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
37 371.01 ₽
срок ≈1 мес. (38 дн.)

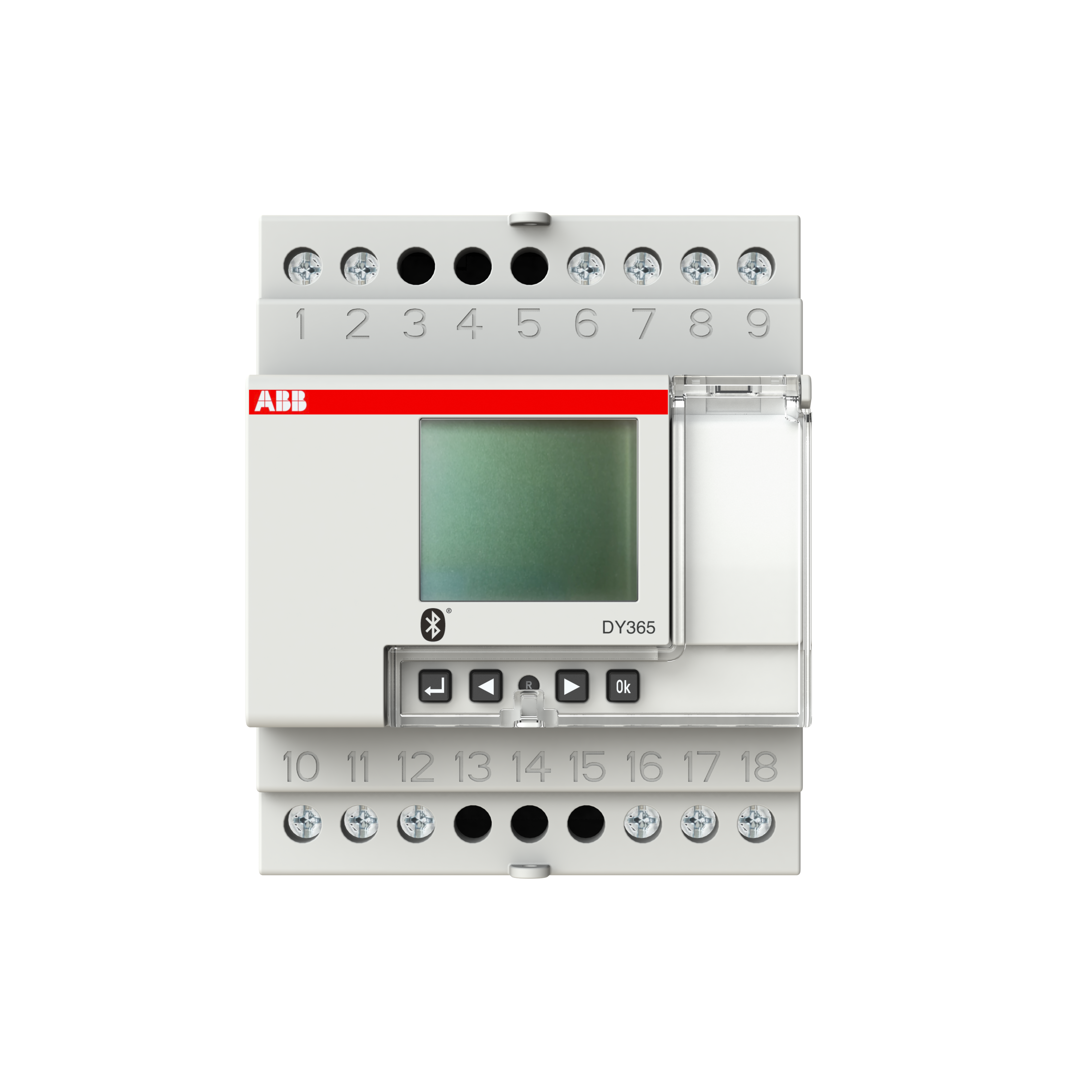

Yearly digital time switch, weekly programming, 2 channel with 2 change over contacts
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 31 897.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 37 371.01 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 40 269.21 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 41 253.71 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 42 974.39 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 453.02 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 439.26 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49 122.59 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54 226.23 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 59 002.82 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Function | Yearly astro |
| Maximum Load Capacity | 16 A, 10 A |
| Power Supply | 230 V AC |
| Accuracy | ± 0.5sec/24h |
| Number of Channels | 2 |
| Maximum Number of Programs | 900 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 1 min |
| Contact Type | Change-Over (CO) |
| Meter Type | Digital |
| Options Provided | With running reserve |
| Number of Batteries | 1 |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Replaceable Non-Rechargeable |
| Battery Life | 5 year |
| Battery Weight | 0.009 kg |
| Battery Lithium Amount | 0.29 g |
| Connecting Capacity | Solid 2.5 mm² |
| Communication Protocol | Bluetooth |
| Operational Voltage | 195.5 ... 253 V AC |
| Supply Voltage | 230 V AC |
| Rated Impulse Withstand Voltage (Uimp) | Maximum 4 kV |
| Maximum Switching Current | 16 A |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 4000 W |
| Power Consumption (@Pcons) | 2.6 W |
| Power Loss | Total 2.6 W |
| Rated Switching Capacity | 2000 W, FluorescentLamps 600 V·A, 2000 W, 600 V·A, 500 W |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Portable |
| Ambient Air Temperature | Operation -20 ... +50 °C, Storage -25 ... +70 °C |
| Degree of Protection | Housing IP20 |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 72 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 87 mm |
| Product Net Weight | 250 g |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.320 kg |
| E-Number (Norway) | 1478098 |
| E-Number (Sweden) | 1330657 |
| Mounting Type | DIN-Rail |
| ETIM 9 | EC002305 - Digital time switch for distribution board |
| ETIM 10 | EC002305 - Digital time switch for distribution board |
| UNSPSC | 39122208 |
| Dangerous Goods UN Number | UN 3090 |
| eClass | V11.0 : 27200110 |
| IDEA Granular Category Code (IGCC) | 5188 >> Digital time switch for distribution board |
| Object Classification Code | K |
| Standards | EN 60730-2-7EN-301 489-1, EN-301 489-3, EN-301 489-17, EN-301 489-19, EN-300 328, EN-62479, EN-60950-1, EN 50581 |
| extended_product_type | DY365 |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Control and Automation Devices > Analogue and Digital Time Switches |
