Артикул: 2CSM200983R1801
· Производитель: ABB
· EAN: 8012542009832
2CSM200983R1801
В наличии на нашем складе
Наличие в РФ
379.00 ₽
в наличии на складе · 4 шт.
Склад в Китае
361.75 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
442.82 ₽
срок ≈4 мес. (122 дн.)

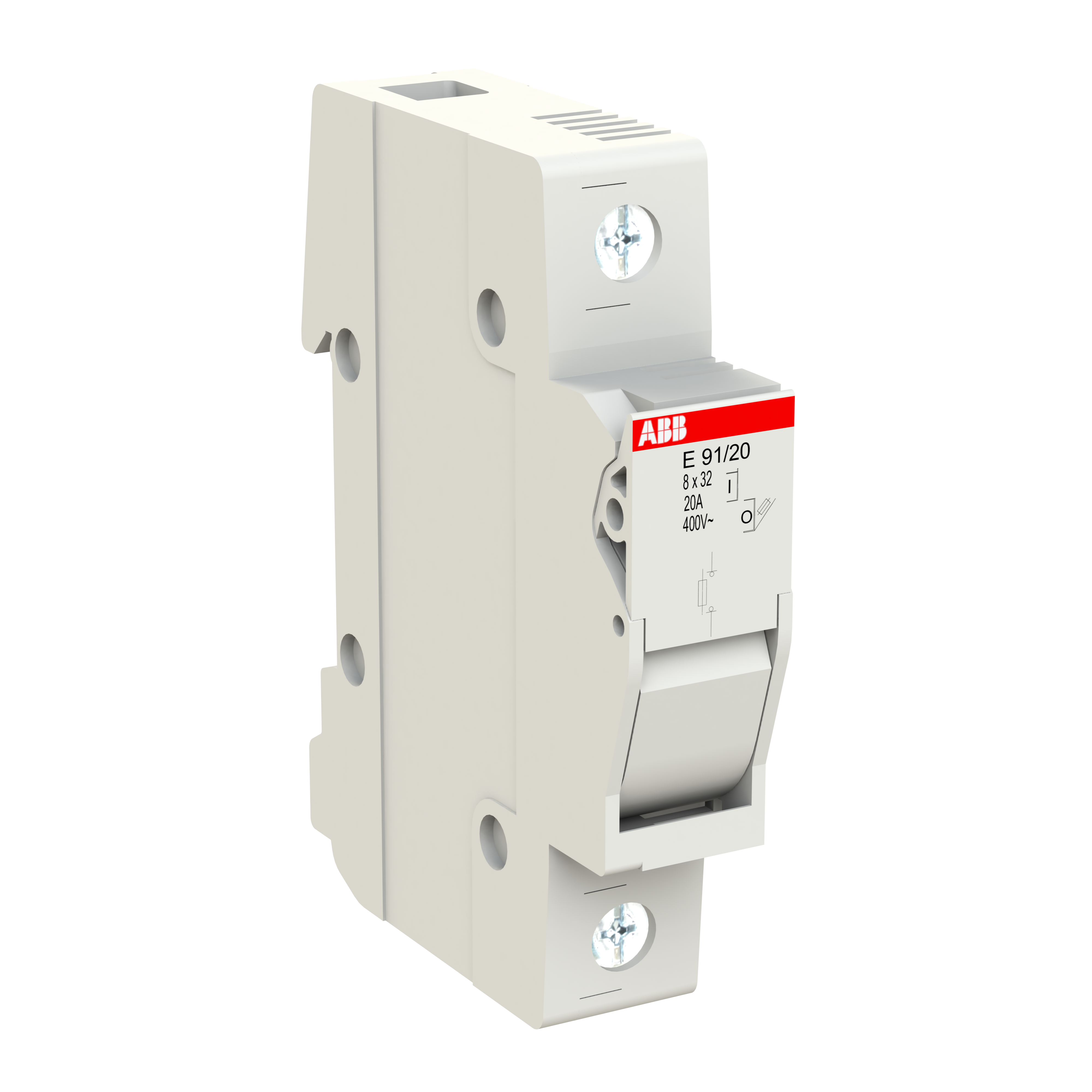

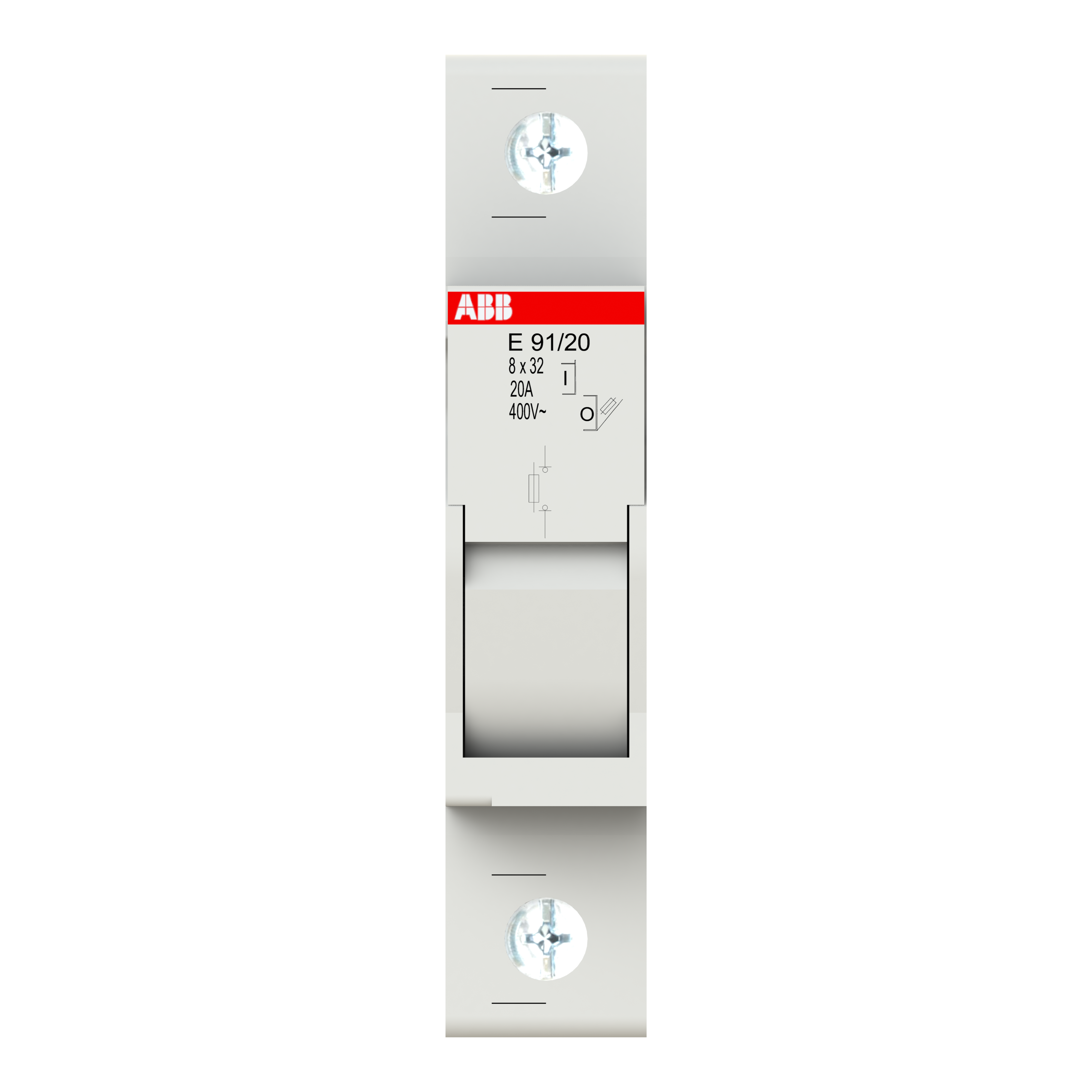

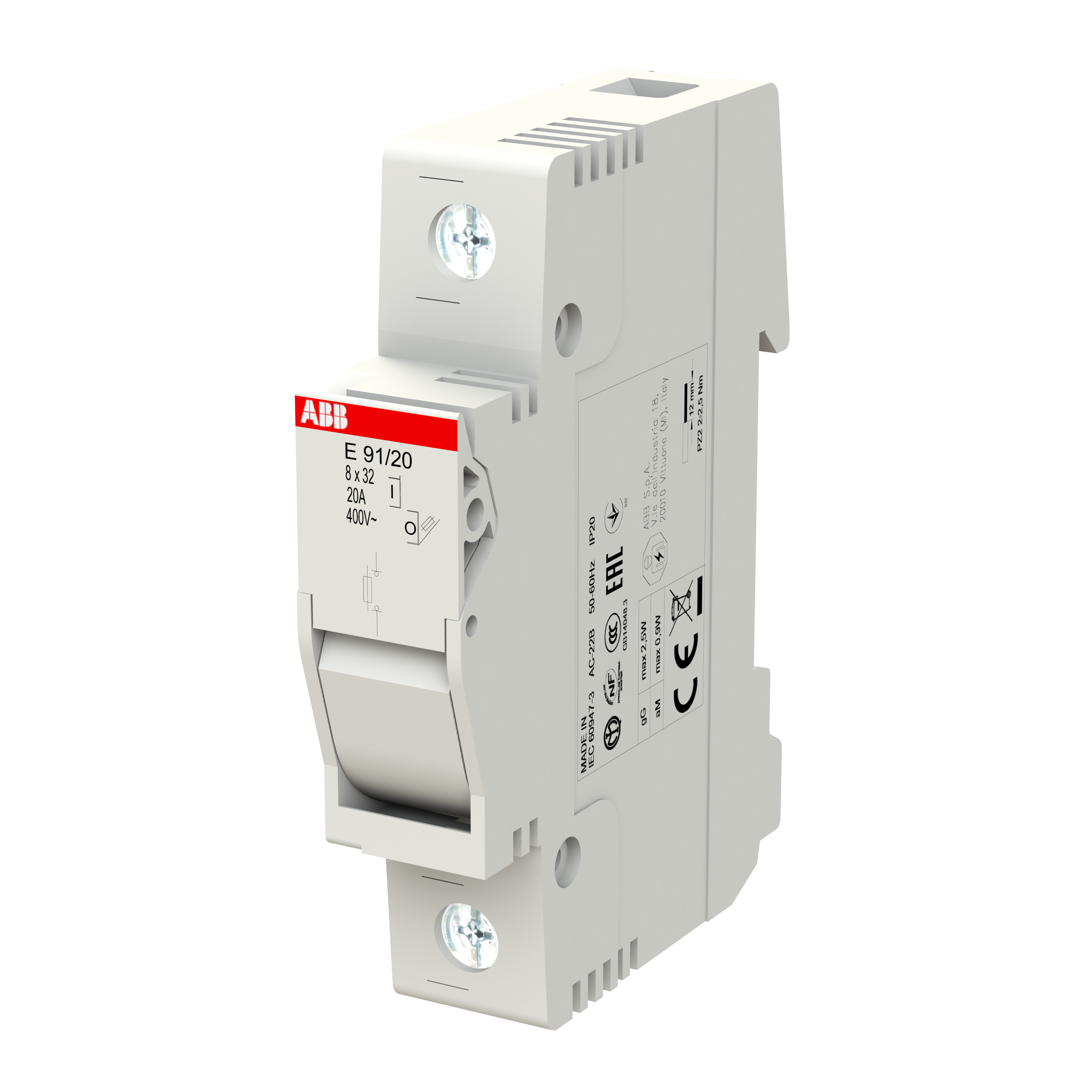

E 91/20 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 361.75 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Наш склад | 379.00 ₽ | В наличии | 4 шт. | — | Заказать |
| Склад в Европе | 442.82 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 488.83 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 504.25 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 569.42 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 585.41 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 607.93 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 614.98 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 646.23 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 671.09 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 776.54 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 857.22 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 880.69 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tightening Torque | 2...2.5 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B), Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B) |
| Lock Type | Padlockable When Open |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | No |
| Recommended Screw Driver | Pozidriv 2 |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Rigid 1.5-25 mm², Stranded 1.5-16 mm² |
| Fuse Size | 8.5x31.5 mm |
| Operating Humidity (RHamb) | max. 90% with temp. +20 °C, 50% with max. temp. +40 °C |
| Rated Operational Current AC (Ie) | 20 A |
| Rated Voltage (Ur) | acc. To IEC 400 V |
| Rated Operational Voltage | AC-20B 690 V, |AC-22B 400 V |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 2.5 W, at Rated Operating Conditions per Pole 2.5 W |
| Connecting Capacity UL/CSA | Rigid 16-10 AWG, Stranded 16-3 AWG |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20140101 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Ambient Air Temperature | Operation -5...+40 °C, Storage -25...+70 °C |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 13 ms |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 64 mm |
| Product Net Weight | 61 g |
| Built-In Depth (t2) | 64 mm |
| Package Level 1 Units | box 6 piece |
| Package Level 1 Gross Weight | 0.369 kg |
| Mounting Type | DIN-Rail |
| ETIM 9 | EC002705 - Holder for cylindrical fuse |
| ETIM 10 | EC002705 - Holder for cylindrical fuse |
| UNSPSC | 39122233 |
| eClass | V11.0 : 27142121 |
| Object Classification Code | F |
| Standards | IEC 60947-3 |
| Certification Agency | IMQ, BV, Korean register, CCC, EAC |
| extended_product_type | E 91/20 |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Protection and Safety Devices > Cylindrical Fuse Holders and Fuse Switch Disconnectors |
