Артикул: 2CSH257995R2011
· Производитель: ABB
· EAN: 8012542579953
2CSH257995R2011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
33 425.78 ₽
срок ≈33 мес. (1009 дн.)
Склад в Европе
30 279.83 ₽
срок уточняется

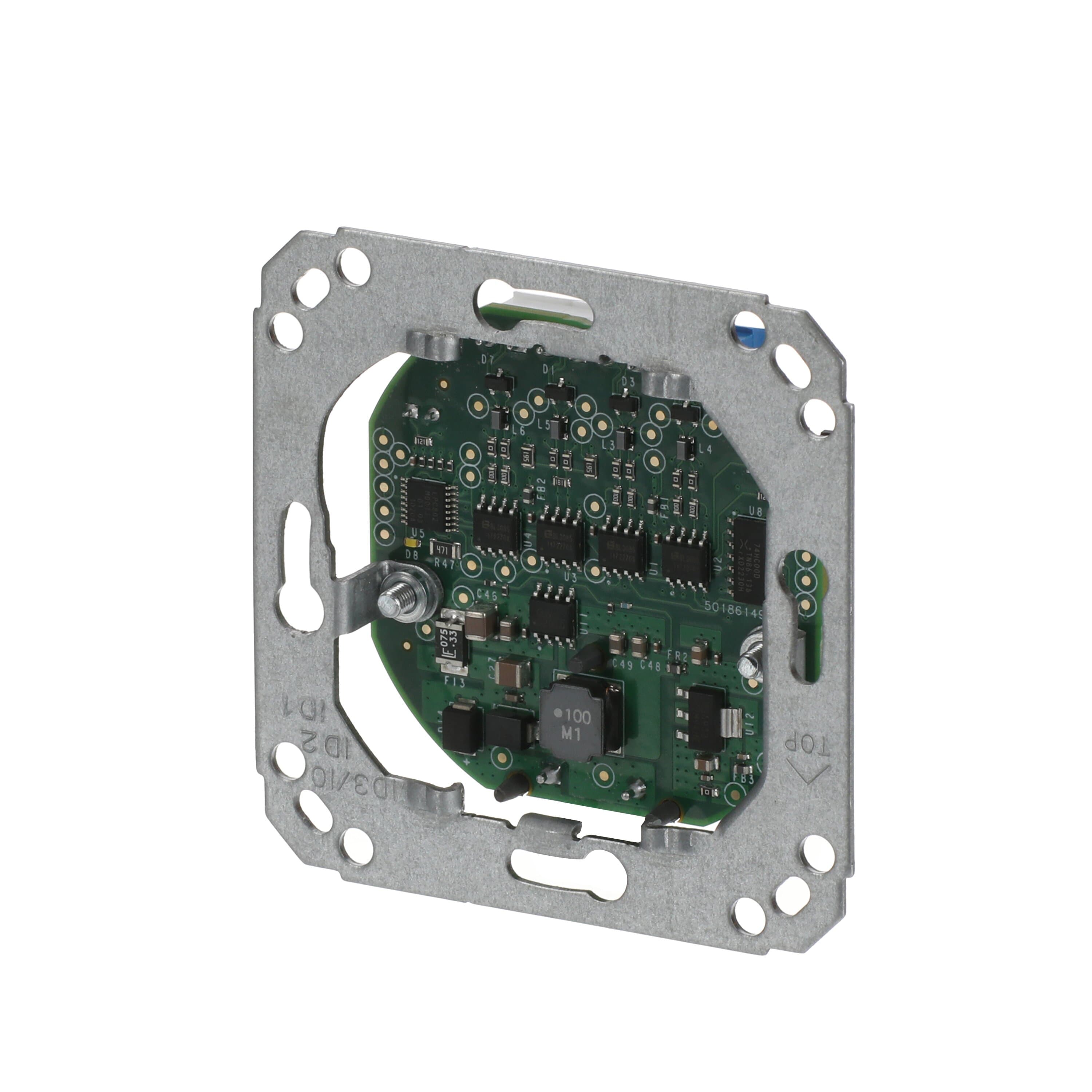

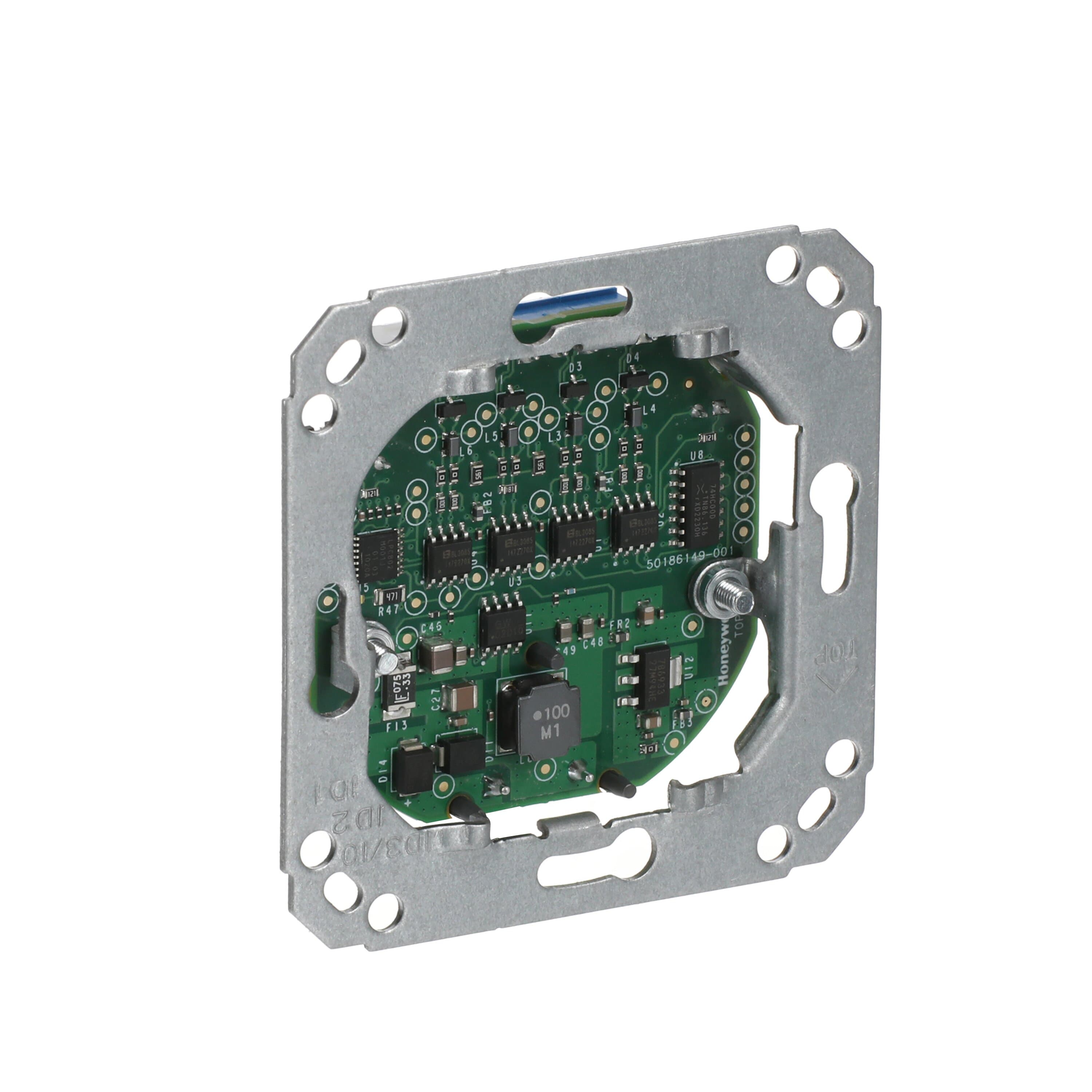

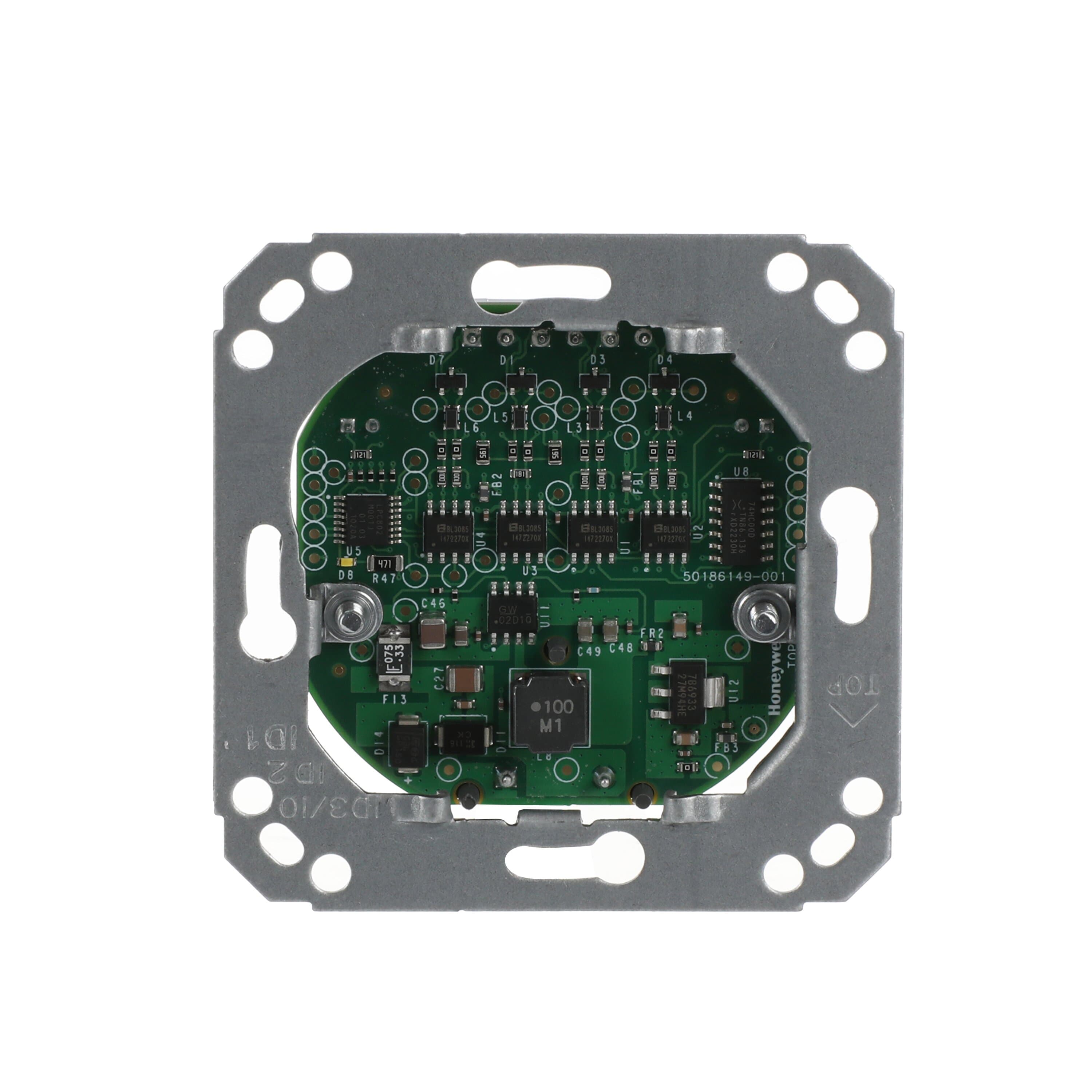

Repeter and End line he Systevo Repeater / switch replaces
the previous room bus switch and
passive bus termination. The
mechanical dimensions are
comparable, so the unit can also be
used as a replacement in existing
installations. The Systevo Repeater
enables the room bus and audio bus to
be branched and can also be used as
an amplifier for them. A repeater unit
supports both the room bus and the
audio bus, so that one repeater unit is
used for both data lines. As the last
element in a room/audio bus, end
termination on the bus is enabled
when jumpers J1 and J2 are plugged
in.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 30 279.83 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 33 425.78 ₽ | ≈33 мес. (1009 дн.) | под заказ | — | Заказать |
| Склад в Европе | 34 299.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 34 519.17 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 406.45 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 37 863.25 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 38 105.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40 188.94 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 52 999.86 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Model Number | Repeter |
| Power Supply Type | Integrated |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Product Net Width | 050.0 mm |
| Product Net Height | 030.0 mm |
| Product Net Depth / Length | 030.0 mm |
| Product Net Weight | 0.050 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.070 kg |
| ETIM 9 | EC002971 - System device clinic-installation |
| ETIM 10 | EC002971 - System device clinic-installation |
| extended_product_type | 72642D |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > Healthcare Solutions > Clinos |
