Артикул: 2CSG452434R1202
· Производитель: ABB
· EAN: 8012542733621
2CSG452434R1202
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
22 273.48 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
31 059.87 ₽
срок ≈4 мес. (122 дн.)

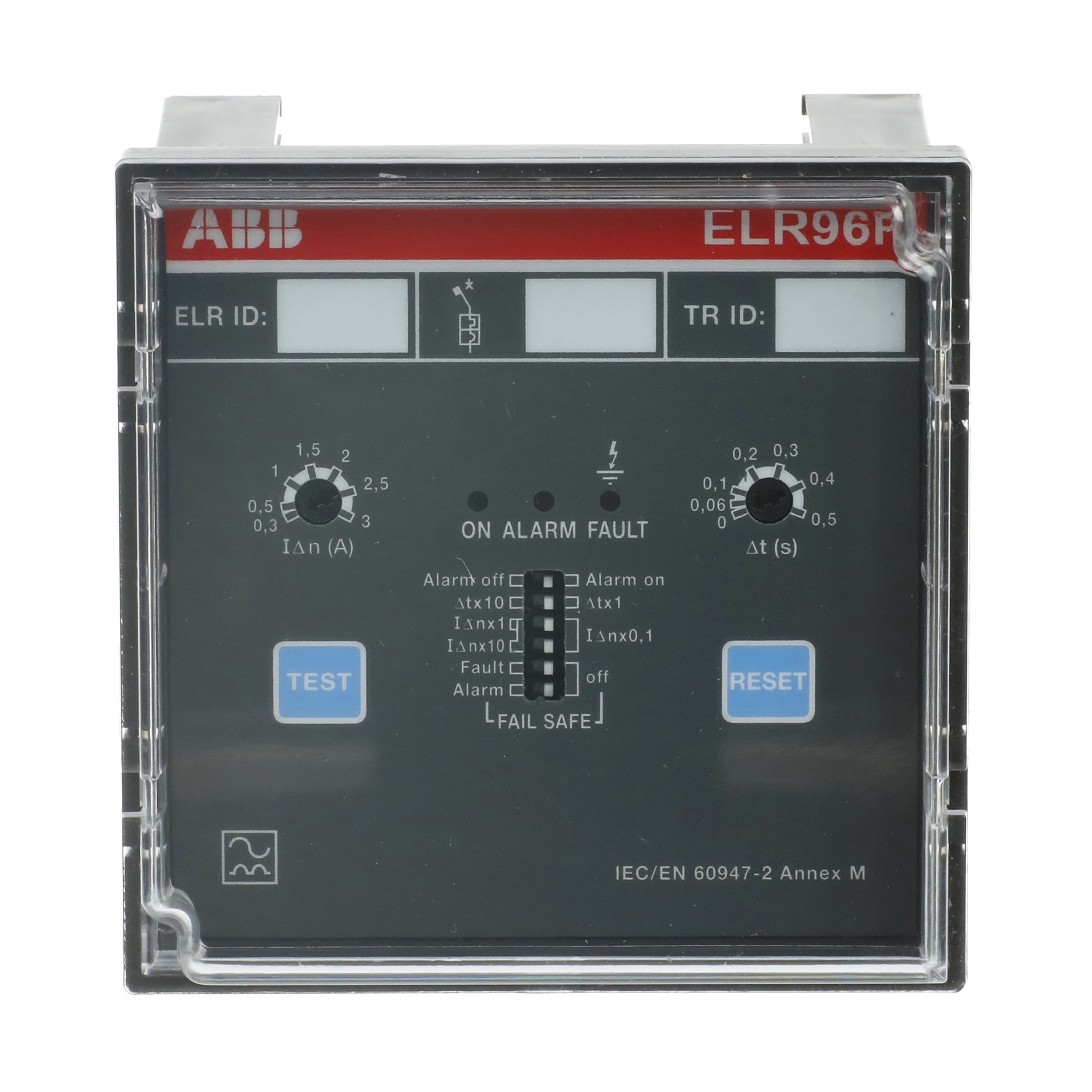

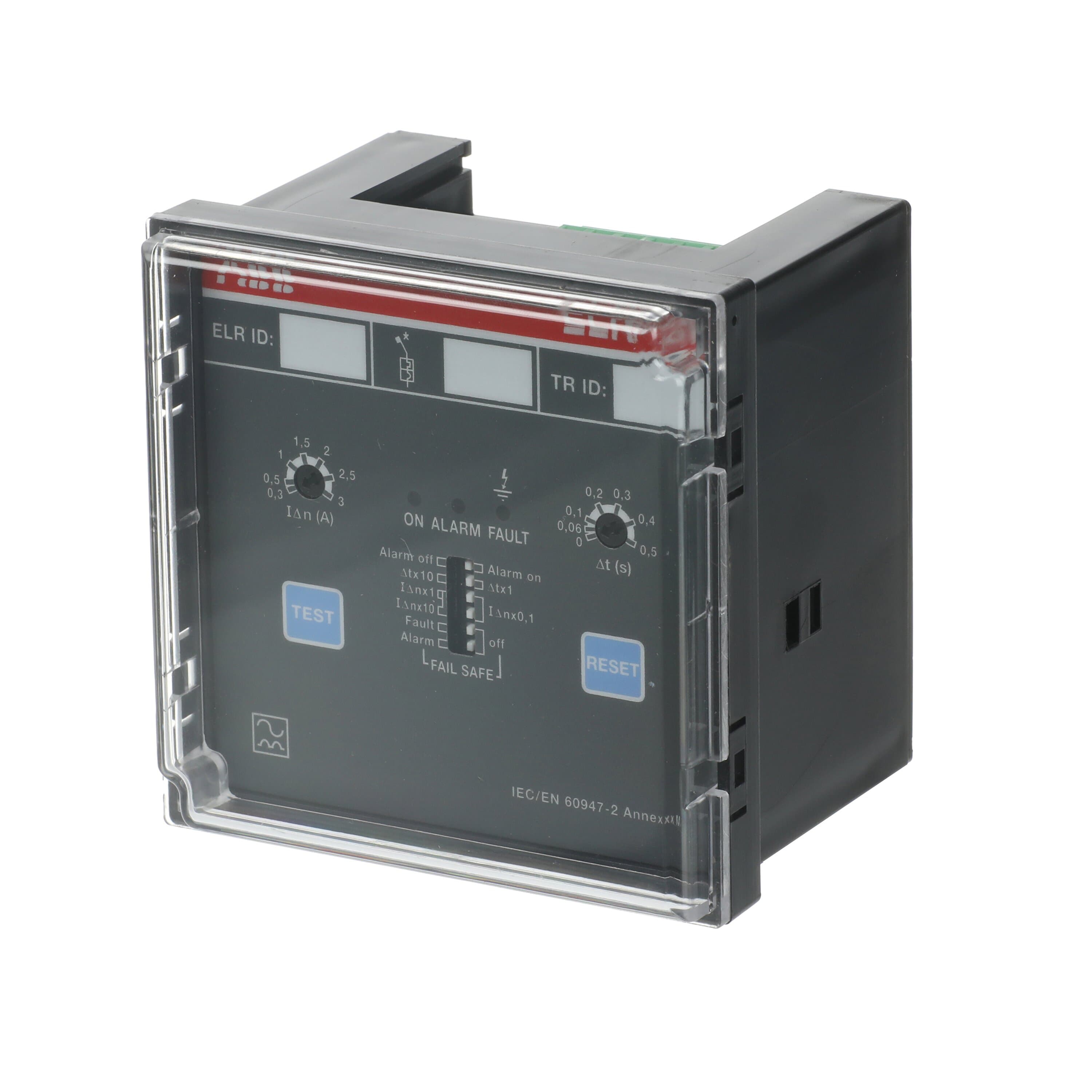

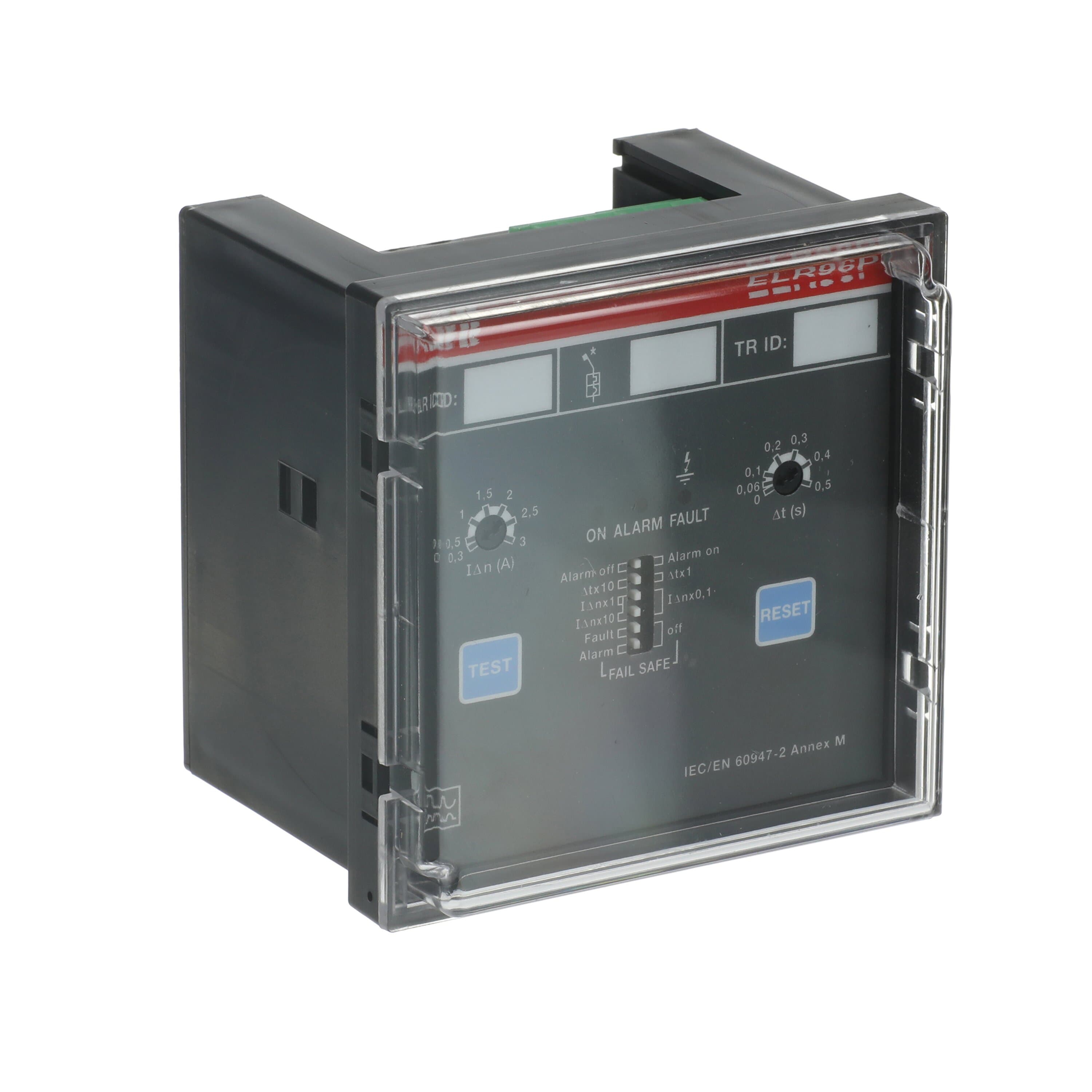

The ELR electronic residual current relay allows monitoring and protection of the
low voltage distribution network, through the use of a toroidal transformer.
Protection is achieved in combination with the MCBs and MCCBs. The ELR front panel residual current relay is compliant with protection standard 60947-2 Annex M in order to offer a cumulative operational time (residual current relay, shunt-trip, circuit breaker) guaranteed by the manufacturer.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 22 273.48 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 31 059.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 31 343.73 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 34 286.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 34 301.16 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 34 529.58 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 34 600.22 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 37 864.92 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 38 117.06 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 003.60 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49 122.78 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 60 065.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 66 306.12 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Type of Residual Current | Type A |
| Function | For mixed system |
| Current Rating | Response value amperage 1 30 ... 30 mA, Response value amperage 2 30000 ... 30000 mA |
| Number of Contacts | 2 |
| Delay Time (τ) | Delay-On Energization, Maximum, Permitted 5 s, Delay-On Energization, Minimum, Adjustable 0 s |
| Filter Option | no frequency filter |
| Options Provided | Pre-alarm threshold: 60% |
| Rated Voltage (Ur) | 24...48 V |
| Rated Operational Voltage | 24 ... 48 V AC/DC |
| Rated Control Supply Voltage (Us) | (50 Hz) 24...48 V, (50 Hz) 24...48 V, (60 Hz) 24...48 V, (60 Hz) 24...48 V, (DC) 24...48 V, (DC) 24...48 V |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 4 W, at Rated Operating Conditions per Pole 4 W |
| Number of Contacts CO | 2 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20200527 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Product Net Width | 96 mm |
| Product Net Height | 96 mm |
| Product Net Depth / Length | 78 mm |
| Product Net Weight | 386 g |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.45 kg |
| Mounting Type | Front Panel |
| ETIM 9 | EC001445 - Residual current monitoring relay |
| ETIM 10 | EC001445 - Residual current monitoring relay |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27371809 |
| Object Classification Code | F |
| Standards | IEC EN 60947-2 Ann M |
| extended_product_type | ELR96V24P |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Residual Current Devices RCDs > Residual Current Monitors, RCMs |
