Артикул: 2CSG452424R1202
· Производитель: ABB
· EAN: 8012542733829
2CSG452424R1202
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
22 741.05 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
31 712.75 ₽
срок ≈4 мес. (122 дн.)

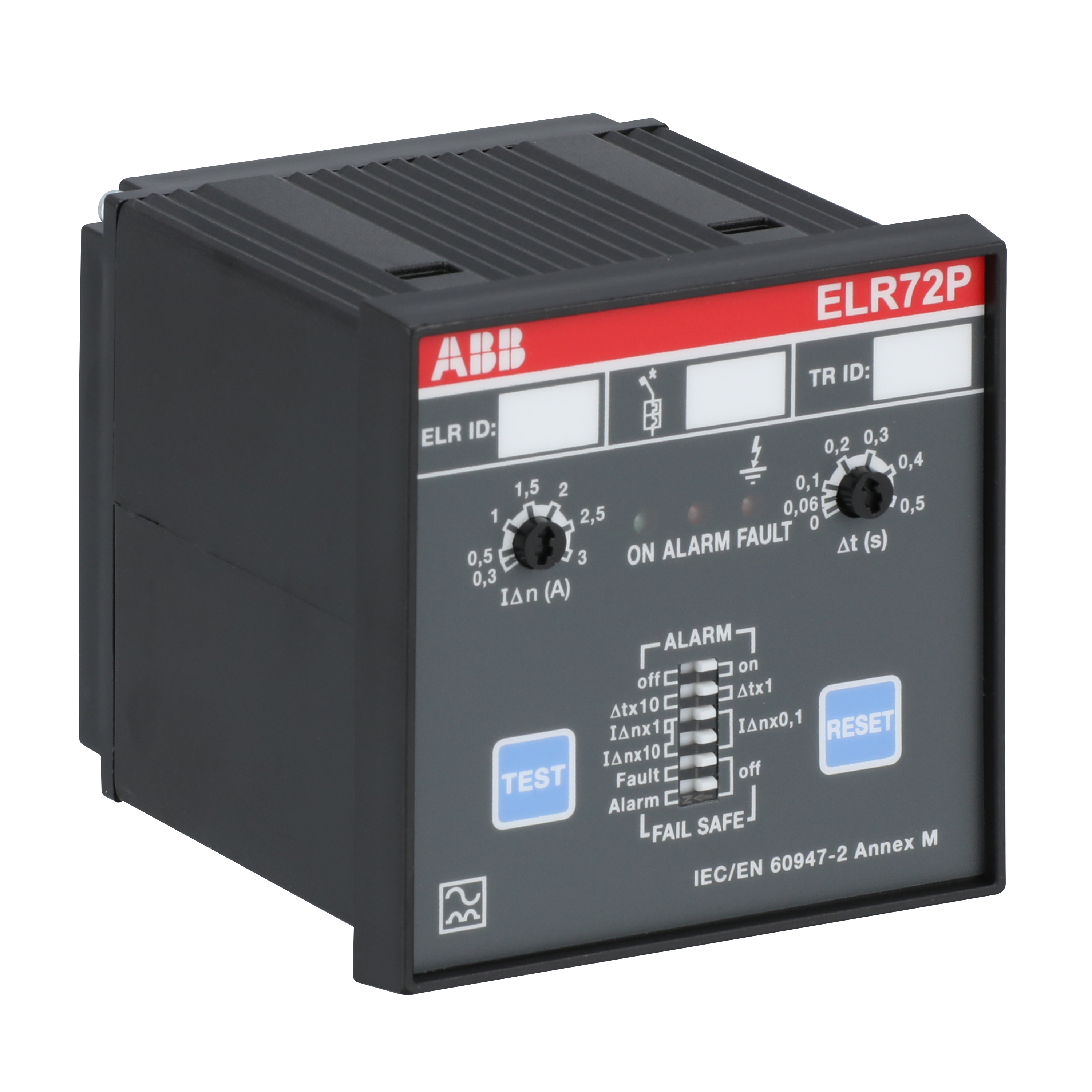

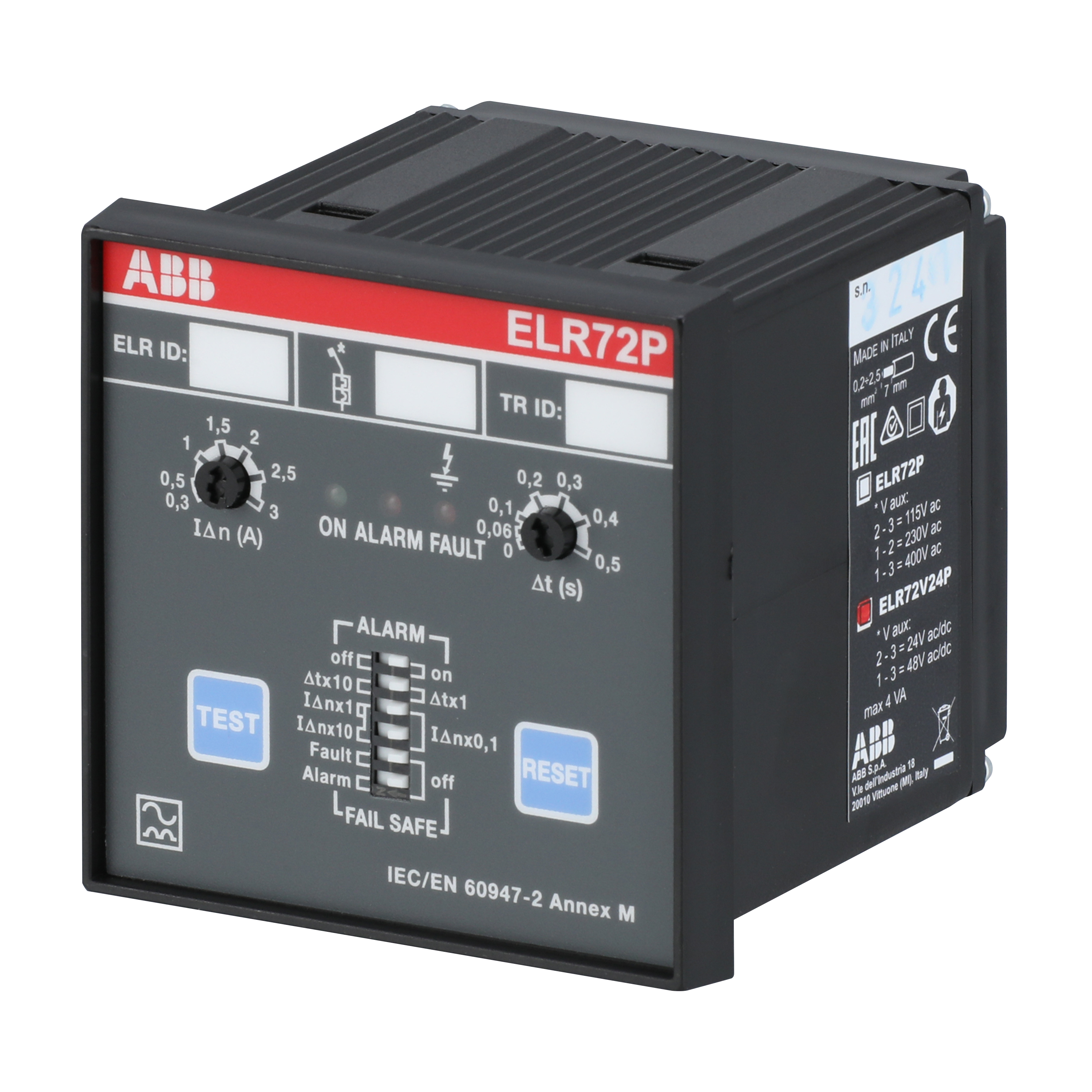

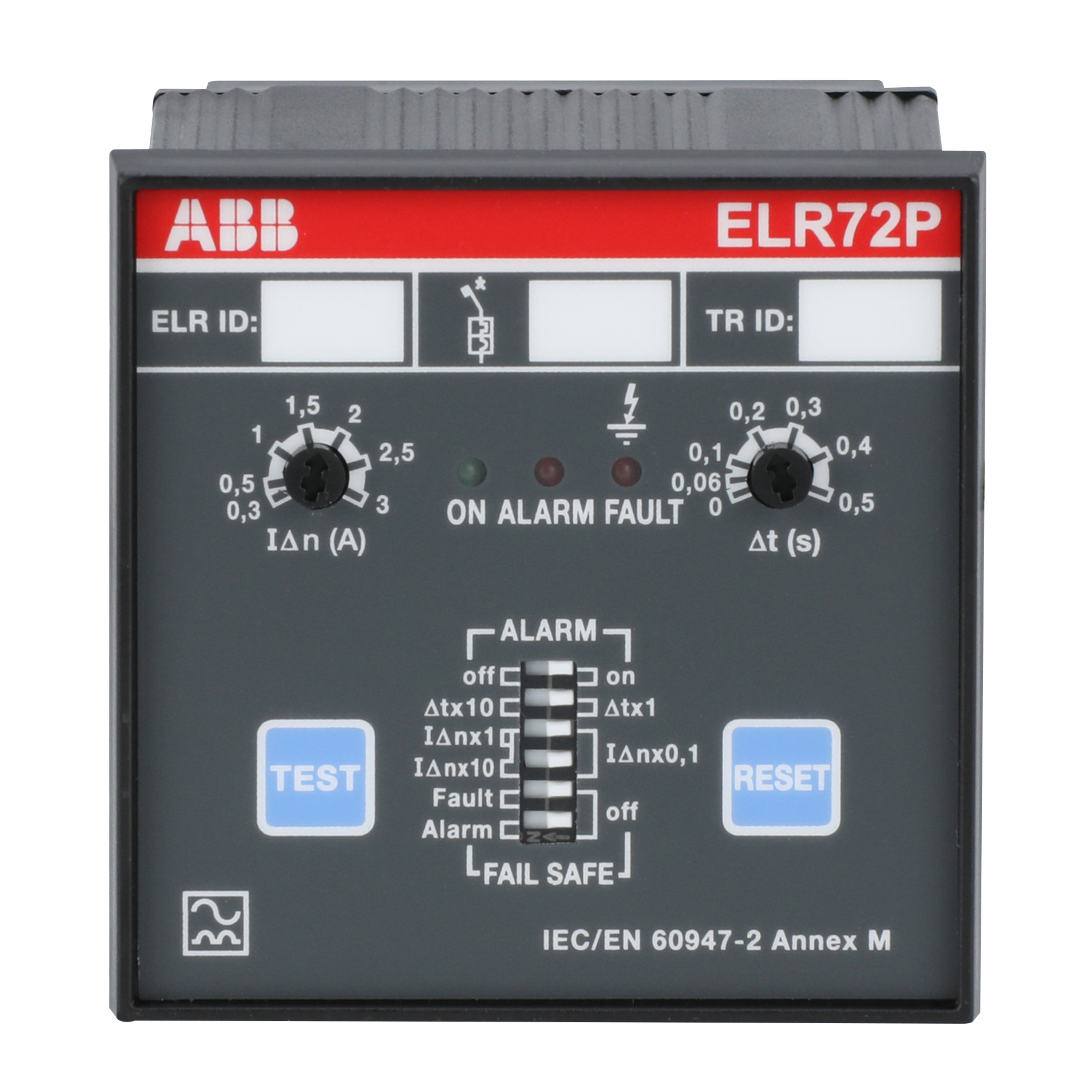

The ELR electronic residual current relay allows monitoring and protection of the
low voltage distribution network, through the use of a toroidal transformer.
Protection is achieved in combination with the MCBs and MCCBs. The ELR front panel residual current relay is compliant with protection standard 60947-2 Annex M in order to offer a cumulative operational time (residual current relay, shunt-trip, circuit breaker) guaranteed by the manufacturer.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 22 741.05 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 31 712.75 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32 000.39 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35 007.58 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 35 021.22 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 35 254.55 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35 325.11 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 38 659.79 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 38 917.36 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 759.09 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 50 151.37 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 61 228.99 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 67 590.45 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Type of Residual Current | Type A |
| Function | For mixed system |
| Current Rating | Response value amperage 1 30 ... 30 mA, Response value amperage 2 30000 ... 30000 mA |
| Number of Contacts | 2 |
| Delay Time (τ) | Delay-On Energization, Maximum, Permitted 5 s, Delay-On Energization, Minimum, Adjustable 0 s |
| Filter Option | no frequency filter |
| Options Provided | Pre-alarm threshold: 60% |
| Rated Voltage (Ur) | 24...48 V |
| Rated Operational Voltage | 24 ... 48 V AC/DC |
| Rated Control Supply Voltage (Us) | (50 Hz) 24...48 V, (50 Hz) 24...48 V, (60 Hz) 24...48 V, (60 Hz) 24...48 V, (DC) 24...48 V, (DC) 24...48 V |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 4 W, at Rated Operating Conditions per Pole 4 W |
| Number of Contacts CO | 2 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20200527 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Product Net Width | 72 mm |
| Product Net Height | 72 mm |
| Product Net Depth / Length | 88 mm |
| Product Net Weight | 345 g |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.45 kg |
| Mounting Type | Front Panel |
| ETIM 9 | EC001445 - Residual current monitoring relay |
| ETIM 10 | EC001445 - Residual current monitoring relay |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27371809 |
| Object Classification Code | F |
| Standards | IEC EN 60947-2 Ann M |
| extended_product_type | ELR72V24P |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Residual Current Devices RCDs > Residual Current Monitors, RCMs |
