Артикул: 2CSF202101R1630
· Производитель: ABB
· EAN: 8012542782704
2CSF202101R1630
Под заказ
Наличие в РФ
8 522.69 ₽
в наличии на складе · 347 шт.
Склад в Китае
4 960.25 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
6 917.08 ₽
срок ≈4 мес. (122 дн.)

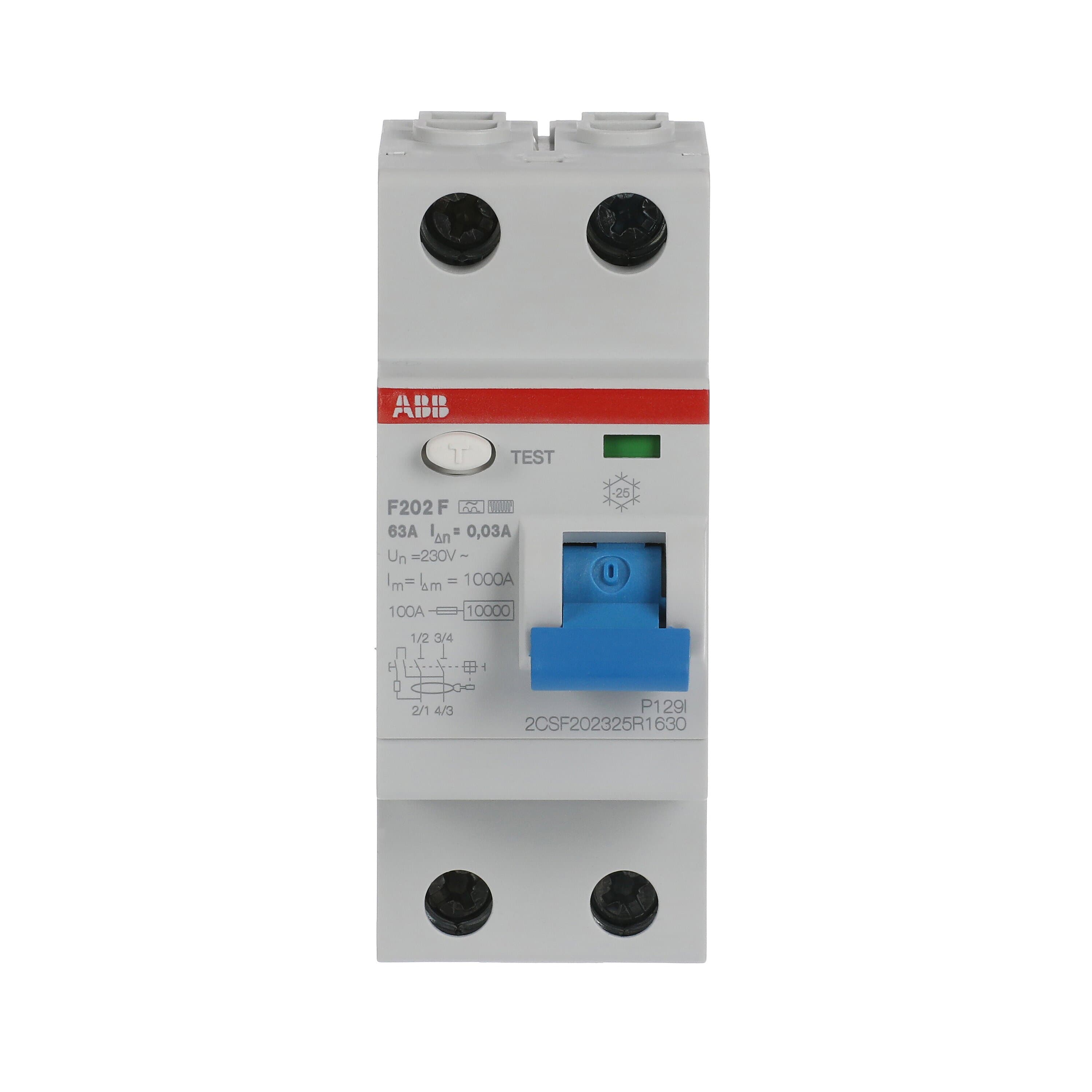

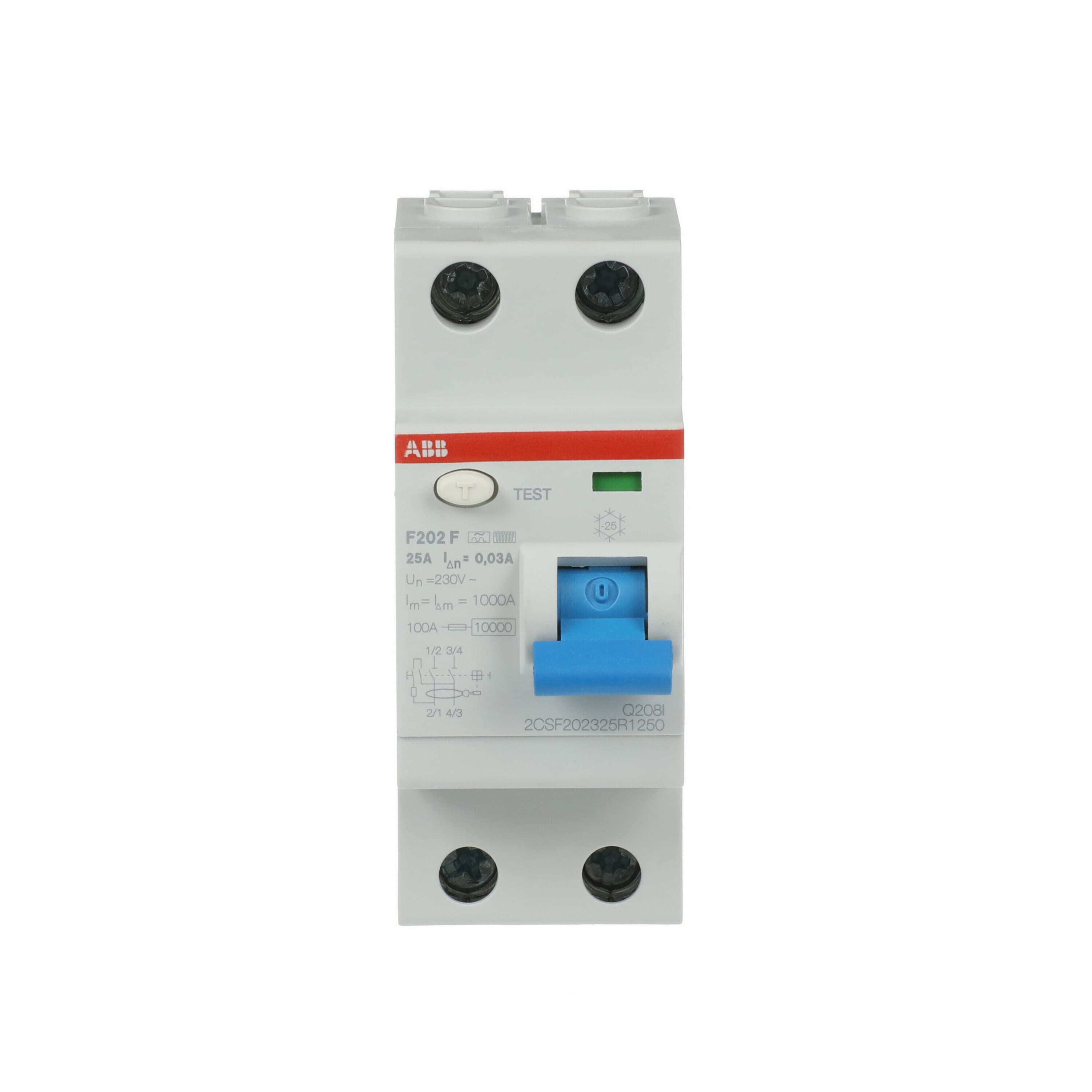

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 4 960.25 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 917.08 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 520.38 ₽ | ≈2 нед. (17 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 635.74 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Наш склад | 7 639.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 7 945.45 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 363.44 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 432.42 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в России | 8 522.69 ₽ | 5 дн. | 347 шт. | — | Заказать |
| Склад в Китае | 9 232.37 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 10 336.22 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 003.59 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 184.75 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 11 793.03 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 15 917.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 17 571.58 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Carbon Footprint (Full Lifecycle) | 5.803452 kg CO₂ eq |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 82.05 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill, UL 2799 Zero Waste To Landfill Validation available |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 0 %, Recycled Paper - 3.91 %, Recycled Cardboard - 29.08 %, Recycled Cardboard - 61.23 %, Recycled Cardboard - 2.66 % |
| Extended Product Lifetime | Product Durability |
| Offered with Takeback Services | Take Back for Recycling |
| Type of Residual Current | Type A |
| Test Voltage (Ut) | 170-254 V |
| Leakage Current Type | A |
| Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Poles | 2P |
| Number of Modular Spacings per DIN Rail | 2 |
| Operating Characteristic | Instantaneous |
| Tightening Torque | 2.8 N·m |
| Accessory Type | Auxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release, Motor Operating Device, Bottom fitting auxiliary contact, Autoreclosing Unit, Home automatic resetting unit |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal, Cage Terminal, Failsafe Biconnect Fork Top/Bottom, Failsafe Biconnect Fork Bottom |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm² |
| Rated Cross-Section | 4 - Multi-Wired 0...25 mm², 1 - Solid-Core 25...25 mm² |
| Wire Stripping Length | 12 mm |
| Terminal Type | Screw Terminals |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Frequency (f) | 50/60 Hz |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 6.4 W |
| RAL Number | Similar to RAL 7035 |
| Number of Modules | 2 |
| Maximum Operating Voltage UL/CSA | 277 V AC |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211115 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| SCIP | e8229506-bdcb-47ec-b10f-6ae72c1a19bf Italy |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Ambient Air Temperature | Operation -25 ... 55 °C, Storage -40 ... 70 °C |
| Degree of Protection | Terminals IP20, Housing IP40 |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g |
| Built-In Depth (t2) | 69 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.235 kg |
| E-Number (Finland) | 3259246 |
| E-Number (Norway) | 1662905 |
| E-Number (Sweden) | 2160117 |
