Артикул: 2CSF202001R1630 · Производитель: ABB · EAN: 8012542780205

2CSF202001R1630

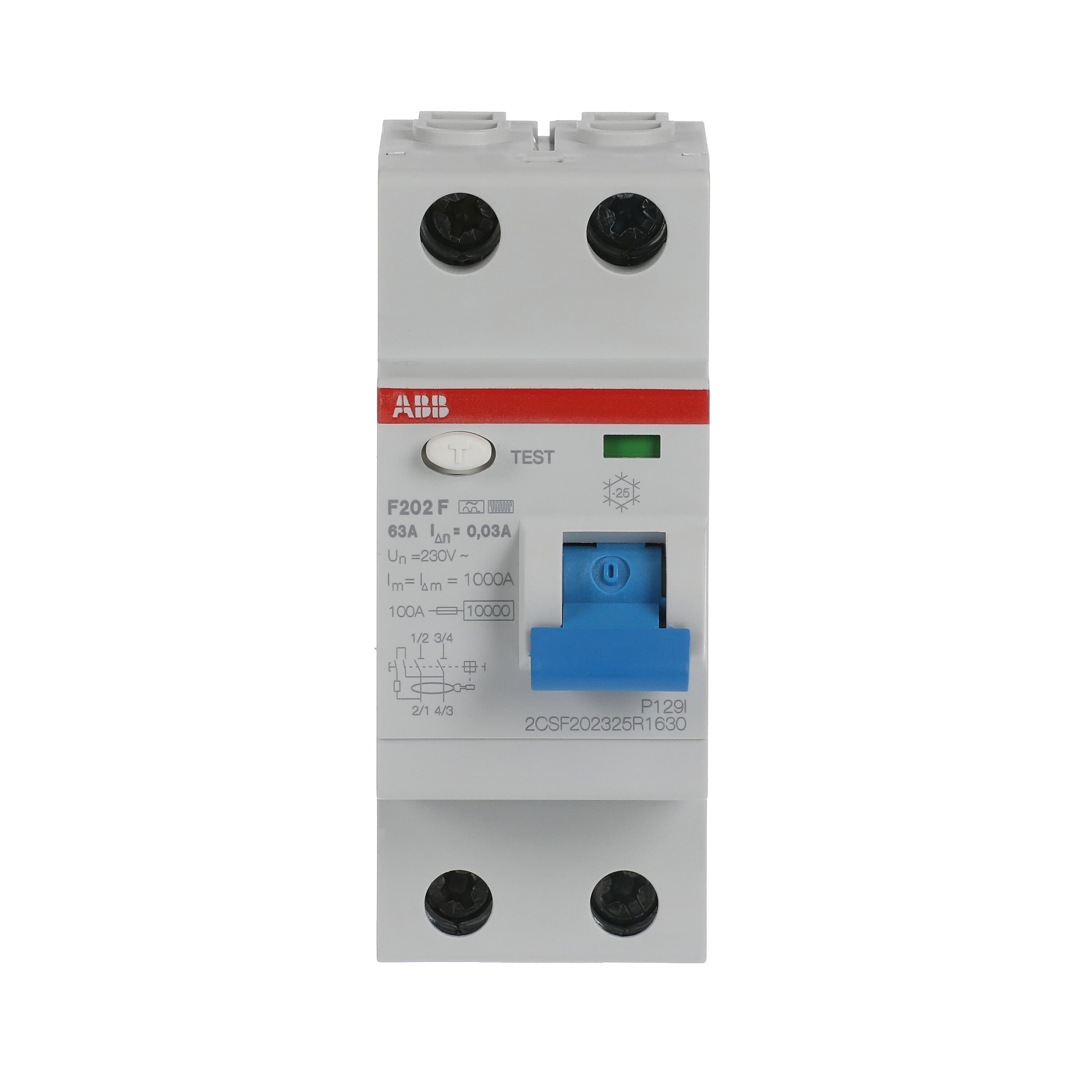

Name: F202 AC-63/0.03
Brand: ABB
SKU: 2CSF202001R1630
Availability: InStock

В наличии на нашем складе

6 096.53 ₽

минимальная цена · срок от 5 дн.

Запросить цену / заказать

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Европе	6 096.53 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Европе	6 096.53 ₽	≈3 мес. (112 дн.)	под заказ	—	Заказать
Склад в Европе	6 096.53 ₽	≈3 мес. (112 дн.)	под заказ	—	Заказать
Склад в России	6 562.39 ₽	5 дн.	259 шт.	—	Заказать
Склад в Европе	6 680.36 ₽	≈2 мес. (73 дн.)	под заказ	—	Заказать
Склад в Европе	6 732.61 ₽	≈2 мес. (63 дн.)	под заказ	—	Заказать
Склад в Европе	6 732.61 ₽	≈2 мес. (63 дн.)	под заказ	—	Заказать
Склад в Европе	7 372.93 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Европе	7 372.93 ₽	≈4 нед. (28 дн.)	под заказ	—	Заказать
Склад в Европе	7 372.93 ₽	≈4 нед. (28 дн.)	под заказ	—	Заказать
Склад в Европе	9 909.74 ₽	≈1 мес. (49 дн.)	под заказ	—	Заказать
Склад в Европе	9 909.74 ₽	≈1 мес. (49 дн.)	под заказ	—	Заказать
Склад в Европе	9 950.04 ₽	уточняется	под заказ	—	Заказать
Склад в Европе	10 207.02 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Наш склад	10 984.00 ₽	уточняется	8 шт.	—	Заказать
Склад в Европе	11 682.97 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать
Склад в Европе	11 682.97 ₽	≈1 мес. (35 дн.)	под заказ	—	Заказать
Склад в Европе	11 682.97 ₽	≈1 мес. (35 дн.)	под заказ	—	Заказать

Характеристики

slug	f202-ac-63-0-03
canonical_url	https://new.abb.com/products/2CSF202001R1630/f202-ac-63-0-03
datasheet_url	https://new.abb.com/smartlinks/en?ProductId=2CSF202001R1630&Language=en&PrintPreview=False&pid=2CSF202001R1630
documents_cid	9AAC202083
abb_library_url	https://library.e.abb.com/public/filter?q=9AAC202083&languageCode=en&Type=Document
abb_download_center	http://www.abb.com/abblibrary/DownloadCenter/
Carbon Footprint (Full Lifecycle)	5.803452 kg CO₂ eq
EcoSolutions Profile	[{'text': '9AKK108469A3794', 'doc_id': '9AKK108469A3794', 'url': 'https://library.e.abb.com/public/9AKK108469A3794?section=null&lang=en'}]
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 82.05 %
ABB Site Meeting Group Waste To Landfill Target	['No non-hazardous waste is sent to a landfill', 'UL 2799 Zero Waste To Landfill Validation available']
Sustainable Material Content in Packaging (wt. %)	['Recycled Paper - 0 %', 'Recycled Paper - 3.91 %', 'Recycled Cardboard - 29.08 %', 'Recycled Cardboard - 61.23 %', 'Recycled Cardboard - 2.66 %']
Extended Product Lifetime	Product Durability
Offered with Takeback Services	Take Back for Recycling
End Of Life Disassembling Instructions	[{'text': '9AKK108470A1748', 'doc_id': '9AKK108470A1748', 'url': 'https://library.e.abb.com/public/9AKK108470A1748?section=null&lang=en'}]
Environmental Product Declaration - EPD	[{'text': '9AKK108469A9642', 'doc_id': '9AKK108469A9642', 'url': 'https://library.e.abb.com/public/9AKK108469A9642?section=null&lang=en'}]
Type of Residual Current	Type AC
Test Voltage (Ut)	170-254 V
Maximum Surge Current	0.25 kA
Leakage Current Type	AC
Power Supply Connection	Arbitrary
Electrical Endurance	10000 cycle
Mechanical Endurance	20000 cycle
Number of Poles	2P
Number of Modular Spacings per DIN Rail	2
Operating Characteristic	Instantaneous
Tightening Torque	2.8 N·m
Accessory Type	['Auxiliary contact', 'Auxiliary/Signal contact', 'Shunt trip', 'Undervoltage release', 'Overvoltage release', 'Motor Operating Device', 'Bottom fitting auxiliary contact', 'Autoreclosing Unit', 'Home automatic resetting unit']
Screw Terminal Type	['Failsafe Bi-directional Cylinder-lift Terminal', 'Cage Terminal', 'Failsafe Biconnect Fork Top/Bottom', 'Failsafe Biconnect Fork Bottom']
Accessories Available	Yes
Connecting Capacity	['Busbar 10 mm²', 'Rigid 25 ... 25 mm²', 'Flexible 25 ... 25 mm²']
Rated Cross-Section	['4 - Multi-Wired 0...25 mm²', '1 - Solid-Core 25...25 mm²']
Wire Stripping Length	12 mm
Terminal Type	Screw Terminals
Rated Voltage (Ur)	230 V
Rated Operational Voltage	230 V
Rated Insulation Voltage (Ui)	500 V
Rated Impulse Withstand Voltage (Uimp)	4 kV
Input Voltage Type	AC
Rated Current (In)	63 A
Rated Residual Current	30 mA
Rated Conditional Short-Circuit Current (Inc)	10 kA
Frequency (f)	50/60 Hz
Rated Frequency (f)	50/60 Hz
Power Loss	['at Rated Operating Conditions per Pole 3.2 W', 'Total 6.4 W']
RAL Number	Similar to RAL 7035
Number of Modules	2
Maximum Operating Voltage UL/CSA	277 V AC
RoHS Declaration	[{'text': '9AKK106713A5602', 'doc_id': '9AKK106713A5602', 'url': 'https://library.e.abb.com/public/9AKK106713A5602?section=null&lang=en'}]
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20211115
REACH Declaration	[{'text': '9AKK108467A9482', 'doc_id': '9AKK108467A9482', 'url': 'https://library.e.abb.com/public/9AKK108467A9482?section=null&lang=en'}]
REACH Information	True - contains substances > 0.1 mass percentage
REACH Date	20240429
Conflict Minerals Reporting Template (CMRT)	[{'text': '9AKK108468A3363', 'doc_id': '9AKK108468A3363', 'url': 'https://library.e.abb.com/public/9AKK108468A3363?section=null&lang=en'}]
SCIP	e8229506-bdcb-47ec-b10f-6ae72c1a19bf Italy
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Consumer
Ambient Air Temperature	['Operation -25 ... 55 °C', 'Storage -40 ... 70 °C']
Degree of Protection	['Terminals IP20', 'Housing IP40']
Pollution Degree	2
Resistance to Vibrations	20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz
Resistance to Shock acc. to IEC 60068-2-27	25g 2 shocks 13 ms
Environmental Information	[{'text': 'Refer to RoHS', 'doc_id': 'Refer to RoHS', 'url': 'https://library.e.abb.com/public/Refer to RoHS?section=null&lang=en'}]
Width in Number of Modular Spacings	2
Product Net Width	35 mm
Product Net Height	85 mm
Product Net Depth / Length	69 mm
Product Net Weight	200 g
Built-In Depth (t2)	69 mm
Dimension Diagram	[{'text': '9AKK106354A0758', 'doc_id': '9AKK106354A0758', 'url': 'https://library.e.abb.com/public/9AKK106354A0758?section=null&lang=en'}]
EPLAN Data	[{'text': '9AAC202083_EPLAN', 'doc_id': '9AAC202083_EPLAN', 'url': 'https://library.e.abb.com/public/9AAC202083_EPLAN?section=null&lang=en'}]
Package Level 1 Units	box 1 piece
Package Level 1 Gross Weight	0.235 kg
EAN	8012542780205
Declaration of Conformity - CE	[{'text': '9AKK106713A5602', 'doc_id': '9AKK106713A5602', 'url': 'https://library.e.abb.com/public/9AKK106713A5602?section=null&lang=en'}]
Instructions and Manuals	[{'text': '9AKK107991A6127', 'doc_id': '9AKK107991A6127', 'url': 'https://library.e.abb.com/public/9AKK107991A6127?section=null&lang=en'}]
Mounting Type	DIN-Rail
Mounting Position	Any
Data Sheet, Technical Information	[{'text': '9AKK107991A8329', 'doc_id': '9AKK107991A8329', 'url': 'https://library.e.abb.com/public/9AKK107991A8329?section=null&lang=en'}]
ETIM 9	EC000003 - Residual current circuit breaker (RCCB)
ETIM 10	EC000003 - Residual current circuit breaker (RCCB)
UNSPSC	39121601
eClass	V11.0 : 27142201
IDEA Granular Category Code (IGCC)	4875 >> Residual current circuit breaker (RCCB)
Object Classification Code	F
Standards	['IEC/EN 61008', 'UL 1053']
extended_product_type	F202 AC-63/0.03
category_paths	Products > Low Voltage Products and Systems > Modular DIN Rail Products > Residual Current Devices RCDs > Residual Current Devices RCDs
related_links	{'text': 'EPLAN Data F202 AC-63/0.03', 'url': 'https://dataportal.epulse.com/parts/list?perpage=20&search=2CSF202001R1630'}
related_articles	1SDA068059R1, 1TMF202005R1250, 1TMF202005R1400, 1TMF202005R1630, 1TMF202005R2250, 1TMF202005R2400, 1TMF202005R2630, 1TMF202005R3250, 1TMF202005R3400, 1TMF202005R3630, 1TMF202405R1250, 1TMF202405R1630
