Артикул: 2CPX041748R9999
· Производитель: ABB
· EAN: 4011617417484
2CPX041748R9999
В наличии на нашем складе
Наличие в РФ
8 529.00 ₽
в наличии на складе · 2 шт.
Склад в Китае
6 998.17 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
6 339.52 ₽
срок ≈1 мес. (59 дн.)

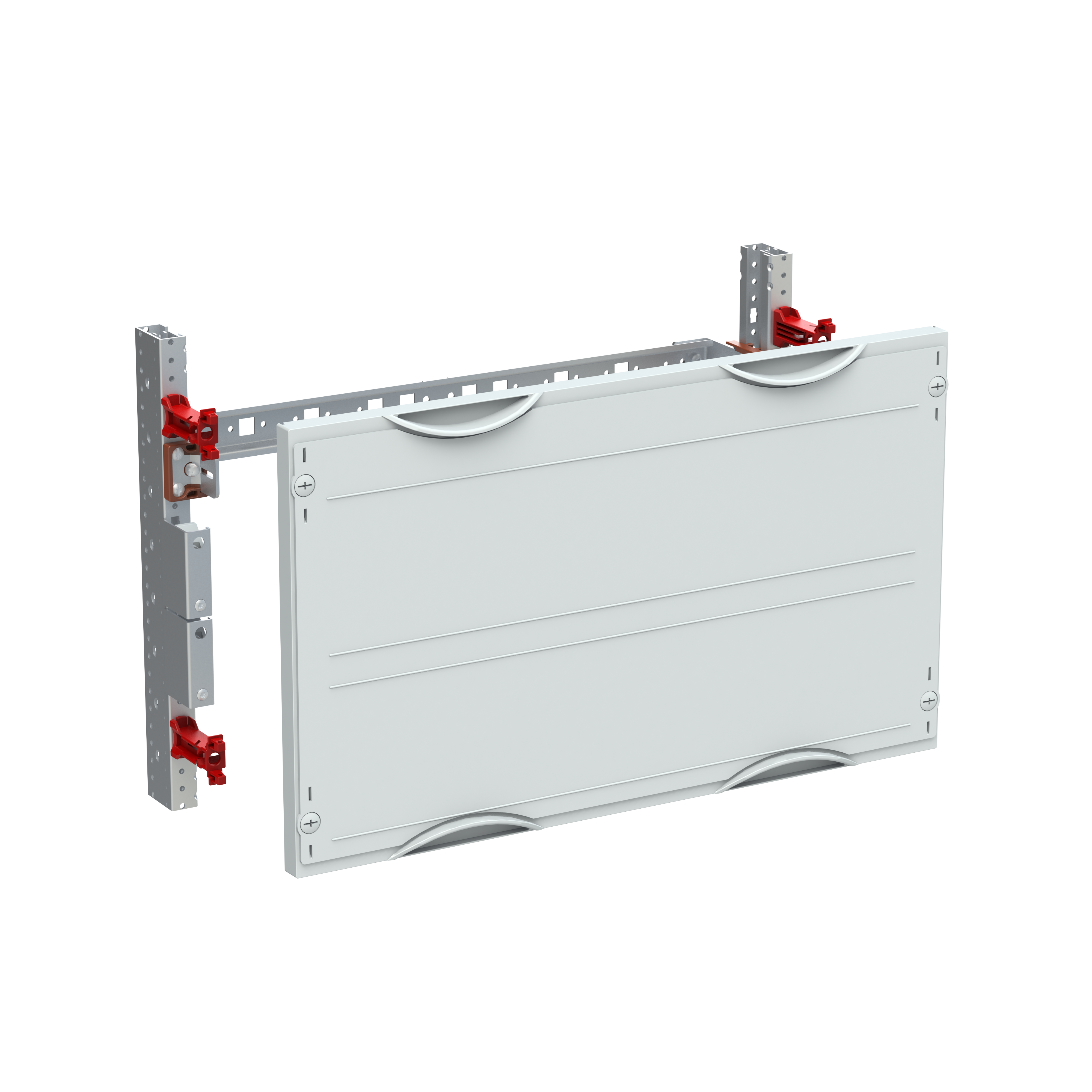

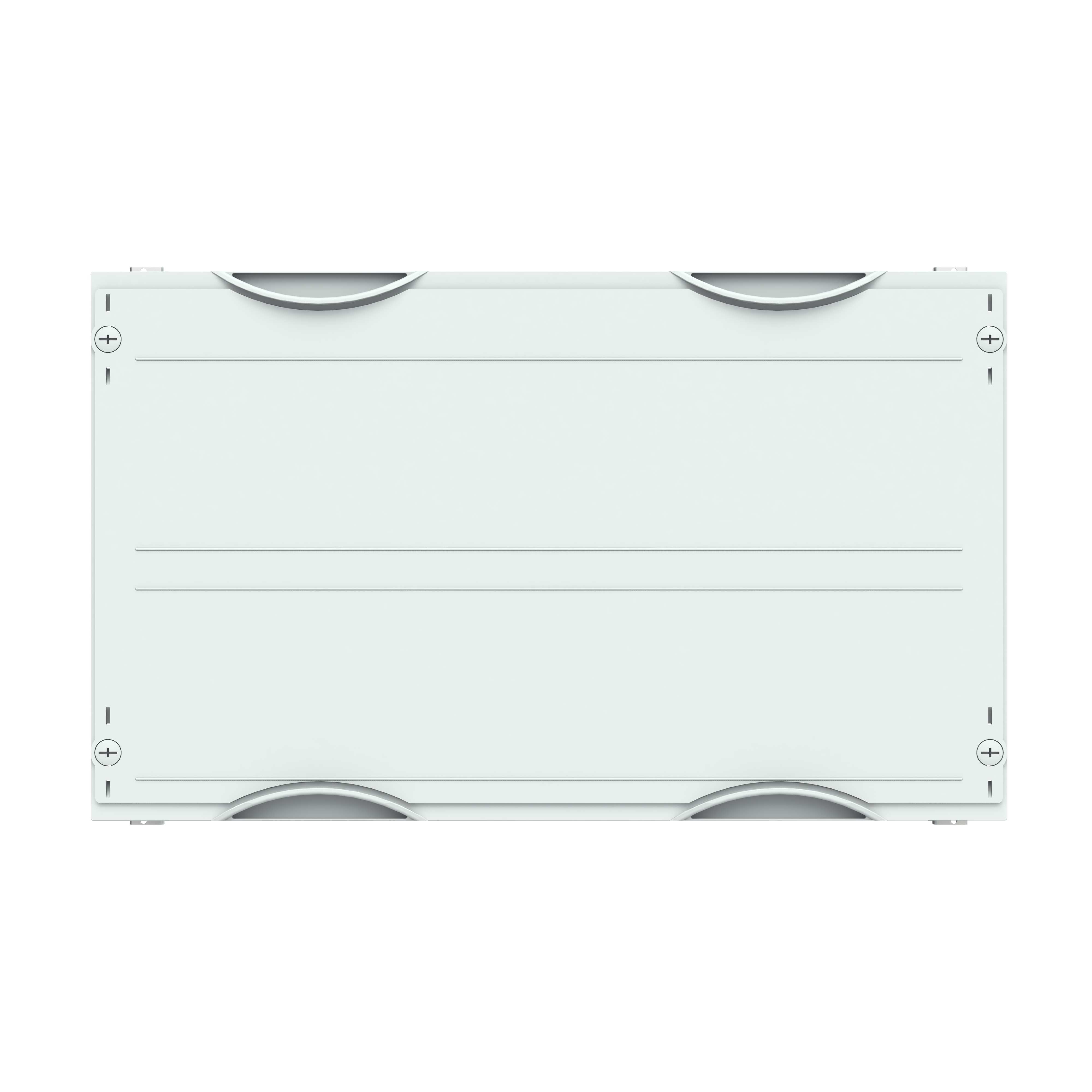

Interior fitting module, CombiLine, Flatpack (unmounted), for N/PE busbar and terminals, Grid unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 438 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX518, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 6 339.52 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 765.50 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 998.17 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 072.82 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 468.41 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 807.66 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Наш склад | 8 529.00 ₽ | В наличии | 2 шт. | — | Заказать |
| Склад в Европе | 9 152.64 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 14 345.33 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 22 091.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 24 387.07 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | Light grey |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 20 kA |
| Busbar Position | Center Central |
| Number of Poles | 2P |
| Number of Panel Heights | 2 |
| Number of Rows | 1 |
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 000 |
| Accessories Available | Yes |
| DIN Place Units | 48 |
| Meter Boards | 0 |
| Module Function | N/PE busbar and terminals |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 440 A |
| Color | Light grey |
| Number of Modules | 48 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260130 |
| WEEE Category | Product Not in WEEE Scope |
| Product Net Width | 500 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 200 mm |
| Product Net Weight | 1.98 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 200 mm |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.98 kg |
| Mounting Type | Stepless adjustable via mounting bracket |
| ETIM 9 | EC001896 - Distributor assembly busbars |
| ETIM 10 | EC001896 - Distributor assembly busbars |
| eClass | V11.0 : 27400610 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3, DIN EN 61439-2 |
| extended_product_type | MBN274 |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > CombiLine Interior Fittings > CombiLine N - Flatpack > Busbars without Copper Bars |
