Артикул: 2CPX010166R9999
· Производитель: ABB
· EAN: 4011617101666
2CPX010166R9999
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
58 408.42 ₽
срок ≈1 нед. (11 дн.)
Склад в Европе
61 313.58 ₽
срок ≈1 мес. (38 дн.)

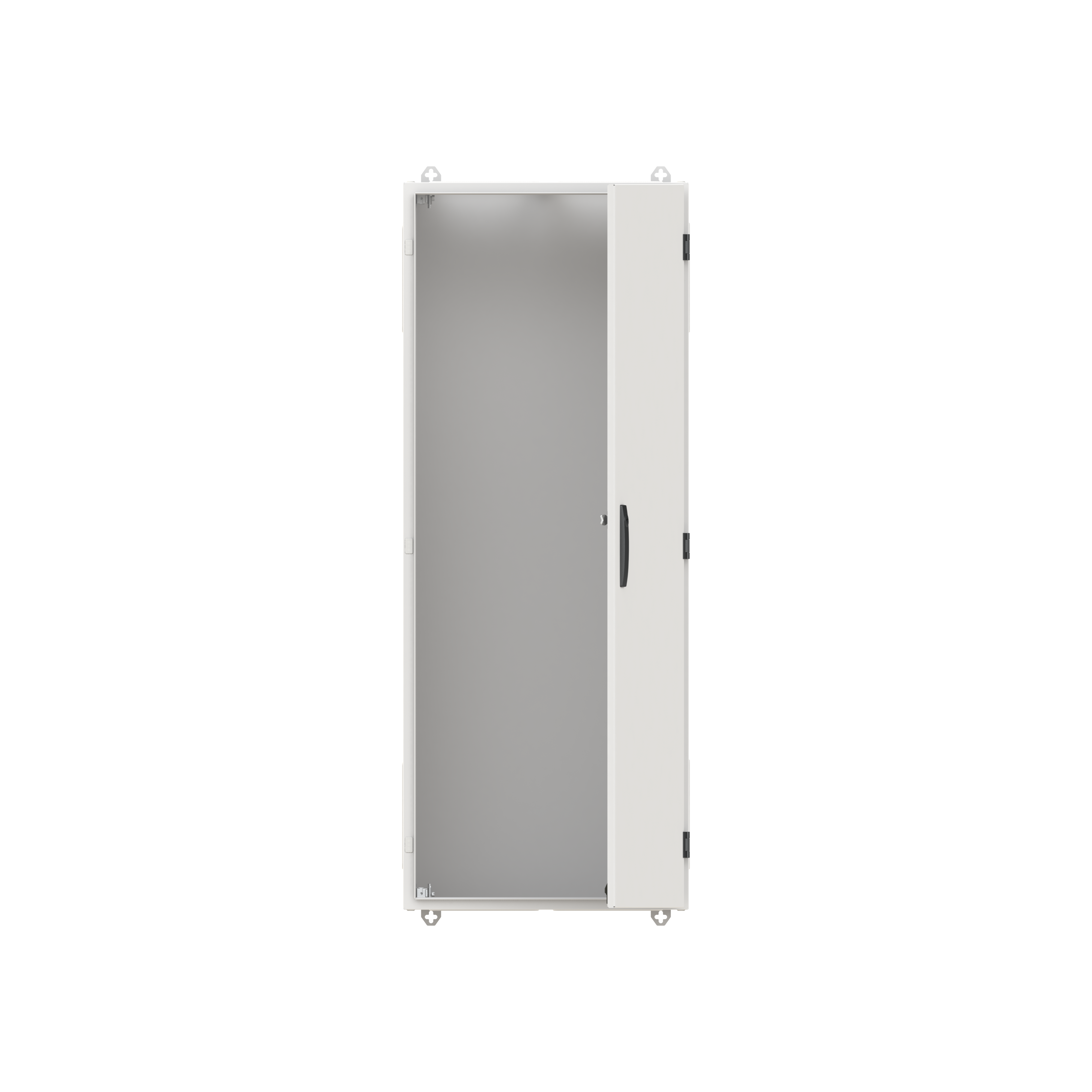

Floor-standing cabinet, series TwinLine, empty cabinet, Expansion option: Lateral and bottom, for the internal use, with Door, class of protection I (earthed), degree of protection IP55, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Impact strength IK08, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard locking mechanism double bit, door opening angle 180 degree, door hinge right or left, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1850 x 550 x 350, Grid unit 12 GU, Overall height 8, panel width 2, Space units 288, pre-assembled for installation of meter panels, distribution modules, Combi-Sets, CombiLine-Modules or mounting plates on EDF-/WR-mounting frame
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 58 408.42 ₽ | ≈1 нед. (11 дн.) | 1 шт. | — | Заказать |
| Наш склад | 61 199.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 61 313.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 67 683.82 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 74 747.69 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 80 201.76 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 82 513.68 ₽ | ≈4 мес. (122 дн.) | 1 шт. | — | Заказать |
| Склад в Китае | 88 534.41 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 114 578.66 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 145 821.28 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 224 564.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 247 896.18 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | Light grey |
| Number of Flange Openings | 2 |
| Number of Conduit Inlets | 104 |
| Number of Panel Heights | 12 |
| Number of Rows | 12 |
| Configuration Type | pre-assembled for installation of meter panels, distribution modules, Combi-Sets, CombiLine-Modules or mounting plates on EDF-/WR-mounting frame |
| Enclosure Type | Floor-standing cabinet |
| Enclosure Type of Height | 8 |
| Door Type | Single |
| Opening Direction | Left or Right |
| Accessories Available | Yes |
| DIN Place Units | 288 |
| Impact Resistance Rating | IK08 |
| Power Loss | Δt = 20K - Enclosures 131.7 W, Δt = 25K - Enclosures 173.9 W, Δt = 30K - Enclosures 218.1 W, Total 131.7 W |
| Surface Finishing | Powder-coated |
| Housing Material | Steel plate/plastic |
| Door Material | Steel Sheet |
| Cover Style | with Notch |
| RAL Number | RAL 7035 - Light Grey |
| Color | Light grey |
| Number of Modules | 288 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250919 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260130 |
| SCIP | a9384434-706f-4938-bb0f-956739599fbf Germany |
| WEEE Category | Product Not in WEEE Scope |
| Degree of Protection | IP55 |
| Protection Class | Grounded (Class I) |
| Width in Number of Modular Spacings | 24 |
| Product Net Width | 550 mm |
| Product Net Height | 1850 mm |
| Product Net Depth / Length | 350 mm |
| Product Net Weight | 45.072 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 299 mm |
| Thickness | Cabinet Plate 1 mm, Door Plate 1.5 mm |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 46.905 kg |
| E-Number (Norway) | 2437699 |
| Mounting Type | Surface mounting |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3, DIN EN 61439-2 |
| extended_product_type | TW212G |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > Sub Distribution Boards > Sub Distribution Boards > TwinLine N 55 - Welded |
