Артикул: 2CDS253001R0804
· Производитель: ABB
· EAN: 4016779916264
2CDS253001R0804
Под заказ
Наличие в РФ
11 218.99 ₽
в наличии на складе · 279 шт.
Склад в Китае
7 265.28 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
8 721.67 ₽
срок ≈1 мес. (38 дн.)

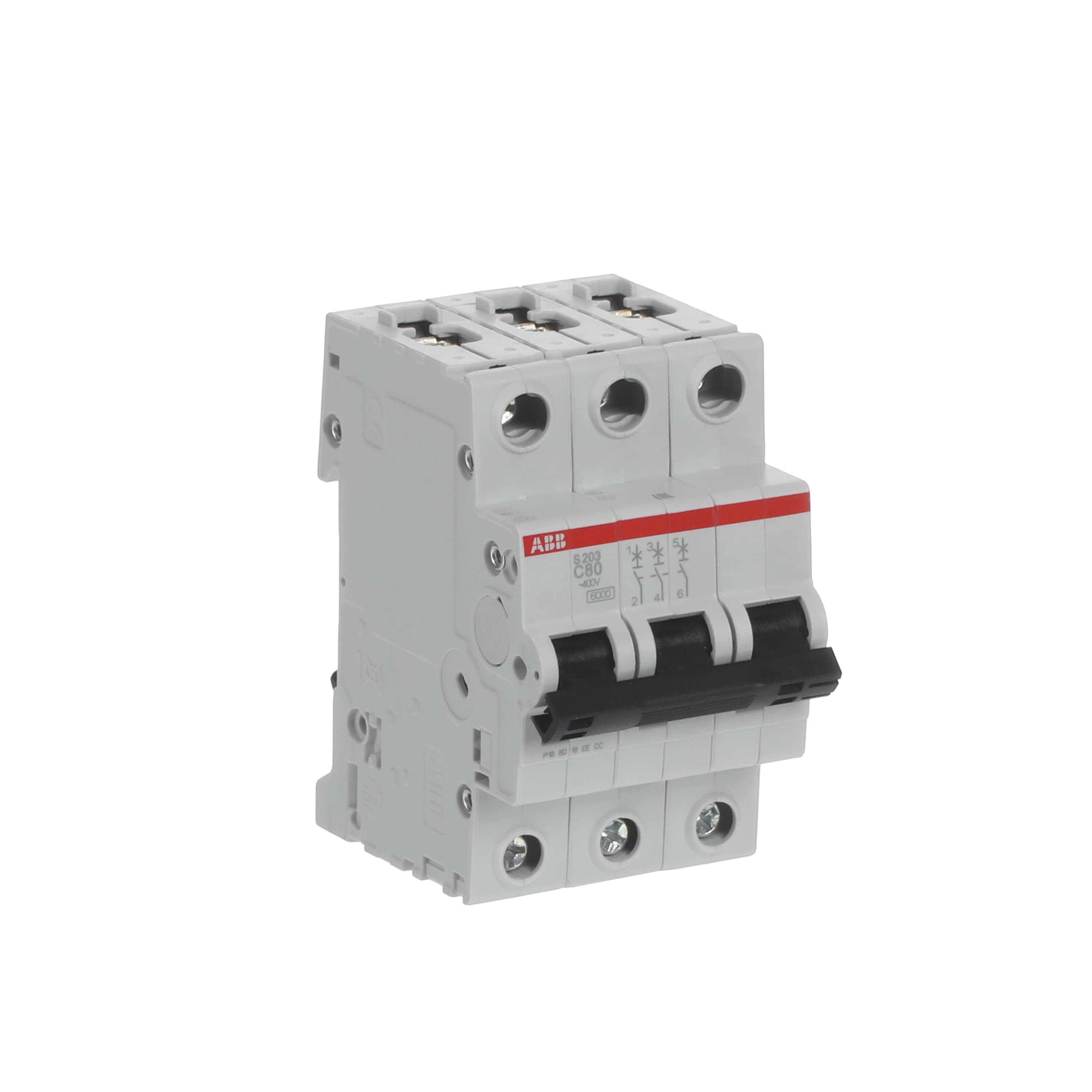

S203-C80 Miniature Circuit Breake C-Char., 6kA, 80A, 3P
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 4 639.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 7 265.28 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 721.67 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 627.82 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 9 937.44 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 116.74 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 10 650.38 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 676.89 ₽ | ≈2 мес. (66 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 779.08 ₽ | ≈3 мес. (94 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 167.83 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 188.54 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в России | 11 218.99 ₽ | 5 дн. | 279 шт. | — | Заказать |
| Склад в Китае | 12 350.98 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 14 742.48 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 10 kA, (400 V AC) 6 kA, (400 V) 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 6 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 3 |
| Number of Poles | 3P |
| Tightening Torque | 3 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 16/16 mm², Conductor 2.5 ... 50 mm², Flexible 4 ... 35 mm², Rigid 2.5 ... 50 mm², Stranded 2.5 ... 50 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 400 V AC |
| Operational Voltage | Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 80 A |
| Rated Short-Circuit Capacity | (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA, (230 V AC) 6 kA, (400 V AC) 6 kA, (400 V) 6 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 10 kA, (400 V) 20 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 39.2 W, at Rated Operating Conditions per Pole 9.8 W |
| Overvoltage Category | III |
| Housing Material | Insulation Group I, RAL 7035 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, IP40, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 52.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.36 kg |
| Built-In Depth (t2) | 69 mm |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.6 kg |
| E-Number (Finland) | 3210635 |
| E-Number (Norway) | 1682953 |
| E-Number (Sweden) | 2101511 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | any |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
