Артикул: 2CDS200912R0001
· Производитель: ABB
· EAN: 4016779563826
2CDS200912R0001
В наличии на нашем складе
Наличие в РФ
1 035.10 ₽
в наличии на складе · 923 шт.
Склад в Китае
612.12 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
868.61 ₽
срок ≈2 нед. (17 дн.)

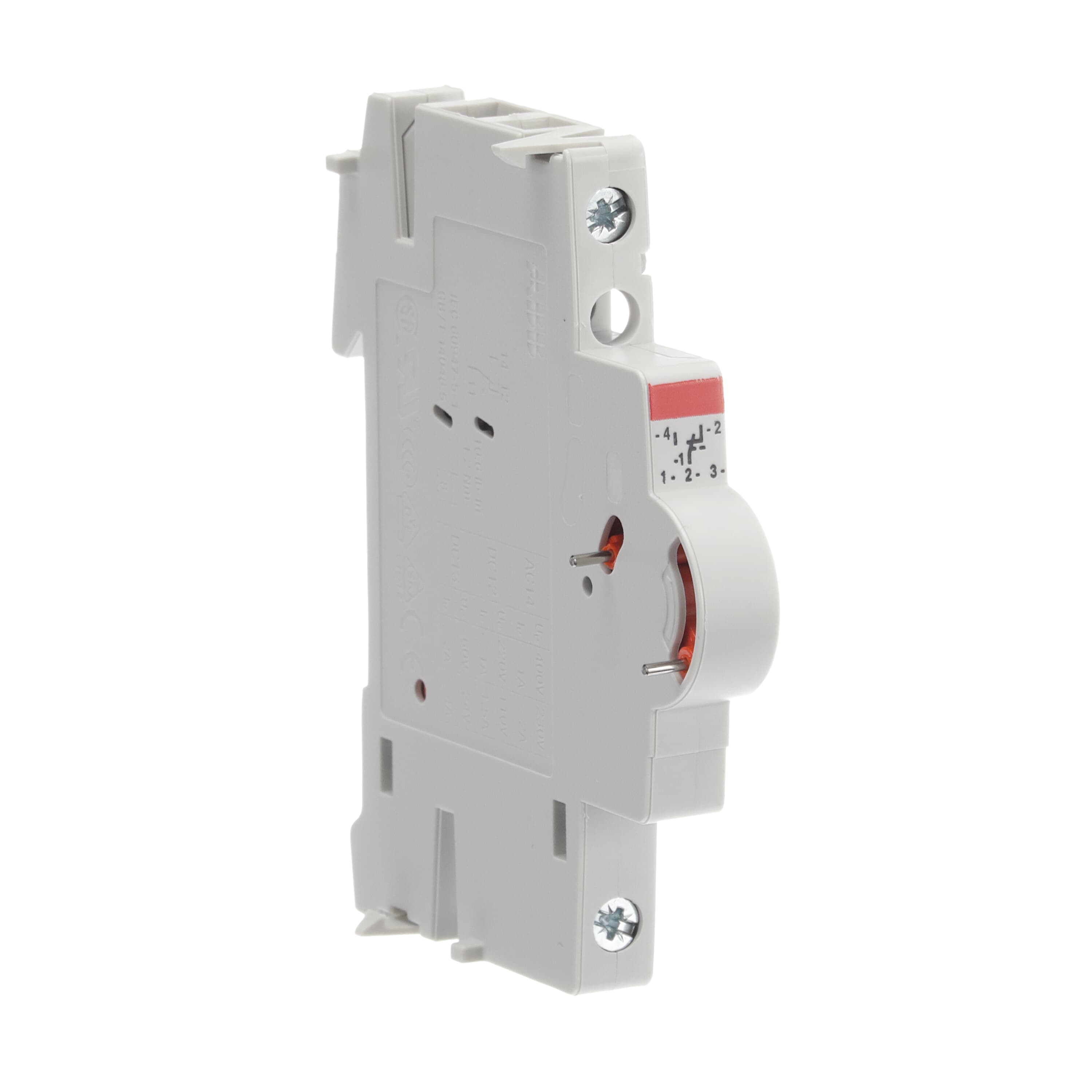

Indication of the position of the device’s contacts. Suitable for MCBs S 200 series, SN 201 series, RCCBs F 200 series, RCBOs DS201, DS202C, DS 200 series. To be mounted on the right side of the MCBs.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 612.12 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 738.56 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 868.61 ₽ | ≈2 нед. (17 дн.) | под заказ | — | Заказать |
| Склад в Европе | 885.75 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 957.55 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 970.59 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 977.78 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 981.68 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в России | 1 035.10 ₽ | 5 дн. | 923 шт. | — | Заказать |
| Склад в Китае | 1 040.60 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 057.04 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 083.67 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 137.39 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Наш склад | 1 234.00 ₽ | В наличии | 282 шт. | — | Заказать |
| Склад в Китае | 1 255.56 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 381.91 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 85.9 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Offered with Takeback Services | Take Back for Recycling |
| Function | Auxiliary Contact |
| Suitable For | S200, S200M, S200P, S200S, S300P, SN201L+SN201-IH, SN201+SN201-IH, SN201M+SN201-IH, F200, DS201, DS202C, DS200, S-ARC1, DS-ARC1, S200C Enhancement |
| Suitable for Product Class | Miniature Circuit Breaker, Residual Current Device |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Accessory Type | Auxiliary Contact |
| Technical Information | AUXILIARYCONTACT |
| Input Voltage Type | AC |
| Power Loss | 0.5 W, Maximum 0.5 W |
| Number of Auxiliary Contacts CO (SPDT) | 1 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| SCIP | c151f68f-6fbb-44f7-badf-ba96efd56de4 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 8.8 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.043 kg |
| Package Level 1 Units | blister 1 piece |
| Package Level 1 Gross Weight | 0.045 kg |
| E-Number (Finland) | 3210836 |
| E-Number (Norway) | 1665769 |
| E-Number (Sweden) | 2102500 |
| Mounting Position | right |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| UNSPSC | 39121522 |
| eClass | V11.0 : 27143502 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Object Classification Code | Q |
| Standards | CSA Class 3215-30, CSA Class 3215-90, GB/T 14048.5, IEC/EN 60947-5-1, UL 1077 |
| extended_product_type | S2C-H6R |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > ABB VY > Busbars and Accessories ABB VY > Accessories ABB VY, Products > Low Voltage Products and Systems > Modular DIN Rail Products > Miniature Circuit Breakers MCBs > Miniature Circuit Breakers MCBs Accessories > Auxiliary / Signal Contacts, Parts & Services > Medium Voltage Products and Systems > Service > Spares and Consumables > Parts > All Spare Parts (Relays-SWG-CB), Parts & Services > Medium Voltage Products and Systems > Switchgear and Motor Control > Gas Insulated Secondary Switchgear (SF6) > SafePlus > SafePlus 36kV, Parts & Services > Medium Voltage Products and Systems > Switchgear and Motor Control > Gas Insulated Secondary Switchgear (SF6) > SafeRing > SafeRing 36kV |
