Артикул: 2CDG510026R0011
· Производитель: ABB
· EAN: 4053546111316
2CDG510026R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
44 214.45 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
35 485.46 ₽
срок уточняется

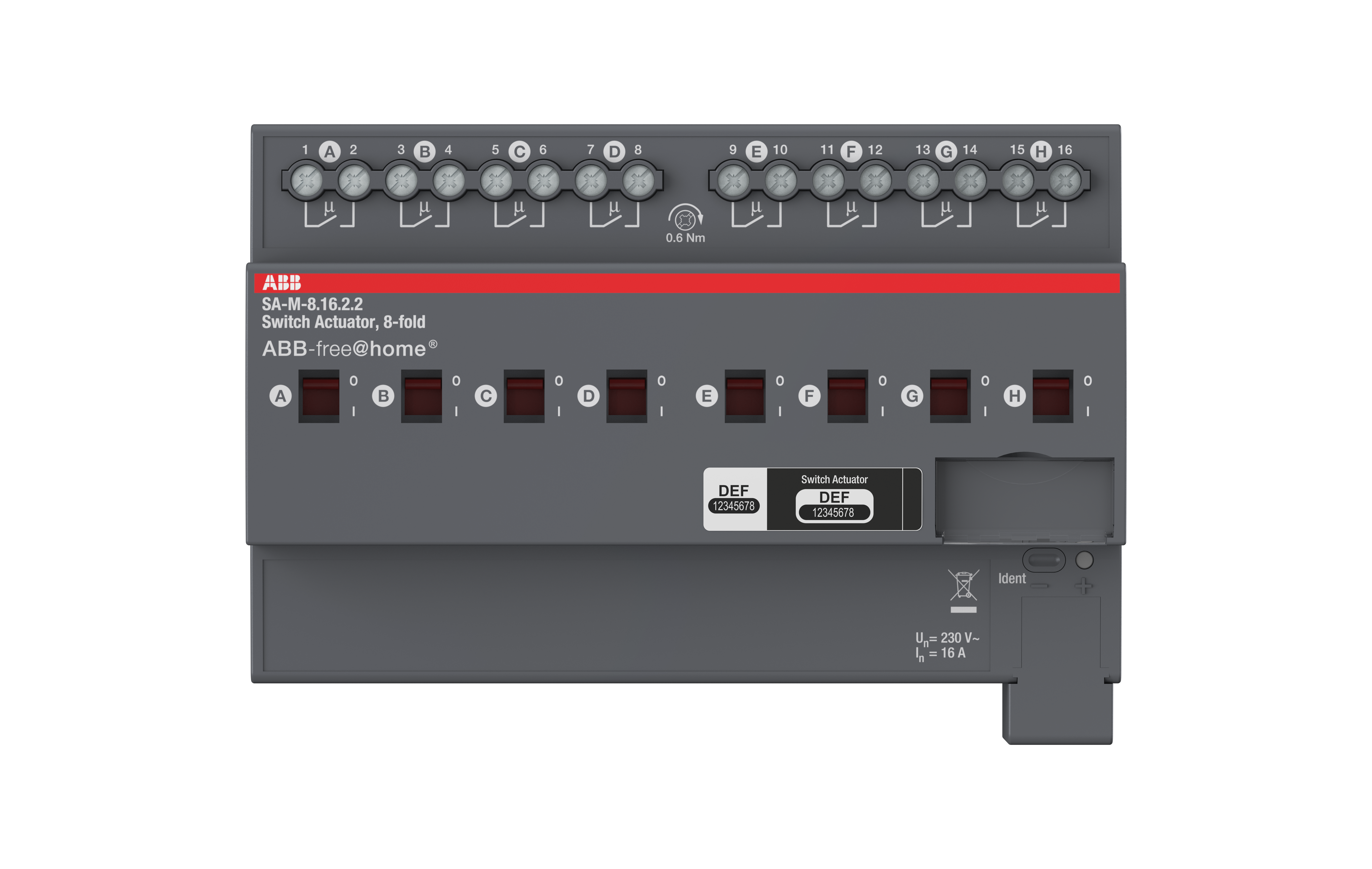

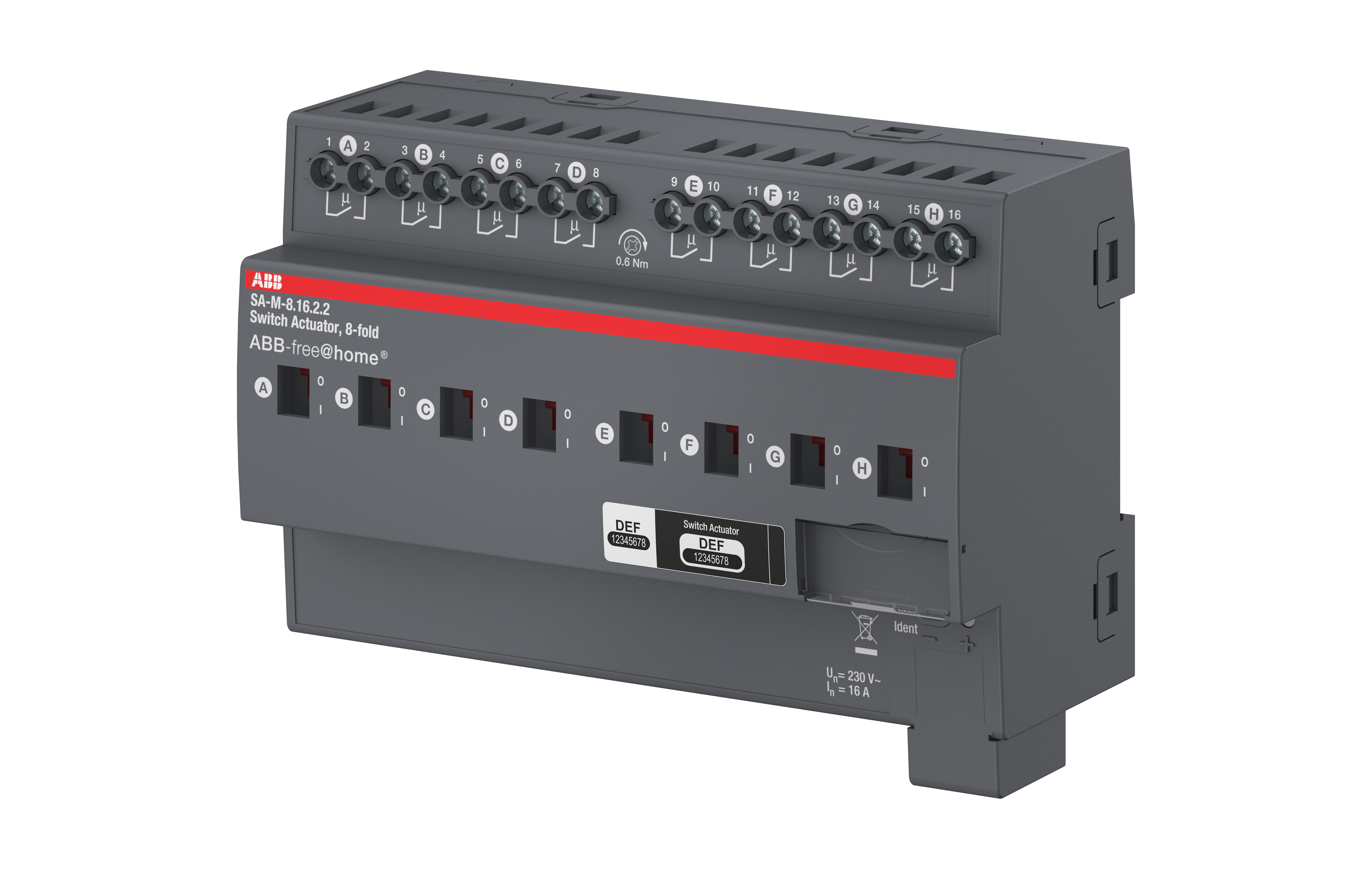

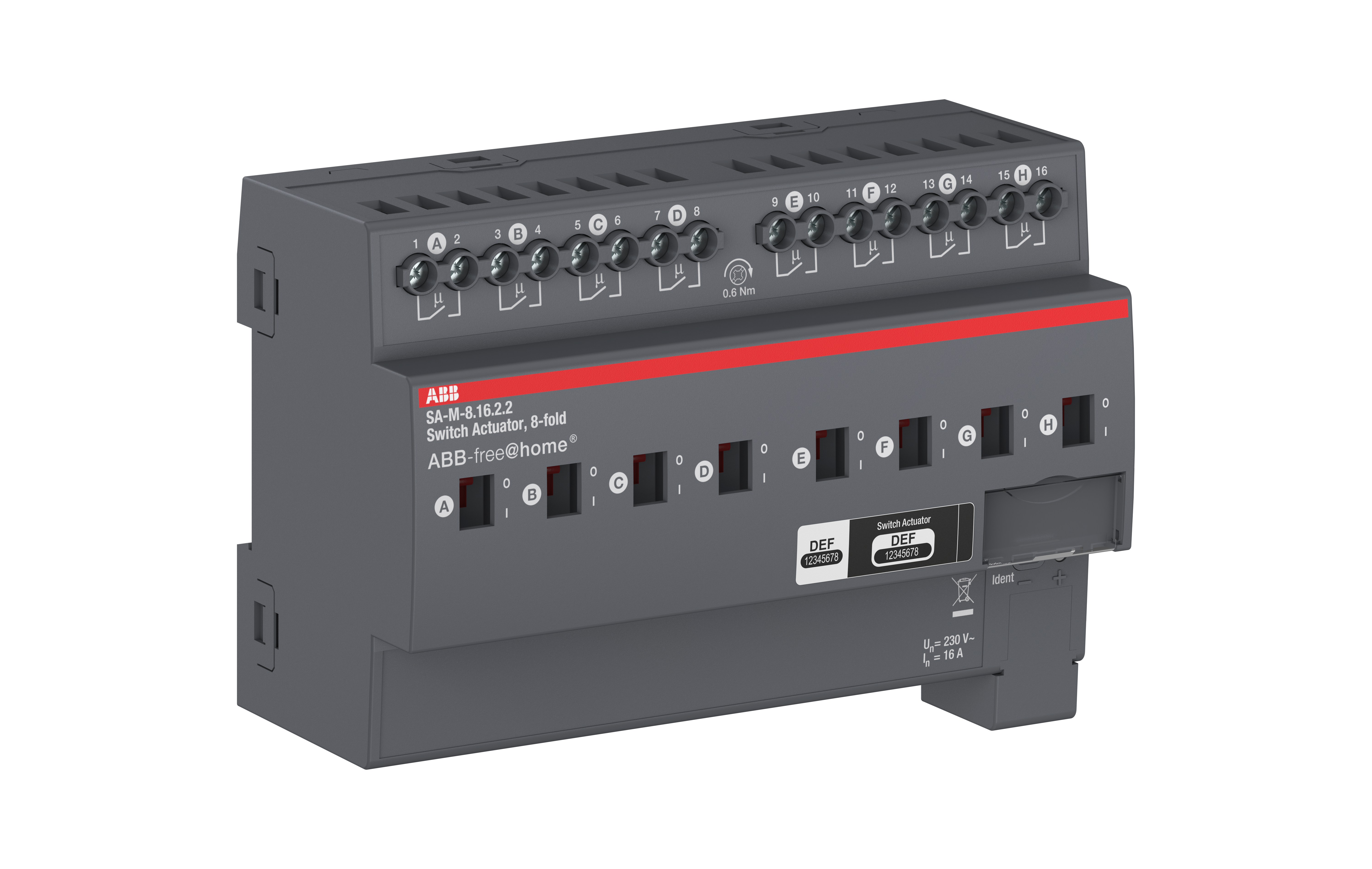

For switching 8 independent 127 V~/230 V~ loads. Each contact has a manual operation function independent of auxiliary voltage for additionally displaying the contact setting. The bus can be connected via enclosed terminal block.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 35 485.46 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 40 453.72 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 42 665.17 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 214.45 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 656.70 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 45 532.90 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 097.91 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 50 263.60 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 64 627.02 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 68 090.25 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 75 164.56 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Contact Position Indication | ON / OFF |
| Number of Outputs | 8 |
| Number of LEDs | 1 |
| Maximum Number of Switching Outputs | 8 |
| Compatible Bus Systems | free@home (TP) |
| Product Range | free@home |
| Manual Operation | Yes |
| Suitable for C-Load | No |
| Number of Batteries | 0 |
| Voltage Range | 230 V AC |
| Output Voltage (Uout) | 230 V AC |
| Rated Current (In) | 16 A |
| Maximum Switching Current | 16 A |
| Maximum Switching Power | 2500 W |
| Power Loss | 8 W, Total 8 W |
| Color | grey |
| Width in Number of Modular Spacings | 8 |
| Product Net Width | 140 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.406 kg |
| Built-In Depth (t2) | 63.5 mm |
| E-Number (Finland) | 2830081 |
| E-Number (Norway) | 4549592 |
| E-Number (Sweden) | 1816015 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 33.6 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability, Product Modularity, Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| Offered with Takeback Services | Take Back for Recycling |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | feb5b055-0850-4176-8cec-6727dc718e24 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001097 - Switch actuator for bus system |
| ETIM 10 | EC001097 - Switch actuator for bus system |
| eClass | V11.0 : 27143125 |
| UNSPSC | 31251516 |
| IDEA Granular Category Code (IGCC) | 3268 >> Switch actuator |
| extended_product_type | SA-M-8.16.2.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > free@home > Lighting Control |
