Артикул: 2CDG510012R0011
· Производитель: ABB
· EAN: 4016779067409
2CDG510012R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
62 012.17 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
49 276.63 ₽
срок уточняется

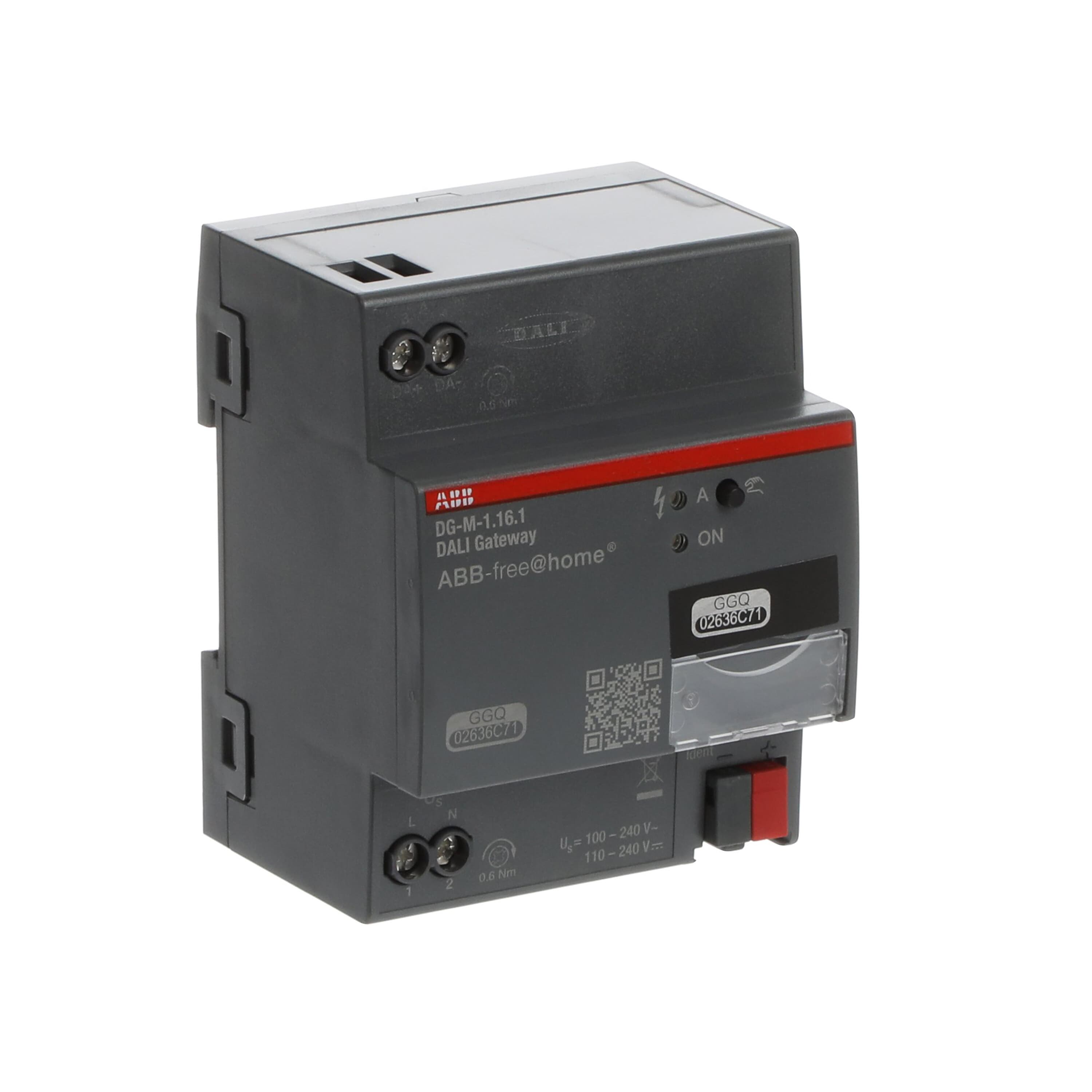

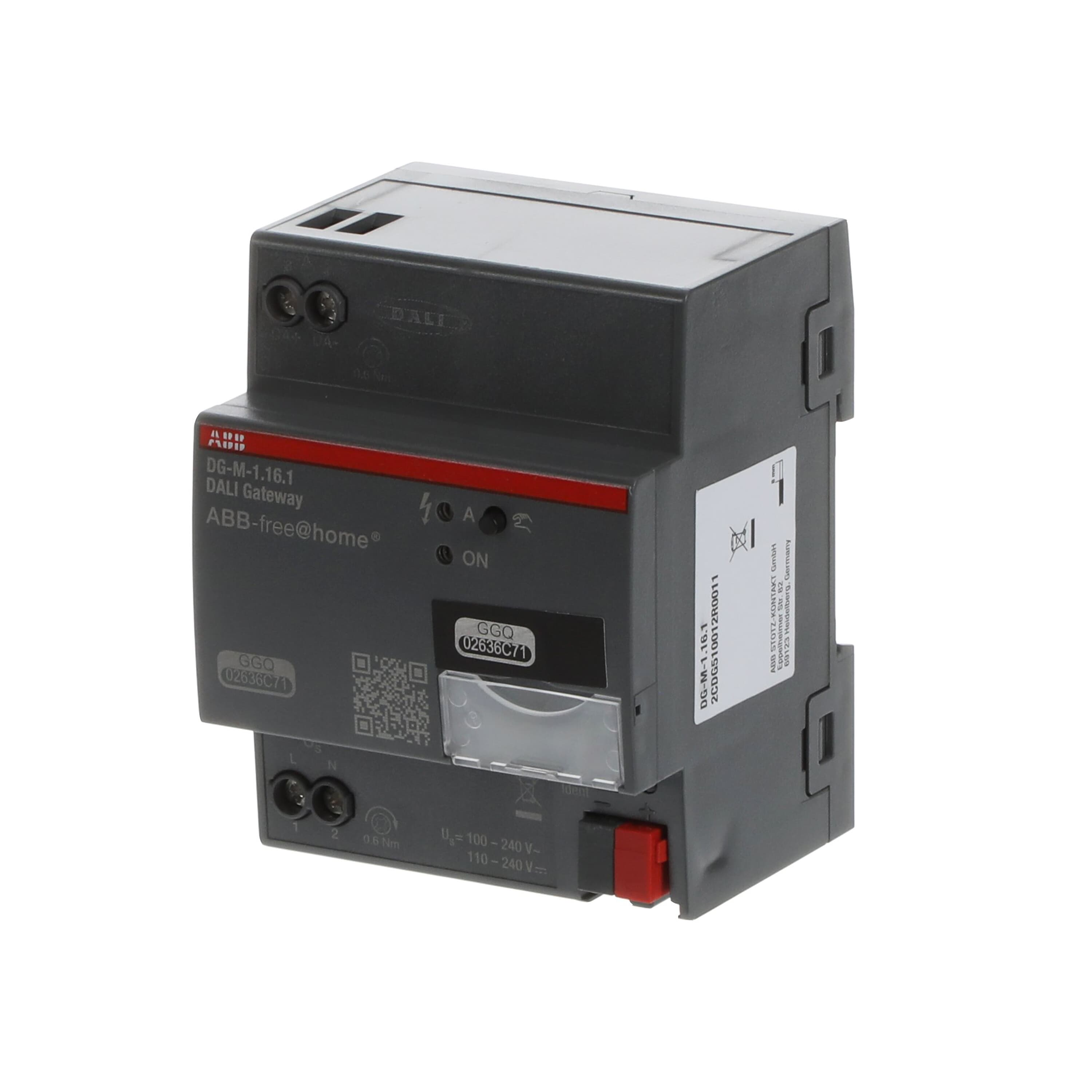

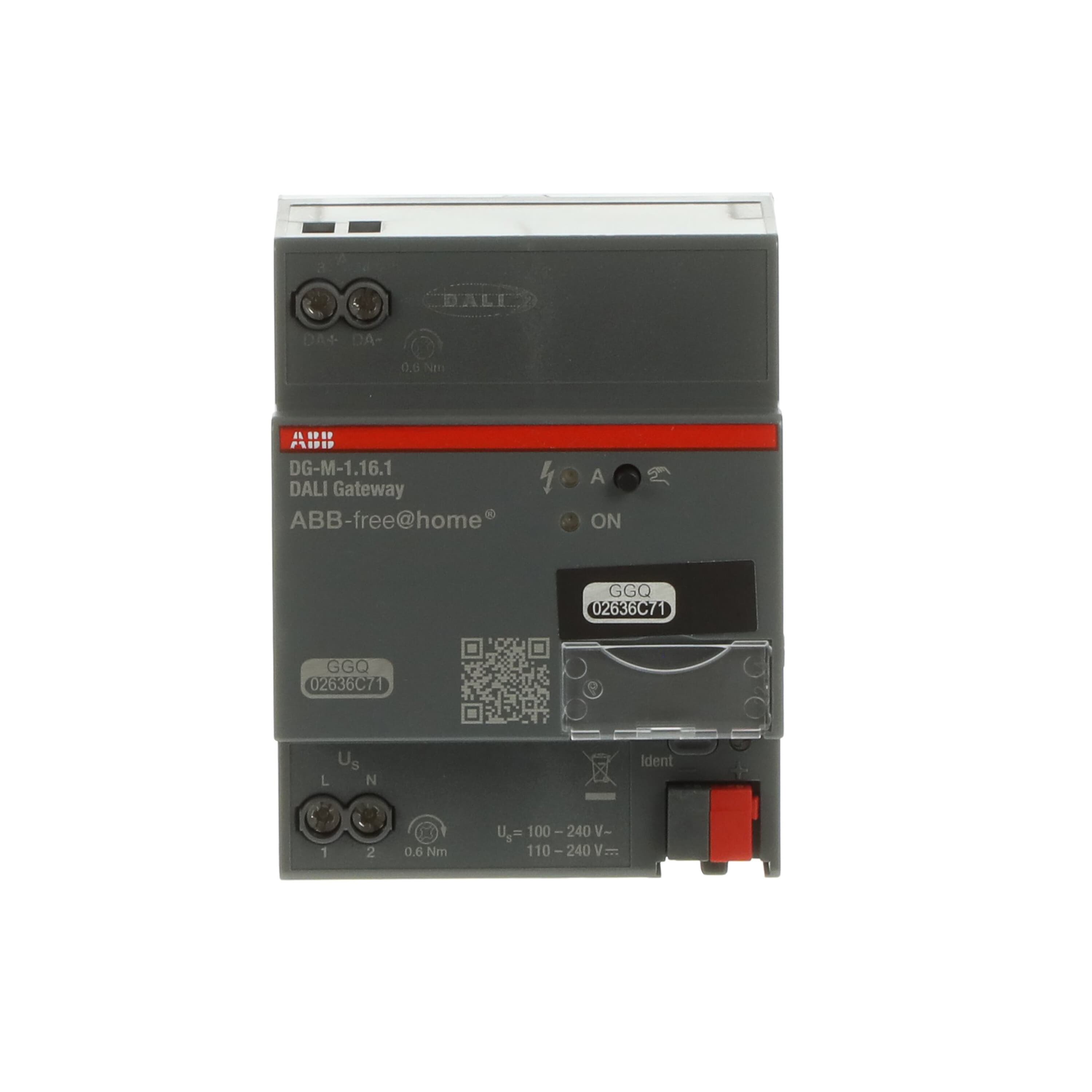

DALI gateway MDRC for ABB-free@home.
For controlling DALI devices via free@home.
One DALI output for max. 16 DALI devices.
Supports the control of 0 and DT8 (color temperature Tc or RGB(W) according to EN 62386-209).
Integrated DALI power supply for the DALI devices.
Each DALI device can be controlled separately or via free@home groups and scenes.
Staircase lighting, blocking and forced functions are available.
For single master operation.
Commissioning is carried out via the free@home user interface.
DALI addressing is automatic.
Programming only when bus voltage is applied via the web interface of the System Access Point.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 49 276.63 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 56 175.73 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 59 246.71 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 62 012.17 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 63 228.69 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 65 358.27 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 65 402.21 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 69 797.90 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 89 744.92 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 100 651.73 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 111 109.06 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | grey |
| Mounting Type | DIN-Rail |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Communication Interface | DALI |
| Number of Outputs | 1 |
| Number of LEDs | 2 |
| Compatible Bus Systems | DALI, free@home (TP) |
| Product Range | free@home |
| Software Updateable | Yes |
| Manual Operation | No |
| Number of Batteries | 0 |
| Auxiliary Voltage AC/DC | 100 ... 240 V AC |
| Input Voltage (Uin) | 85 ... 264 V AC |
| Power Loss | 2 W, Total 2 W |
| Color | grey |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.133 kg |
| E-Number (Finland) | 2815664 |
| E-Number (Norway) | 4549796 |
| E-Number (Sweden) | 1790037 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001099 - System interface/media gateway for bus system |
| ETIM 10 | EC001099 - System interface/media gateway for bus system |
| eClass | V11.0 : 27143136 |
| UNSPSC | 43222605 |
| IDEA Granular Category Code (IGCC) | 6809 >> System interface/media gateway for bus system |
| extended_product_type | DG-M-1.16.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > free@home > Lighting Control > DALI Gateways |
