Артикул: 2CDG510005R0011
· Производитель: ABB
· EAN: 4016779945578
2CDG510005R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
19 405.62 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
15 420.38 ₽
срок уточняется

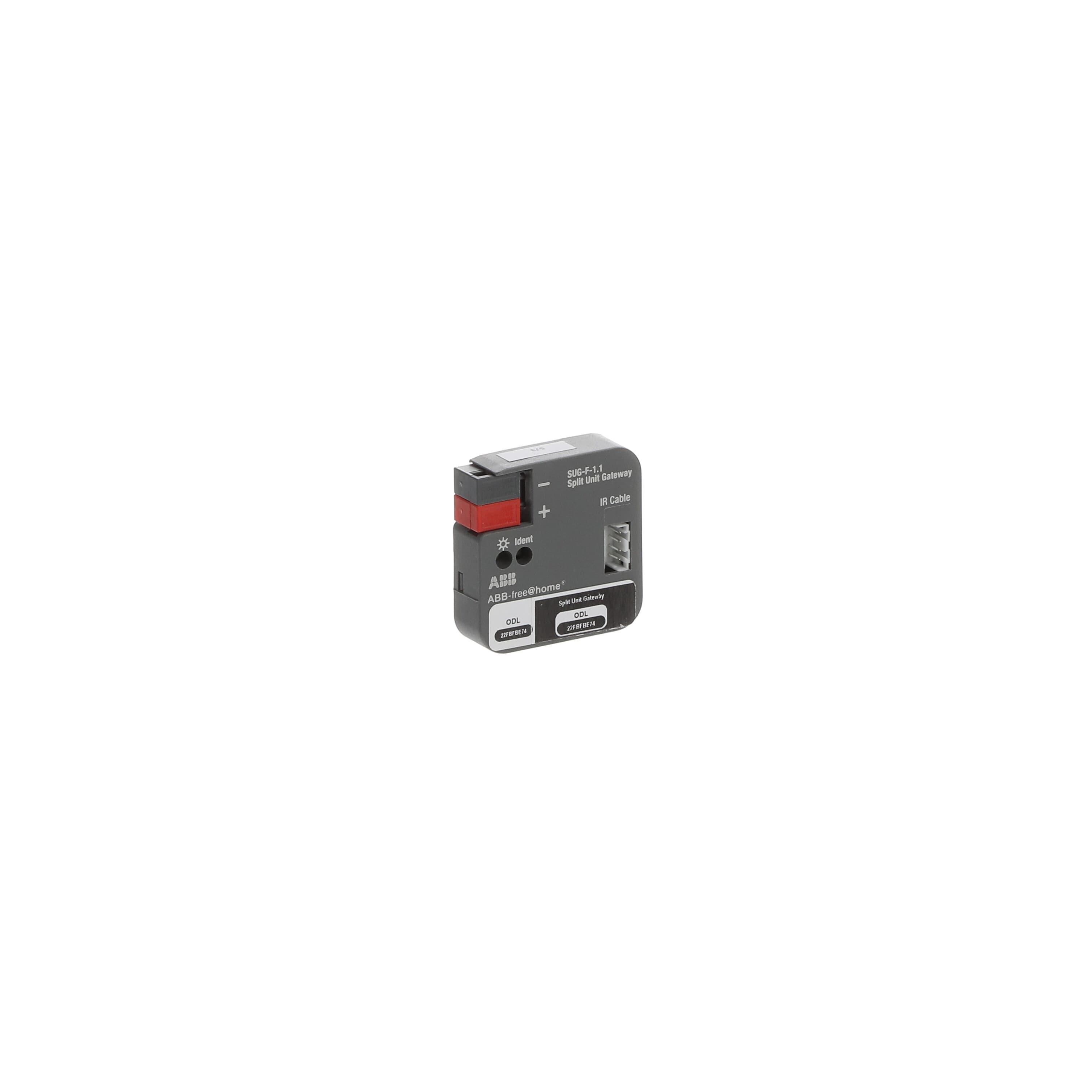

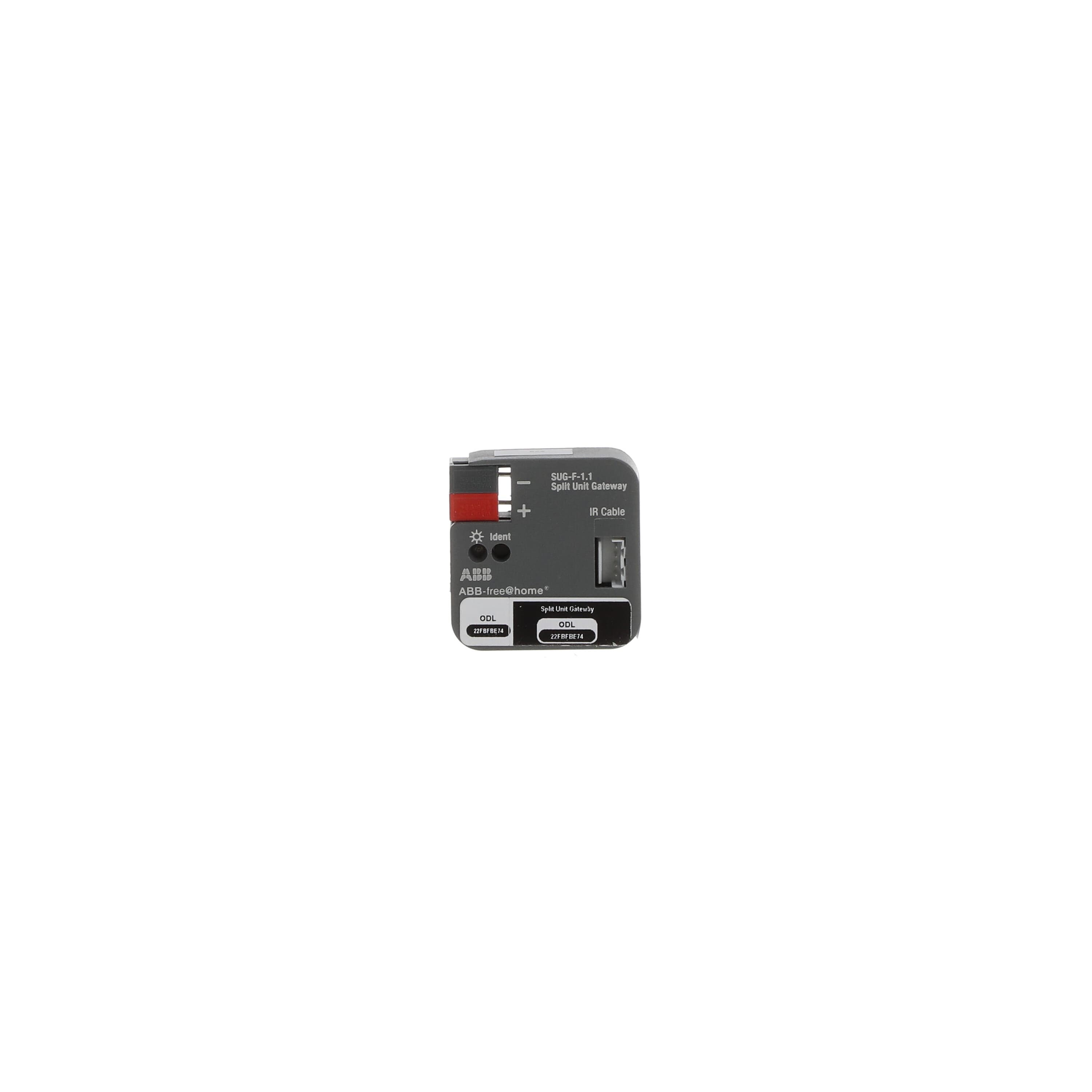

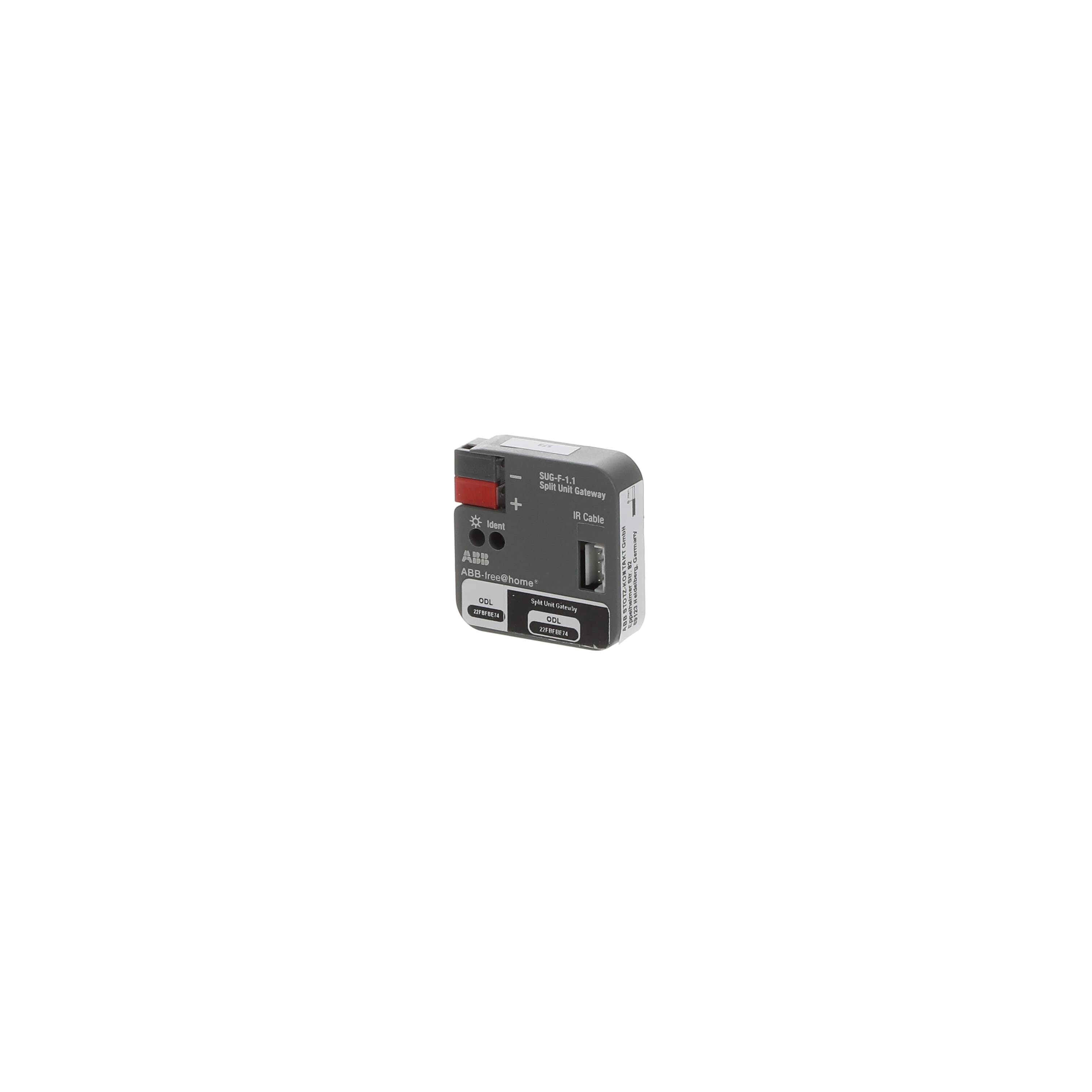

The device is used to interface between the free@home system and many manufacturers’ air conditioners, so-called split units. The device converts the free@home telegrams into infrared commands and transmits them to the split unit. The transmitter of the supplied cable is bonded directly onto the split unit’s receiver. The split unit then no longer receives the commands from a remote control. Instead, it can be operated via any free@home sensors. The model of the split unit can be selected during commissioning. Auxiliary voltage is not required.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 15 420.38 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 17 579.21 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 18 540.41 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 405.62 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 19 786.31 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 179.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 466.69 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 21 842.03 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 28 078.48 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 31 076.90 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 34 305.67 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | grey |
| Mounting Type | Flush Mounted |
| Degree of Protection | IP20 |
| Communication Interface | IR-interface |
| Number of LEDs | 1 |
| Compatible Bus Systems | free@home (TP) |
| Product Range | free@home |
| Software Updateable | Yes |
| Integrated Webserver | No |
| Manual Operation | No |
| Number of Batteries | 0 |
| Voltage Range | 10 ... 30 V DC |
| Input Voltage (Uin) | 24 V DC |
| Power Loss | 0.4 W, Total 0 W |
| Color | grey |
| Product Net Width | 12 mm |
| Product Net Height | 39 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.02 kg |
| E-Number (Finland) | 2815663 |
| E-Number (Norway) | 4549795 |
| E-Number (Sweden) | 8865017 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | ef12cd48-7f5f-4a3d-9d89-b2af13bde742 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001099 - System interface/media gateway for bus system |
| ETIM 10 | EC001099 - System interface/media gateway for bus system |
| eClass | V11.0 : 27143136 |
| UNSPSC | 43222605 |
| IDEA Granular Category Code (IGCC) | 6809 >> System interface/media gateway for bus system |
| extended_product_type | SUG-F-1.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > free@home > Heating, Ventilation and Air Conditioning > Split Unit Interfaces |
