Артикул: 2CDG120091R0011
· Производитель: ABB
· EAN: 4016779139519
2CDG120091R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
81 260.28 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
73 612.25 ₽
срок ≈1 мес. (38 дн.)

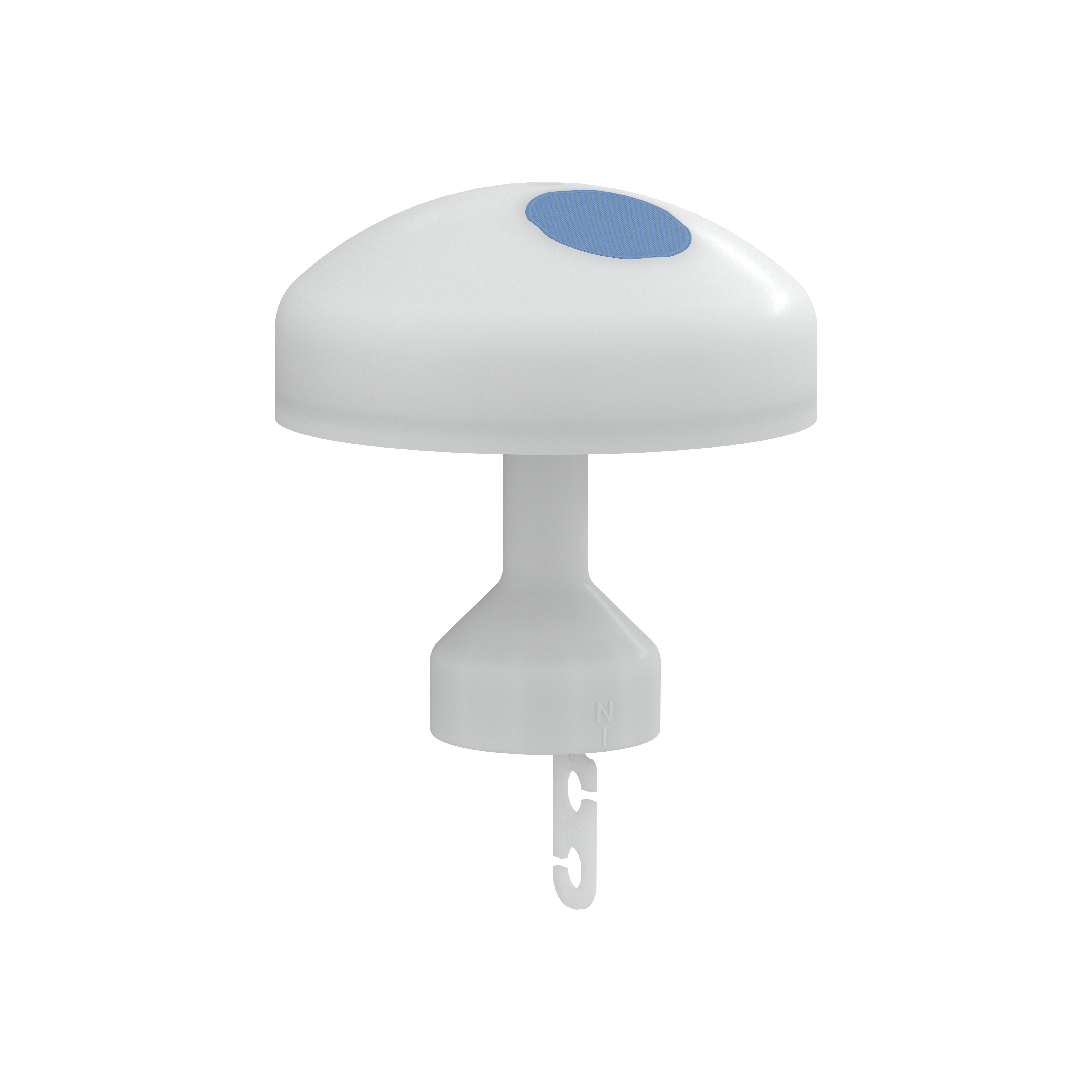

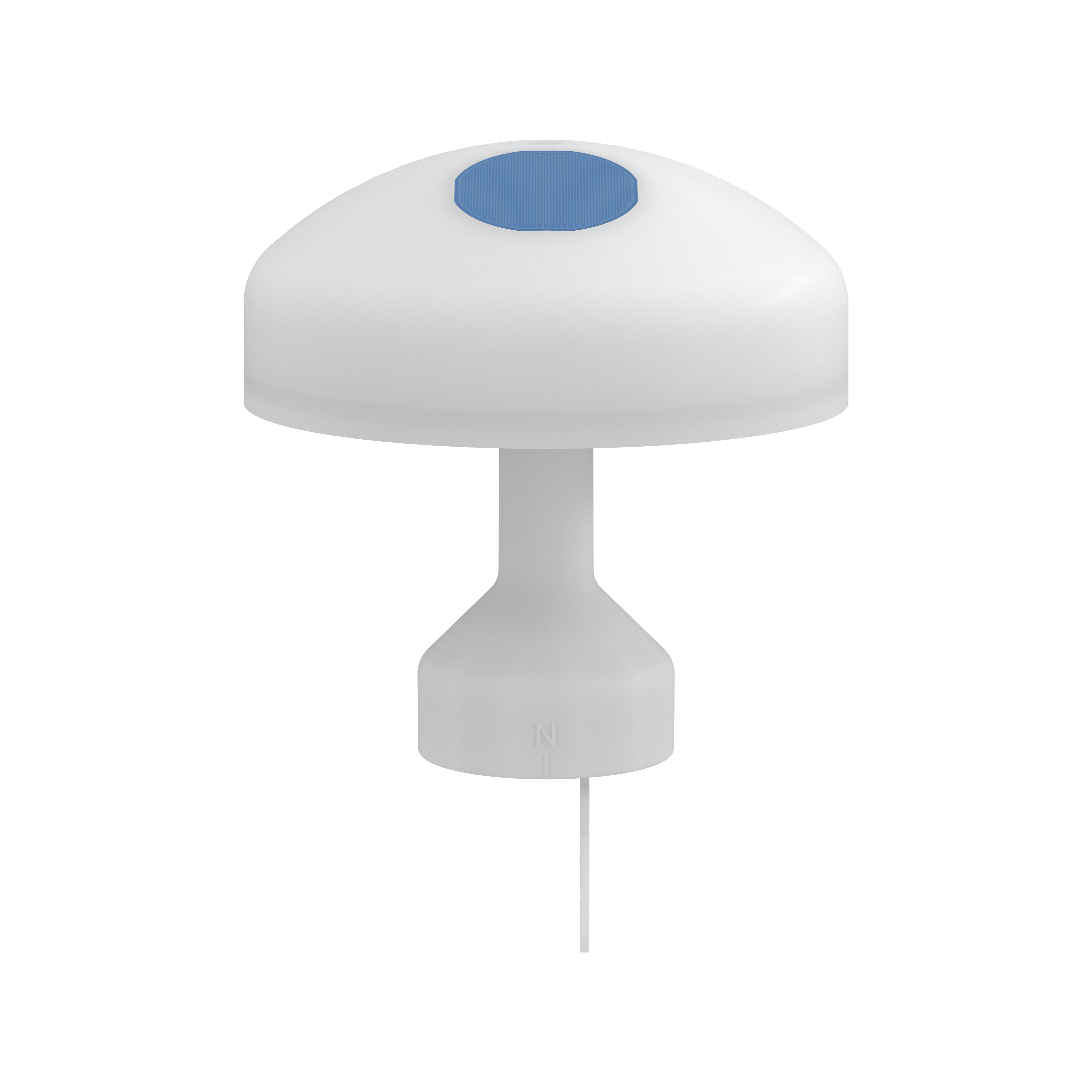

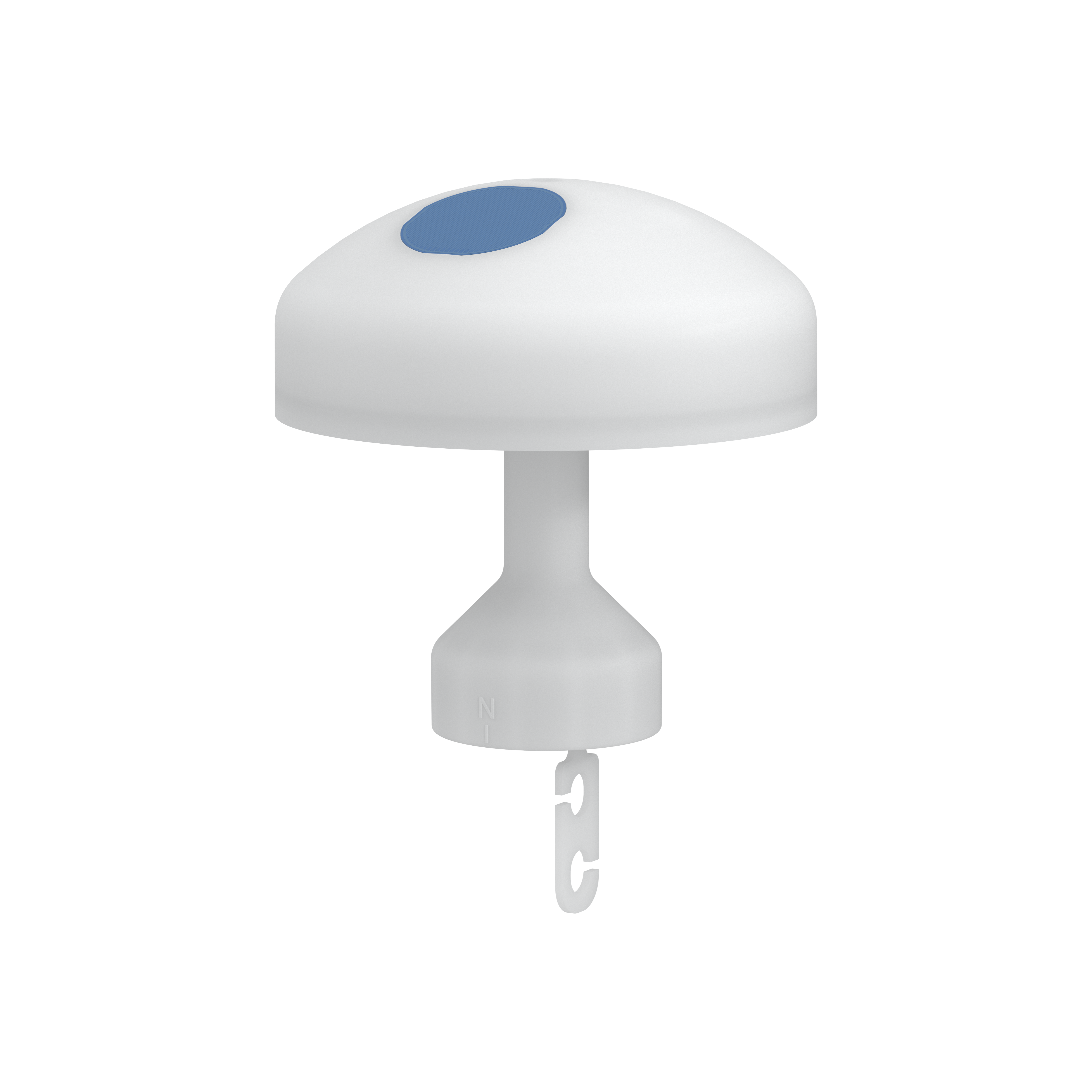

The device detects wind speed, rain, brightness in up to 4 directions (depending on Weather Unit), twilight, temperature, day/night and over GPS signal date and time. The Weather Sensor Basic works in conjunction with the Weather Unit WZ/S1.3.1.2. The device is designed for mast mounting. For a wall installation the wall mounting adapter WB/Z1.1.1 is required and must be ordered seperately.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 73 612.25 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 79 324.45 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 81 260.28 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 84 654.38 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 87 565.95 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 93 449.64 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 94 751.74 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 101 735.37 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 156 672.48 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 172 950.14 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 176 038.11 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | white matt |
| Mounting Type | Surface Mounted |
| Degree of Protection | IP44 |
| Product Range | KNX |
| Manual Operation | No |
| Additional Information | Heater included |
| Number of Batteries | 0 |
| Color | white matt |
| Product Net Width | 102 mm |
| Product Net Height | 105 mm |
| Product Net Depth / Length | 102 mm |
| Product Net Weight | 0.162 kg |
| Replaced Product ID (OLD) | 2CDG120046R0011 |
| E-Number (Finland) | 2815901 |
| E-Number (Norway) | 4544231 |
| E-Number (Sweden) | 1740458 |
| E-Number (Switzerland) | 205550015 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC000926 - Physical sensor for bus system |
| ETIM 10 | EC000926 - Physical sensor for bus system |
| eClass | V11.0 : 27143137 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
| extended_product_type | WES/A4.1.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Standard Inputs > Metrological and Physical Sensors |
