Артикул: 2CDG120089R0011
· Производитель: ABB
· EAN: 4013614571084
2CDG120089R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
44 752.80 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
40 540.77 ₽
срок ≈1 мес. (38 дн.)

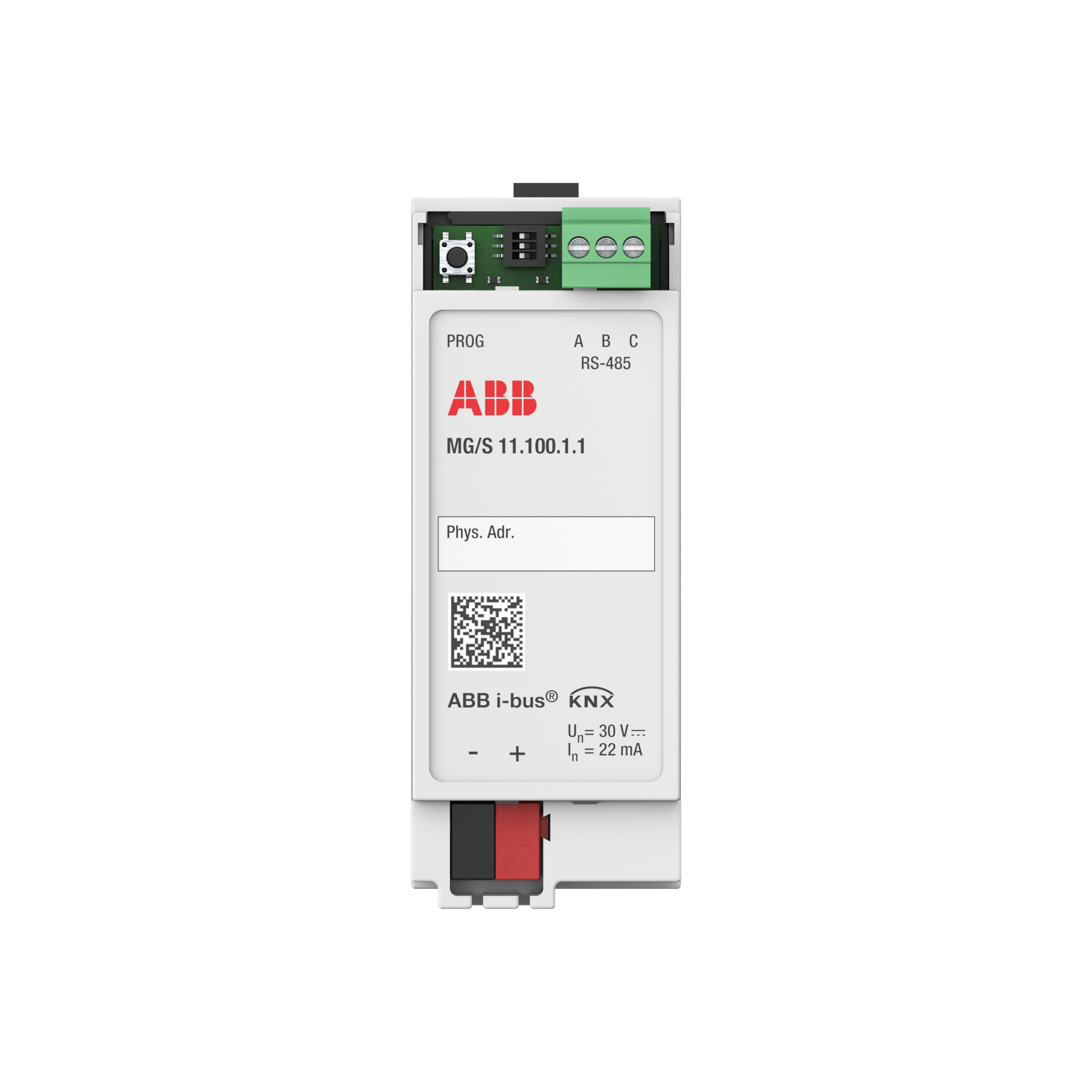

The Modbus KNX Gateway integrates Modbus RTU servers devices with KNX installations at field level. The devices support standard KNX data points (DPT) and up to 100 Modbus data points. The device is put into operation with the ETS. An optional, free-of-charge ETS-App (DCA) is available to facilitate the configuration, allowing to export, and import Modbus-KNX mapping in the form of templates. Modbus templates are available for download from a database. Auxiliary voltage is not required.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 40 540.77 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 43 685.93 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 752.80 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 46 424.86 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 46 621.03 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 48 224.72 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 51 464.77 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 69 803.49 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 71 494.29 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 78 922.26 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 93 715.45 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Mounting Position | any |
| Degree of Protection | IP20 |
| Number of LEDs | 2 |
| Compatible Bus Systems | Modbus, KNX (TP) |
| Product Range | KNX |
| Software Updateable | Yes |
| Integrated Webserver | No |
| Manual Operation | No |
| Number of Batteries | 0 |
| Power Loss | 3 W, Total 3 W |
| Color | light grey |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 32 mm |
| Product Net Weight | 0.048 kg |
| E-Number (Finland) | 2815742 |
| E-Number (Norway) | 4544003 |
| E-Number (Sweden) | 1740284 |
| E-Number (Switzerland) | 405832115 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001099 - System interface/media gateway for bus system |
| ETIM 10 | EC001099 - System interface/media gateway for bus system |
| eClass | V11.0 : 27143136 |
| UNSPSC | 43222605 |
| IDEA Granular Category Code (IGCC) | 6809 >> System interface/media gateway for bus system |
| extended_product_type | MG/S11.100.1.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Energy Management > Energy Gateways and Analysers, Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Energy Management > Meter Interfaces, Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Gateways, Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > System Infrastructure and Interfacing > Gateways |
