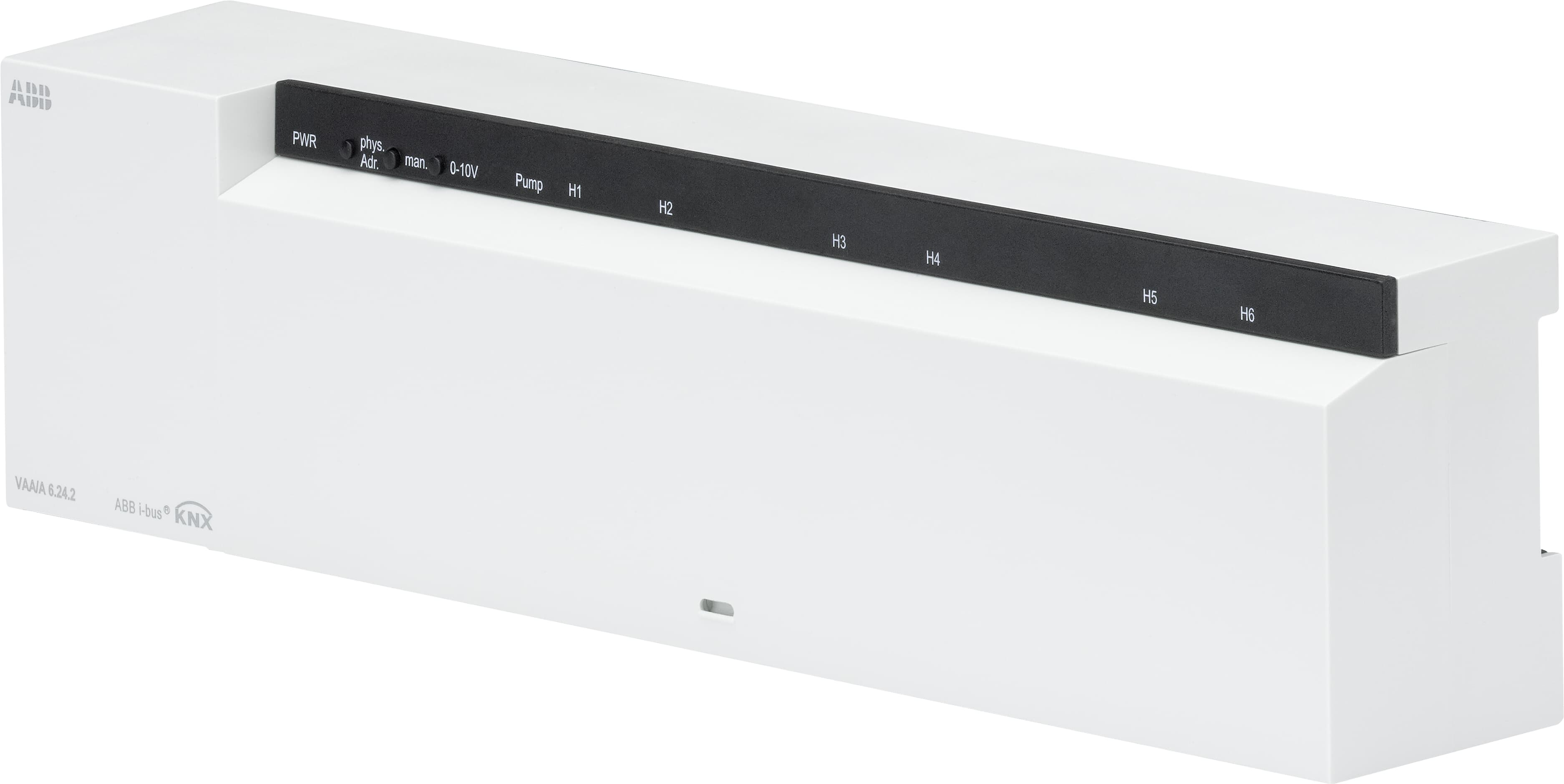

Артикул: 2CDG120061R0011
· Производитель: ABB
· EAN: 4016779063715
2CDG120061R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
69 248.49 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
62 730.99 ₽
срок ≈1 мес. (38 дн.)
For the control of up to twelve thermoelectric 24 V DC or analog 0-10V valve drives (two per channel). With integrated power supply for the valve drives. The device has an integrated relay output to switch the heating circuit pump in dependence of the control value of the valve outputs. The valve outputs can be controlled by the internal or an external room temperature controller. The device is suitable for the installation in the (floor) heating distribution system.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 62 730.99 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 67 598.22 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 69 248.49 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 72 139.97 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 74 621.42 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 79 635.03 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 82 566.89 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 85 777.66 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 127 153.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 140 363.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 145 012.44 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | white |
| Mounting Type | DIN-Rail |
| Modular Components Included | Complete Device |
| Degree of Protection | IP20 |
| Special Functions | Valve Protection |
| Number of Outputs | 6 |
| Compatible Bus Systems | KNX (TP) |
| Manipulated Variable | Continious |
| Product Range | KNX |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Voltage Range | 24 V |
| Auxiliary Voltage AC/DC | 230 V AC |
| Output Voltage (Uout) | 0 ... 10 V DC, 24 V DC |
| Maximum Switching Current | 6 A |
| Output Current Maximum (Iout) | 1.4 A |
| Power Loss | 1 W, Total 1 W |
| Color | white |
| Product Net Width | 290 mm |
| Product Net Height | 76 mm |
| Product Net Depth / Length | 52 mm |
| Product Net Weight | 0.5 kg |
| E-Number (Finland) | 2814616 |
| E-Number (Sweden) | 1739851 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 96a7f9e4-b6eb-4e31-9fad-e33496d3dd84 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001586 - Heating actuator for bus system |
| ETIM 10 | EC001586 - Heating actuator for bus system |
| eClass | V11.0 : 27143147 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
| extended_product_type | VAA/A6.24.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Valve Drive Actuators |
