Артикул: 2CDG110331R0011
· Производитель: ABB
· EAN: 4053546178647
2CDG110331R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
42 396.40 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
38 406.15 ₽
срок ≈1 мес. (38 дн.)

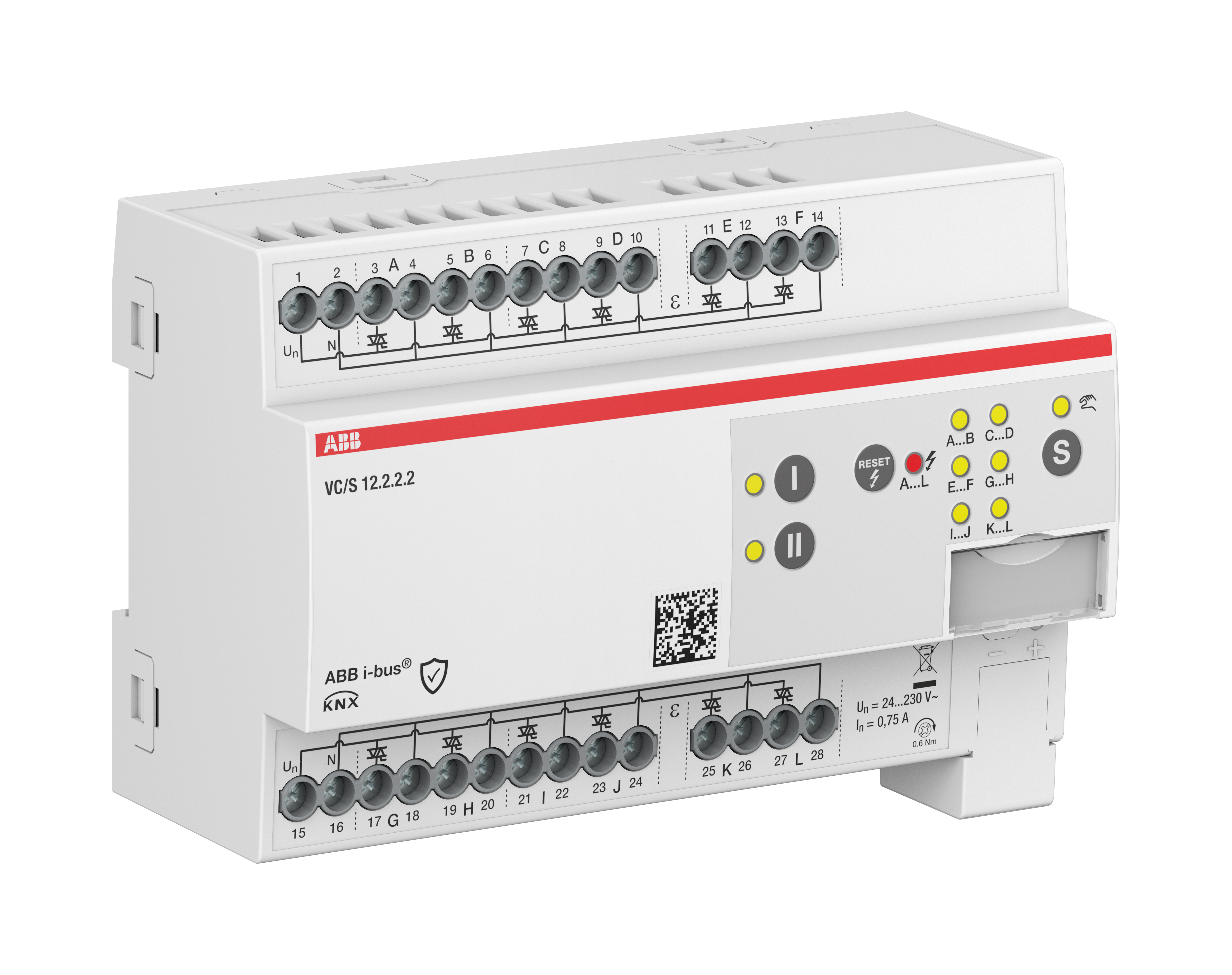

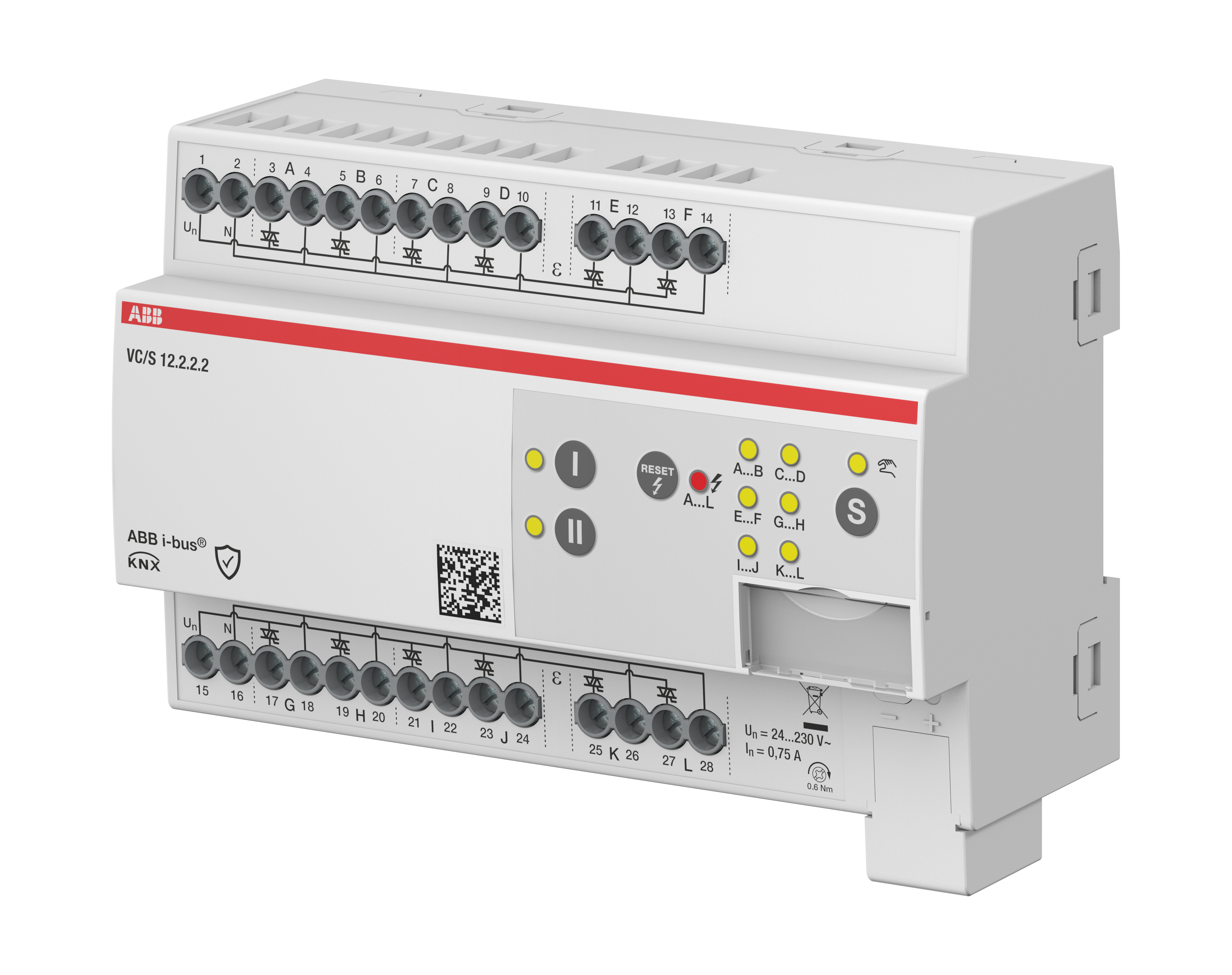

For the control of heating and cooling applications within a room, such as radiators, floor heating, or cooling ceilings. The device features 12 electronic valve output for controlling thermoelectric valve drives (e.g., TSA/K) operating at 24...230 V AC. The outputs are protected against short circuits and overload. Control of the valve outputs can be achieved through either an internal or an external room temperature controller. Push buttons are located at the front of the device to control the outputs, e.g., during commissioning. The current status of the output is displayed via LEDs if the output is selected. The devices support KNX Data Secure.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 38 406.15 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 41 386.67 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 42 396.40 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 44 168.49 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 45 686.58 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 48 757.42 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 57 633.24 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 88 755.19 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 97 976.51 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Number of Outputs | 12 |
| Compatible Bus Systems | KNX (TP) |
| Manipulated Variable | Switching |
| Product Range | KNX |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Security Standard | KNX Data Secure |
| Output Voltage (Uout) | 24 ... 230 V AC |
| Color | light grey |
| Width in Number of Modular Spacings | 8 |
| Product Net Width | 144 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.292 kg |
| E-Number (Finland) | 2815753 |
| E-Number (Norway) | 4544649 |
| E-Number (Sweden) | 1741118 |
| E-Number (Switzerland) | 405972225 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001586 - Heating actuator for bus system |
| ETIM 10 | EC001586 - Heating actuator for bus system |
| eClass | V11.0 : 27143147 |
| extended_product_type | VC/S12.2.2.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Valve Drive Actuators |
