Артикул: 2CDG110311R0011
· Производитель: ABB
· EAN: 4016779141222
2CDG110311R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
41 879.37 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
37 937.78 ₽
срок ≈1 мес. (59 дн.)

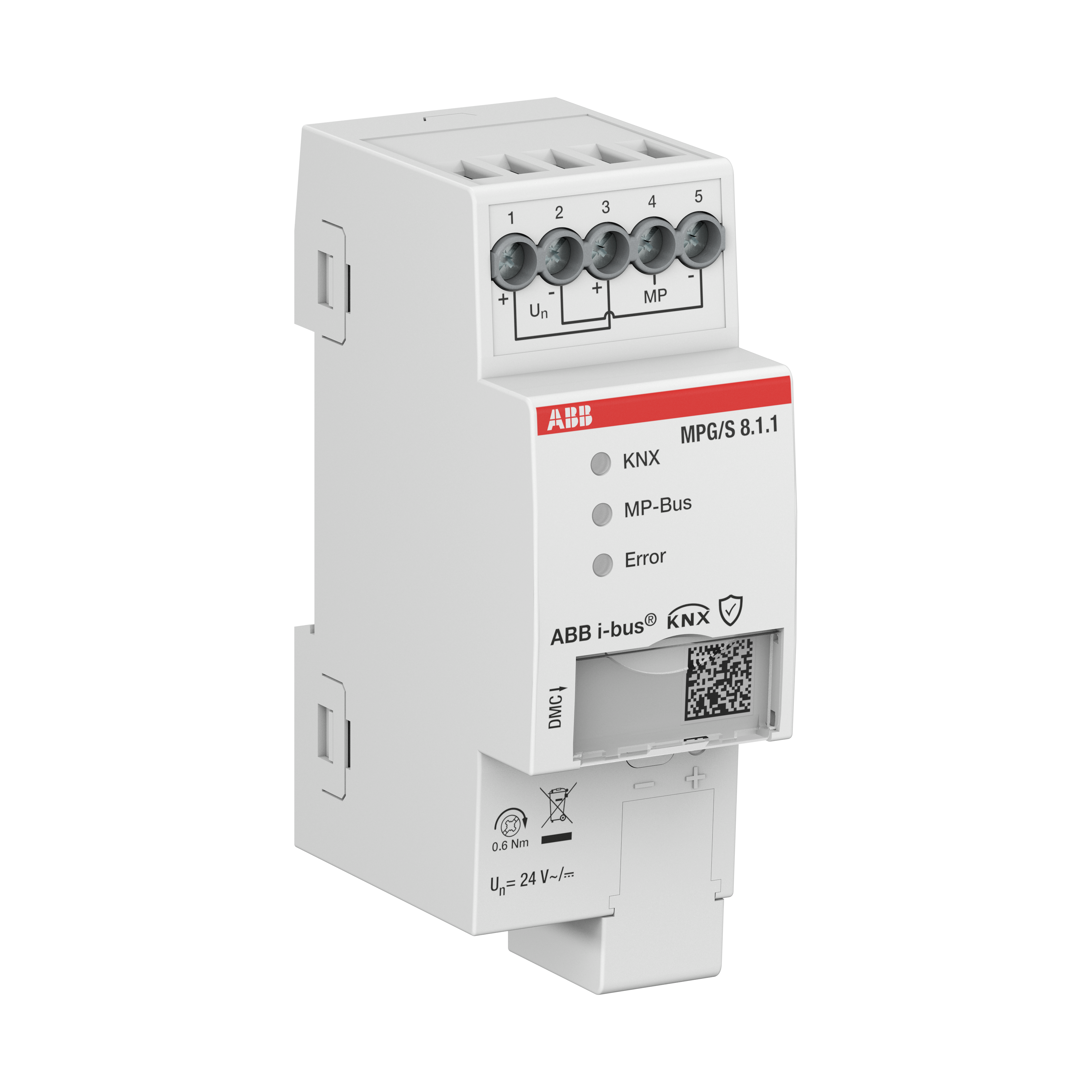

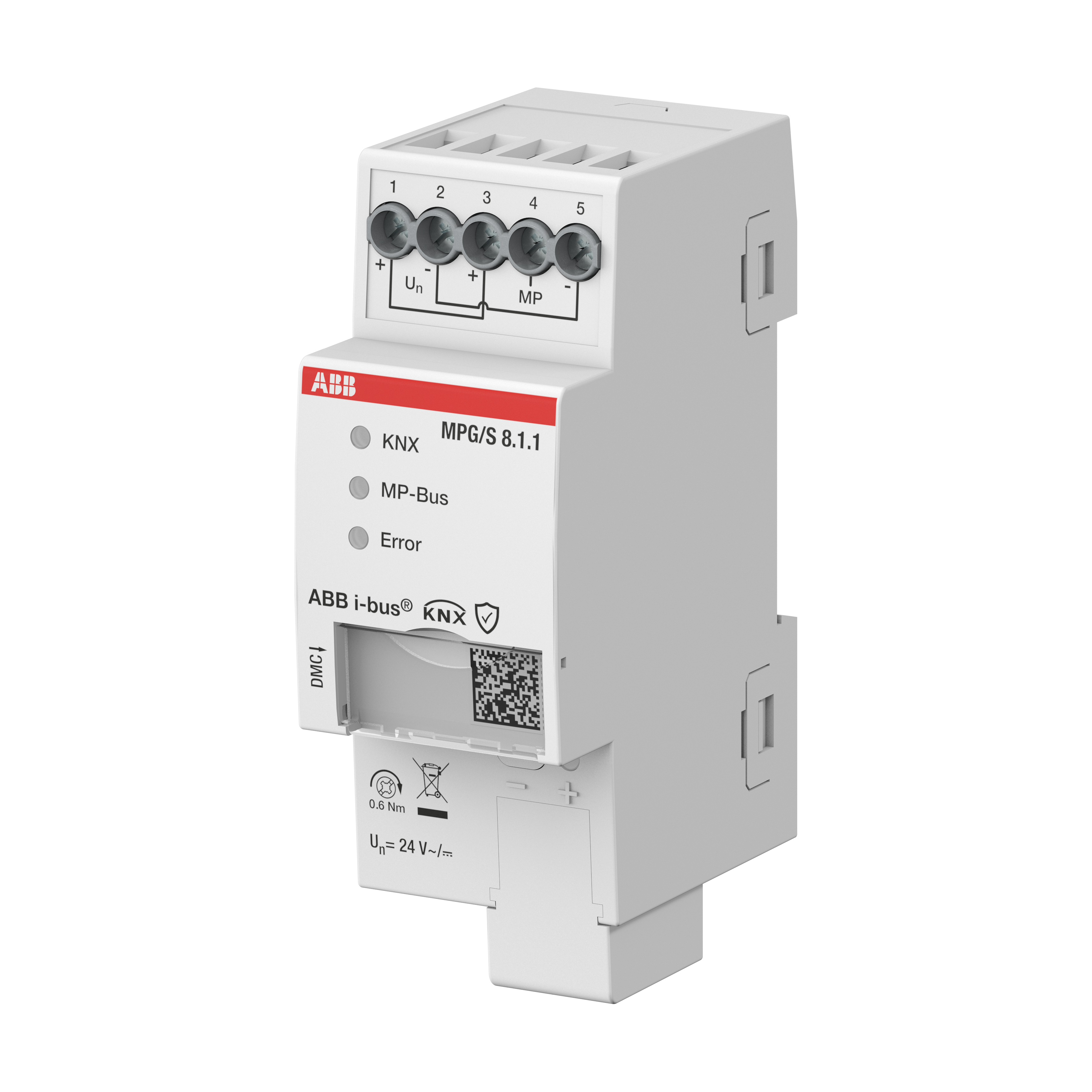

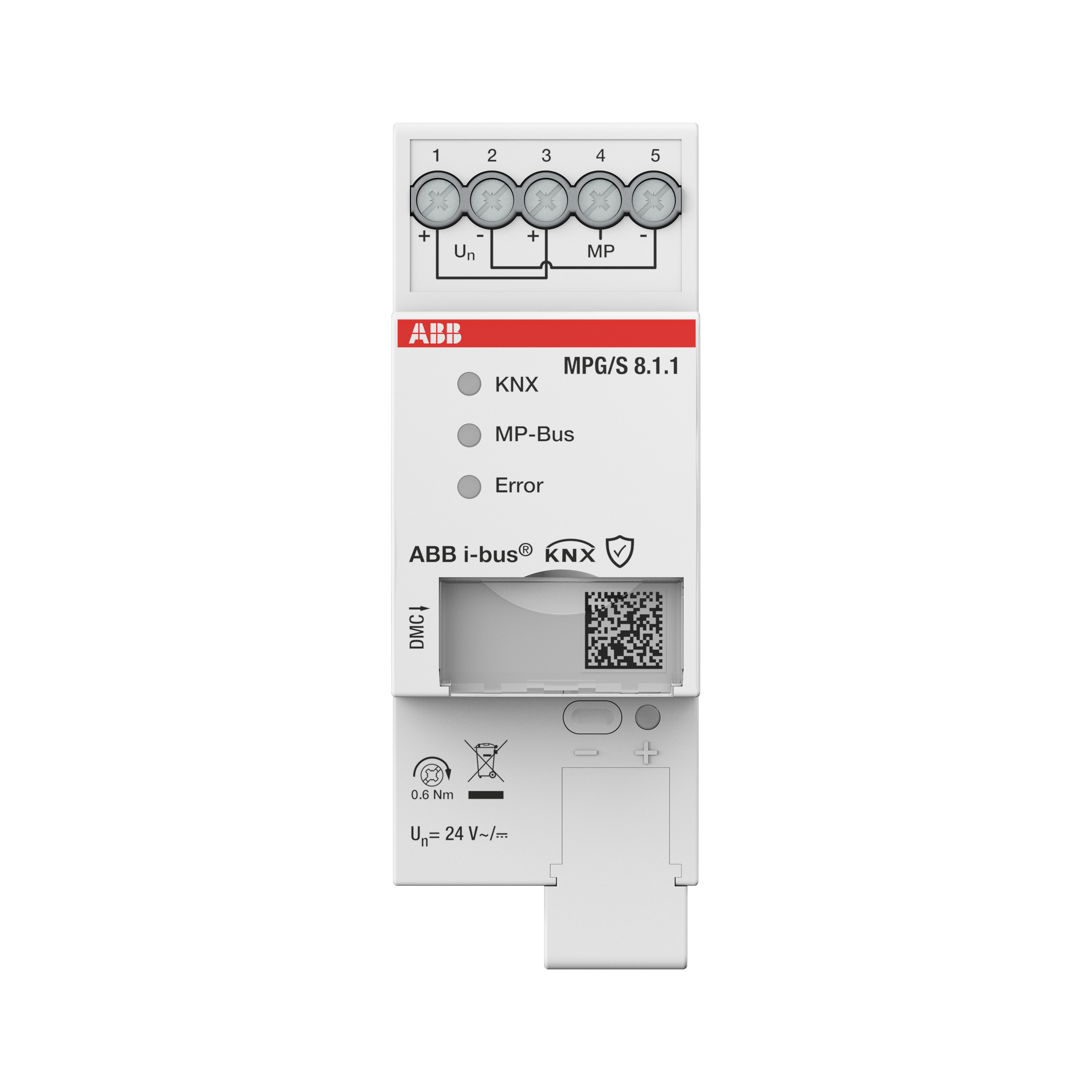

The KNX/MP-Bus Controller allows the integration of Belimo MP-Bus devices into the KNX bus. Depending on the type of the MP-Bus devices conntected to the controller up to 8 or up to 16 MP-Bus devices can be connected. The addressing of the MP-Bus devices can be done via a free-of-charge DCA or as well via the known Belimo tools. The device allows the easy control of all relevant data points of the MP-Bus devices, such as control value, forced override, relative position, actual position etc. as well as the sensor integration of the MP-Bus devices.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 37 937.78 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 41 879.37 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 52 830.37 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 81 358.77 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 89 811.63 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Mounting Position | any |
| Degree of Protection | IP20 |
| Number of LEDs | 3 |
| Compatible Bus Systems | KNX (TP), Other |
| Product Range | KNX |
| Software Updateable | Yes |
| Integrated Webserver | No |
| Manual Operation | No |
| Number of Batteries | 0 |
| Terminal Type | Screw Terminals |
| Security Standard | KNX Data Secure |
| Auxiliary Voltage AC/DC | 24 V AC/DC |
| Output Voltage (Uout) | 24 V AC/DC |
| Power Loss | 1 W, Total 1 W |
| Material | Plastic |
| Color | light grey |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.08 kg |
| Built-In Depth (t2) | 64.5 mm |
| E-Number (Norway) | 4544247 |
| E-Number (Switzerland) | 405832105 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001099 - System interface/media gateway for bus system |
| ETIM 10 | EC001099 - System interface/media gateway for bus system |
| eClass | V11.0 : 27143136 |
| UNSPSC | 43222605 |
| IDEA Granular Category Code (IGCC) | 6809 >> System interface/media gateway for bus system |
| extended_product_type | MPG/S8.1.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Gateways, Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > System Infrastructure and Interfacing > Gateways |
