Артикул: 2CDG110308R0011
· Производитель: ABB
· EAN: 4053546111576
2CDG110308R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
6 358.52 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
5 760.07 ₽
срок ≈1 мес. (38 дн.)

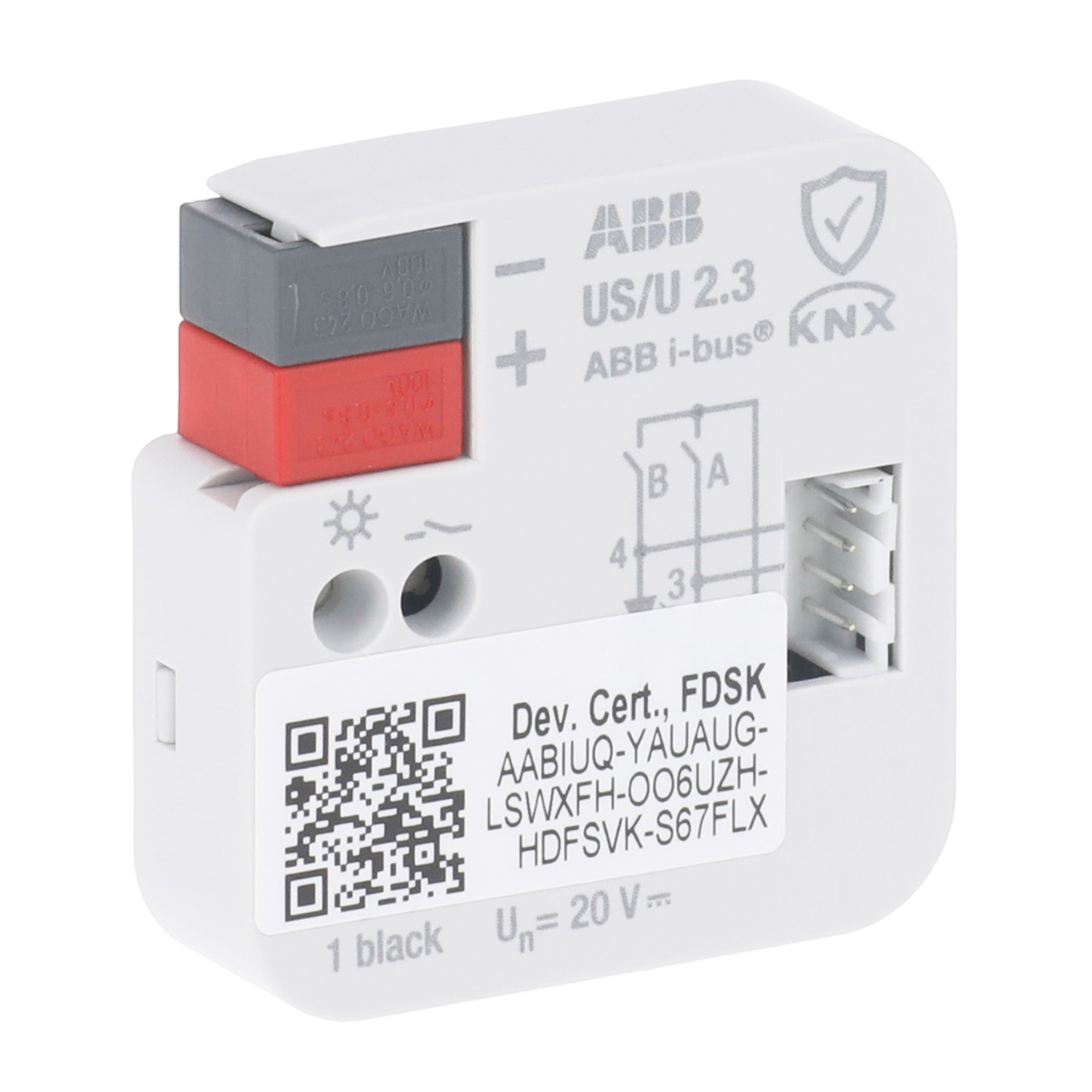

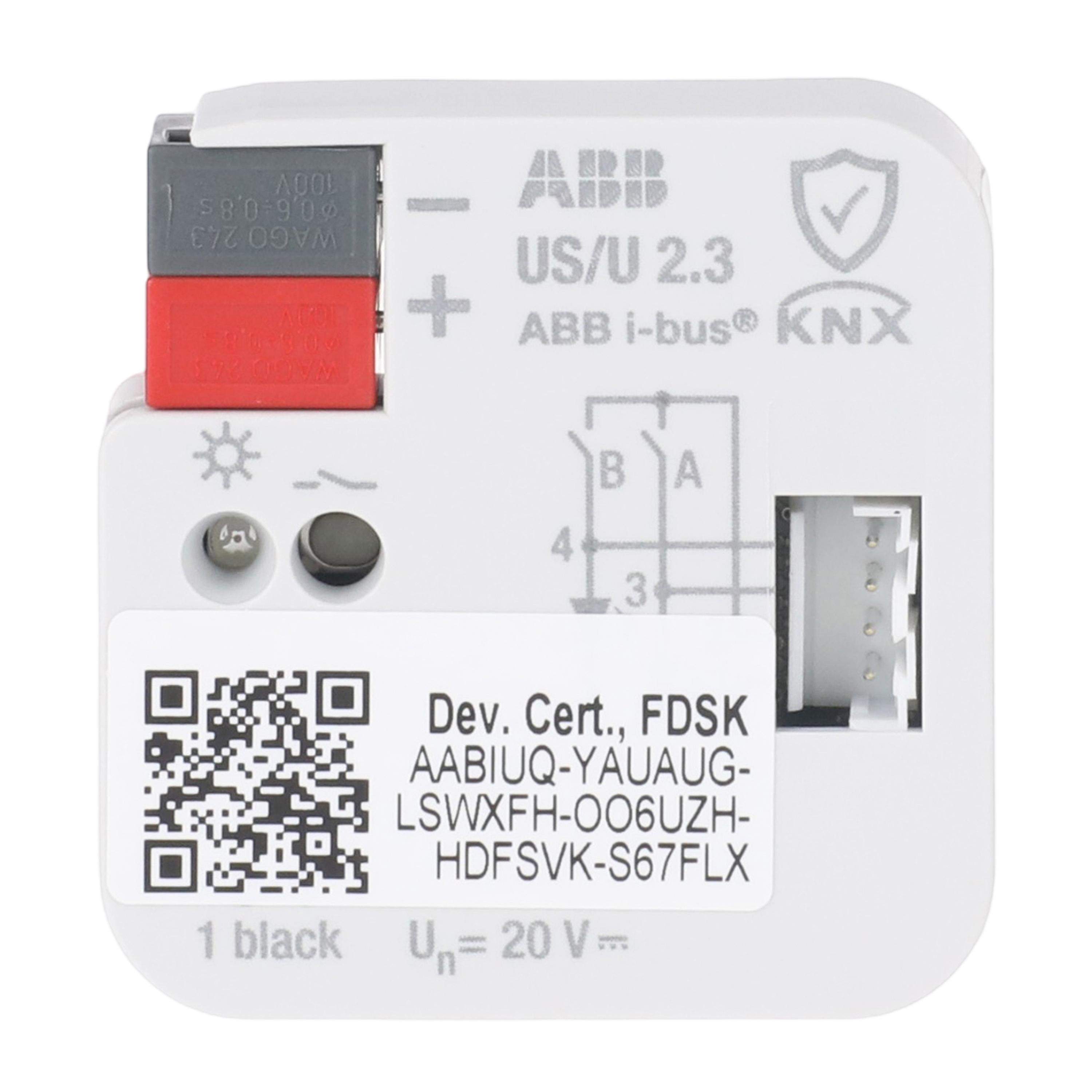

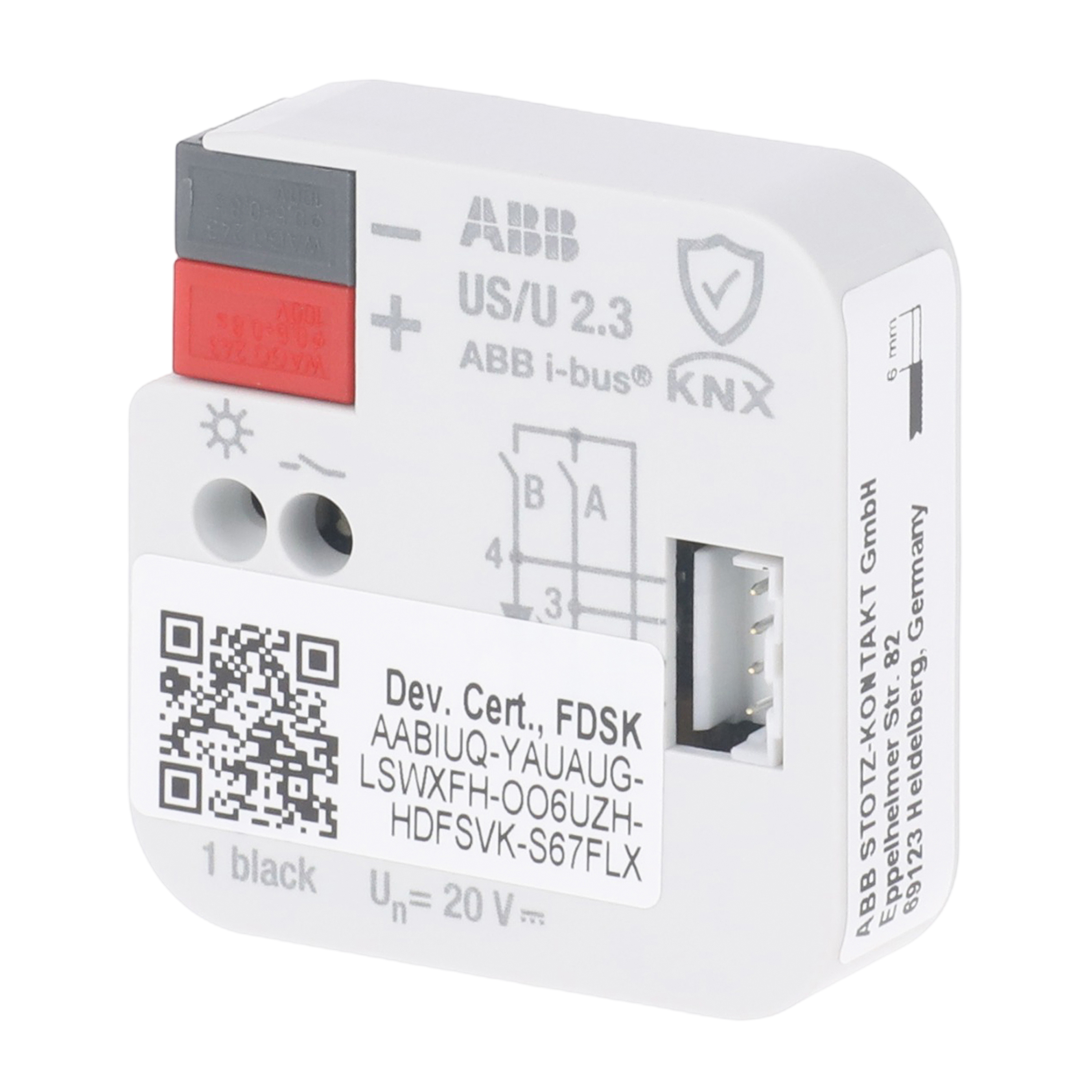

The Universal Interface has 2 channels which can be parameterised as inputs or outputs, e.g. for connection of conventional push-buttons, auxiliary contacts and LEDs.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 5 760.07 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 208.00 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 358.52 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 625.08 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 852.99 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 313.40 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 331.21 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 685.03 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 11 290.06 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 463.06 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 738.44 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | white |
| Mounting Type | Flush Mounted |
| Modular Components Included | Complete Device |
| Degree of Protection | IP20 |
| Sub-Function | LED controlling |
| Number of Outputs | 2 |
| Number of Inputs | 2, Analog (0 ... 10 V / 4 ... 20 mA) 2 |
| Number of Input Channels | 2 |
| Number of Output Channels | 2 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | No |
| Suitable for C-Load | No |
| Number of Batteries | 0 |
| Security Standard | KNX Data Secure |
| Input Voltage (Uin) | 20 V |
| Input Voltage Type | Pulsed |
| Output Voltage Type | DC |
| Output Voltage (Uout) | 3.3 V |
| Output Current Maximum (Iout) | 0.005 A |
| Power Loss | 0.25 W, Total 0 W |
| Color | white |
| Product Net Width | 12 mm |
| Product Net Height | 39 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.015 kg |
| Replaced Product ID (OLD) | GHQ6310074R0111 |
| E-Number (Finland) | 2815928 |
| E-Number (Norway) | 4544028 |
| E-Number (Sweden) | 1741021 |
| E-Number (Switzerland) | 405590225 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 87401064-b528-4b2c-b2eb-7d74cd853bd4 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001584 - I/O device for bus system |
| ETIM 10 | EC001584 - I/O device for bus system |
| eClass | V11.0 : 27143145 |
| Object Classification Code | A |
| extended_product_type | US/U2.3 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Standard Inputs > Universal Interfaces |
