Артикул: 2CDG110288R0011
· Производитель: ABB
· EAN: 4053546110937
2CDG110288R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
25 909.95 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
23 471.37 ₽
срок ≈1 мес. (38 дн.)

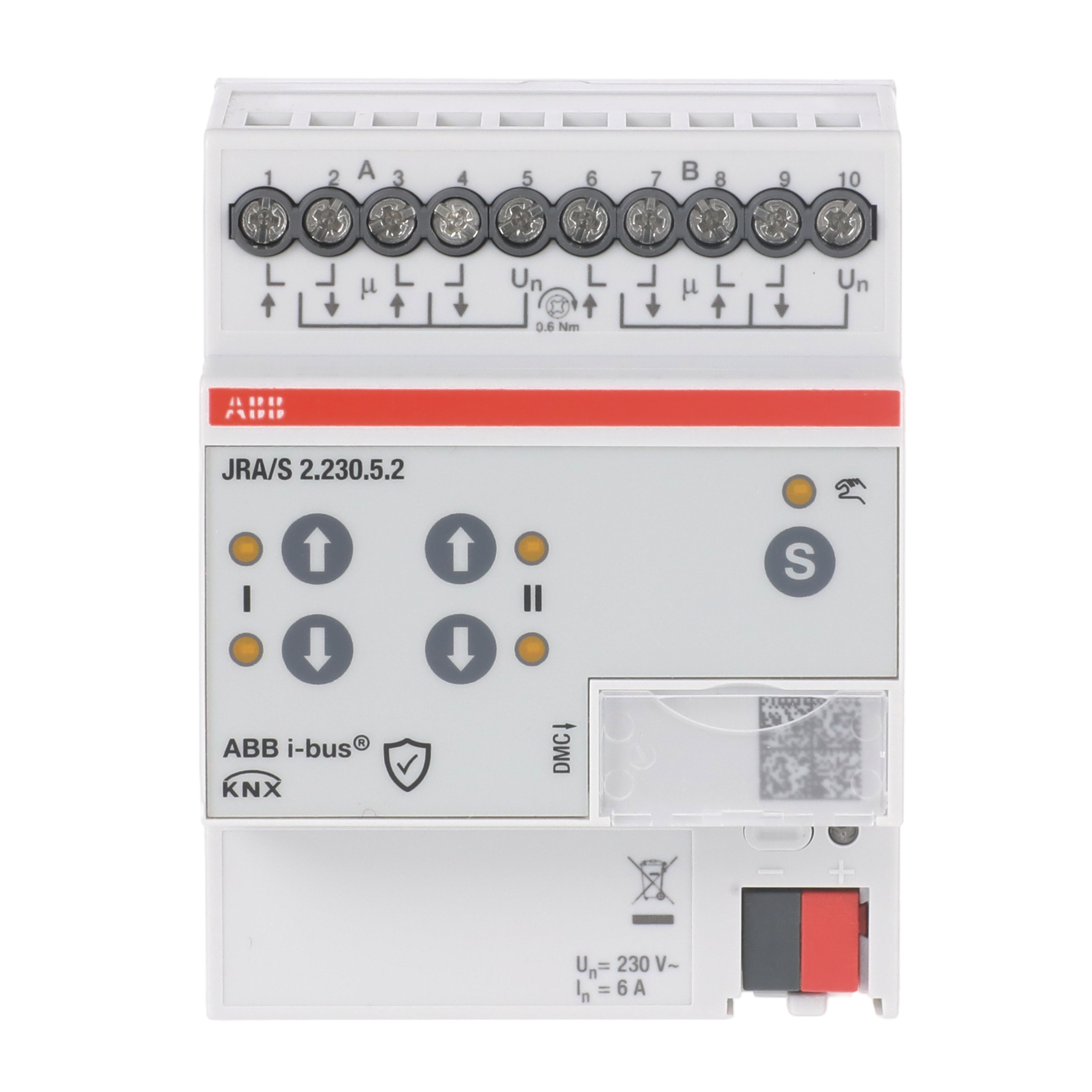

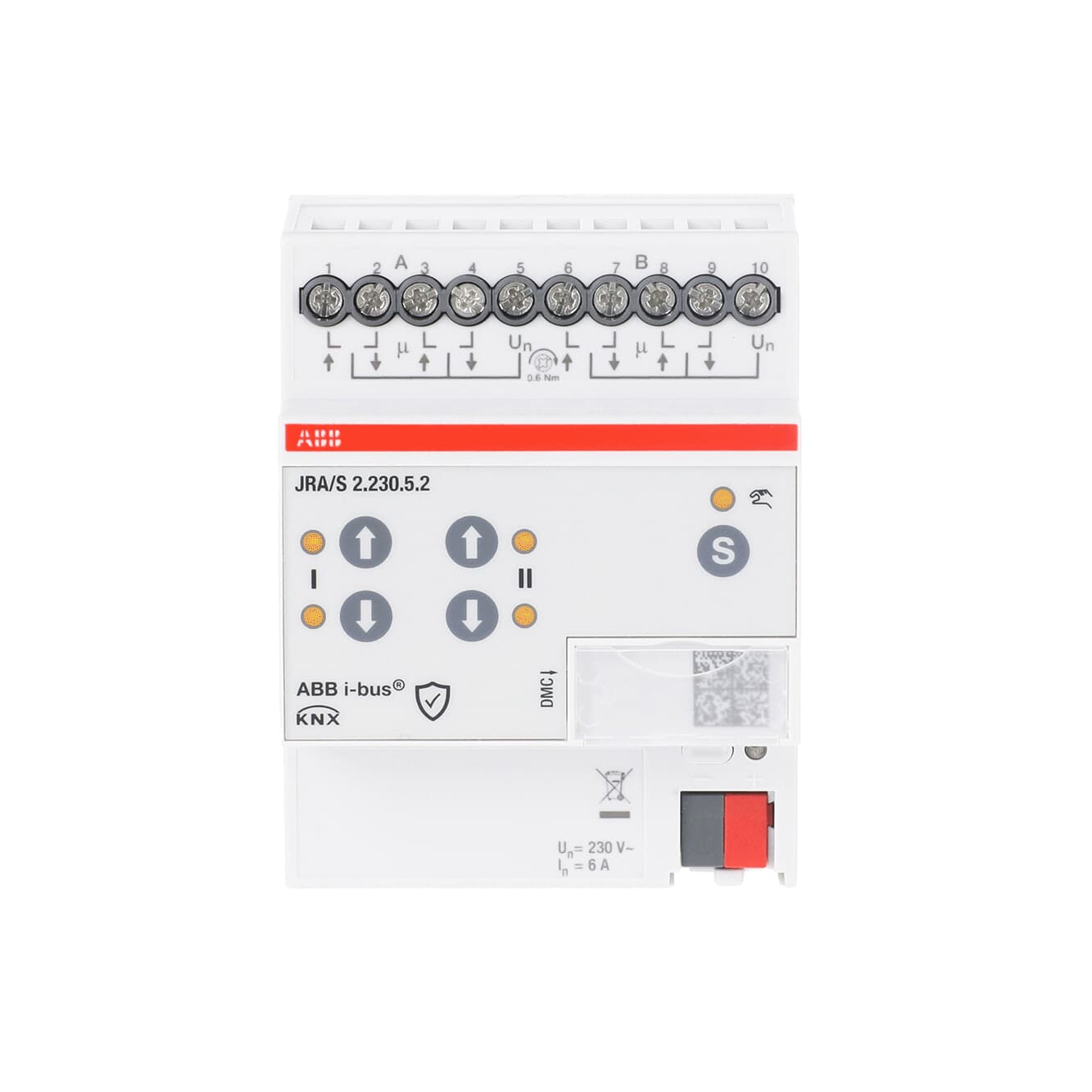

For the control of independent 230 V AC motors via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the motor are detected automatically via current detection. To protect the motor, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g., during commissioning. The current status of the output is displayed via LEDs if the output is selected.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 23 471.37 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 25 291.85 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 25 909.95 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 26 991.22 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 919.58 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 29 795.51 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 29 873.66 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32 115.37 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 46 005.44 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 50 785.22 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 51 897.32 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Special Functions | Switching |
| Number of Outputs | 2 |
| Number of LEDs | 6 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Security Standard | KNX Data Secure |
| Current Type | AC |
| Voltage Range | 230 V AC |
| Output Voltage (Uout) | 230 V AC |
| Maximum Switching Current | 6 A |
| Maximum Switching Power | 1380 W |
| Power Loss | 0.25 W, Total 0 W |
| Color | light grey |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.261 kg |
| Built-In Depth (t2) | 64.5 mm |
| Replaced Product ID (OLD) | 2CDG110124R0011 |
| E-Number (Finland) | 2815917 |
| E-Number (Norway) | 4545052 |
| E-Number (Sweden) | 1741027 |
| E-Number (Switzerland) | 405435025 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 78d38c79-b2ec-42a4-b52d-a167c783ba21 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001330 - Shutting actuator for bus system |
| ETIM 10 | EC001330 - Shutting actuator for bus system |
| eClass | V11.0 : 27143128 |
| Object Classification Code | A |
| extended_product_type | JRA/S2.230.5.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Shading Control > Blind Actuators 230 V AC |
