Артикул: 2CDG110280R0011
· Производитель: ABB
· EAN: 4053546110869
2CDG110280R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
30 973.71 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
28 058.53 ₽
срок ≈1 мес. (38 дн.)

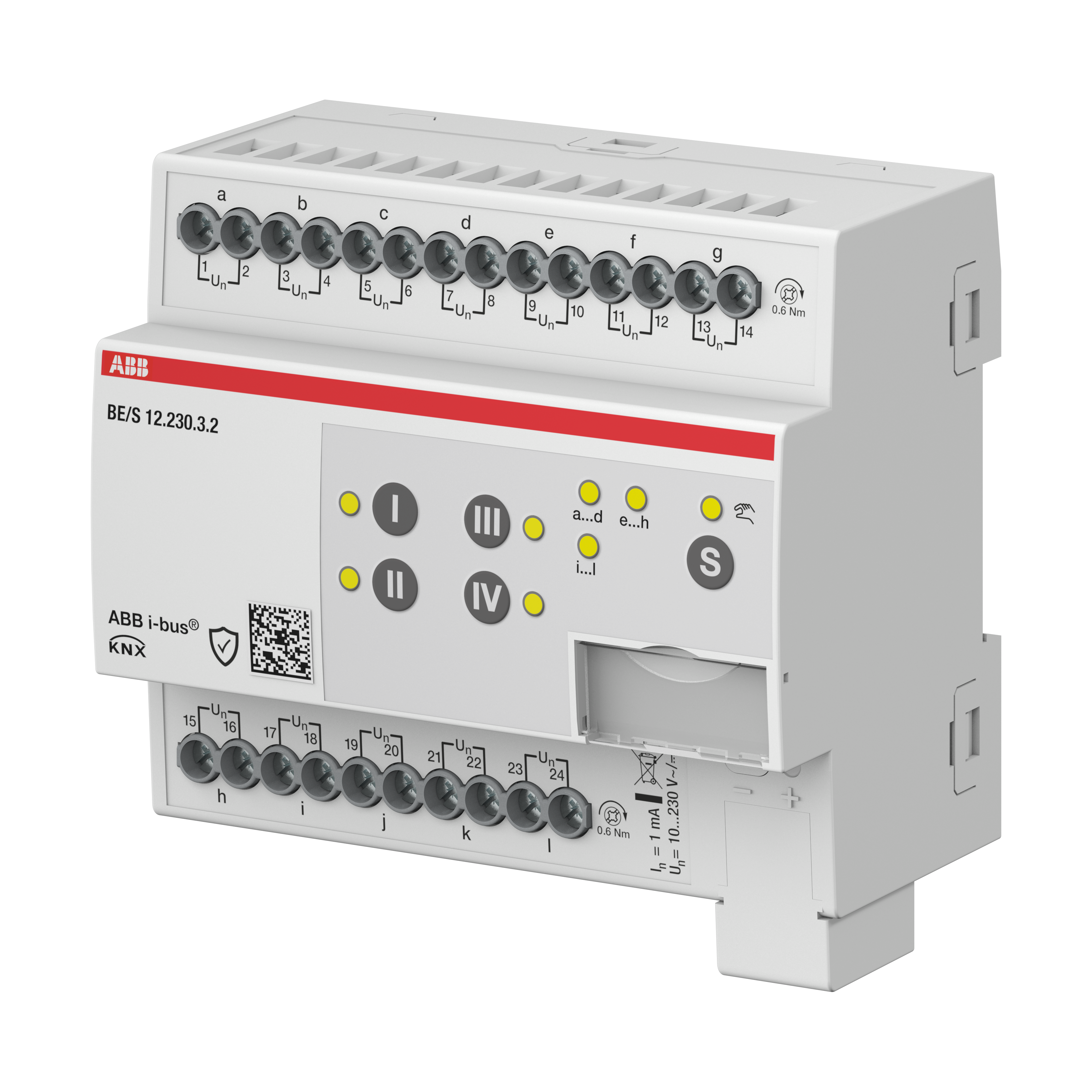

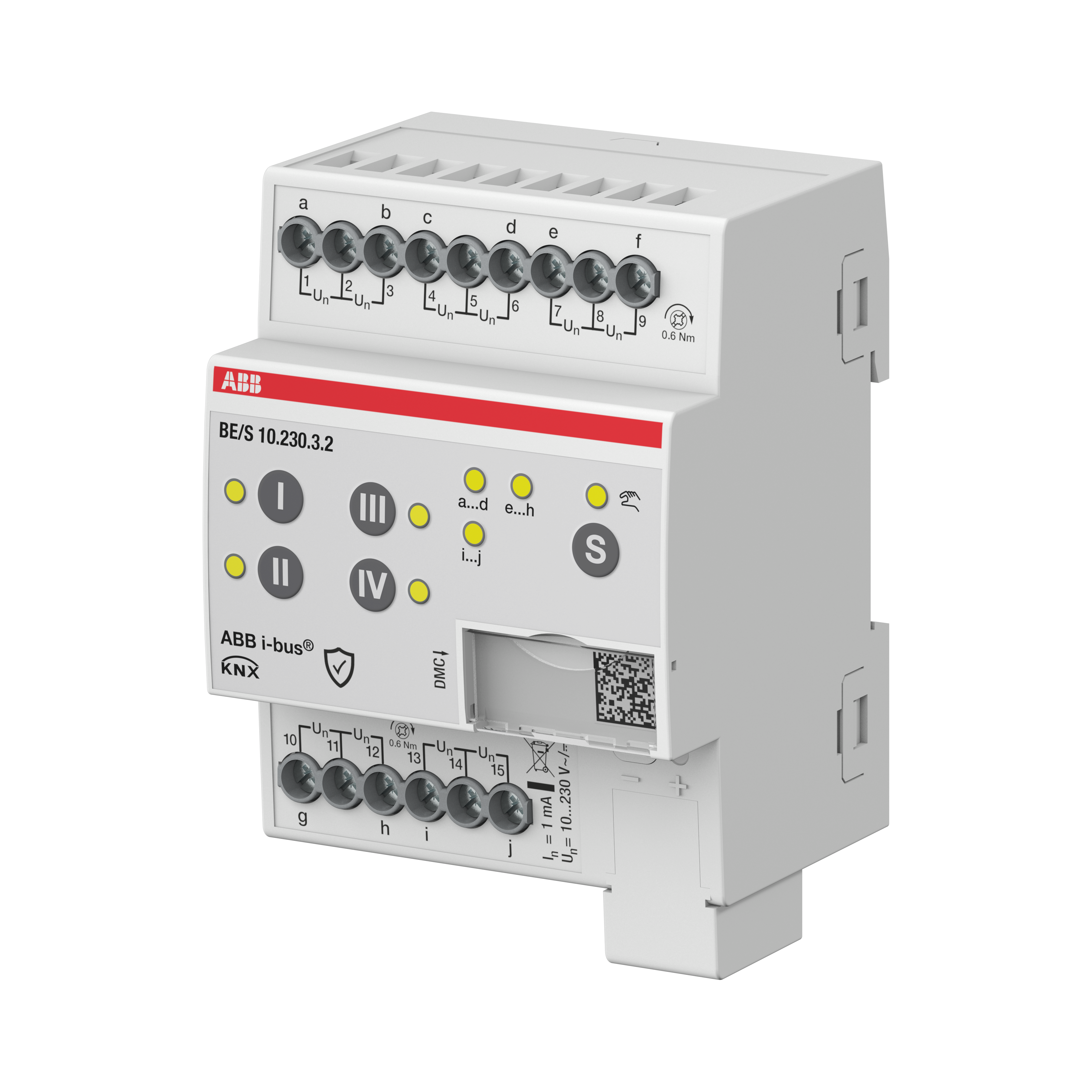

Detects AC/DC signals in the voltage range from 10...230 V. The state of the input is displayed via yellow LEDs. The binary inputs enable detection of independent input signals. The devices feature a manual operation pushbutton for each channel. The devices are powered via the ABB i-bus® and do not require an additional power supply. The devices support KNX Data Secure.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 28 058.53 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 30 235.35 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 30 973.71 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 32 267.22 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 33 064.41 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 33 376.69 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35 619.66 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35 710.84 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 54 994.69 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 60 708.42 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 62 040.84 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Number of LEDs | 7 |
| Number of Digital Inputs | 8 |
| Number of Inputs | 8 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Security Standard | KNX Data Secure |
| Voltage Range | 10 ... 230 V AC/DC |
| Input Voltage (Uin) | 10 ... 230 V |
| Input Voltage Type | AC/DC |
| Power Loss | 0.25 W, Total 0 W |
| Color | light grey |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.143 kg |
| Built-In Depth (t2) | 63.5 mm |
| Replaced Product ID (OLD) | 2CDG110093R0011 |
| E-Number (Finland) | 2815909 |
| E-Number (Norway) | 4544734 |
| E-Number (Sweden) | 1741017 |
| E-Number (Switzerland) | 405603225 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 2a962b7e-5849-48b8-9581-ba2ff7271970 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC000688 - Binary input for bus system |
| ETIM 10 | EC000688 - Binary input for bus system |
| eClass | V11.0 : 27143121 |
| Object Classification Code | A |
| extended_product_type | BE/S8.230.3.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Standard Inputs > Binary Inputs AC/DC |
