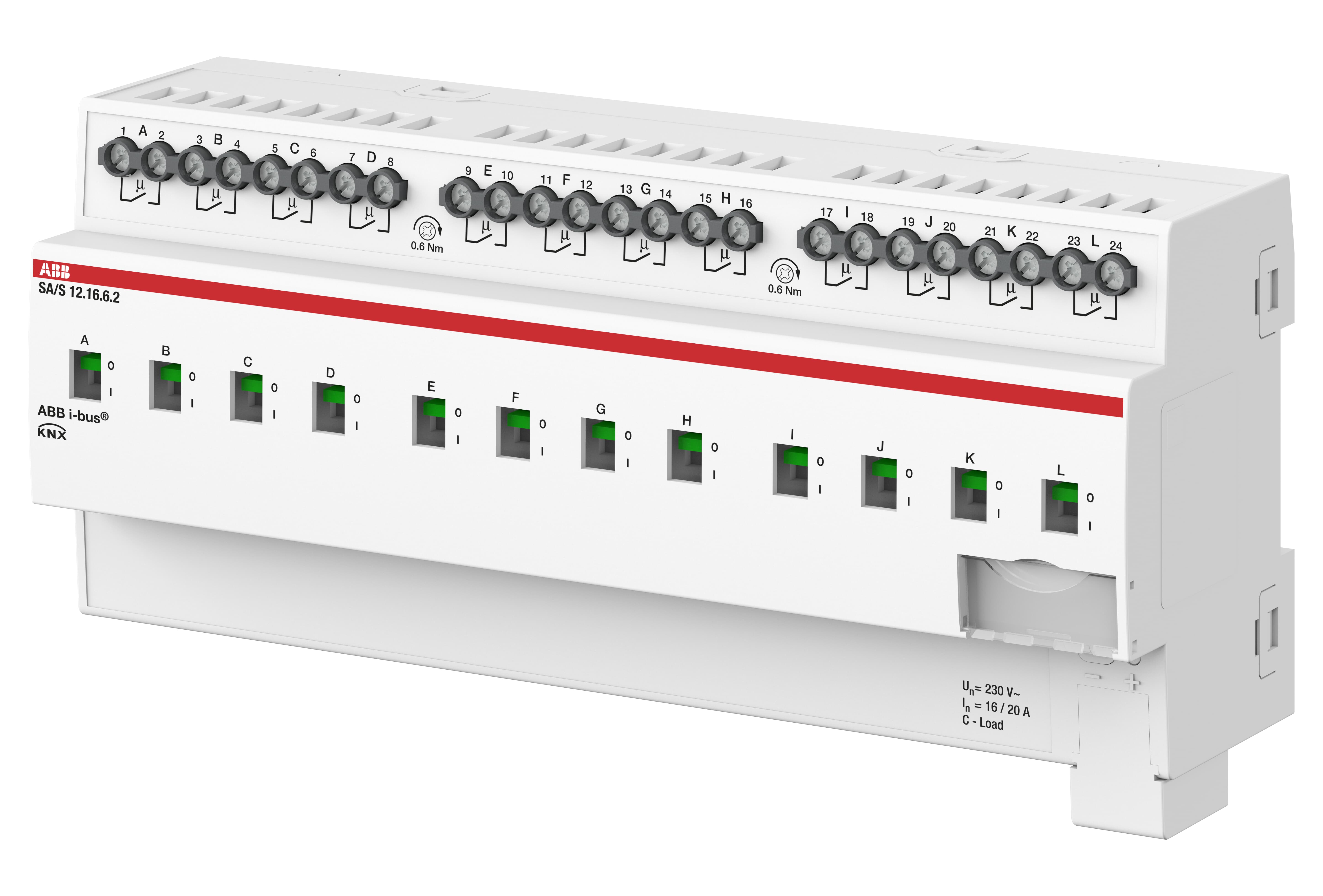

Артикул: 2CDG110272R0011
· Производитель: ABB
· EAN: 4016779066532
2CDG110272R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
63 831.70 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
57 824.01 ₽
срок ≈1 мес. (38 дн.)
The switch actuator uses potential free contacts to switch 12 independent electrical loads via ABB i-bus® KNX. The device has integrated energy functions. This includes independent load current measurement in each output and easy to use calculation of power and energy consumption for each output or groups of outputs. Via an integrated load shedding object an integration in a load control system can be easily realized. The device features a manual operation and displaying of the switching state of the outputs. The 16/20 A, 16 A-AC3 (C-load) device is especially suited for loads with high surge currents e.g. LED or fluorescent lighting (AX) acc. EN60669.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 57 824.01 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 62 309.93 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 63 831.70 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 65 450.92 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 66 496.85 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 68 783.69 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 72 817.62 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 73 405.61 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 100 794.42 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 111 266.57 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 127 856.29 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Contact Position Indication | ON / OFF |
| Number of Outputs | 12 |
| Number of LEDs | 1 |
| Maximum Number of Switching Outputs | 12 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | Yes |
| Suitable for C-Load | Yes |
| Number of Batteries | 0 |
| Voltage Range | 230 V AC |
| Auxiliary Voltage AC/DC | KNX |
| Output Voltage (Uout) | 230 V AC |
| Rated Current (In) | 20 A |
| Maximum Switching Current | 20 A |
| Maximum Switching Power | 3680 W |
| Load Type | Resistive Load, Capacitive Load, Inductive Load |
| Power Loss | 12 W, Total 12 W |
| Color | light grey |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 210 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.845 kg |
| Replaced Product ID (OLD) | 2CDG110138R0011 |
| E-Number (Finland) | 2815628 |
| E-Number (Norway) | 4544055 |
| E-Number (Sweden) | 1739958 |
| E-Number (Switzerland) | 405 669 125 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 28.4 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability, Product Modularity, Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| Offered with Takeback Services | Take Back for Recycling |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 08398a39-6e6d-4088-9c2a-35cf7ba67472 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001097 - Switch actuator for bus system |
| ETIM 10 | EC001097 - Switch actuator for bus system |
| eClass | V11.0 : 27143125 |
| UNSPSC | 31251516 |
| IDEA Granular Category Code (IGCC) | 3268 >> Switch actuator |
| extended_product_type | SA/S12.16.6.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Standard Outputs > Switch Actuators 16/20 A |
