Артикул: 2CDG110265R0011
· Производитель: ABB
· EAN: 4016779066457
2CDG110265R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
27 954.72 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
25 496.23 ₽
срок ≈1 мес. (38 дн.)

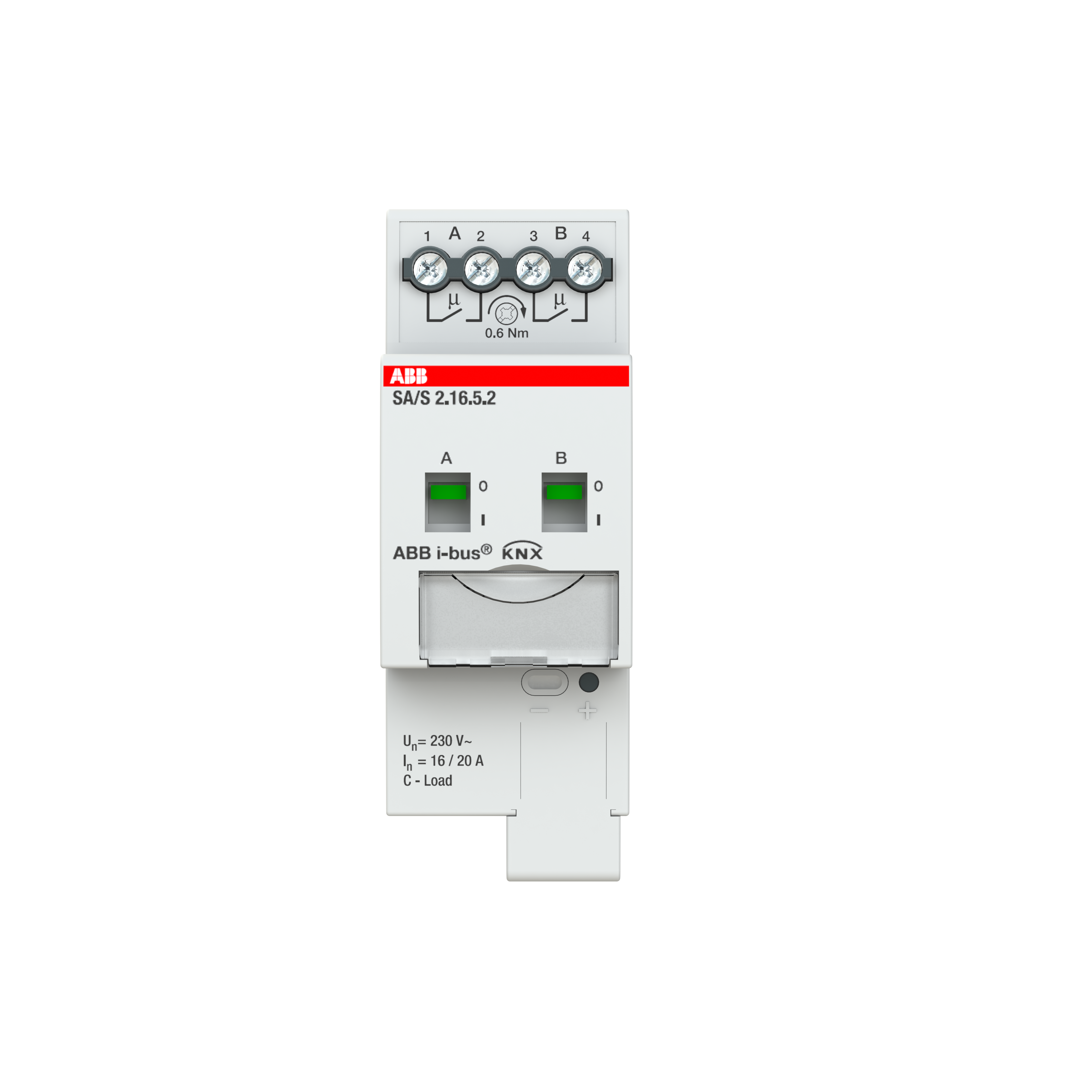

The switch actuator uses potential free contacts to switch 2 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs. The 16/20 A, 16 A-AC3 (C-load) device is especially suited for loads with high surge currents e.g. flourescent lighting acc. EN 60669.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 25 496.23 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 27 476.24 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 954.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 28 145.19 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 28 201.54 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 29 322.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 30 330.92 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 32 369.16 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 43 050.27 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 523.03 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 58 715.18 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Contact Position Indication | ON / OFF |
| Number of Outputs | 2 |
| Number of LEDs | 1 |
| Maximum Number of Switching Outputs | 2 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | Yes |
| Suitable for C-Load | Yes |
| Number of Batteries | 0 |
| Voltage Range | 230 V AC |
| Auxiliary Voltage AC/DC | KNX |
| Output Voltage (Uout) | 230 V AC |
| Rated Current (In) | 20 A |
| Maximum Switching Current | 20 A |
| Maximum Switching Power | 3680 W |
| Load Type | Resistive Load, Capacitive Load, Inductive Load |
| Power Loss | 2 W, Total 2 W |
| Color | light grey |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.14 kg |
| Replaced Product ID (OLD) | 2CDG110132R0011 |
| E-Number (Finland) | 2815621 |
| E-Number (Norway) | 4545313 |
| E-Number (Sweden) | 1739951 |
| E-Number (Switzerland) | 405 667 025 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 35.3 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services, Product Durability, Product Modularity |
| Offered with Takeback Services | Take Back for Recycling |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 1a1e0554-a6cc-4f81-a228-f1f025885e02 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001097 - Switch actuator for bus system |
| ETIM 10 | EC001097 - Switch actuator for bus system |
| eClass | V11.0 : 27143125 |
| UNSPSC | 31251516 |
| IDEA Granular Category Code (IGCC) | 3268 >> Switch actuator |
| extended_product_type | SA/S2.16.5.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Standard Outputs > Switch Actuators 16/20 A |
