Артикул: 2CDG110255R0011
· Производитель: ABB
· EAN: 4016779066754
2CDG110255R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
36 626.56 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
33 179.35 ₽
срок ≈1 мес. (38 дн.)

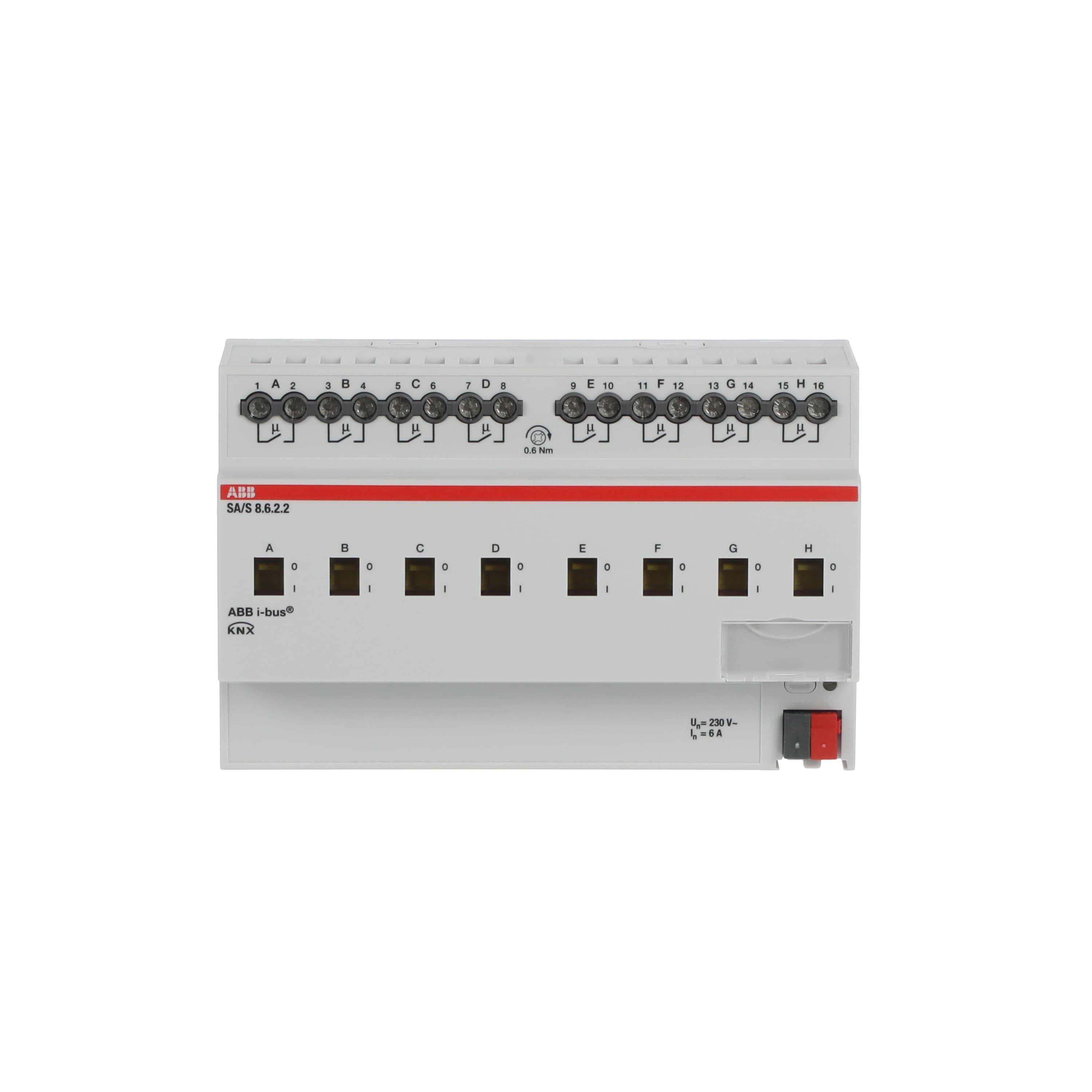

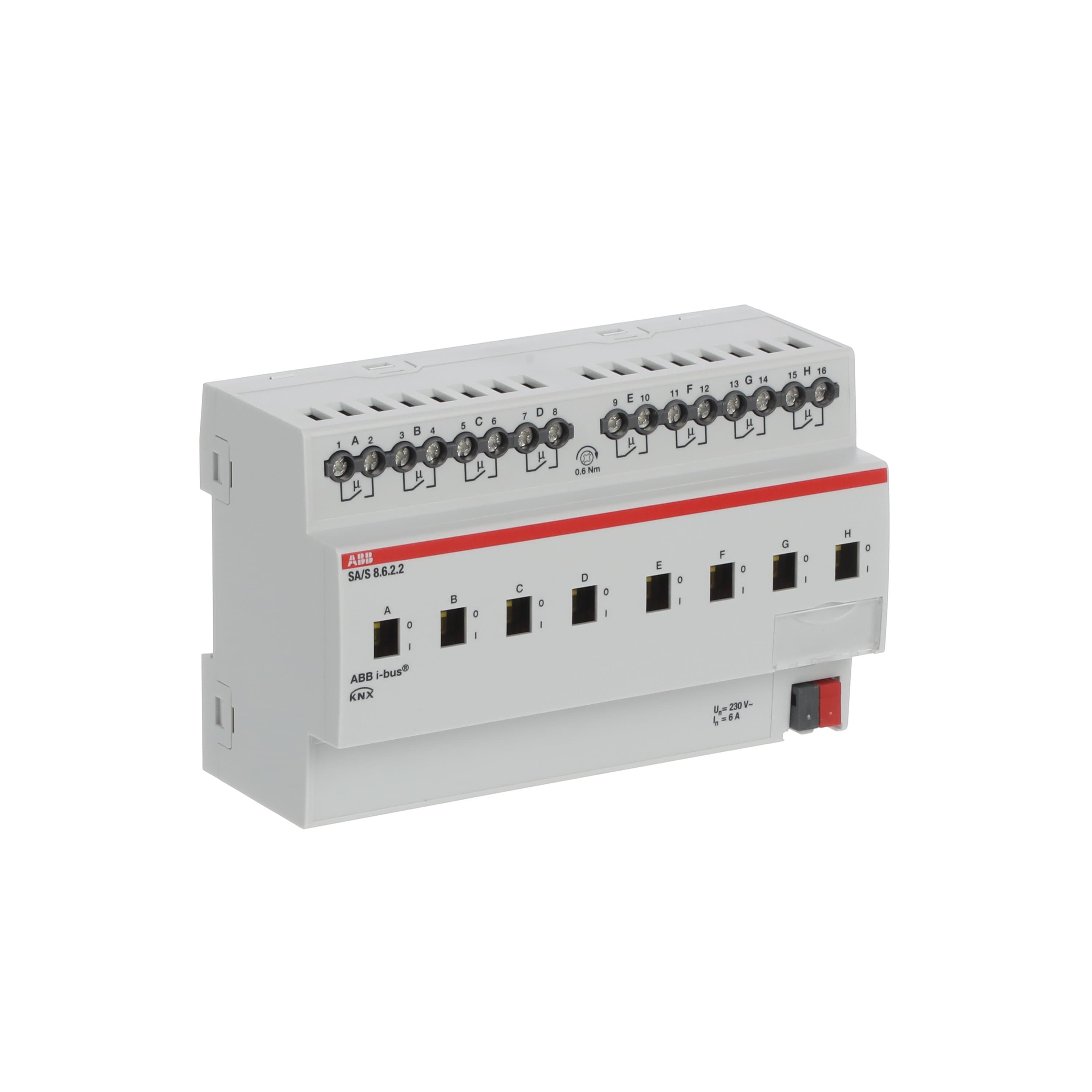

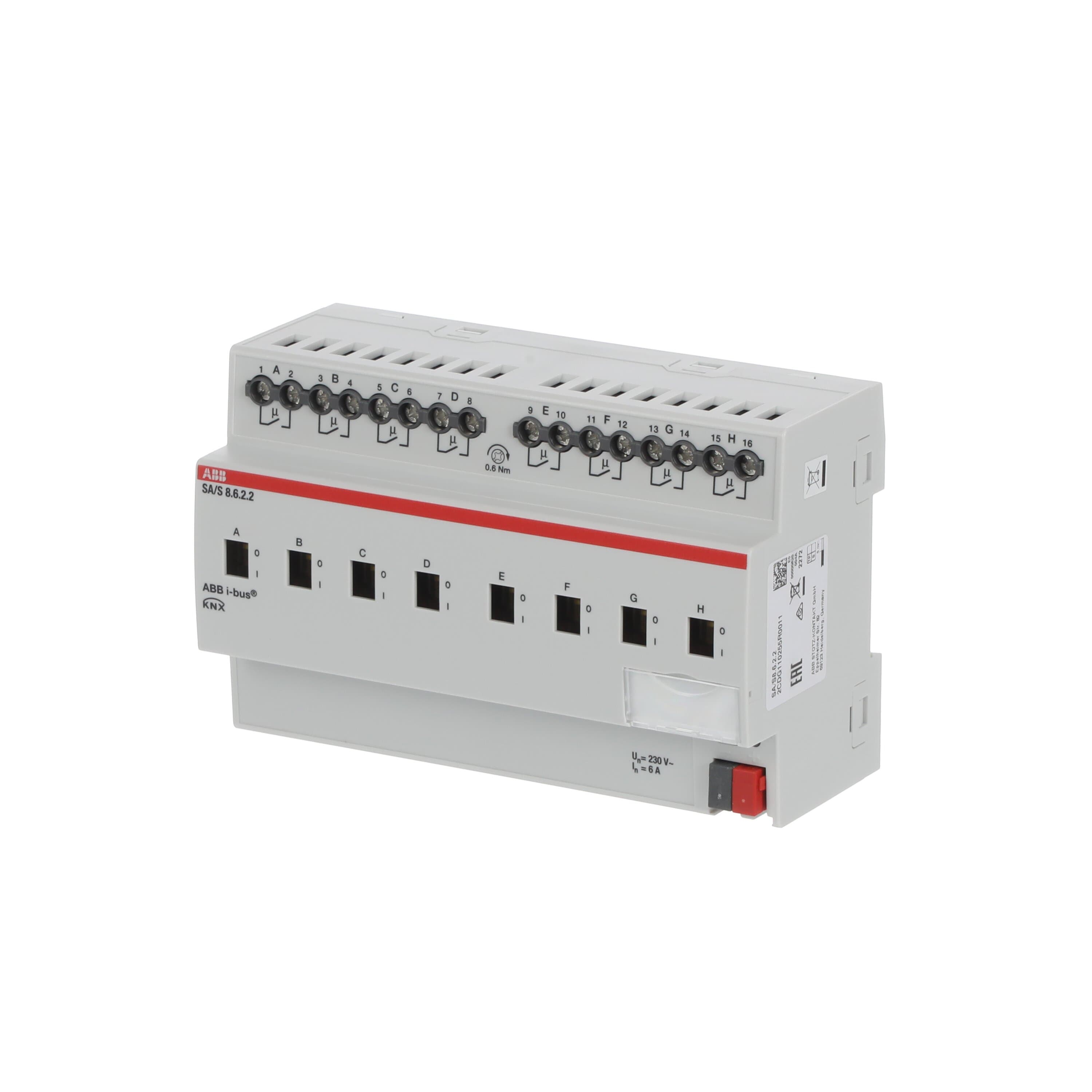

The switch actuator uses potential free contacts to switch 8 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs. The 6 A device is especially suited to switch resistive, inductive or capacitive loads. The device is powered by KNX and requires no additional power supply.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 33 179.35 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 35 753.39 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 36 626.56 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 38 156.35 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 468.03 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 42 120.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 49 530.74 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 76 700.79 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Contact Position Indication | ON / OFF |
| Number of Outputs | 8 |
| Number of LEDs | 1 |
| Maximum Number of Switching Outputs | 8 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Utilization Category | Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1) |
| Manual Operation | Yes |
| Suitable for C-Load | No |
| Number of Batteries | 0 |
| Voltage Range | 230 V AC |
| Auxiliary Voltage AC/DC | KNX |
| Output Voltage (Uout) | 230 V AC |
| Rated Current (In) | 6 A |
| Maximum Switching Current | 6 A |
| Maximum Switching Power | 1380 W |
| Power Loss | 1.5 W, Total 2 W |
| Color | light grey |
| Width in Number of Modular Spacings | 8 |
| Product Net Width | 140 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.406 kg |
| Replaced Product ID (OLD) | 2CDG110182R0011 |
| E-Number (Finland) | 2814690 |
| E-Number (Norway) | 4545303 |
| E-Number (Sweden) | 1739893 |
| E-Number (Switzerland) | 405 660 085 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 33.6 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability, Product Modularity, Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| Offered with Takeback Services | Take Back for Recycling |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 5c52175e-e682-4d9c-b337-f8457263342c Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001097 - Switch actuator for bus system |
| ETIM 10 | EC001097 - Switch actuator for bus system |
| eClass | V11.0 : 27143125 |
| UNSPSC | 31251516 |
| IDEA Granular Category Code (IGCC) | 3268 >> Switch actuator |
| extended_product_type | SA/S8.6.2.2 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Standard Outputs > Switch Actuators 6 A |
