Артикул: 2CDG110222R0011
· Производитель: ABB
· EAN: 4016779011655
2CDG110222R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
31 792.72 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
34 886.29 ₽
срок ≈1 мес. (38 дн.)

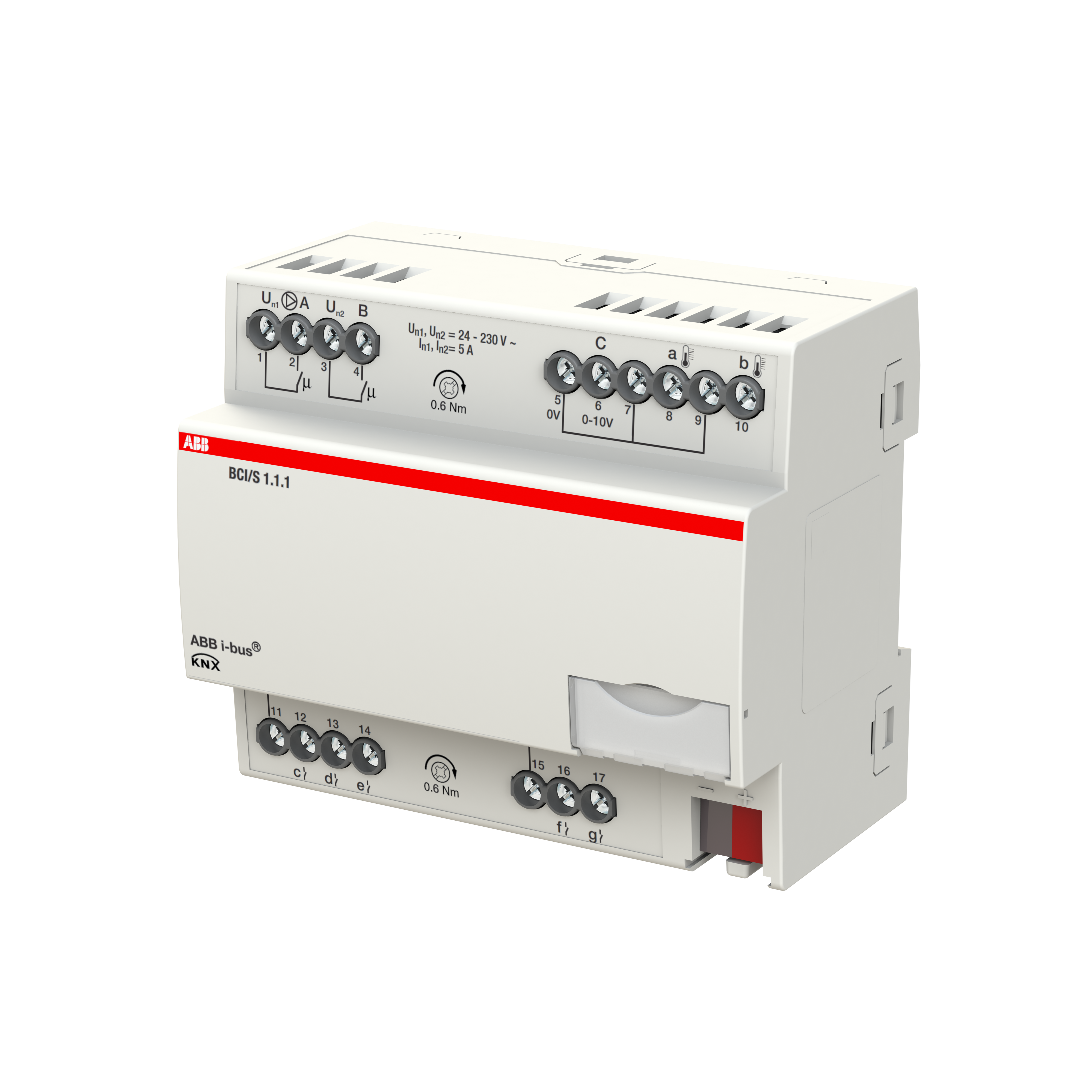

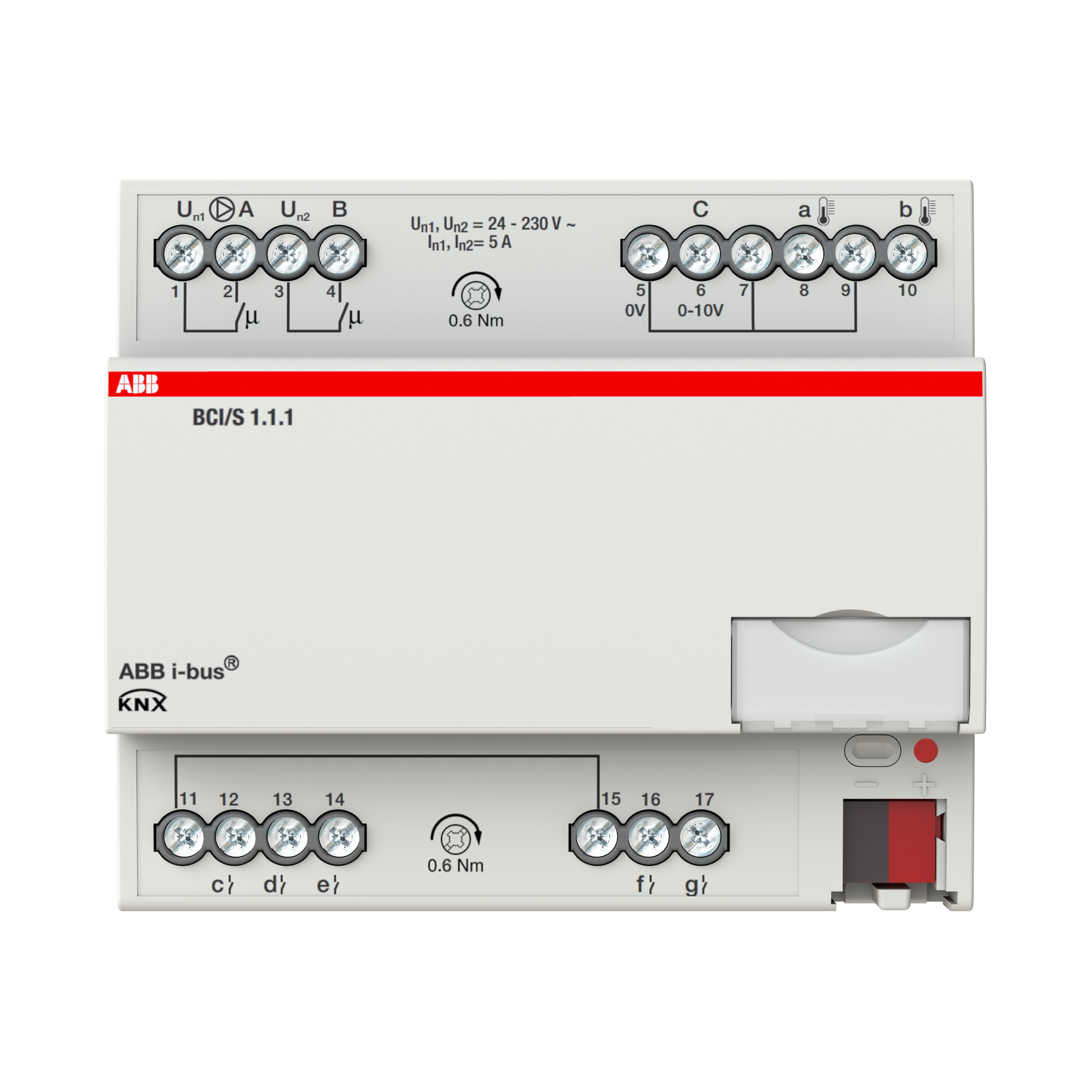

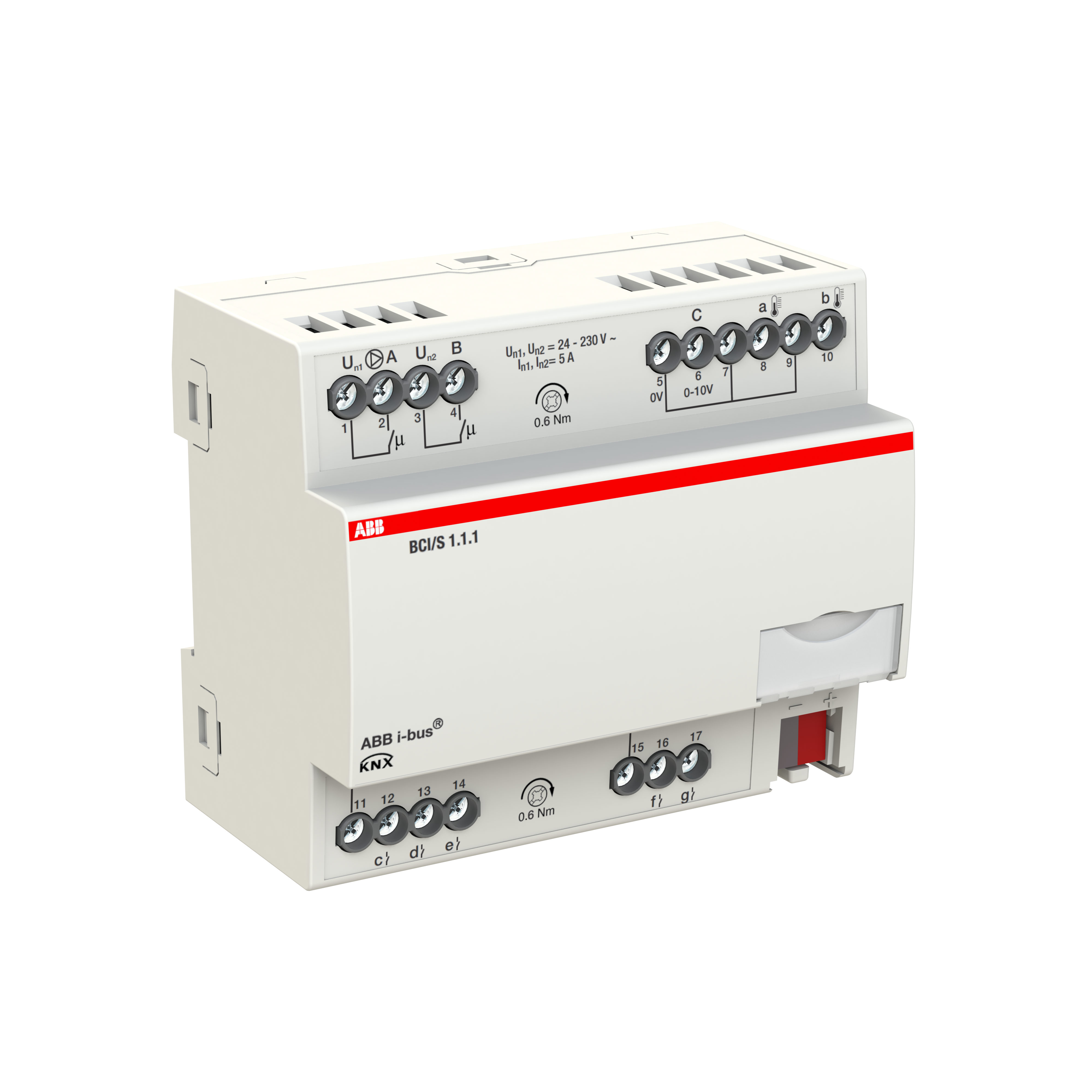

As interface between the KNX system and a heat generator or chiller. Via an analog output (0…10V) the set point or set point adjustment temperature can be transmitted to the heat generator/chiller. The set point itself is received via KNX. Via two binary inputs the device can monitor the status of the heat generator/chiller (via potential free contacts) and send it on the KNX bus. A relay output (5A) is included to switch or enable/disable the heat generator/chiller. With an additional relay output (5A) the pump of the heat generator/chiller can be switched on and off. Via 3 binary inputs it is possible to monitor the status of the pump (via potential free contacts) and integrate these feedback into the control of the pump.
The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 31 792.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 34 886.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 37 592.80 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 38 510.84 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 40 118.76 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 41 498.54 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 44 286.95 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 47 090.40 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 48 960.79 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54 047.62 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 79 541.42 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Maximum Number of Switching Outputs | 2 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 5 |
| Number of Input Channels | 5 |
| Number of Output Channels | 3 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | No |
| Suitable for C-Load | No |
| Number of Batteries | 0 |
| Current Type | DC |
| Rated Operational Voltage | 230 V AC |
| Input Voltage (Uin) | 21 ... 32 V |
| Output Voltage (Uout) | 0 ... 10 V DC, 230 V AC |
| Rated Current (In) | 5 A |
| Maximum Switching Current | 6 A |
| Maximum Switching Power | 1150 W |
| Color | light grey |
| Width in Number of Modular Spacings | 6 |
| Product Net Width | 105 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.21 kg |
| E-Number (Sweden) | 1739461 |
| E-Number (Switzerland) | 405711115 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001584 - I/O device for bus system |
| ETIM 10 | EC001584 - I/O device for bus system |
| eClass | V11.0 : 27143145 |
| UNSPSC | 39122221 |
| Object Classification Code | A |
| extended_product_type | BCI/S1.1.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Central HVAC Controllers |
