Артикул: 2CDG110216R0011
· Производитель: ABB
· EAN: 4016779011488
2CDG110216R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
37 685.68 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
34 138.80 ₽
срок ≈1 мес. (38 дн.)

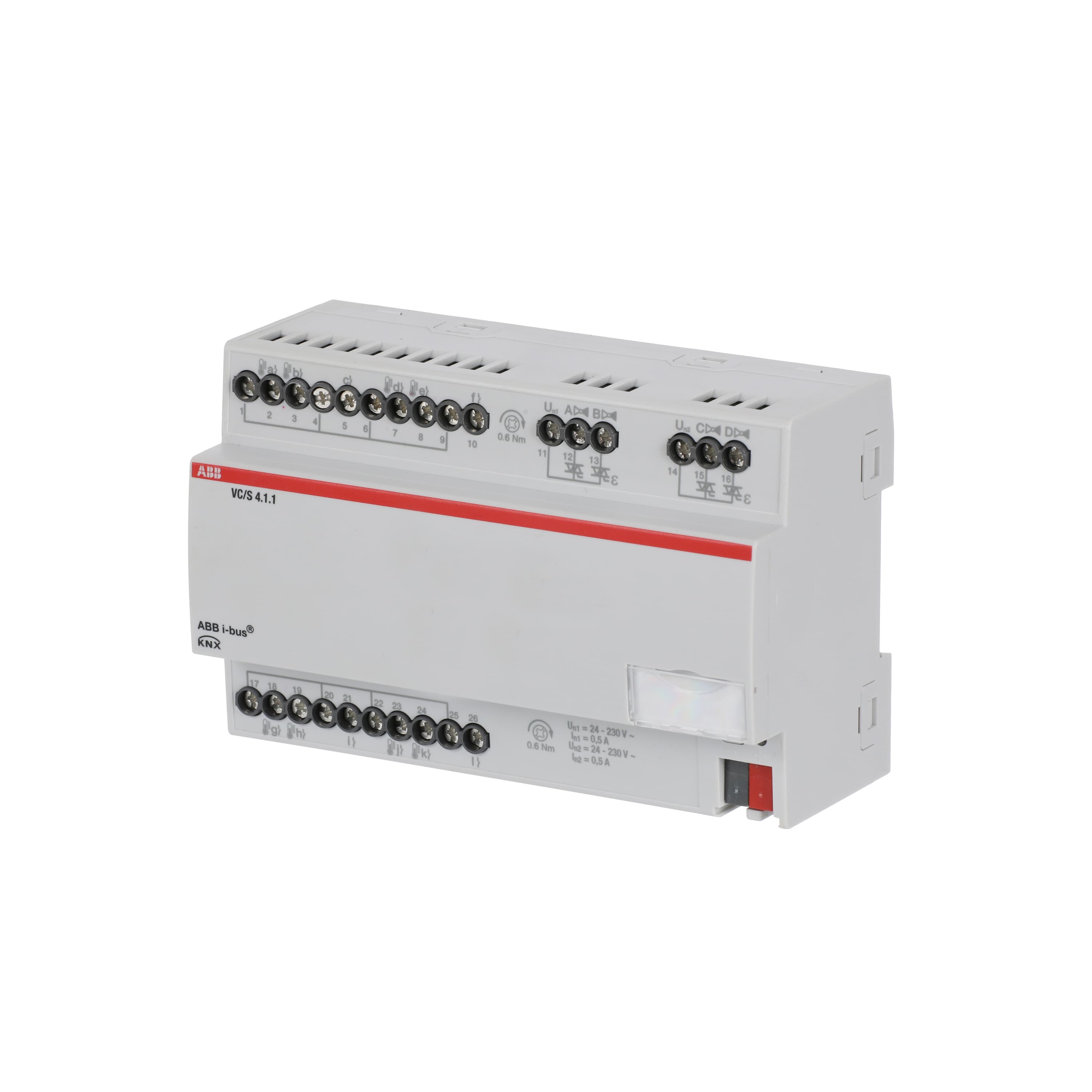

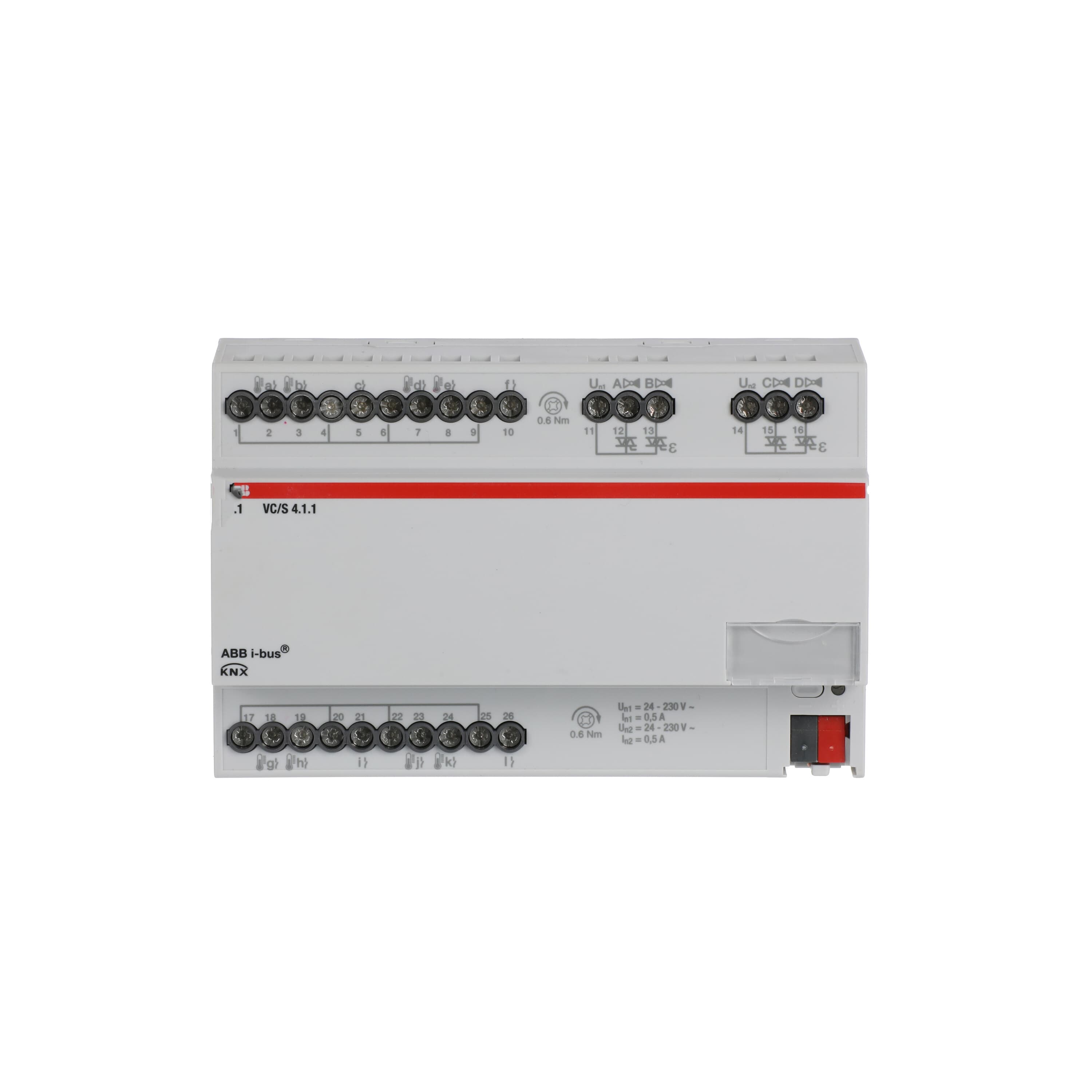

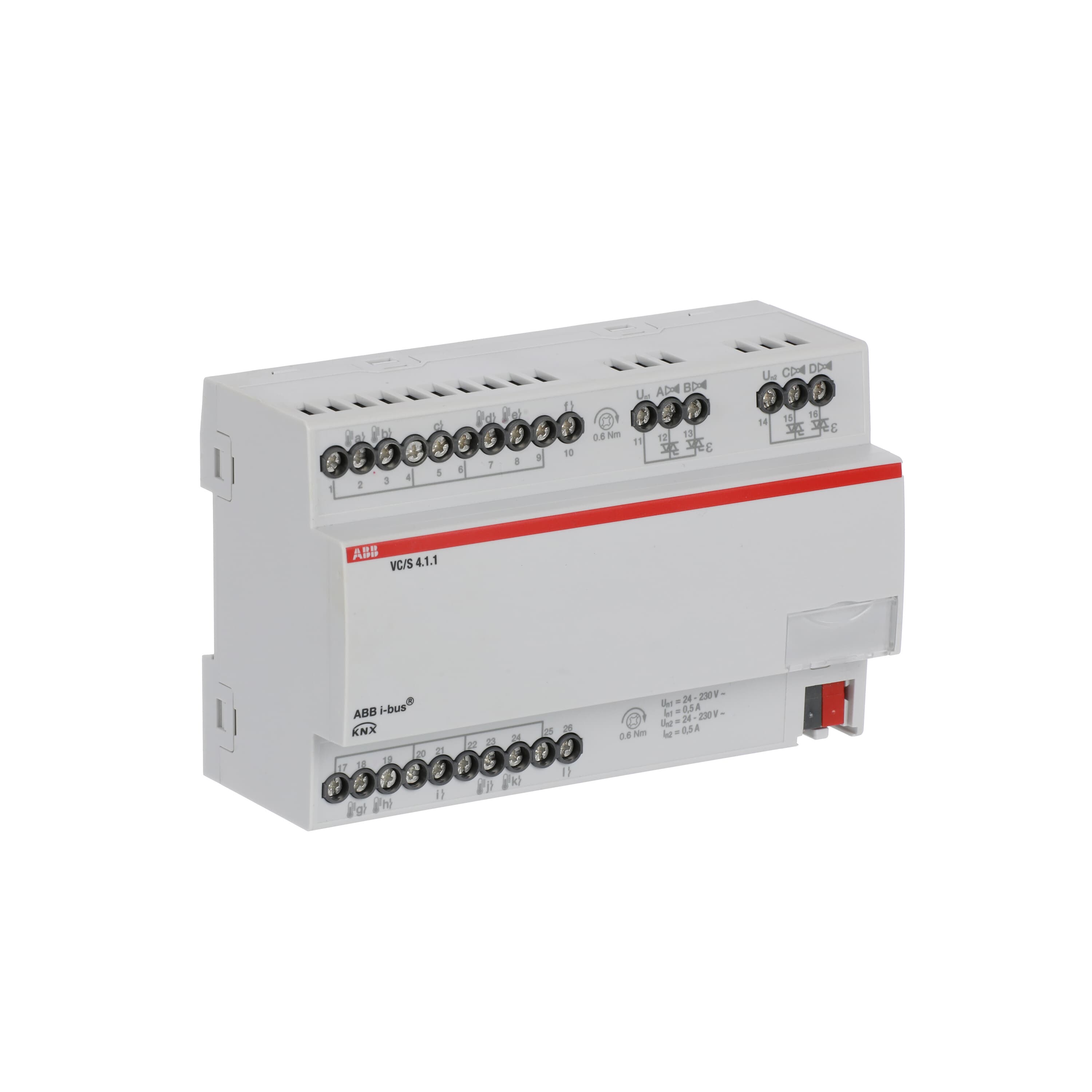

For the control of heating and cooling applications in the room, such as radiator, floor heating or cooling ceiling. The device has 4 channels each for the independent control of a heating or cooling application. Each channel has an electronic valve output for the control of a thermoelectric valve drive, as well as 3 inputs to detect and monitor the room status (use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of each channel. Each channel has its own integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device.
The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 34 138.80 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 788.15 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 37 685.68 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 38 049.42 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 39 259.62 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40 610.29 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 43 338.54 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 47 090.40 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 58 596.10 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 64 684.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 78 918.38 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Special Functions | Valve Protection |
| Number of Outputs | 4 |
| Number of Digital Inputs | 12 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 12 |
| Compatible Bus Systems | KNX (TP) |
| Manipulated Variable | Continious |
| Product Range | KNX |
| Manual Operation | No |
| Number of Batteries | 0 |
| Voltage Range | 230 V AC |
| Output Current Maximum (Iout) | 0.5 A |
| Power Loss | 3 W, Total 3 W |
| Color | light grey |
| Width in Number of Modular Spacings | 8 |
| Product Net Width | 140 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.27 kg |
| E-Number (Finland) | 2814565 |
| E-Number (Sweden) | 1739455 |
| E-Number (Switzerland) | 405710115 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | a75000ab-d1ee-4302-9ad6-099817fe0235 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001586 - Heating actuator for bus system |
| ETIM 10 | EC001586 - Heating actuator for bus system |
| eClass | V11.0 : 27143147 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
| extended_product_type | VC/S4.1.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Valve Drive Actuators |
