Артикул: 2CDG110211R0011
· Производитель: ABB
· EAN: 4016779011433
2CDG110211R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
39 603.15 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
36 273.42 ₽
срок ≈1 мес. (38 дн.)

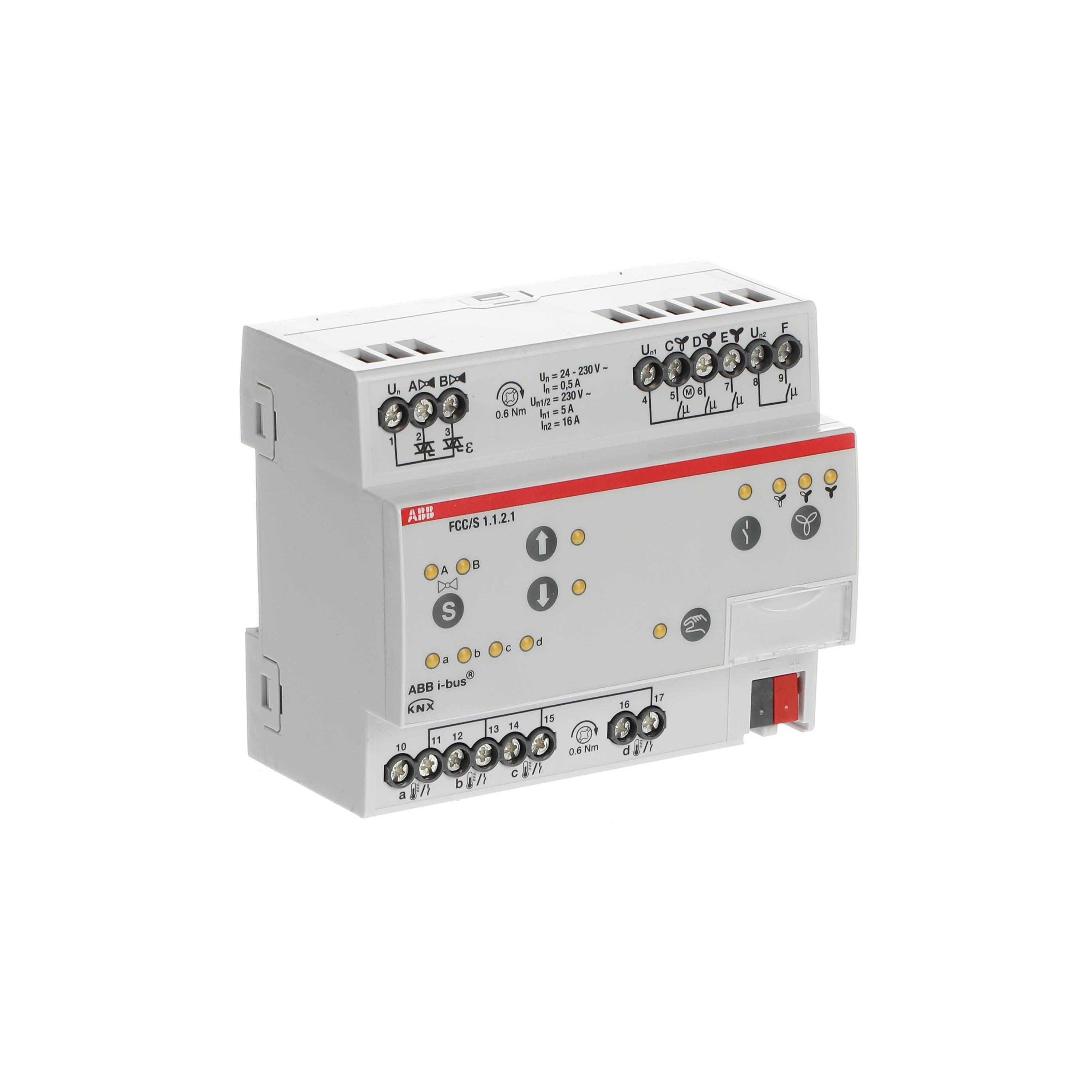

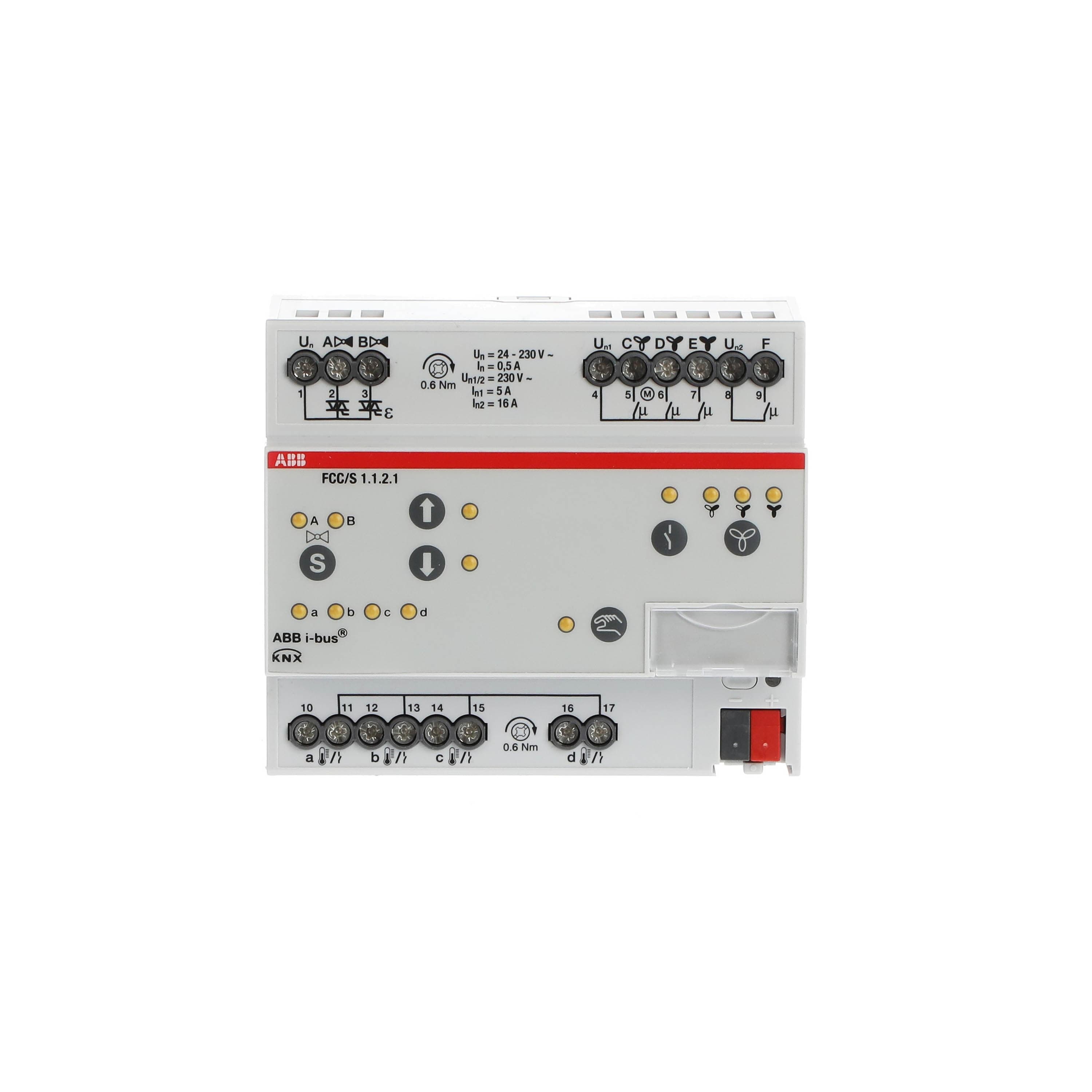

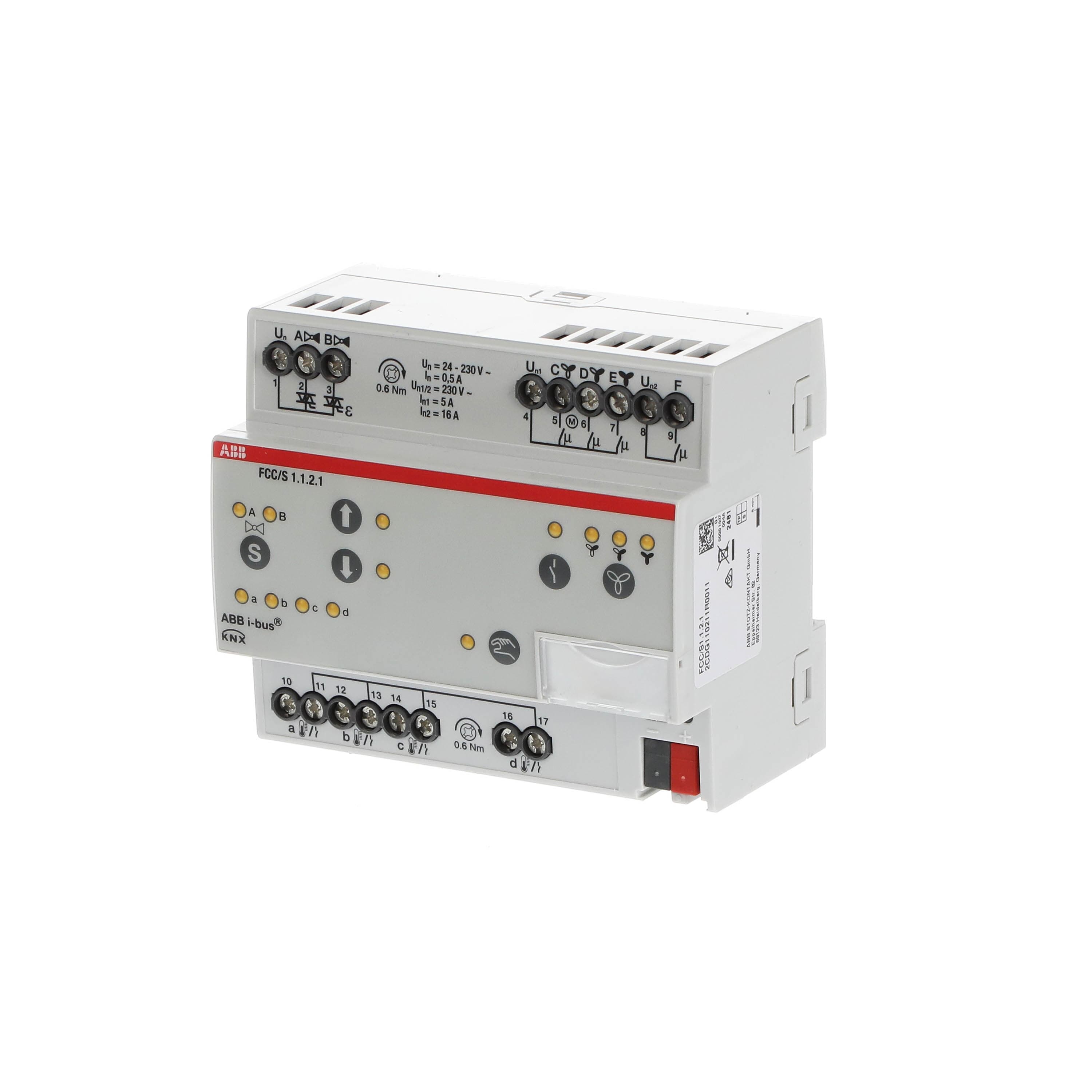

For the control of fan coil units. Via two electronic outputs, two thermoelectric or one motor-driven valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The FCC/S 1.1.2.1 features an easy to use manual operation.
The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 36 273.42 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 39 087.41 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 603.15 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40 042.08 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 41 714.05 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 43 148.44 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 44 147.63 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 46 047.98 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 60 988.85 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 67 325.35 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 79 541.42 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Special Functions | Valve Protection |
| Number of Outputs | 5 |
| Number of Digital Inputs | 4 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 4 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Maximum Switching Current | 16 A |
| Output Current Maximum (Iout) | 0.5 A |
| Power Loss | 3 W, Total 3 W |
| Color | light grey |
| Width in Number of Modular Spacings | 6 |
| Product Net Width | 105 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.235 kg |
| E-Number (Finland) | 2814557 |
| E-Number (Sweden) | 1739448 |
| E-Number (Switzerland) | 405712025 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 4ba2a77d-f714-4d30-bbcc-d92c6a104236 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC001586 - Heating actuator for bus system |
| ETIM 10 | EC001586 - Heating actuator for bus system |
| eClass | V11.0 : 27143147 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
| extended_product_type | FCC/S1.1.2.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Fan Coil Controllers |
