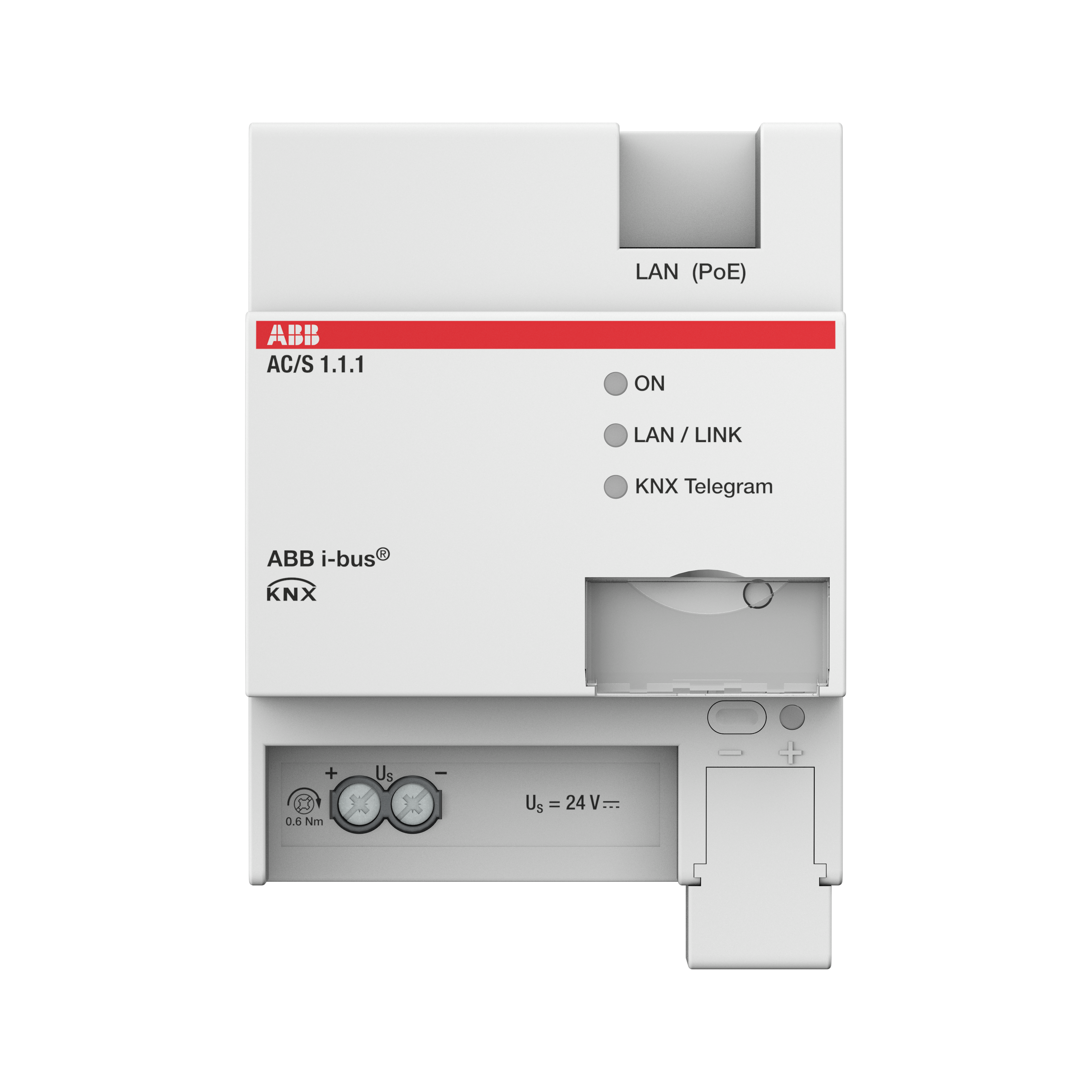

Артикул: 2CDG110205R0011
· Производитель: ABB
· EAN: 4016779011808
2CDG110205R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
88 306.01 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
82 360.79 ₽
срок ≈1 мес. (38 дн.)
Automation Controller with pre-defined Automation Modules for a holistic Heating, Ventilation and Air Conditioning (HVAC) Automation Solution from Central HVAC to Room Automation to meet the Energy Efficiencies Objectives like EN 15232 or LEED. Automation Modules for example Schedule, Set Point Calculation, Heat Curve Calculation, Data Logging and Device Monitoring. Own Automation Modules can be created by a graphical Logic Editor. The Controller has an automatic generated web based User Interface to monitor and manage the KNX System.
The Engineering is done completely by the ETS. An additional external Software is not required.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 82 360.79 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 88 306.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 88 751.41 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 90 917.76 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 94 716.24 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 97 972.34 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 104 556.89 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 105 472.04 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 135 991.25 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 150 120.22 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 177 922.06 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | No |
| Number of Batteries | 0 |
| Auxiliary Voltage AC/DC | 24 V DC |
| Power Loss | 3 W, Total 3 W |
| Color | light grey |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.192 kg |
| E-Number (Finland) | 2814554 |
| E-Number (Norway) | 4544165 |
| E-Number (Sweden) | 1739445 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| SCIP | 409e1af2-c759-49be-a209-4f0f674bced9 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC000676 - Logic component for bus system |
| ETIM 10 | EC000676 - Logic component for bus system |
| eClass | V11.0 : 27143103 |
| UNSPSC | 32151705 |
| IDEA Granular Category Code (IGCC) | 3567 >> PLC function/technology module |
| Object Classification Code | A |
| extended_product_type | AC/S1.1.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > Heating, Ventilation and Air Conditioning > Application Controllers |
