Артикул: 2CDG110204R0011
· Производитель: ABB
· EAN: 4016779016414
2CDG110204R0011
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
28 030.29 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
25 392.15 ₽
срок ≈1 мес. (38 дн.)

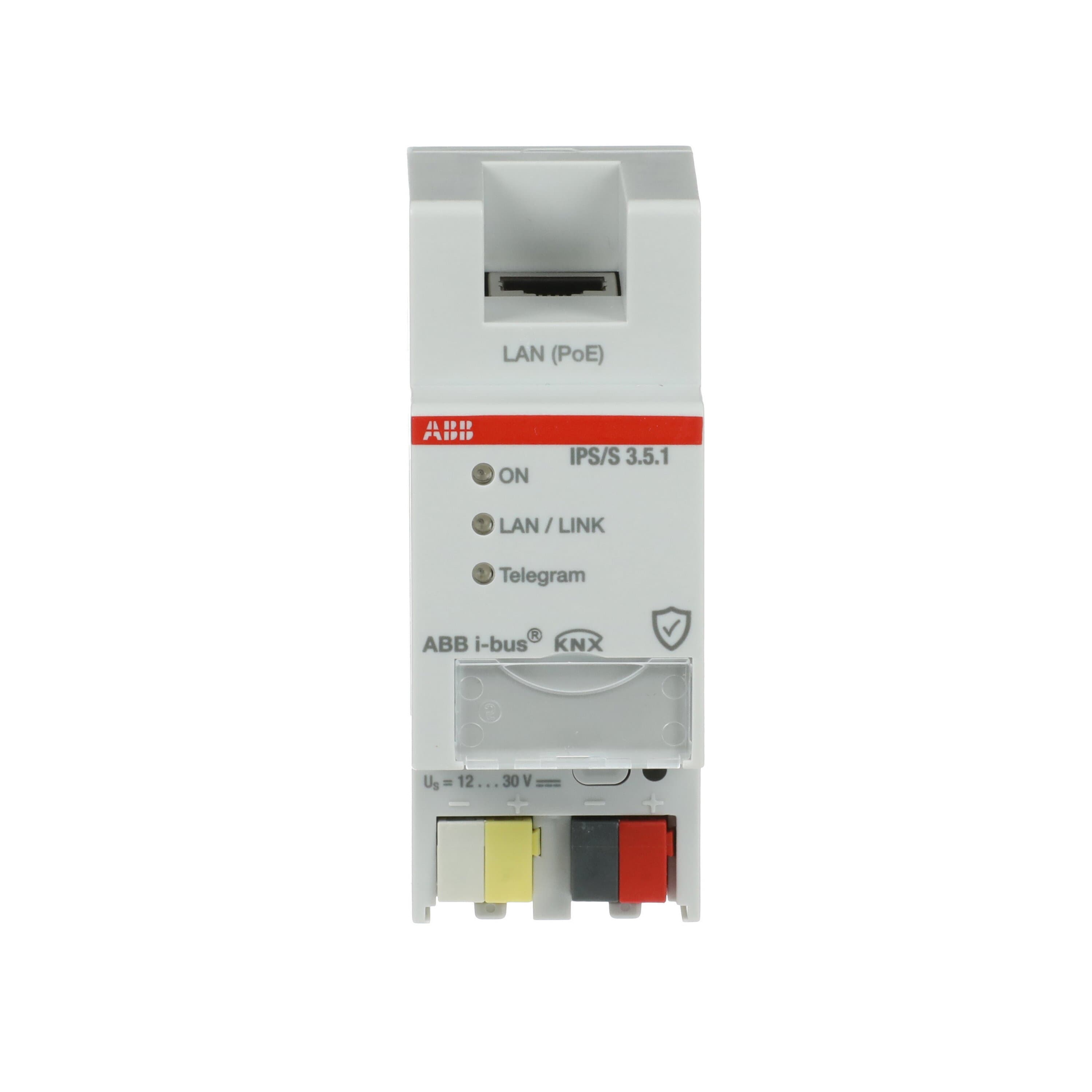

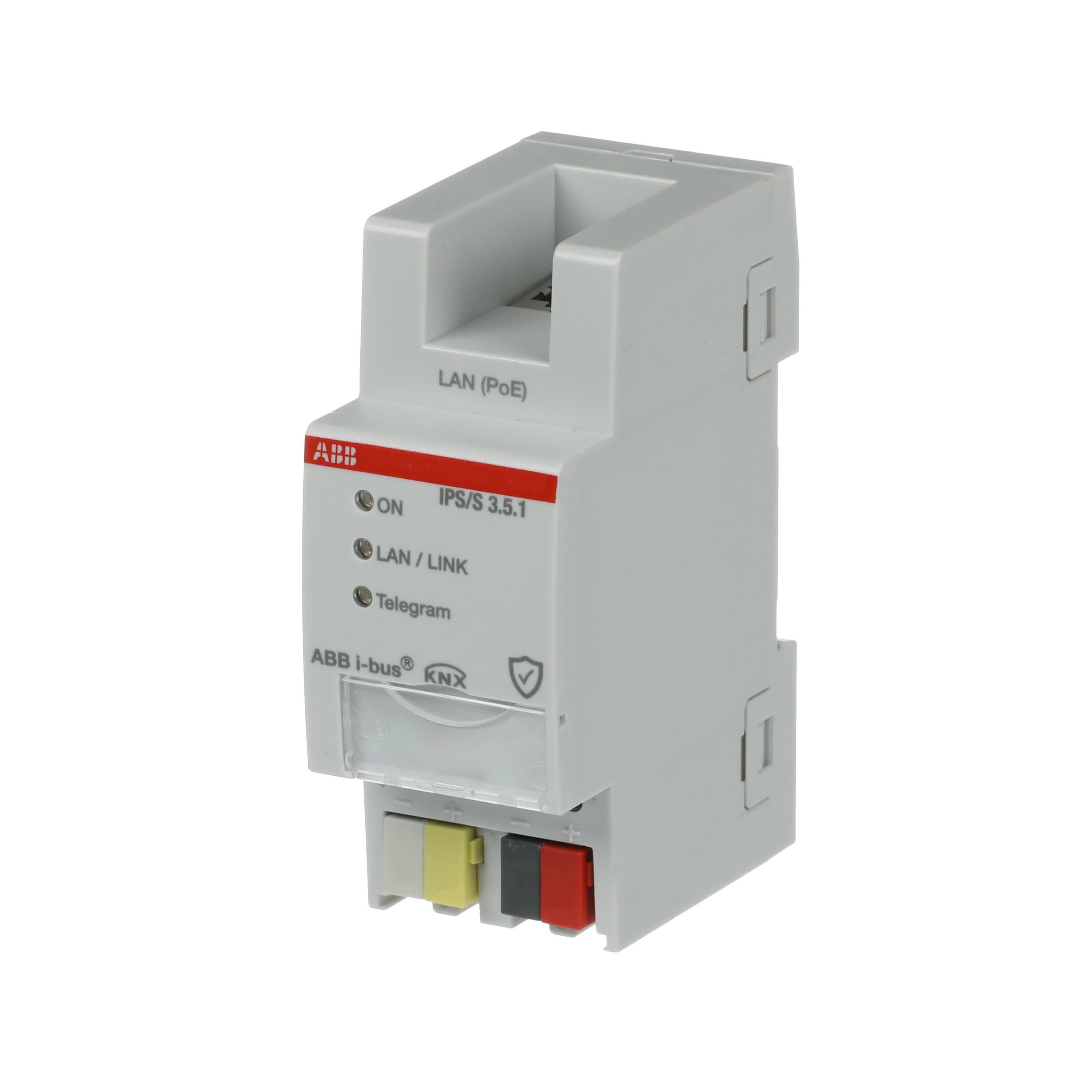

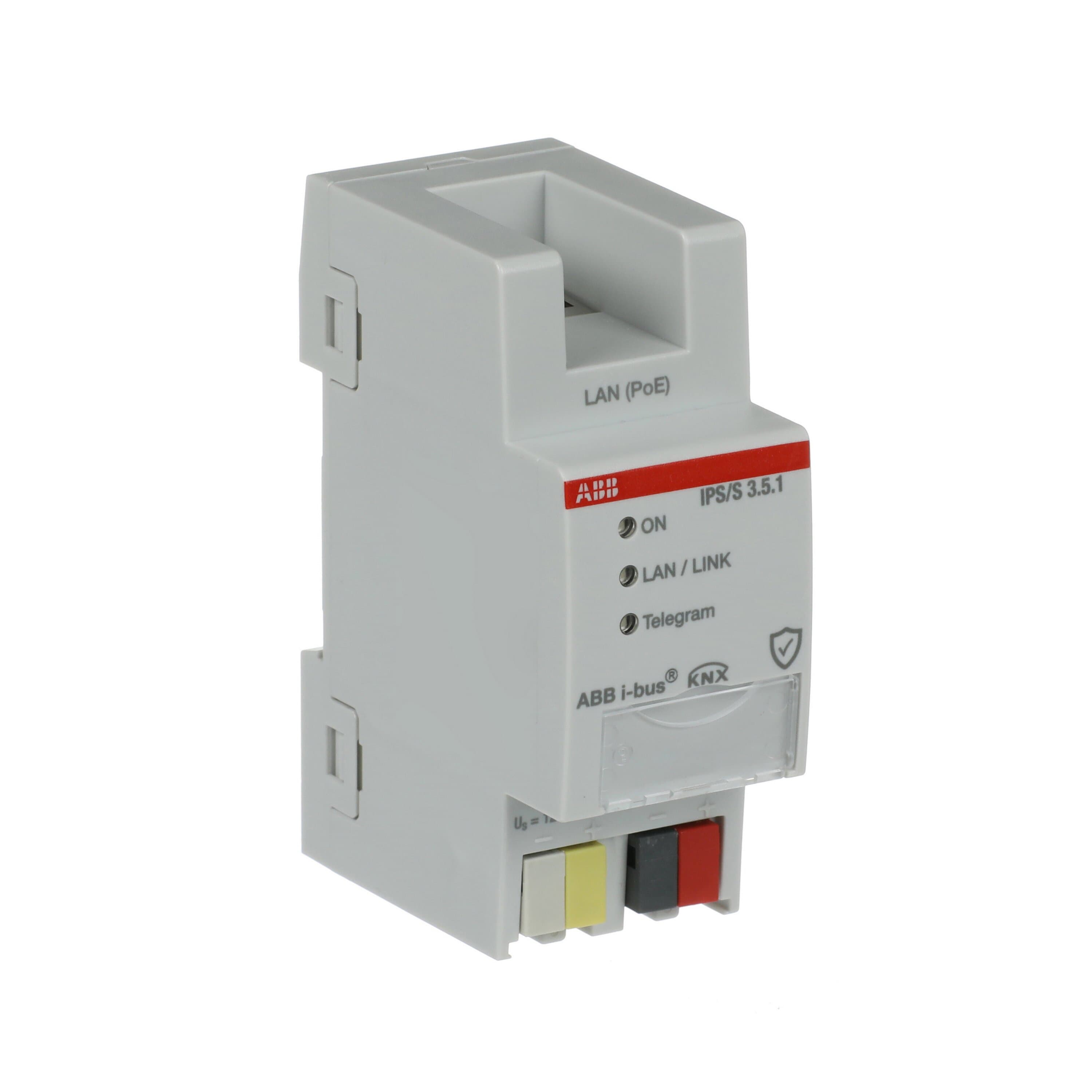

Connects the KNX bus with the Ethernet network and encrypts communication. The device uses the KNXnet/IP Secure protocol for communication (Tunneling). KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Secure Tunneling Servers are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12…30 V DC or PoE (IEEE 802.3af class 1).
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 25 392.15 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 27 361.19 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 28 030.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 29 199.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 30 203.91 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 32 233.38 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 41 332.48 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 42 750.65 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 58 695.38 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 63 652.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 70 265.21 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | light grey |
| Mounting Type | DIN-Rail |
| Degree of Protection | IP20 |
| Communication Interface | Ethernet |
| Number of LEDs | 3 |
| Compatible Bus Systems | KNX (TP), KNX (IP) |
| Product Range | KNX |
| Manual Operation | No |
| Number of Batteries | 0 |
| Security Standard | KNX IP Secure |
| Voltage Range | PoE |
| Auxiliary Voltage AC/DC | 12 ... 30 V DC |
| Power Loss | 1.8 W, Total 2 W |
| Surface Finishing | Matt |
| Housing Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | light grey |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.1 kg |
| E-Number (Finland) | 2815672 |
| E-Number (Norway) | 4544098 |
| E-Number (Sweden) | 1739849 |
| E-Number (Switzerland) | 405701055 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260821 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| ETIM 9 | EC000674 - Interface for bus system |
| ETIM 10 | EC000674 - Interface for bus system |
| eClass | V11.0 : 27143102 |
| UNSPSC | 43222605 |
| IDEA Granular Category Code (IGCC) | 6809 >> System interface/media gateway for bus system |
| Object Classification Code | A |
| extended_product_type | IPS/S3.5.1 |
| category_paths | Products > Low Voltage Products and Systems > Building and Home Automation Solutions > KNX > System Infrastructure and Interfacing > IP Routers and Interfaces |
