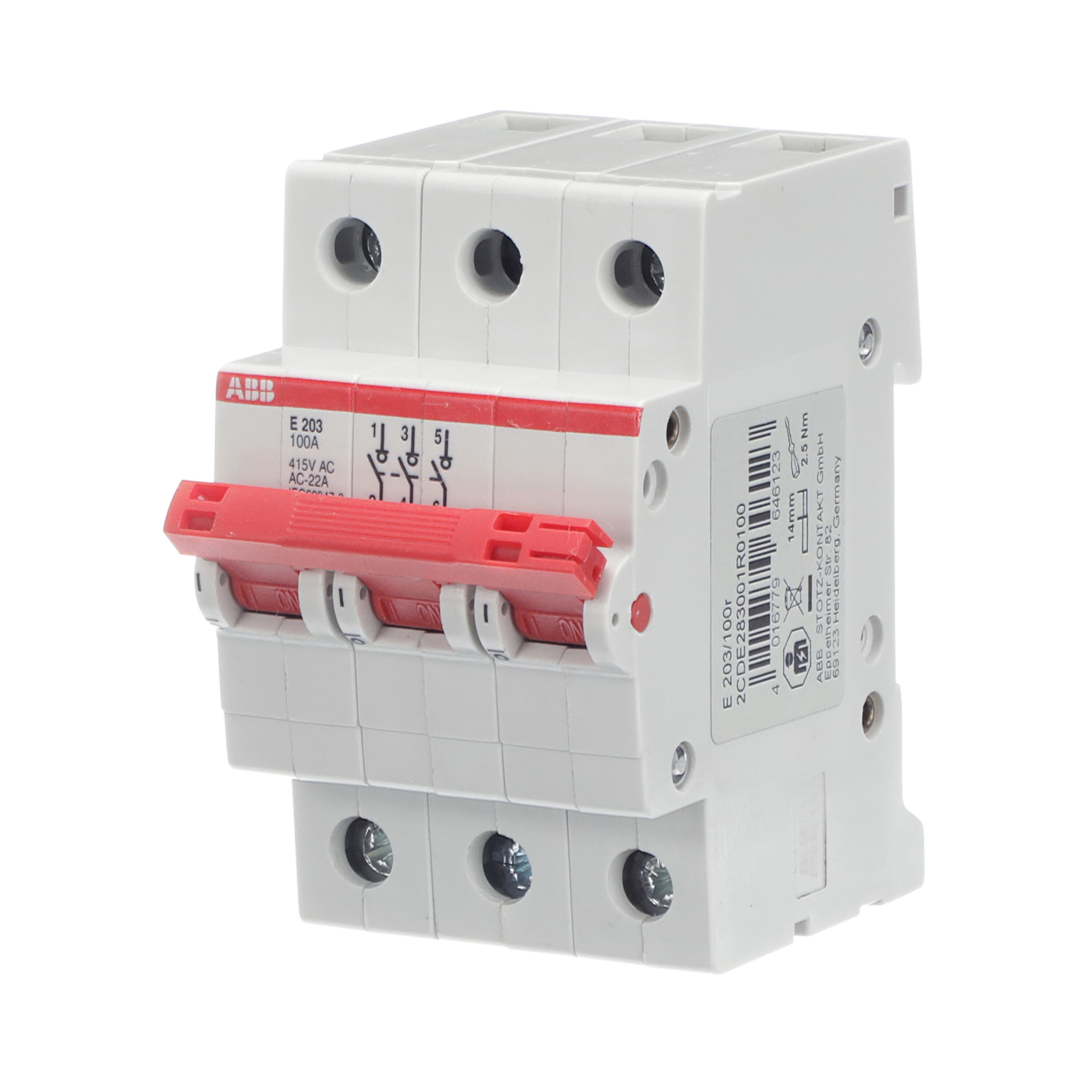

Артикул: 2CDE283001R0100
· Производитель: ABB
· EAN: 4016779646123
2CDE283001R0100
В наличии на нашем складе
Наличие в РФ
4 814.00 ₽
в наличии на складе · 8 шт.
Склад в Китае
3 756.01 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
3 402.51 ₽
срок ≈1 мес. (38 дн.)
These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized ON/OFF. Approval: VDE, CCC, KEMA
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 3 402.51 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 725.97 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 756.01 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 876.75 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 4 113.08 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 4 154.88 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Наш склад | 4 814.00 ₽ | В наличии | 8 шт. | — | Заказать |
| Склад в России | 5 436.11 ₽ | 5 дн. | 49 шт. | — | Заказать |
| Склад в Европе | 5 764.74 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 11 193.87 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 238.56 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 029.58 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 81.9 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 25 kA |
| Number of Poles | 3P |
| Switch Type | Off |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Installation Size | acc. to DIN 43880 3 |
| Rated Voltage (Ur) | 400 V, 12 V Minimum |
| Rated Operational Voltage | 230 / 400 V AC |
| Voltage Protection Level ( Up) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 100 A |
| Rated Short-Circuit Capacity | (230 / 400 V AC) 25 kA |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 3.95 W |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 3 |
| Overvoltage Category | IV |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Degree of Protection | IP10 |
| Pollution Degree | 3 |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 52.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.29 kg |
| Built-In Depth (t2) | 70 mm |
| Package Level 1 Units | carton 3 piece |
| Package Level 1 Gross Weight | 0.915 kg |
| E-Number (Norway) | 1424330 |
| Mounting Type | DIN-Rail |
| ETIM 9 | EC001047 - Selective main line circuit breaker |
| ETIM 10 | EC001047 - Selective main line circuit breaker |
| UNSPSC | 39122233 |
| eClass | V11.0 : 27142301 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| Standards | IEC/EN 60947-3 |
| Certification Agency | EN, IEC |
| extended_product_type | E203/100R |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Command and Signalling Devices > Switch Disconnectors |
